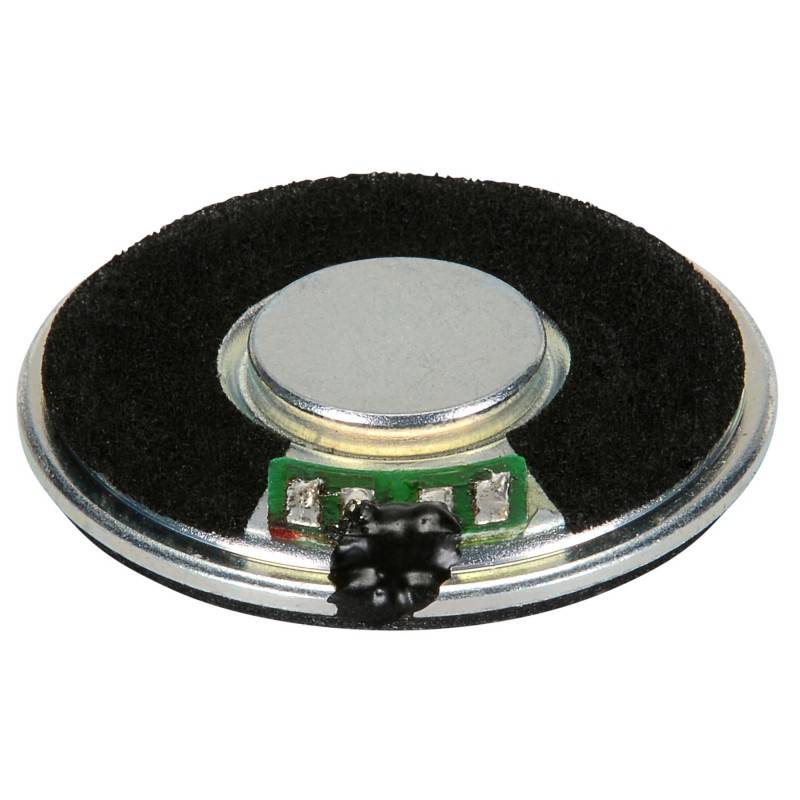

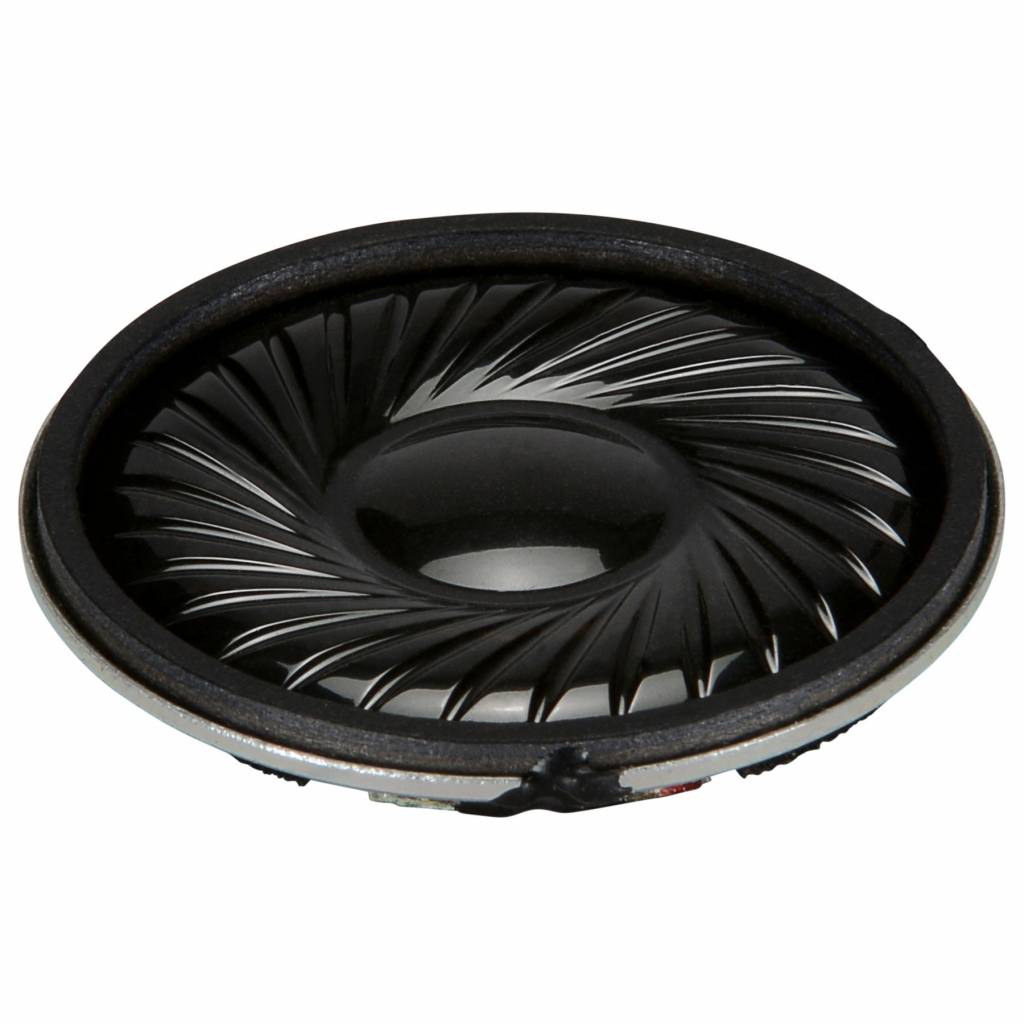

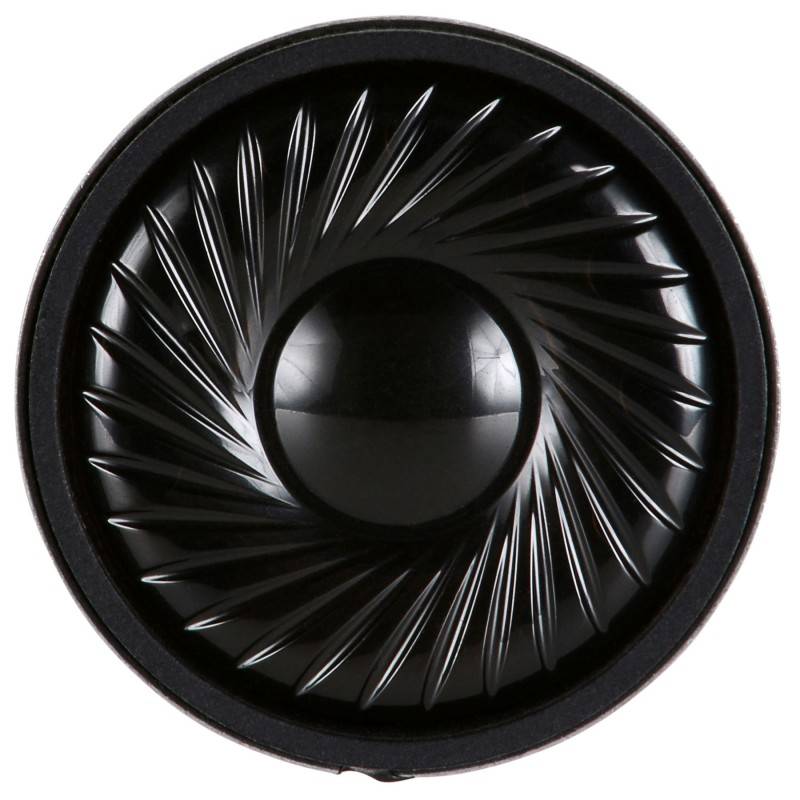

Dayton Audio CE38MB-32 1-1/2" Mini Speaker Black

In stock

  • Article code: CE38MB-32
  • Stock: 6 In stock

The CE38MB-32 from Dayton Audio is a versatile mini speaker with a black Mylar diaphragm and a 32 ohm impedance, which makes it a great replacement driver for headphones. Features a lightweight and powerful neodymium magnet, and a steel frame.

€ 4,25 Incl. 21% VAT

  • Buy 4 for €4,04 each and save 5% Sale 5%

Add to wishlist

  • Low international shipping rates Tooltip

    Find all shipping rates and free shipping thresholds here

  • Same day shipping
  • 45-day money back guarantee
  • International payment options

Product description

Dayton Audio CE38MB-32 1-1/2" Mini Speaker Black

The CE38MB-32 from Dayton Audio is a versatile mini speaker with a black Mylar diaphragm and a 32 ohm impedance, which makes it a great replacement driver for headphones. Features a lightweight and powerful neodymium magnet, and a steel frame.



Highlights

  • Lightweight mylar diaphragm
  • Rugged steel frame with front gasket
  • Powerful neodymium magnet
  • Suitable for headphone applications
  • 32 ohm impedance



Product details

Dayton Audio CE Series CE38MB-32 1-1/2" Mini Speaker Black 32 Ohm

The Commercial Engineering (CE) Series drivers from Dayton Audio provides engineers, designers, and integrators with a line of economical small drivers that fit the diverse range of applications found in consumer electronics and audio-enabled electronic projects.

Featuring a smooth-sounding and feather-light Mylar diaphragm and high 32 ohm impedance, the CE38MB-32 driver is the perfect replacement driver for headphones. The 32 ohm impedance makes it an easy load for the integrated headphone amplifier in most portable music devices and phones, while the 38mm frame replaces most 40 mm nominal size headphone drivers. It’s also a great fit for other low-power mini speaker applications, such as electronic toys, speakerphones, and intercoms.



Note: The Mylar diaphragm is very fragile. To prevent damage, avoid contact with the diaphragm when handling. This driver should be installed behind a grille.

Specifications

Specifications for: CE38MB-32 1-1/2" Mini Speaker Black

  • Woofer Series Specific woofer production line of the manufacturer. CE Series
  • Woofer Type The driver type for example subwoofer, mid-woofer, full range or coaxial woofer. Full-range
  • Nominal Diameter The approximate diameter of the driver, measured in inches. 1-1/2"
  • Power Handling (RMS) The average power handling capability of a driver (coil) in electric power (watts) for a long period of time without damaging the driver. RMS stands for Root Mean Square 0.25 Watts
  • Power Handling (max) The maximum electrical power that a woofer (coil) can handle for a short period of time before it is damaged. 0.50 Watts
  • View all specifications
  • Continuous Program Power
  • Impedance 32 ohms
  • Sensitivity 78 dB 1W/1m
  • Frequency Response 137 to 20,000 Hz
  • Voice Coil Diameter 0.5"
  • Magnet Weight
  • DC Resistance (Re) 31.98 ohms
  • Voice Coil Inductance (Le) 1.31 mH
  • Resonant Frequency (Fs) 137.9 Hz
  • Mechanical Q (Qms) 0.66
  • Electromagnetic Q (Qes) 1.15
  • Total Q (Qts) 0.42
  • Diaphragm Mass Inc. Airload (Mms) 0.06g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms) 21.3 mm/N
  • Surface Area of Cone (Sd) 4.9 cm²
  • Volume of Displacement (Vd)
  • BL Product (BL) 1.32 Tm
  • Compliance Equivalent Volume (Vas)
  • Maximum Linear Excursion (Xmax) 0.1 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Poly / Mylar Diaphragm
  • Surround Material
  • Voice Coil Wire Material
  • Voice Coil Former
  • Dual Voice Coil
  • Basket / Frame Material Steel
  • Magnet Material Neodymium
  • Shielded
  • Overall Outside Diameter 1.57"
  • Overall Depth 0.22"
  • Baffle Cutout Diameter 1.4"
  • Bolt Circle Diameter
  • # Mounting Holes
  • Mounting Hole Diameter
  • Sealed Volume
  • Sealed F3
  • Vented Volume
  • Vented F3
