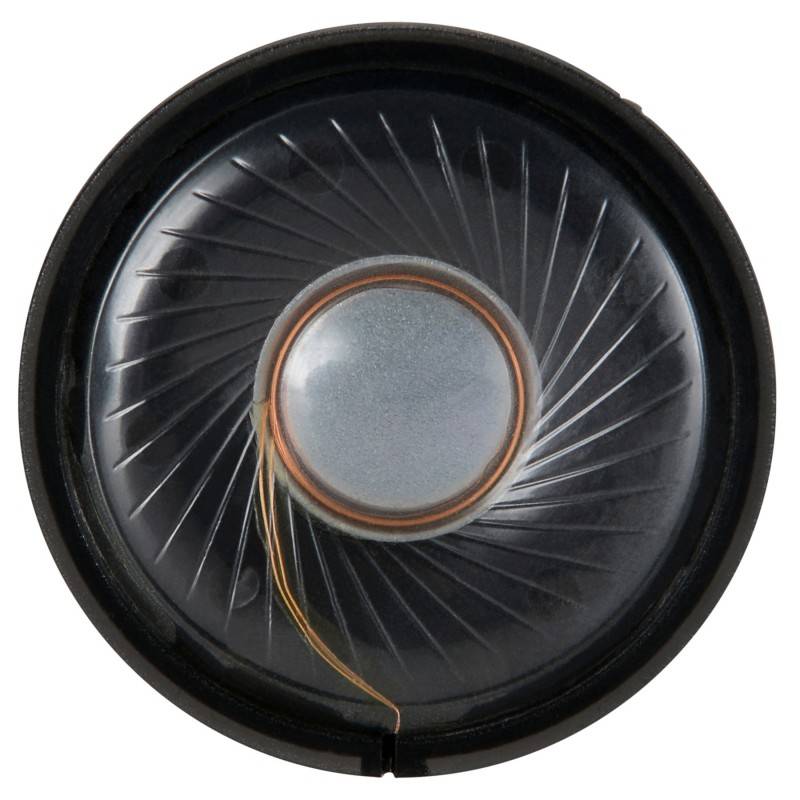

Dayton Audio CE38M-8 1-1/2" Mini Speaker

In stock

  • Article code: CE38M-8
  • Stock: 4 In stock

Dayton Audio’s CE38M-8 is a lightweight and versatile mylar-diaphragm mini speaker with a rugged plastic frame and neodymium magnet. It’s a great choice for new design or replacement use in headphones, kiosks, electronic games, or portable electronics.

€ 4,25 Incl. 21% VAT

  • Buy 4 for €4,04 each and save 5% Sale 5%

Add to wishlist

  • Low international shipping rates Tooltip

    Find all shipping rates and free shipping thresholds here

  • Same day shipping
  • 45-days the right to cancel
  • International payment options

Product description

Dayton Audio CE38M-8 1-1/2" Mini Speaker

Dayton Audio’s CE38M-8 is a lightweight and versatile mylar-diaphragm mini speaker with a rugged plastic frame and neodymium magnet. It’s a great choice for new design or replacement use in headphones, kiosks, electronic games, or portable electronics.



Highlights

  • Lightweight mylar diaphragm
  • Rugged molded plastic frame
  • Powerful neodymium magnet
  • Light weight, low cost



Product details

Dayton Audio CE Series CE38M-8 1-1/2" Mini Speaker 8 Ohm

The Commercial Engineering (CE) Series drivers from Dayton Audio provides engineers, designers, and integrators with a line of economical small drivers that fit the diverse range of applications found in consumer electronics and audio-enabled electronic projects.

The Dayton Audio CE38M-8 1-1/2” mini speaker features a feather-light and smooth-sounding Mylar diaphragm and a lightweight injection-molded plastic frame, making it great for portable electronics and headphones. The high sensitivity also enables it to be used as a speaker in kiosks, intercoms, displays, or electronic games, and the 8-ohm impedance works with most small audio amplifiers or line-level outputs. The round frame can be press-fit or glued in place.



Note: The Mylar diaphragm is very fragile. To prevent damage, avoid contact with the diaphragm when handling. This driver should be installed behind a grille.

Specifications

Specifications for: CE38M-8 1-1/2" Mini Speaker

  • Woofer Series Specific woofer production line of the manufacturer. CE Series
  • Woofer Type The driver type for example subwoofer, mid-woofer, full range or coaxial woofer. Full-range
  • Nominal Diameter The approximate diameter of the driver, measured in inches. 1-1/2"
  • Power Handling (RMS) The average power handling capability of a driver (coil) in electric power (watts) for a long period of time without damaging the driver. RMS stands for Root Mean Square 0.25 Watts
  • Power Handling (max) The maximum electrical power that a woofer (coil) can handle for a short period of time before it is damaged. 0.50 Watts
  • View all specifications
  • Continuous Program Power
  • Impedance 8 ohms
  • Sensitivity 75 dB 2.83V/1m
  • Frequency Response 190 to 20,000 Hz
  • Voice Coil Diameter 0.5"
  • Magnet Weight
  • DC Resistance (Re) 7.72 ohms
  • Voice Coil Inductance (Le) 0.172 mH
  • Resonant Frequency (Fs) 191.8 Hz
  • Mechanical Q (Qms) 1.591
  • Electromagnetic Q (Qes) 4.453
  • Total Q (Qts) 1.172
  • Diaphragm Mass Inc. Airload (Mms) 0.07g
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms) 9.68 mm/N
  • Surface Area of Cone (Sd) 4.9 cm²
  • Volume of Displacement (Vd)
  • BL Product (BL) 0.39 Tm
  • Compliance Equivalent Volume (Vas)
  • Maximum Linear Excursion (Xmax) 0.1 mm
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Poly / Mylar Diaphragm
  • Surround Material
  • Voice Coil Wire Material
  • Voice Coil Former
  • Dual Voice Coil
  • Basket / Frame Material
  • Magnet Material Neodymium
  • Shielded
  • Overall Outside Diameter 1.65"
  • Overall Depth 0.3"
  • Baffle Cutout Diameter 1.45"
  • Bolt Circle Diameter
  • # Mounting Holes
  • Mounting Hole Diameter
  • Sealed Volume
  • Sealed F3
  • Vented Volume
  • Vented F3
