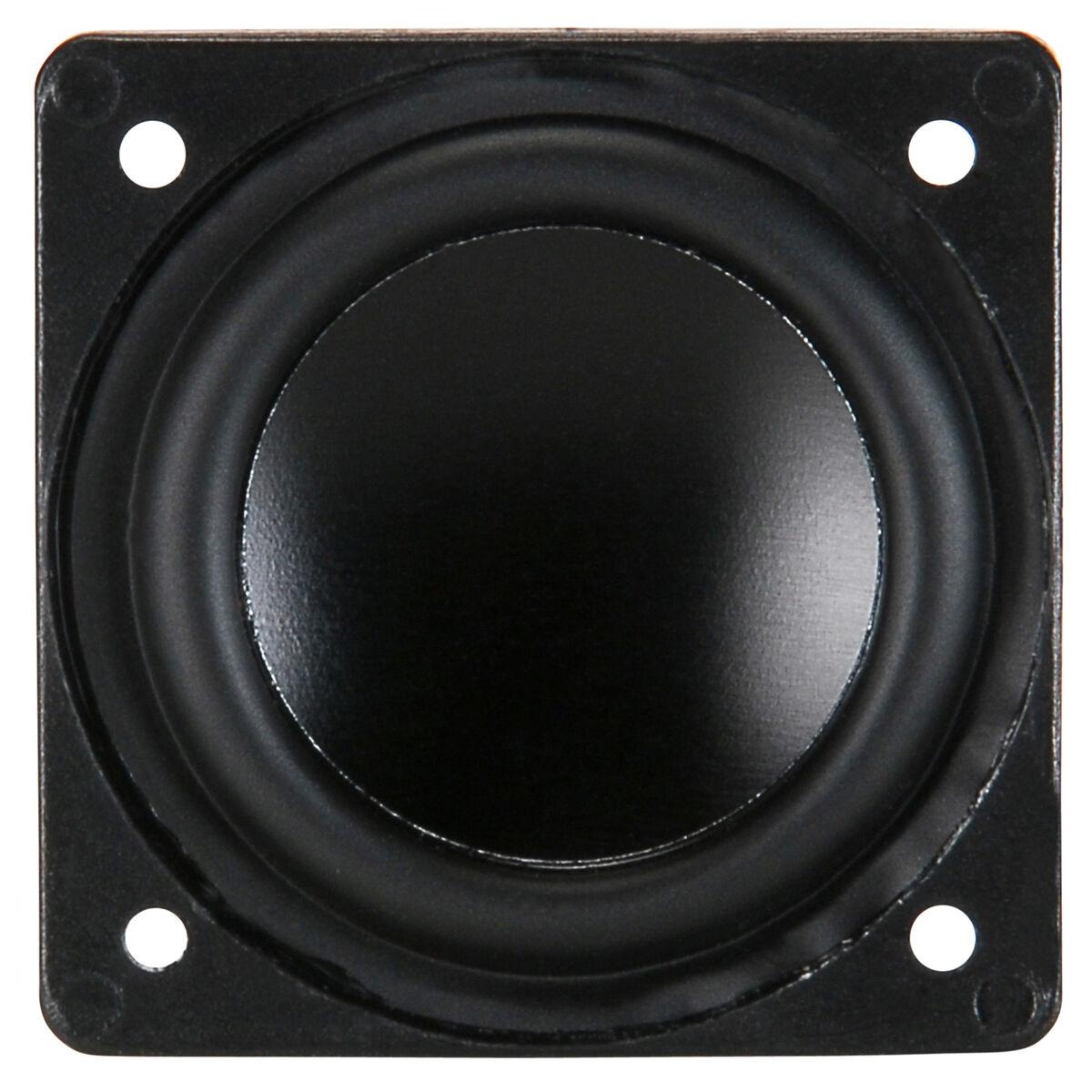

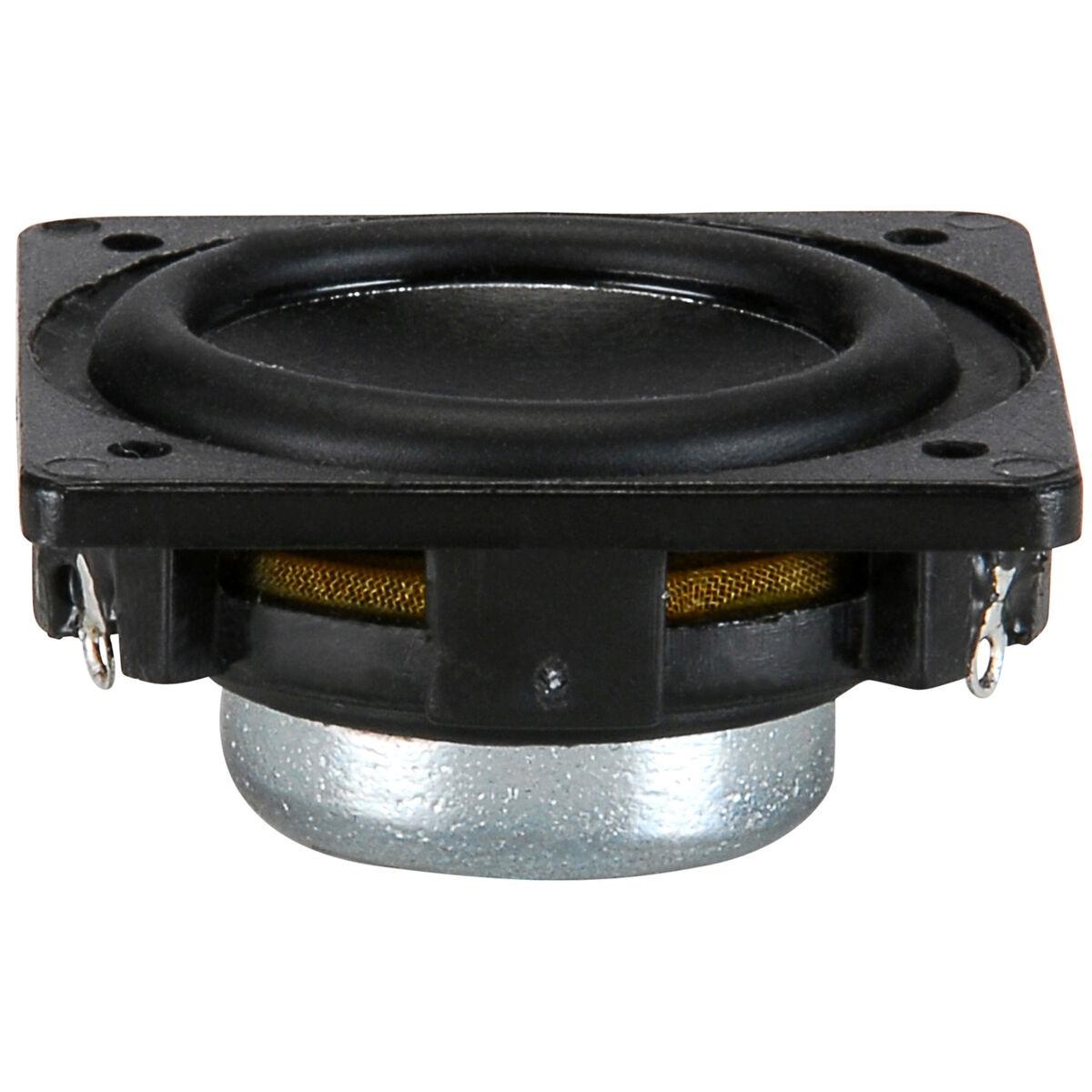

    Dayton Audio CE32A-4 1-1/4" Mini Speaker

    € 4,50€ 5,45 Out of stock: delivery time 1 week
    Bulk discount Enjoy these awesome discount deals
    • -5% Order 4 for only €5,18 per piece
    • Shipping always fully insured and with track & trace
    • Low international shipping rates
    • Same day shipping*
    • In-house technical support

    Product description

    Great-looking and great-sounding, the CE32A-4 miniature speaker driver from Dayton Audio has the goods in a surprisingly small package. Its high-quality design has big-speaker features like an elegant black-anodized aluminum cone, rubber surround, and a neodymium motor. 4 ohm impedance.



    Highlights

    • Black anodized aluminum inverted dome diaphragm
    • Rubber surround and cloth spider for low distortion
    • High-energy double neodymium magnet motor



    Product details

    Dayton Audio CE Series CE32A-4 1-1/4" Mini Speaker 4 Ohm

    Dayton Audio is pleased to introduce the new Commercial Engineering (CE) Series of small loudspeaker drivers. Engineers, designers, and integrators will benefit from how effortlessly these speaker components satisfy the diverse demands associated with consumer electronics and audio-enabled projects.

    The CE32A-4 provides features you’d expect from a much larger driver, in a size that’s perfect for miniature applications that require wide dispersion and rich, natural sound. Its high-quality design features an elegant black-anodized concave aluminum diaphragm, rubber surround, textile spider, high-output neodymium motor, and a square injection-molded frame drilled for conventional mounting.



    Multiple types and styles are available within the Dayton Audio CE Series driver family. Each was produced to provide excellent audio quality no matter what the overall system design goals may be, and to suit a wide spectrum of engineering requirements. These versatile yet economical loudspeakers are available in sizes from 28 mm (1-1/8") to 90 mm (3-1/2") in diameter, and with power ratings from 1.5 watts to 5 watts continuous RMS power.

    Specifications

    Article number
    CE32A-4
    Nominal Diameter
    1"
    Power Handling (RMS)
    2 Watts
    Power Handling (max)
    4 Watts
    Impedance (Z)
    4 ohms
    Sensitivity
    81 dB 2.83V/1m
    Frequency Response
    240 to 20,000 Hz
    Voice Coil Diameter
    0.5"
    DC Resistance (Re)
    3.6 ohms
    Voice Coil Inductance (Le)
    0.15 mH
    Resonant Frequency (Fs)
    262 Hz
    Mechanical Q (Qms)
    2.86
    Electromagnetic Q (Qes)
    1.24
    Total Q (Qts)
    0.86
    Diaphragm Mass Inc. Airload (Mms)
    0.52g
    Mechanical Compliance of Suspension (Cms)
    0.69 mm/N
    Surface Area of Cone (Sd)
    3.92 cm²
    BL Product (BL)
    1.59 Tm
    Compliance Equivalent Volume (Vas)
    0.00052 ft.³
    Maximum Linear Excursion (Xmax)
    0.5 mm
    Cone / Diaphragm Material
    Aluminum
    Surround Material
    Rubber
    Magnet Material
    Neodymium
    Overall Outside Diameter
    1.26"
    Overall Depth
    0.57"
    Baffle Cutout Diameter
    1.24"
    # Mounting Holes
    4
    Sealed Volume
    0.000799 ft.³
    Sealed F3
    280.1 Hz
    Vented Volume
    0.00233 ft.³
    Vented F3
    134.3 Hz
