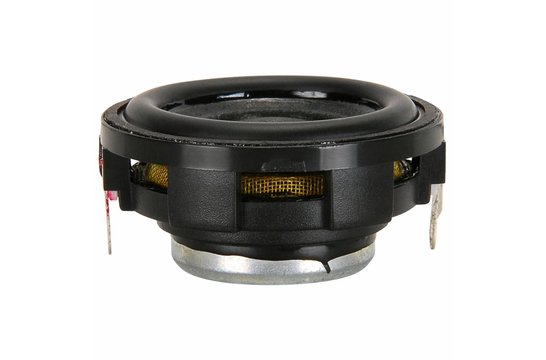

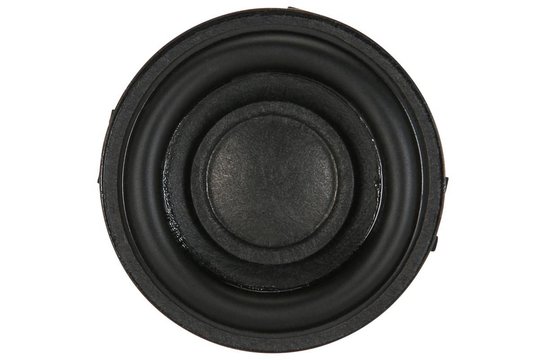

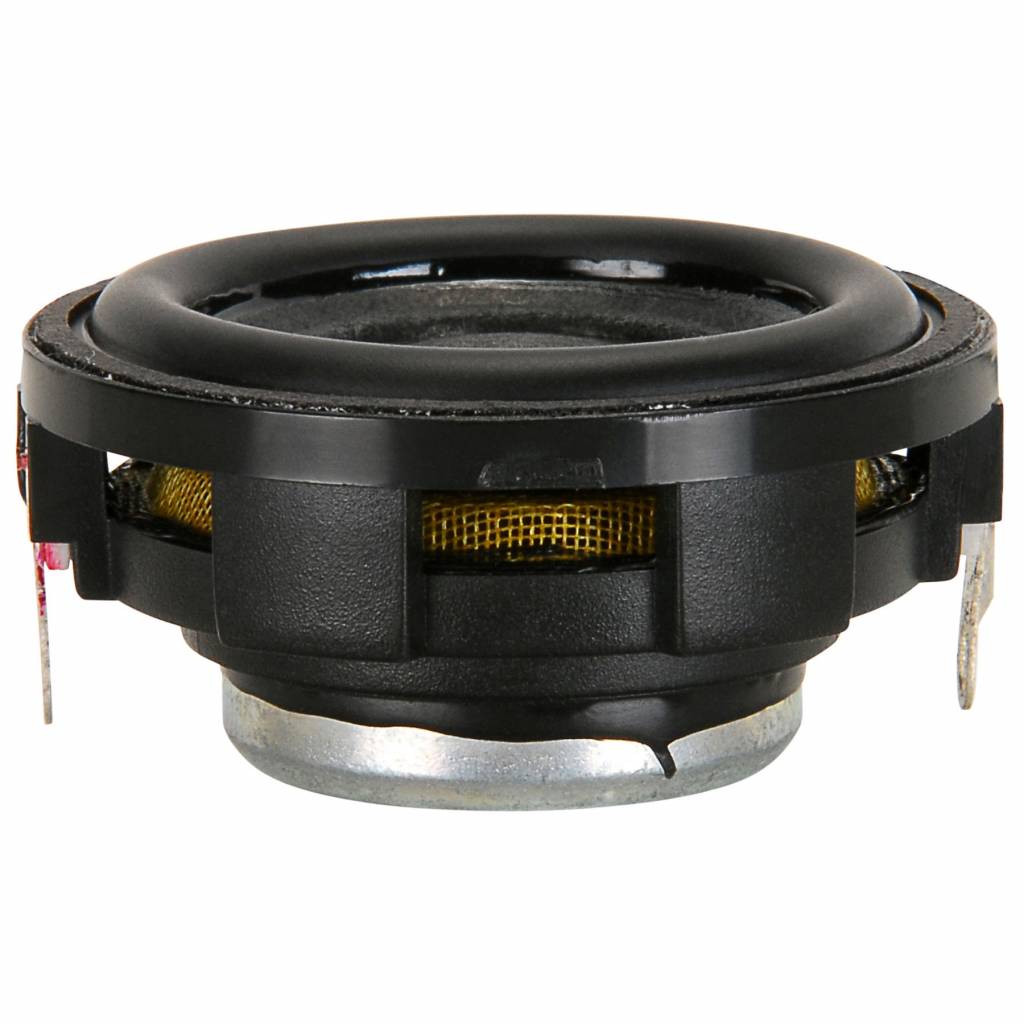

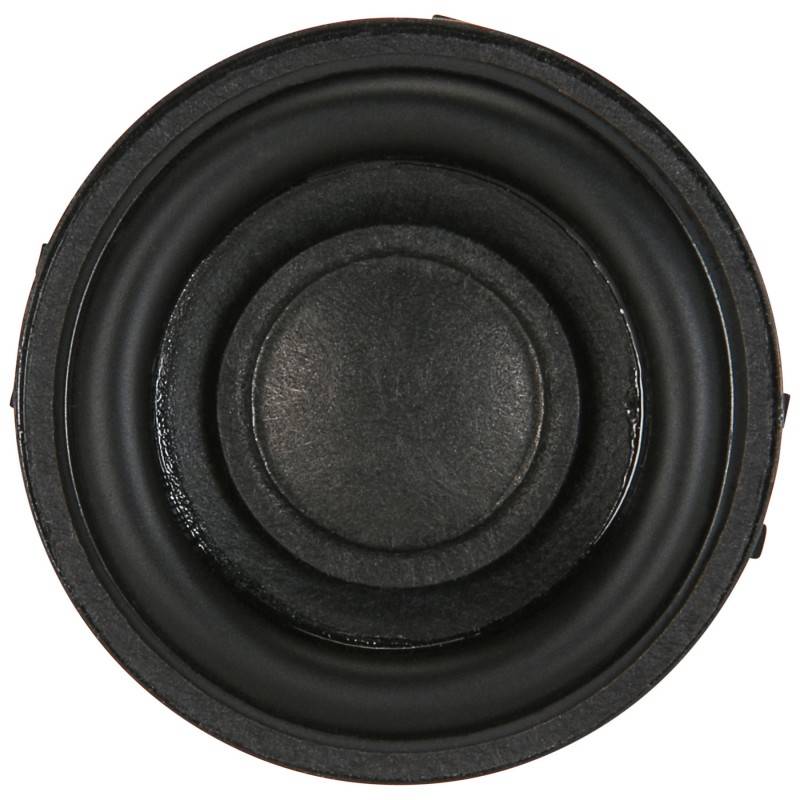

      Dayton Audio CE30P-4 1-1/4" Mini Speaker

      € 5,33€ 6,45 8 In stock: delivery time 1-4 business days
      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only €6,13 per piece
      • 24h express shipping available
      • Low international shipping rates
      • Same day shipping
      • In-house technical support
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      The Dayton Audio CE30P-4 features a paper cone, round plastic frame, rubber surround, and powerful neodymium motor structure, for small devices and projects that require big sound from a small driver. 4-ohm impedance.



      Highlights

      • Extremely compact size in a press-fit frame
      • Paper cone, rubber surround
      • High-output double neodymium magnet motor



      Product details

      Dayton Audio CE Series CE30P-4 1-1/4" Mini Speaker

      Dayton Audio is pleased to introduce the new Commercial Engineering (CE) Series of small loudspeaker drivers. Engineers, designers, and integrators will benefit from how effortlessly these speaker components satisfy the diverse demands associated with consumer electronics and audio-enabled projects.

      The Dayton Audio CE30P-4 provides big-speaker features in an extremely compact unit. It features a paper cone, rubber roll surround, and high-energy double neodymium motor structure, mounted to a robust injection-molded plastic frame that’s perfect for press-fit or glued mounting. Its design makes it perfect for use in multimedia loudspeakers, small docking speakers for portable music players, or compact television frames and sound bars, plus a variety of other applications.

      Multiple types and styles are available within the CE Series driver family. Each was produced to provide excellent audio quality no matter what the overall system design goals may be, and to suit a wide spectrum of engineering requirements. These versatile yet economical loudspeakers are available in sizes from 28 mm (1-1/8") to 90 mm (3-1/2") in diameter, and with power ratings from 1.5 watts to 5 watts continuous RMS power.

      Specifications

      Article number
      CE30P-4
      Woofer Series
      CE series
      Woofer Type
      Micro speaker
      Nominal Diameter
      1"
      Power Handling (RMS)
      2 Watts
      Power Handling (max)
      4 Watts
      Impedance (Z)
      4 ohms
      Sensitivity
      81 dB 1W/1m
      Frequency Response
      280 to 14,000 Hz
      Voice Coil Diameter
      0.51"
      DC Resistance (Re)
      3.4 ohms
      Voice Coil Inductance (Le)
      0.19 mH
      Resonant Frequency (Fs)
      336 Hz
      Mechanical Q (Qms)
      3.62
      Electromagnetic Q (Qes)
      1.03
      Total Q (Qts)
      0.8
      Diaphragm Mass Inc. Airload (Mms)
      0.65g
      Mechanical Compliance of Suspension (Cms)
      0.34 mm/N
      Surface Area of Cone (Sd)
      4.1 cm²
      BL Product (BL)
      2.16 Tm
      Maximum Linear Excursion (Xmax)
      0.3 mm
      Cone / Diaphragm Material
      Paper
      Surround Material
      Rubber
      Magnet Material
      Neodymium
      Overall Outside Diameter
      1.25"
      Overall Depth
      0.57"
      Baffle Cutout Diameter
      1.19"

      Show more
