Not only is the Dayton Audio BR-1 6-1/2" 2-way monitor kit a great-sounding speaker system, it is also an effective educational tool for those who wish to explore the loudspeaker construction hobby.
Dayton Audio BR-1 6-1/2" 2-Way Bookshelf Monitor Speaker Kit Pair
The high-end Dayton Audio BR-1 2-way monitor is based on the popular Dayton Audio DC28F-8 1-1/8" silk dome tweeter and DC160-8 6-1/2" woofer. It was designed to provide a low cost, easy-to-build 2-way system for the speaker building novice. The end result is a kit that can be assembled in a couple of hours and has a sound that rivals systems costing two or three times its modest price!

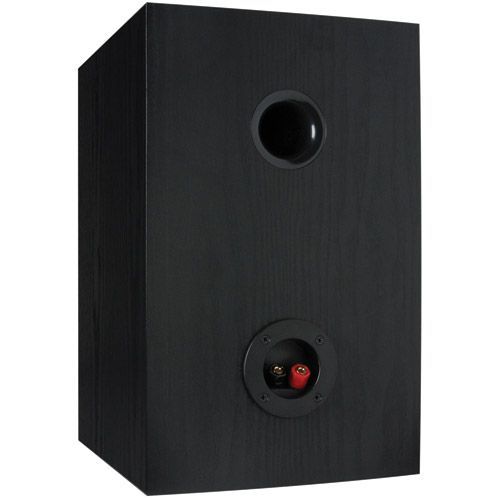

Overall, the speakers are smooth and detailed, with a wide soundstage that belies their smallish size. The tonal balance is on the warm side of neutral, which is pleasing with most types of music. The bass is also impressive for a system of this size. The cabinets are made of 5/8" MDF finished in an unobtrusive "black ash" vinyl laminate and include grills with black cloth. All driver holes are CNC precision cut for a perfect fit. The tweeter is flush mounted to reduce diffraction effects.

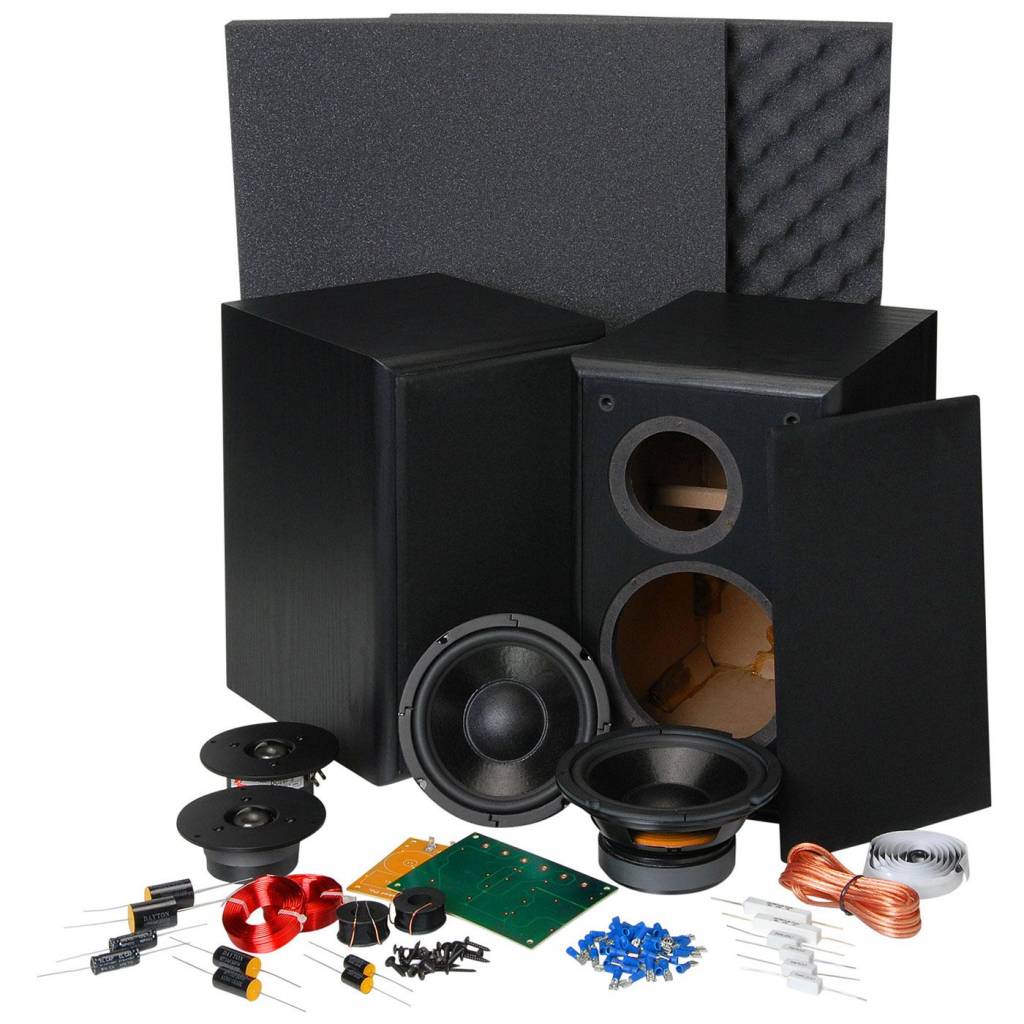

Note: This system is offered in kit form and can be assembled in about two hours. The crossover requires assembly, so soldering skills are necessary. We've included a tutorial that thoroughly explains the theory and design process, making this kit perfect for educational programs. Each kit includes everything needed to build one pair of speakers.
System Specifications: • Impedance: 8 ohms • Frequency response: 43-18,000 Hz • SPL: 85 dB 2.83V/1m • Power handling: 100 watts max. • Cabinet dimensions: 14-1/4" H x 8-5/8" W x 11" D.
Cabinet Dimensions (H x W x D)
14-1/4” x 8-5/8” x 11”
