Dayton Audio AMTPOD-4 Air Motion Transformer Automotive Tweeter Pair

In stock

  • Article code: AMTPOD-4
  • Stock: 6 In stock

Dayton Audio's AMTPOD-4 makes it easy to add clear, detailed, natural-sounding highs to any car audio system. Air Motion Transformer technology enables these tiny component tweeters to achieve high output levels while sounding effortless, with better deta

€ 59,95 Incl. 21% VAT

  • Buy 4 for €56,95 each and save 5% Sale 5%

Add to wishlist

  • Low international shipping rates Tooltip

    Find all shipping rates and free shipping thresholds here

  • Same day shipping
  • 45-day money back guarantee
  • International payment options

Product description

Dayton Audio AMTPOD-4 Air Motion Transformer Automotive Tweeter Pair

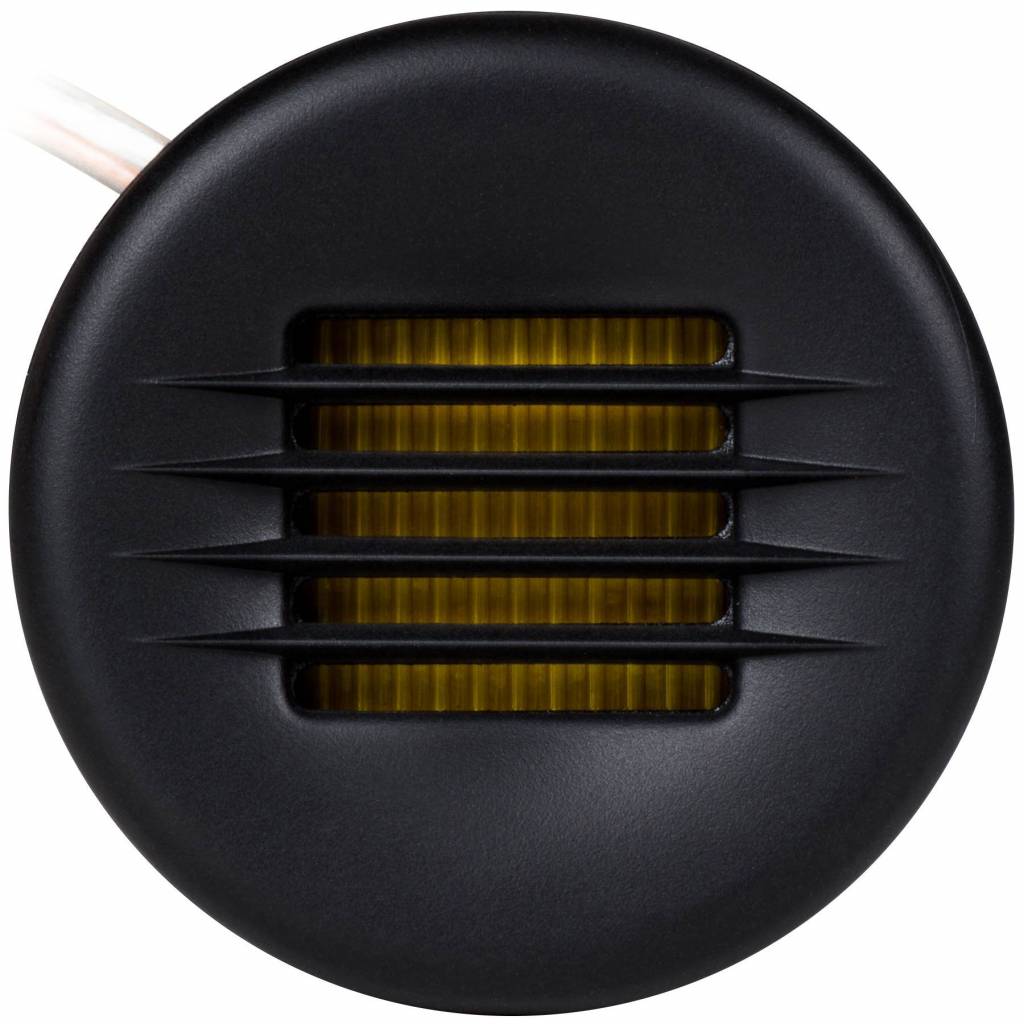

Dayton Audio's AMTPOD-4 makes it easy to add clear, detailed, natural-sounding highs to any car audio system. Air Motion Transformer technology enables these tiny component tweeters to achieve high output levels while sounding effortless, with better detail than most dome tweeters.



Highlights

  • Air Motion Technology, for detailed, non-fatiguing treble
  • Extended, open, dynamic high-frequency performance
  • Angled enclosure can be placed anywhere in your vehicle
  • Pleated Kapton diaphragm with aluminum conductor for high power handling

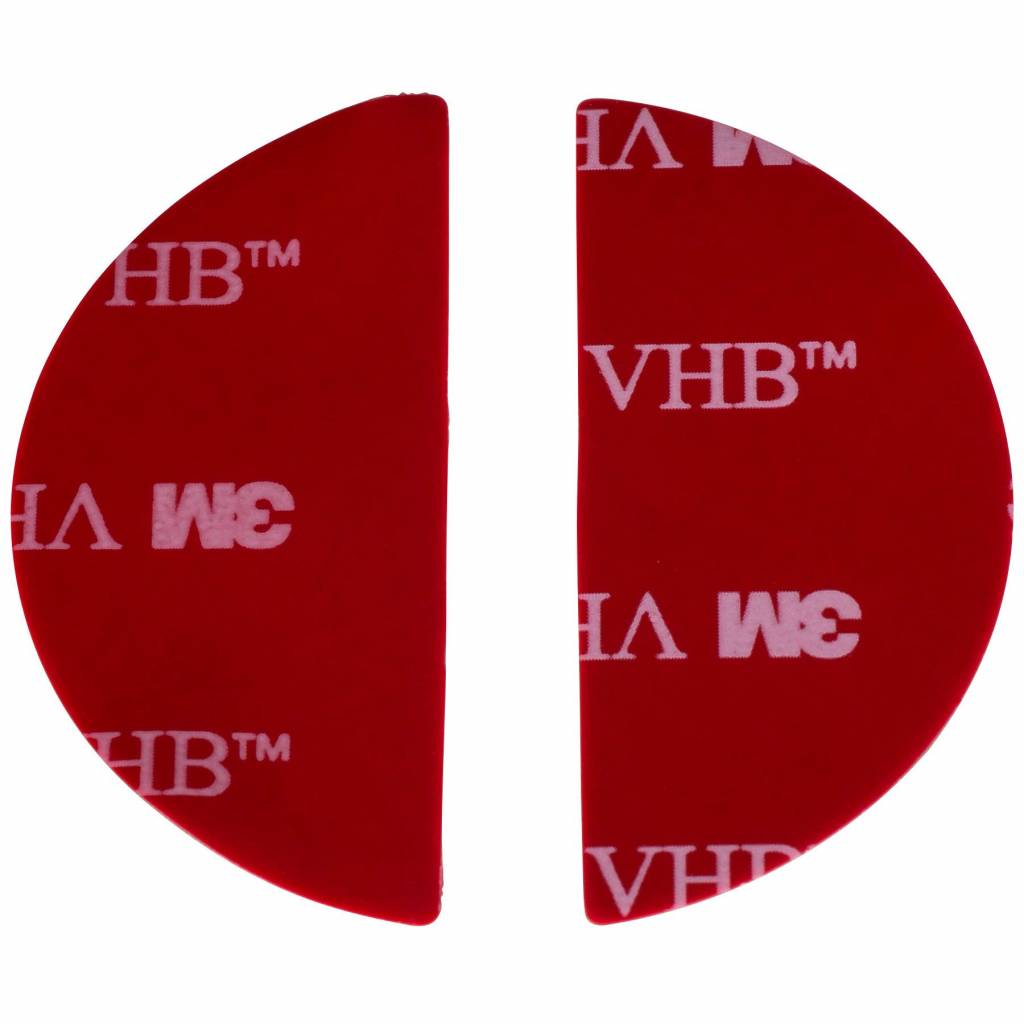

  • Easy installation with 3M VHB mounting tape and connecting leads



Product details

Dayton Audio AMTPOD-4 Air Motion Transformer Automotive Tweeter Pair

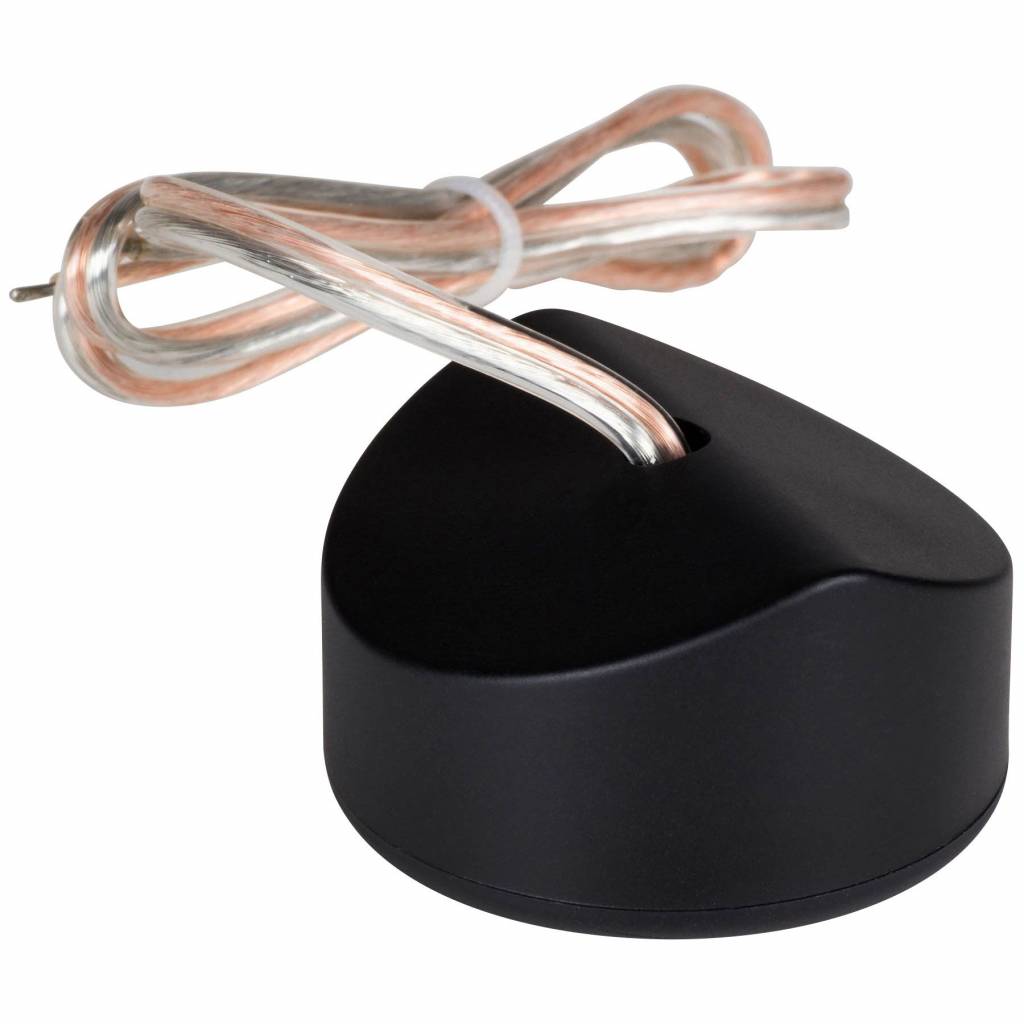

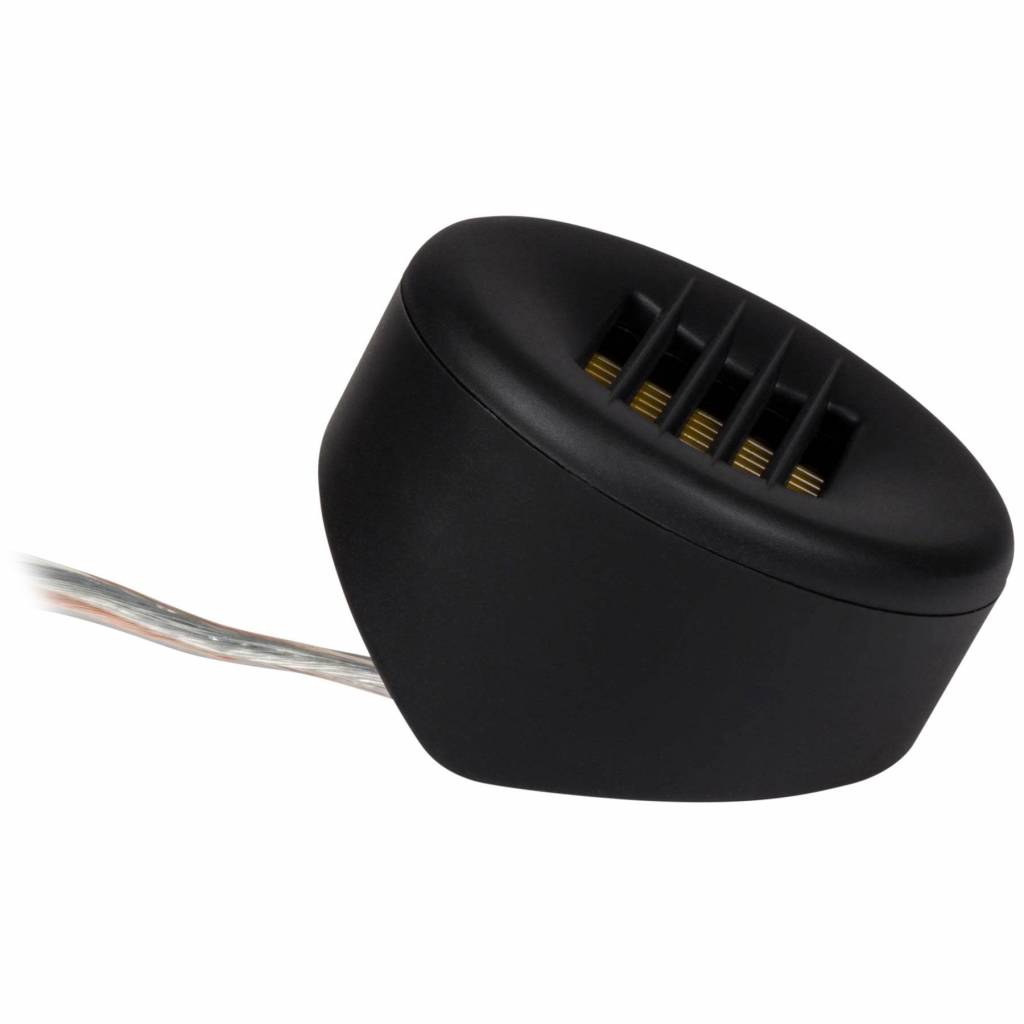

Get ready for AMT treble quality in your car! The Dayton Audio AMTPOD-4 is a high-technology Air Motion Transformer tweeter encased in a compact angled "pod" enclosure for easy mounting in your car. Try them on your dashboard and experience a wide, expansive soundstage with open and extended highs and incredible detail!

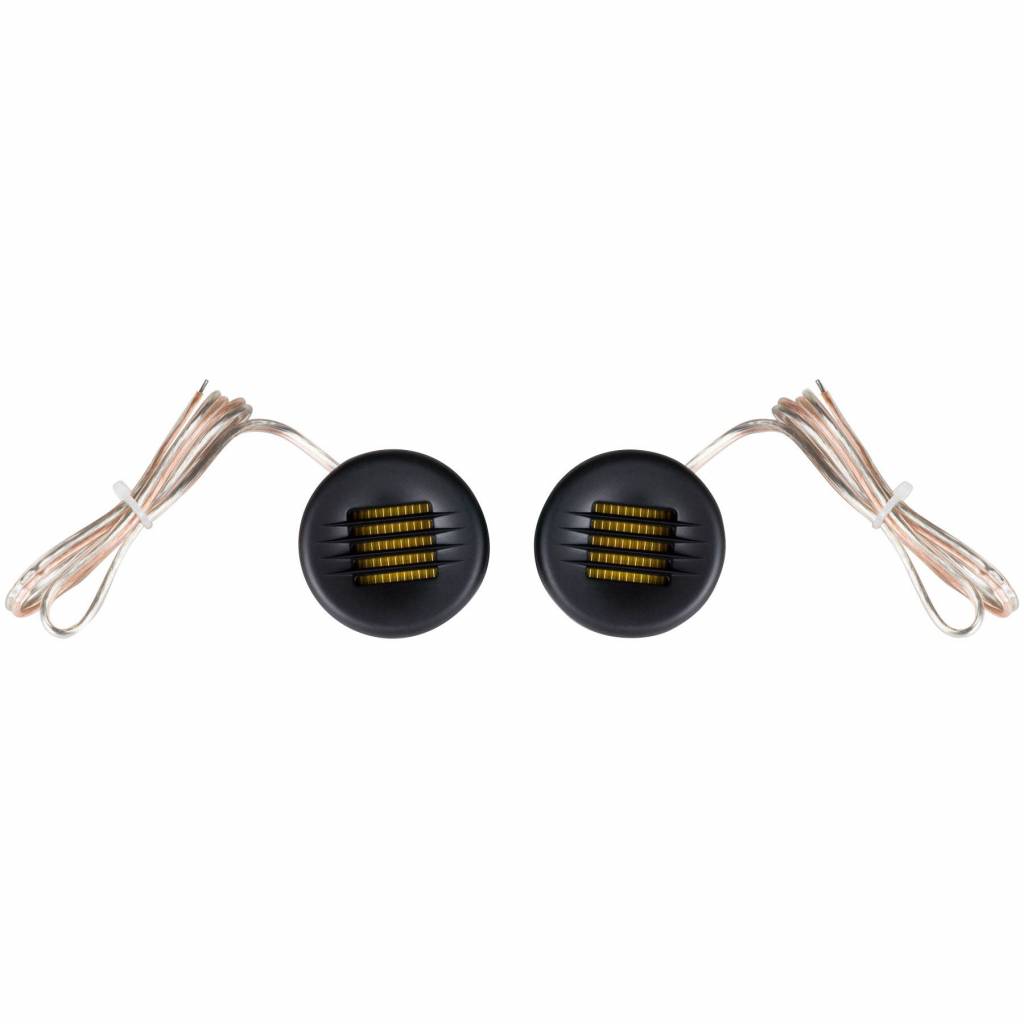

The angled housings can be positioned anywhere on your dash or A-pillar, then adhered using the included mounting tape. Simply connect the included lead wires to an appropriate high-pass crossover (4500 Hz or above), and you are ready to begin enjoying audiophile-quality treble performance. The AMTPOD-4 tweeters are sold as a pair, to complete your installation at a great price!



Note: The AMTPOD-4 does not include an internal crossover capacitor; this allows you to choose the quality of the capacitor use. We recommend a 6.8 uF non-polar capacitor in series with the positive connection of the AMTPOD-4 to provide an effective crossover point near 4500 Hz. Using this tweeter without a high-pass filter capacitor is not recommended and may result in damage.



Specifications: • Power Handling: 15 watts RMS/30 watts max • Impedance: 4 Ohms • Frequency Response: 4,500-25,000 Hz • SPL: 90 dB 2.83V/1m • Lead Length: 20" • Dimensions: Overall diameter: 1.65" Height: 0.86" Angle: 30 degrees.

Specifications

Specifications for: AMTPOD-4 Air Motion Transformer Automotive Tweeter Pair

  • Tweeter Type Driver type for example: soft domes piezo, ribbon, AMT or bullet tweeter etc. Air Motion Transformer (AMT)
  • Tweeter Series Specific tweeter production line of the manufacturer. AMT Series
  • Cone / Dome Diameter Nominal diameter of the dome/cone, measured in inches.
  • Power Handling (RMS) The average power handling capability of a driver (coil) in electric power (watts) for a long period of time without damaging the driver. RMS stands for Root Mean Square 15 Watts
  • Power Handling (max) The maximum electrical power that a woofer (coil) can handle for a short period of time before it is damaged. 30 watts
  • View all specifications
  • Impedance 4 Ohms
  • Sensitivity 90 dB 2.83V/1m
  • Frequency Response 4,500-25,000 Hz
  • Resonant Frequency (Fs)
  • DC Resistance (Re)
  • Voice Coil Inductance (Le)
  • Mechanical Q (Qms)
  • Electromagnetic Q (Qes)
  • Total Q (Qts)
  • Overall Outside Diameter 1.65"
  • Cutout Diameter
  • Depth 0.86"
  • Angle 30 degrees
  • Mounting Type
  • Exit Diameter
  • Diaphragm Material
  • Recommended cut frequency

Documenten

Reviews

User reviews 5 / 5 Reviews: (1)

  • JH By Joachim H. on 09-02-2020 10:38

    5 / 5

    Es wurde keine Beschreibung gegeben.
