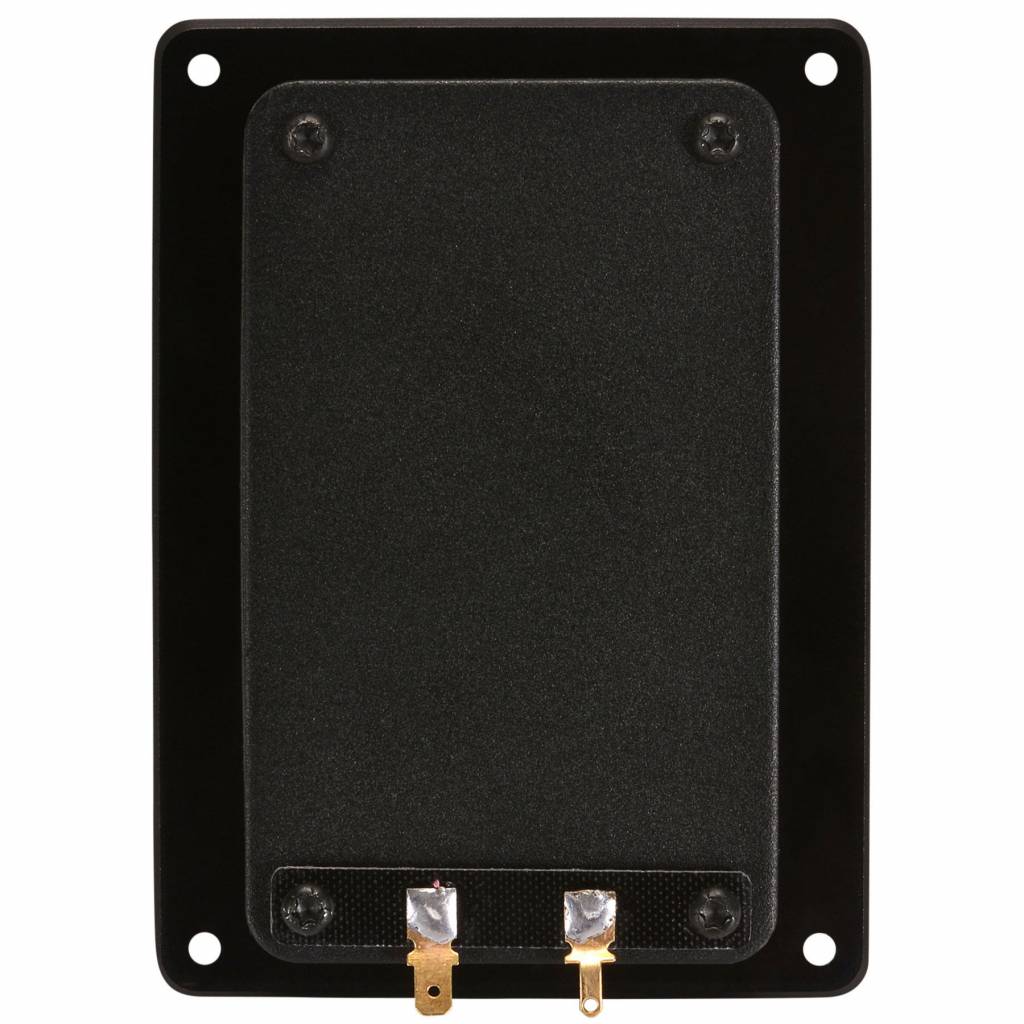

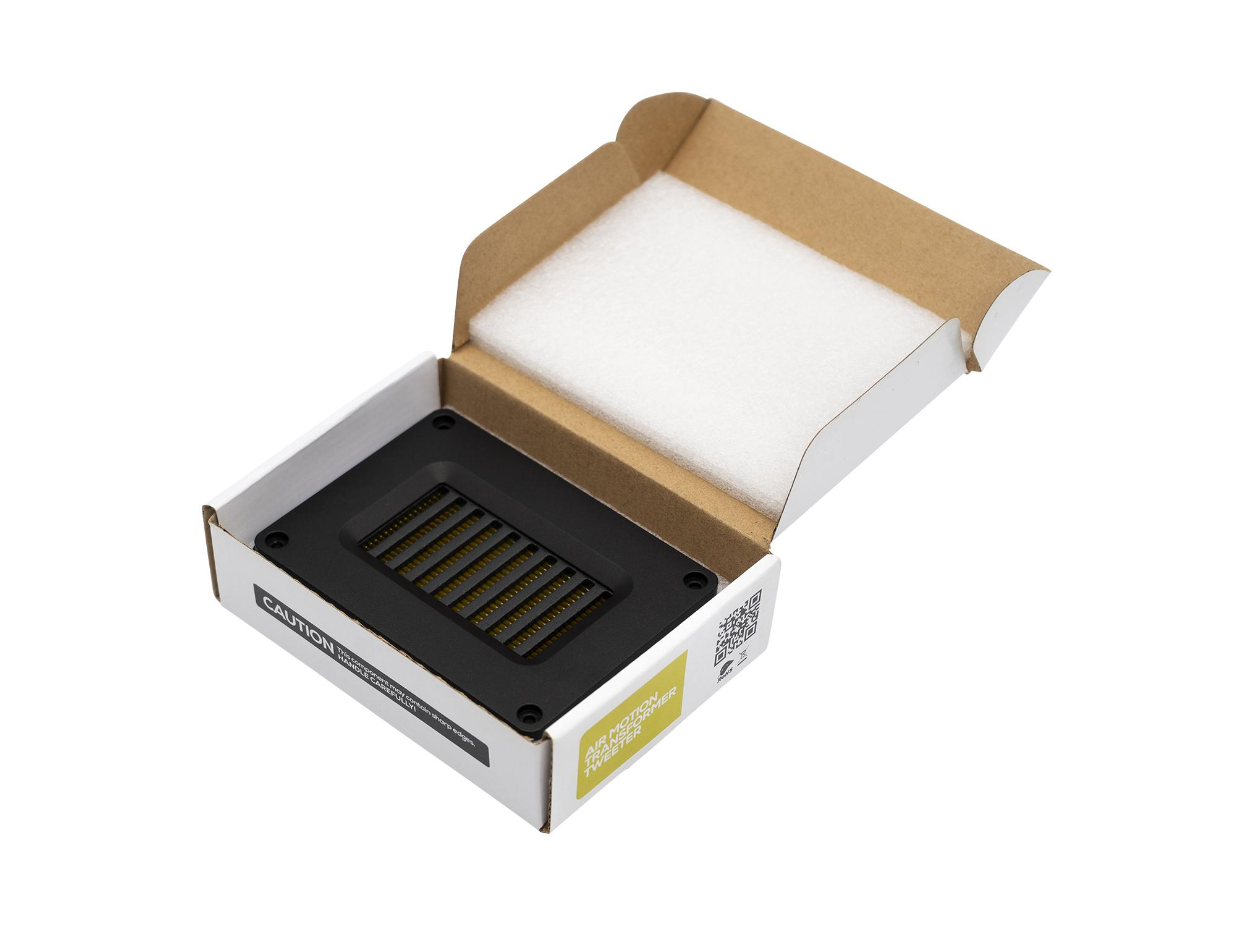

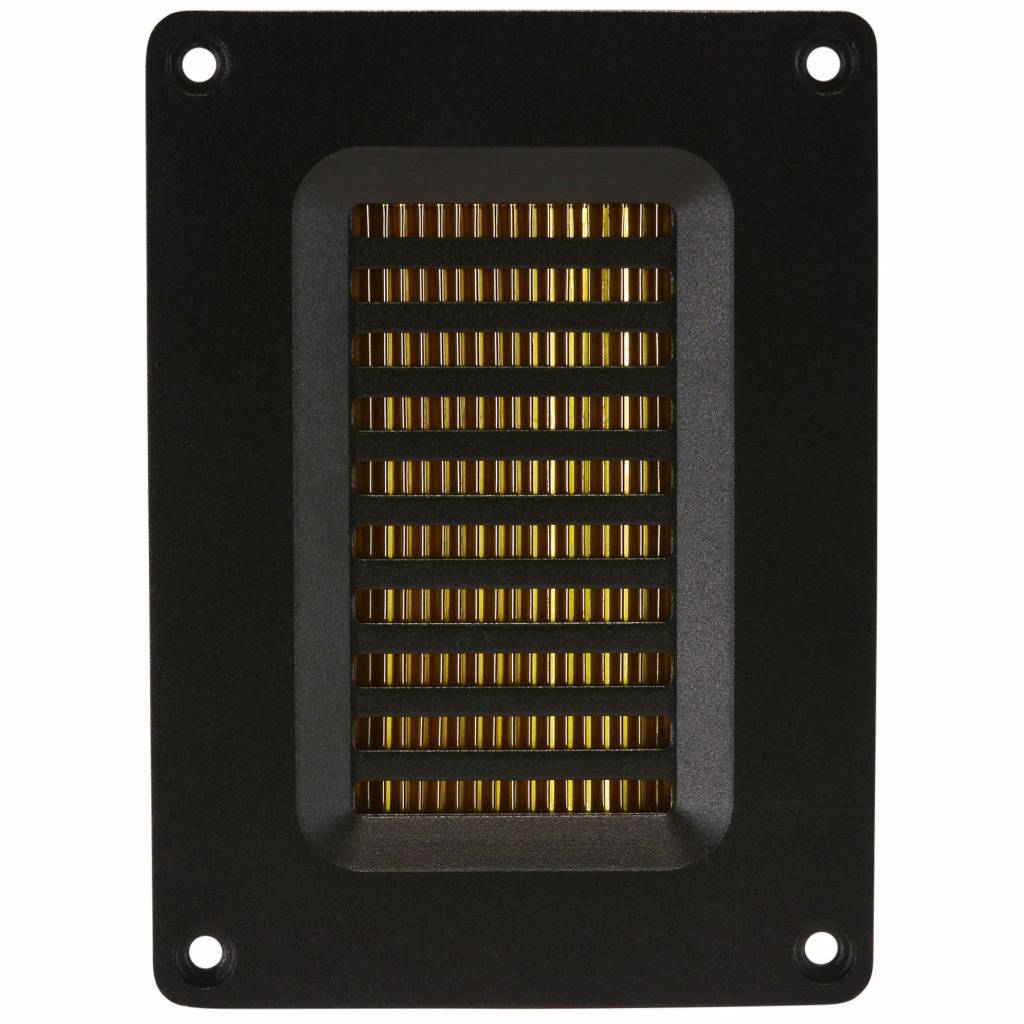

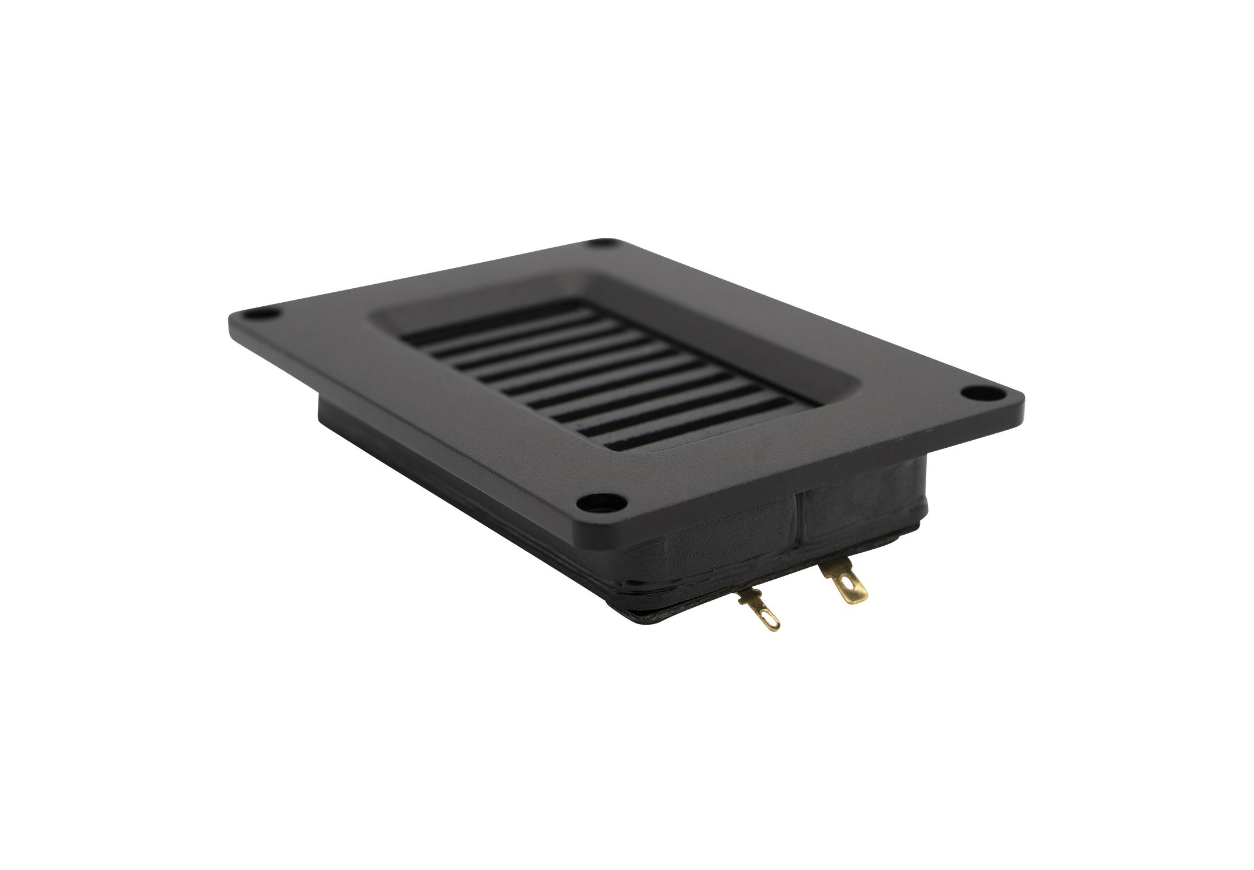

Dayton Audio AMT3-4 Air Motion Transformer Tweeter 4 Ohm

In stock

  • Article code: AMT3-4
  • Stock: 6 In stock

Dayton Audio's AMT3-4 Air Motion Transformer mid-tweeter brings clarity, transient speed, and musical finesse to your design. The large AMT-technology diaphragm and high-strength neo motor offer extremely wide bandwidth and high sensitivity.

€ 94,45 Incl. 21% VAT

  • Buy 4 for €89,73 each and save 5% Sale 5%

Add to wishlist

  • Low international shipping rates Tooltip

    Find all shipping rates and free shipping thresholds here

  • Same day shipping
  • 45-day money back guarantee
  • International payment options

Product description

Dayton Audio AMT3-4 Air Motion Transformer Tweeter 4 Ohm

Dayton Audio's AMT3-4 Air Motion Transformer mid-tweeter brings clarity, transient speed, and musical finesse to your design. The large AMT-technology diaphragm and high-strength neo motor offer extremely wide bandwidth and high sensitivity.



Highlights

  • Robust metal faceplate provides secure, stable mounting
  • Powerful, lightweight neodymium magnet structure for low distortion and high efficiency
  • Wide bandwidth facilitates integration with large midwoofers
  • 25 watt RMS power handling



Product details

Dayton Audio AMT3-4 Air Motion Transformer Tweeter 4 Ohm



The Dayton Audio AMT3-4's generous radiating area extends response from lower frequencies into the upper midrange, making the transducer great for use as a wideband "mid-tweeter" in a 2-way design with larger woofers, or as a midrange in a 3-way design. The robust metal faceplate adds the distinctive feel of quality, while the sealed rear chamber design eliminates the need for a separate enclosure chamber.



Dayton Audio AMT (Air Motion Transformer) tweeters use groundbreaking transducer technology from the original Heil Air Motion Transformer to provide ultra-clean, detailed, and dynamic treble output. The pleated ribbon diaphragm of an AMT provides a large acoustic radiating area condensed into a compact chassis, for extremely high output and improved power handling.



Specifications

Specifications for: AMT3-4 Air Motion Transformer Tweeter 4 Ohm

  • Tweeter Type Driver type for example: soft domes piezo, ribbon, AMT or bullet tweeter etc. Air Motion Transformer (AMT)
  • Tweeter Series Specific tweeter production line of the manufacturer. AMT Series
  • Cone / Dome Diameter Nominal diameter of the dome/cone, measured in inches.
  • Power Handling (RMS) The average power handling capability of a driver (coil) in electric power (watts) for a long period of time without damaging the driver. RMS stands for Root Mean Square 25 Watts
  • Power Handling (max) The maximum electrical power that a woofer (coil) can handle for a short period of time before it is damaged.
  • View all specifications
  • Impedance 4 ohms
  • Sensitivity 93 dB 1W/1m
  • Frequency Response 1,900 to 18,000 Hz
  • Resonant Frequency (Fs) 1,900 Hz
  • DC Resistance (Re) 3.00 ohms
  • Voice Coil Inductance (Le)
  • Mechanical Q (Qms) 6.26
  • Electromagnetic Q (Qes)
  • Total Q (Qts) 6.15
  • Overall Outside Diameter 5.12" x 3.74"
  • Cutout Diameter 4.45" x 2.68"
  • Depth 0.75"
  • Angle
  • Mounting Type
  • Exit Diameter
  • Diaphragm Material
  • Recommended cut frequency
