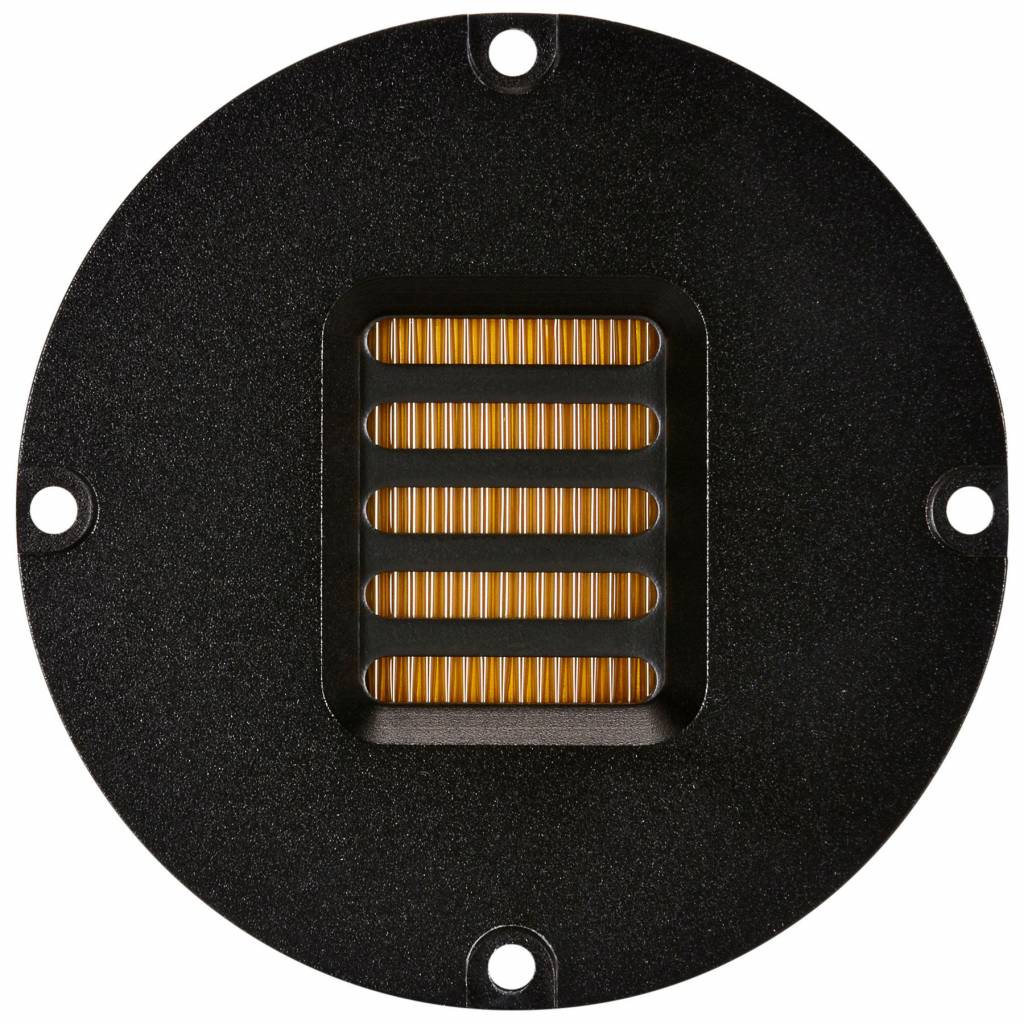

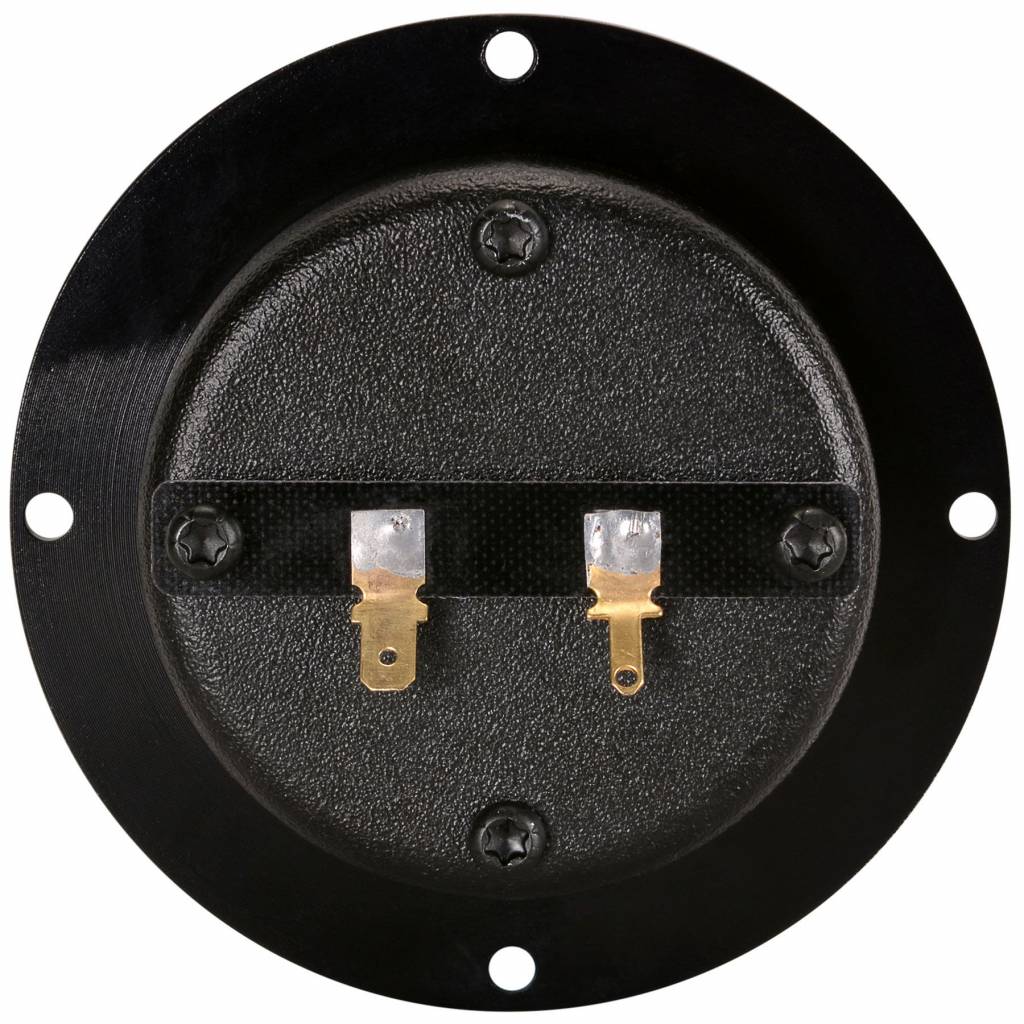

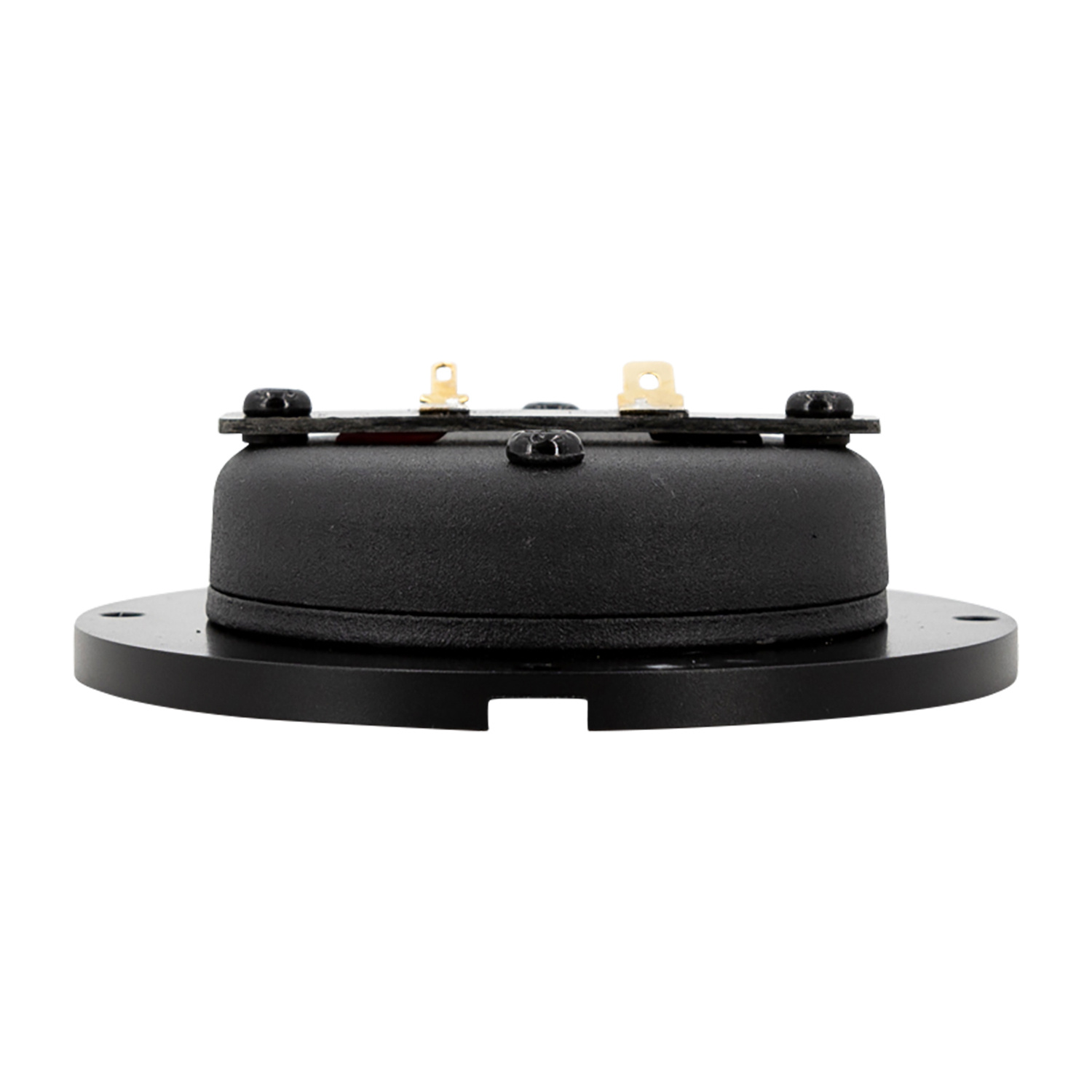

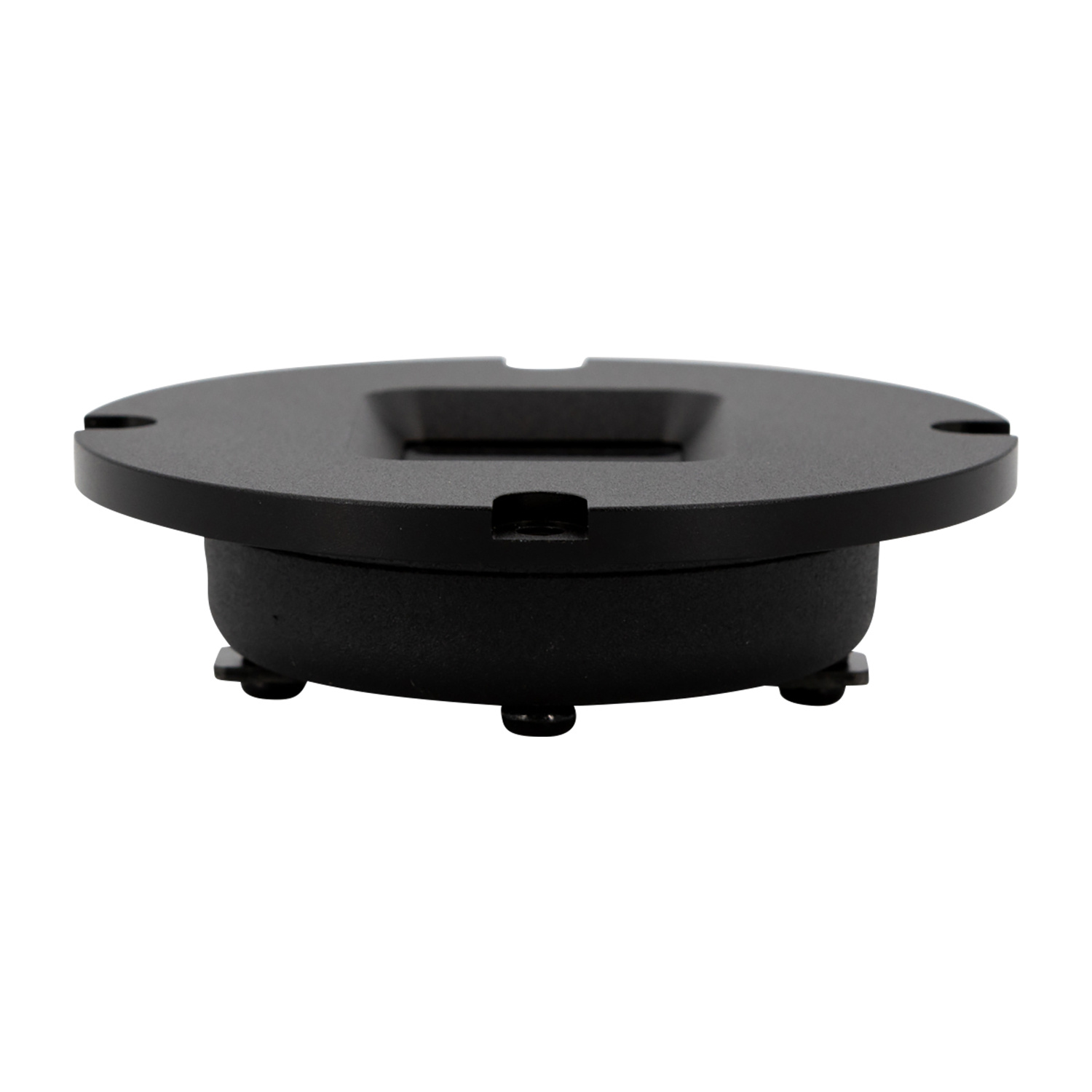

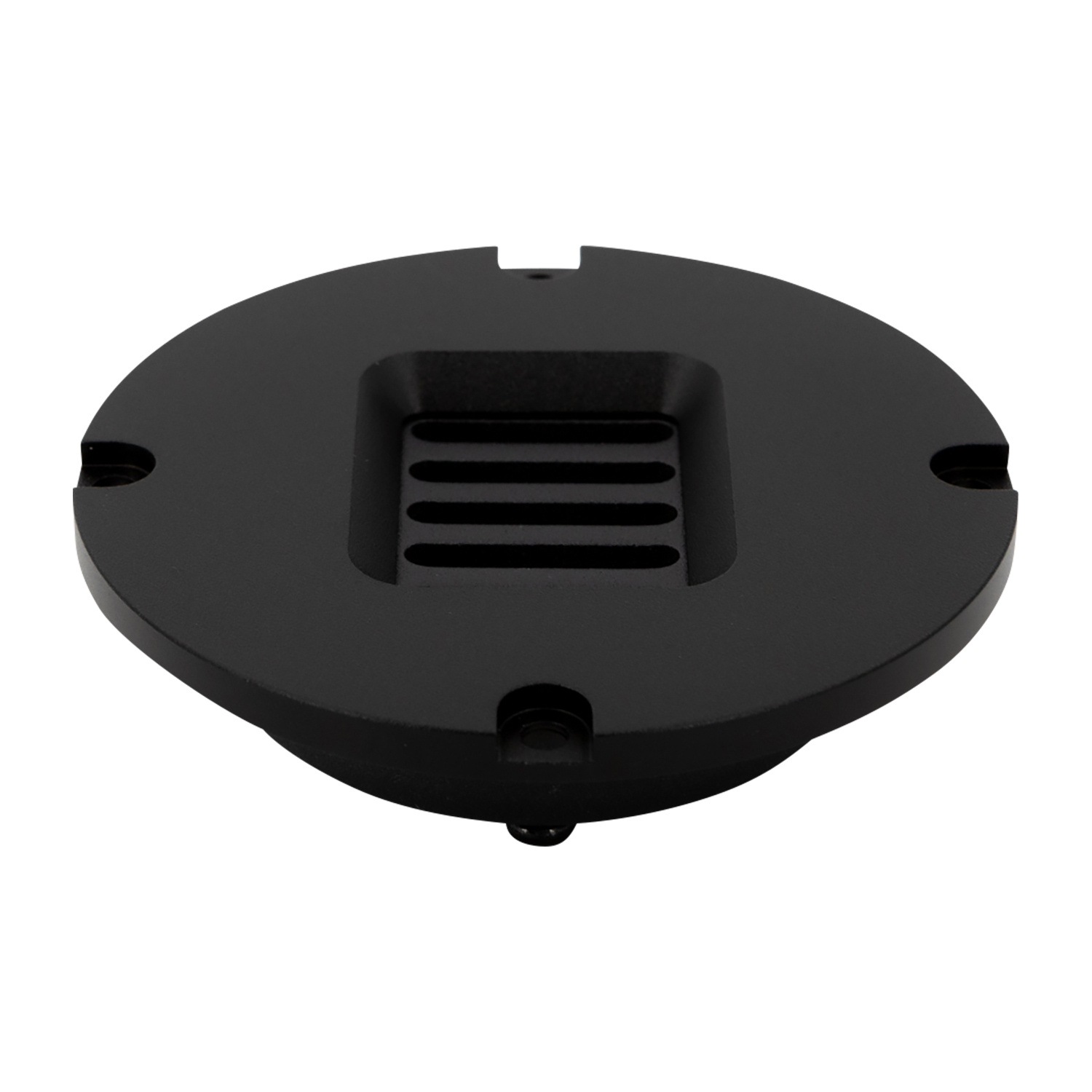

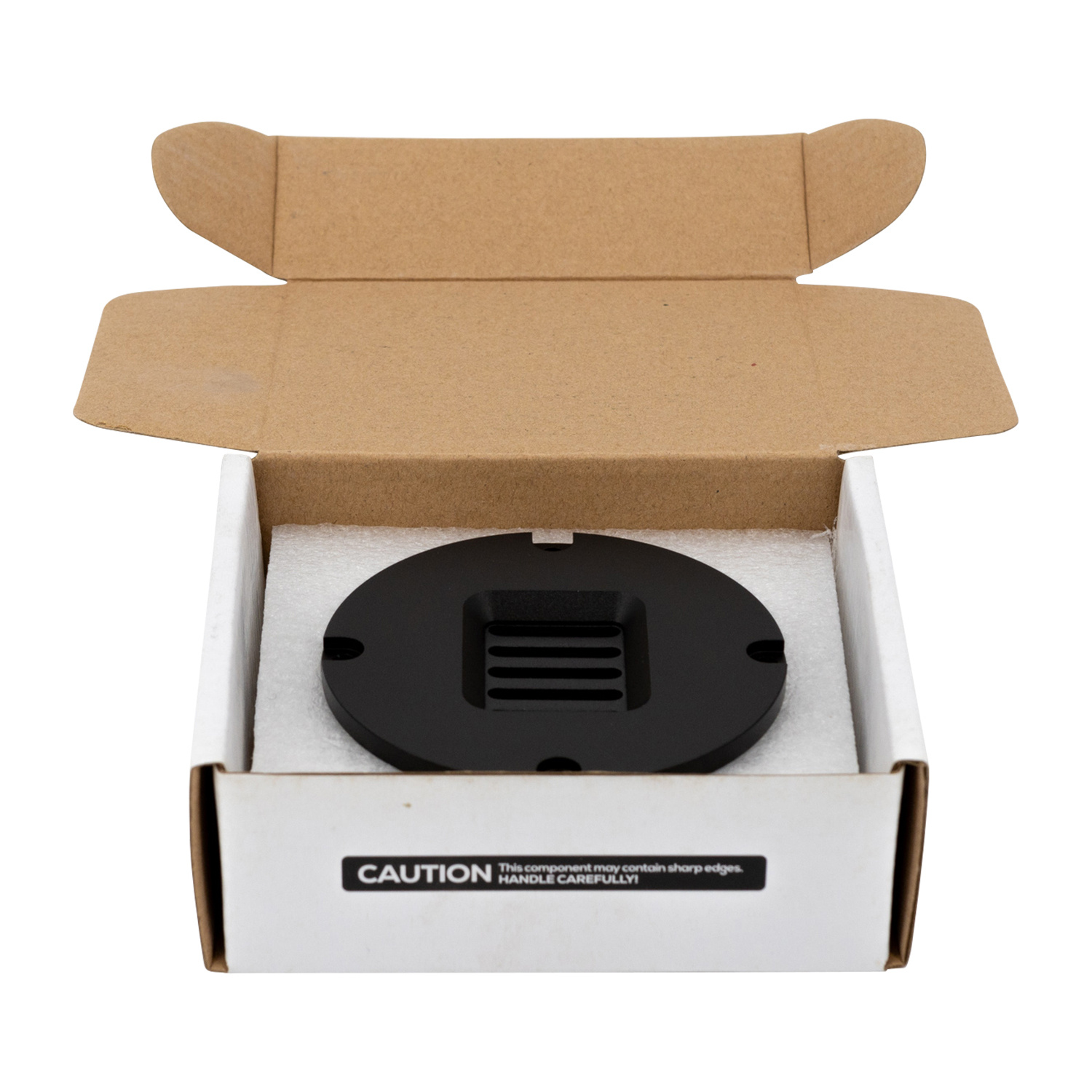

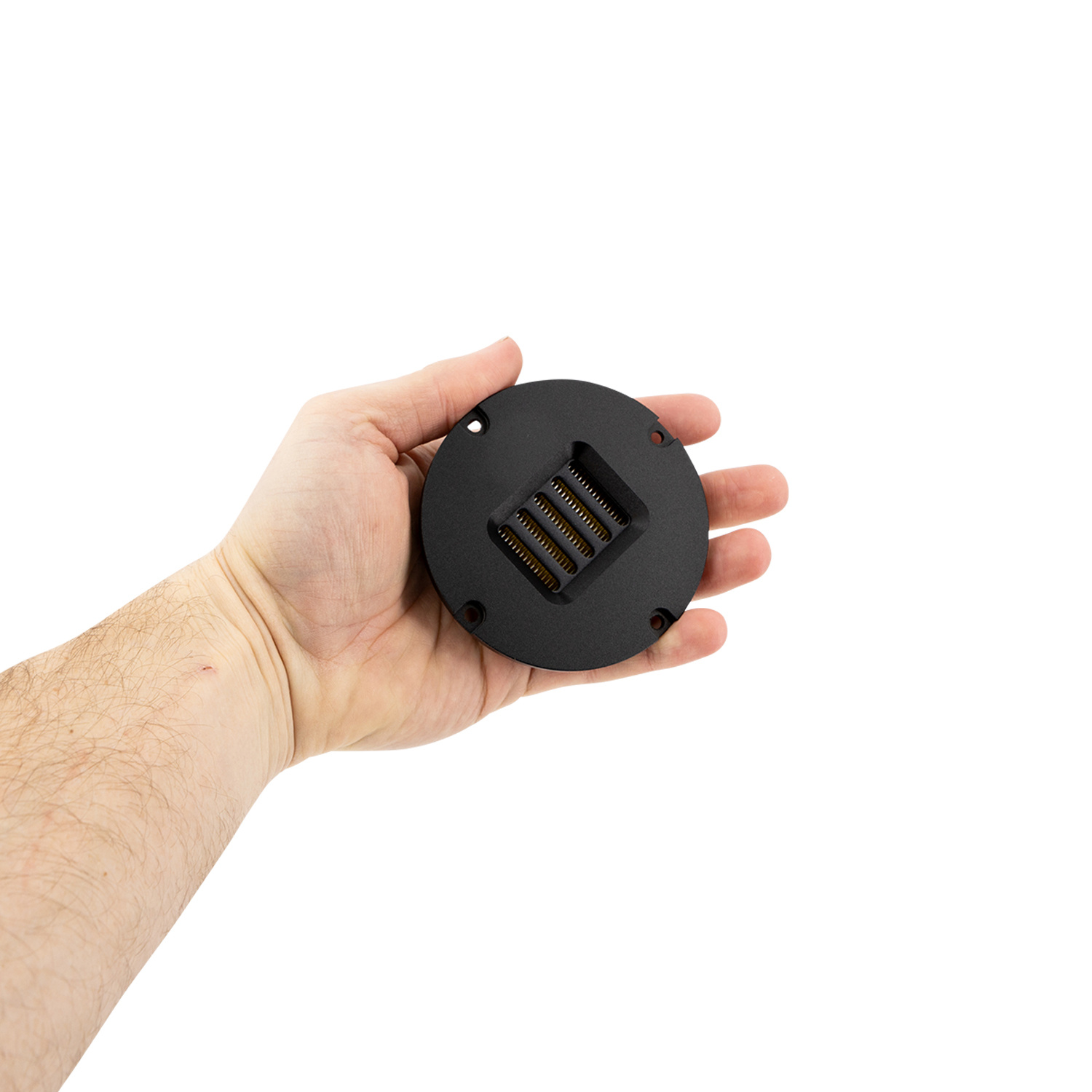

Dayton Audio AMT2-4 Air Motion Transformer Tweeter 4 Ohm

In stock

  • Article code: AMT2-4
  • Stock: 2 In stock

The Dayton Audio AMT2-4 Air Motion Transformer tweeter brings clarity, transient speed, and musical finesse to your design. The tweeter's round faceplate flush mounts into baffles easily, and groundbreaking AMT technology enables high output from such a c

€ 74,95 Incl. 21% VAT

  • Buy 4 for €71,20 each and save 5% Sale 5%

Add to wishlist

  • Low international shipping rates Tooltip

    Find all shipping rates and free shipping thresholds here

  • Same day shipping
  • 45-day money back guarantee
  • International payment options

Product description

Dayton Audio AMT2-4 Air Motion Transformer Tweeter 4 Ohm

The Dayton Audio AMT2-4 Air Motion Transformer tweeter brings clarity, transient speed, and musical finesse to your design. The tweeter's round faceplate flush mounts into baffles easily, and groundbreaking AMT technology enables high output from such a compact driver.



Highlights

  • Advanced Air Motion Transformer design "squeezes" air molecules instead of shoving or crushing them
  • Folded Kapton ribbon diaphragm delivers detailed dynamic output
  • Powerful, lightweight neodymium magnet structure for low distortion and high efficiency
  • Sonically similar to the best metal ribbon and planar tweeters



Product details

Dayton Audio AMT2-4 Air Motion Transformer Tweeter 4 Ohm



The Dayton Audio AMT2-4 features a round faceplate and compact AMT element, for wide dispersion and overall performance that easily replace dome tweeters in retrofit or new design applications. The sealed rear chamber design of the AMT2-4 eliminates the need for a separate internal chamber in the loudspeaker enclosure.



Dayton Audio AMT (Air Motion Transformer) tweeters use groundbreaking transducer technology from the original Heil Air Motion Transformer to provide ultra-clean, detailed, and dynamic treble output. The pleated ribbon diaphragm of an AMT provides a large acoustic radiating area condensed into a compact chassis, for extremely high output and improved power handling.

Specifications

Specifications for: AMT2-4 Air Motion Transformer Tweeter 4 Ohm

  • Tweeter Type Driver type for example: soft domes piezo, ribbon, AMT or bullet tweeter etc. Air Motion Transformer (AMT)
  • Tweeter Series Specific tweeter production line of the manufacturer. AMT Series
  • Cone / Dome Diameter Nominal diameter of the dome/cone, measured in inches.
  • Power Handling (RMS) The average power handling capability of a driver (coil) in electric power (watts) for a long period of time without damaging the driver. RMS stands for Root Mean Square 15 Watts
  • Power Handling (max) The maximum electrical power that a woofer (coil) can handle for a short period of time before it is damaged.
  • View all specifications
  • Impedance 4 ohms
  • Sensitivity 92.5 dB 2.83V/1m
  • Frequency Response 2,500 to 22,000 Hz
  • Resonant Frequency (Fs) 2,300 Hz
  • DC Resistance (Re) 3.50 ohms
  • Voice Coil Inductance (Le)
  • Mechanical Q (Qms) 2.92
  • Electromagnetic Q (Qes)
  • Total Q (Qts) 2.86
  • Overall Outside Diameter 3.54"
  • Cutout Diameter 2.56"
  • Depth 1.12"
  • Angle
  • Mounting Type
  • Exit Diameter
  • Diaphragm Material
  • Recommended cut frequency

Documenten

Reviews

User reviews 5 / 5 Reviews: (1)

  • HK By Hartmut K. on 06-01-2018 17:14

    5 / 5

    Very good tweeter.
    Excellent clear sound.
