      Dayton Audio Odeum Apollo 12MB400N-8 Bass-midwoofer

      € 272,69€ 329,95 10+ In stock: 1 -2 days
      • -5% Order 4 for only € 313,45 per piece

      Buy now, pay later

      • 24h express shipping available
      • Ordered now, shipped today
      • In-house technical support
      • 45-day cooling-off period to return
      Request quotation
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      Live sound is back in business! Dayton Audio wants you to hit the road with confidence and maximize your profitability at your next gig. Dayton Audio is a worldwide leader in raw frame drivers. We are passionate audio enthusiasts with a vision to offer the best performance to price value in the industry. After extensive market research, vendor evaluation, and sample driver testing, we are proud to introduce to you the Dayton Audio ODEUM Series.



      Highlights

      • Powerful neodymium motor for superior output.
      • Copper inductance cap for low distortion
      • Paper cone and cloth m-roll surround for high clarity, smooth response, and linear excursion for pounds of punch
      • 2” Inside/outside wound copper voice coil leads on fiberglass former lends solid power handling capability
      • Under spider and rear periphery venting allow for a cooler running voice coil
      • Low Qts means high damping and smaller boxes



      Product details

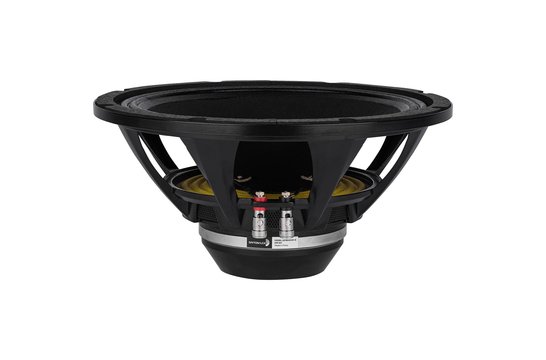

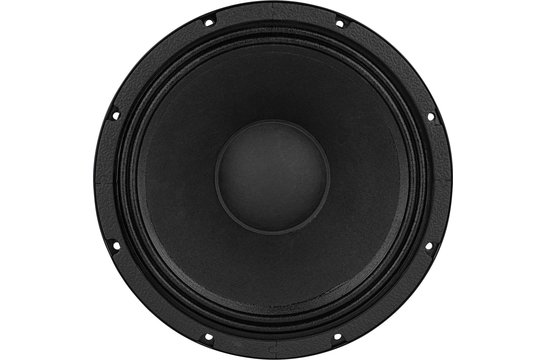

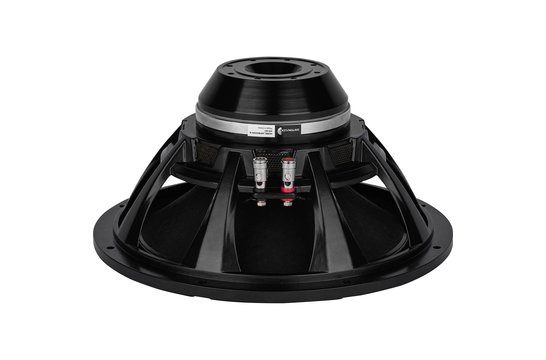

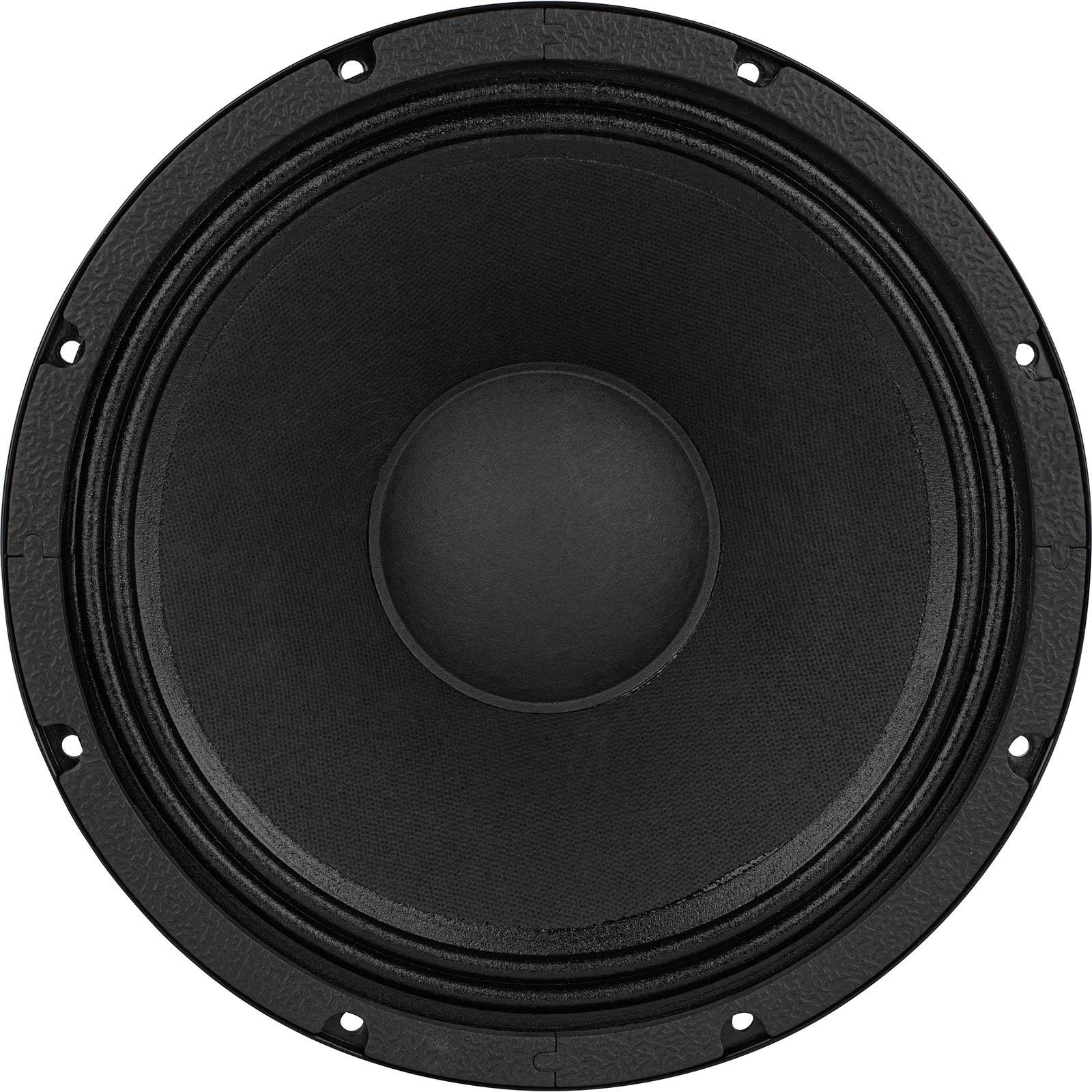

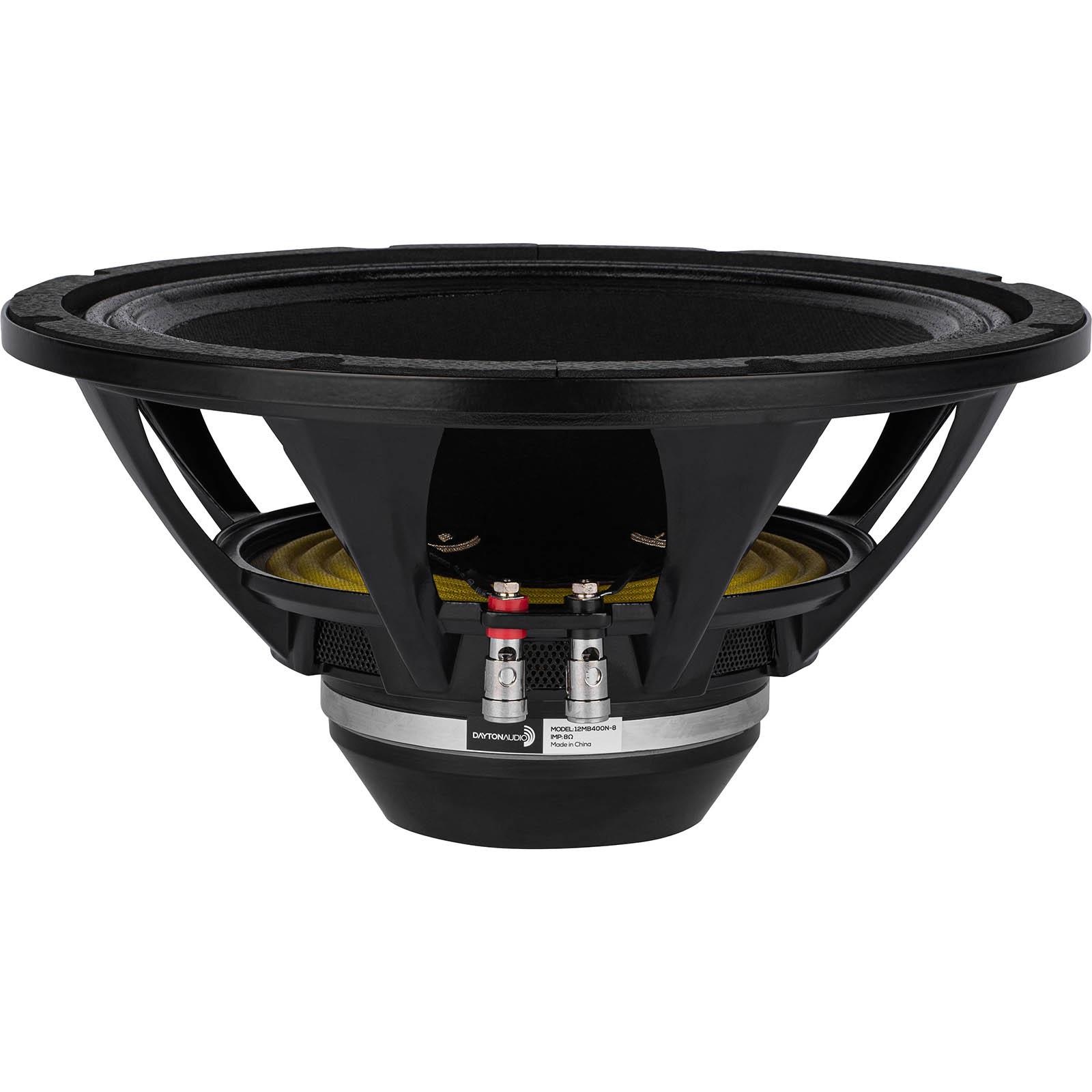

      Dayton Audio Odeum Apollo 12N 12MB400N-8 12" Professional Neodymium Bass-midwoofer 8 Ohm



      Using the knowledge from decades of driver design and engineering, Dayton Audio is placing an emphasis on technical excellence, product reliability, and innovation with the Odeum Series of speaker components! The Odeum Series takes the stage with a new line of professional drivers made for any venue.



      The Dayton Audio Apollo 12 has a response that matches a large number of horn drivers due to its high efficiency in the frequency range of human voices and midrange detail of stringed instruments. The impedance curve of the Apollo 6 makes it easy to pair up with your favorite tweeters without taxing your power amplifiers!



      The Apollo 12 is a 12" mid-bass woofer that is guaranteed to outperform the stock woofers in your PA system. A 200W power limit is achieved through the combination of a neodymium motor, a 3" voice coil with a fiberglass former, and a copper inductance cap to lower distortion. A paper cone with cloth M-roll surrounds provides a neutral tone that is easy to tune, and peripheral venting helps keep the whole system cool when playing!



      We feel we have hit the sweet spot in price and specs in the pro audio market with this workhorse line of subwoofers, midrange, and high-frequency drivers. The ODEUM series consist of two 1200W 18” subwoofers (one neodymium, one ceramic), 5 sizes and various power ratings of neodymium mid-bass, and two 1” exit compression drivers (one bolt-on, one screw-on). Upgrade, replace, or create a new pro sound system with the ODEUM series.

      Show more

      Specifications

      Article number
      12MB400N-8
      Woofer Series
      Odeum
      Woofer Type
      Bass-midwoofer
      Nominal Diameter
      12"
      Power Handling (RMS)
      400 Watts
      Power Handling (max)
      800 Watts
      Impedance (Z)
      Sensitivity
      96.6dB 2.83V/1m
      Frequency Response
      40 to 5,600Hz
      Voice Coil Diameter
      3"
      DC Resistance (Re)
      7.5Ω
      Voice Coil Inductance (Le)
      1.21mH
      Resonant Frequency (Fs)
      38Hz
      Mechanical Q (Qms)
      7.75
      Electromagnetic Q (Qes)
      0.27
      Total Q (Qts)
      0.26
      Diaphragm Mass Inc. Airload (Mms)
      54.46g
      Mechanical Compliance of Suspension (Cms)
      0.323mm/N
      Surface Area of Cone (Sd)
      494.56cm²
      BL Product (BL)
      19.19T·m
      Compliance Equivalent Volume (Vas)
      4.52ft³
      Maximum Linear Excursion (Xmax)
      6.75mm
      Cone / Diaphragm Material
      Coated Paper
      Surround Material
      Paper
      Voice Coil Wire Material
      Copper
      Voice Coil Former
      Fiberglass
      Magnet Material
      Neodymium
      Overall Outside Diameter
      12.59"
      Overall Depth
      5.66"
      Baffle Cutout Diameter
      11.49"
      # Mounting Holes
      8
      Sealed Volume
      0.8ft³
      Sealed F3
      128Hz
      Vented Volume
      0.9ft³
      Vented F3
      77Hz
