        SDX10 XBL2 Subwoofer

        CSS SDX10 XBL2 Subwoofer

        €399,95

        9 In stock

        Add to cart

        CSS SDX10 XBL2 Subwoofer

        2 reviews
        5 from 5
        2 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: CSS
        10'' | 4 Ω
        SDX10 XBL2 Subwoofer
        SDX10 XBL2 Subwoofer
        SDX10 XBL2 Subwoofer
        SDX10 XBL2 Subwoofer
        SDX10 XBL2 Subwoofer
        SDX10 XBL2 Subwoofer
        SDX10 XBL2 Subwoofer
        SDX10 XBL2 Subwoofer
        SDX10 XBL2 Subwoofer
        SDX10 XBL2 Subwoofer
        SDX10 XBL2 Subwoofer
        SDX10 XBL2 Subwoofer
        € 330,54€ 399,95 9 In stock
        • -5% Purchase 4 for only € 379,95 per piece
        € 399,95
        +-
        Add to cart
        🔒 Secure payment
        MastercardVisaBank TransferCarte BancaireApple PayGoogle Paypaypal

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        SDX10 XBL2 Subwoofer
        SDX10 XBL2 Subwoofer
        SDX10 XBL2 Subwoofer
        SDX10 XBL2 Subwoofer
        SDX10 XBL2 Subwoofer
        SDX10 XBL2 Subwoofer
        SDX10 XBL2 Subwoofer
        SDX10 XBL2 Subwoofer
        SDX10 XBL2 Subwoofer
        SDX10 XBL2 Subwoofer
        SDX10 XBL2 Subwoofer
        SDX10 XBL2 Subwoofer

        Product description CSS SDX10 Subwoofer

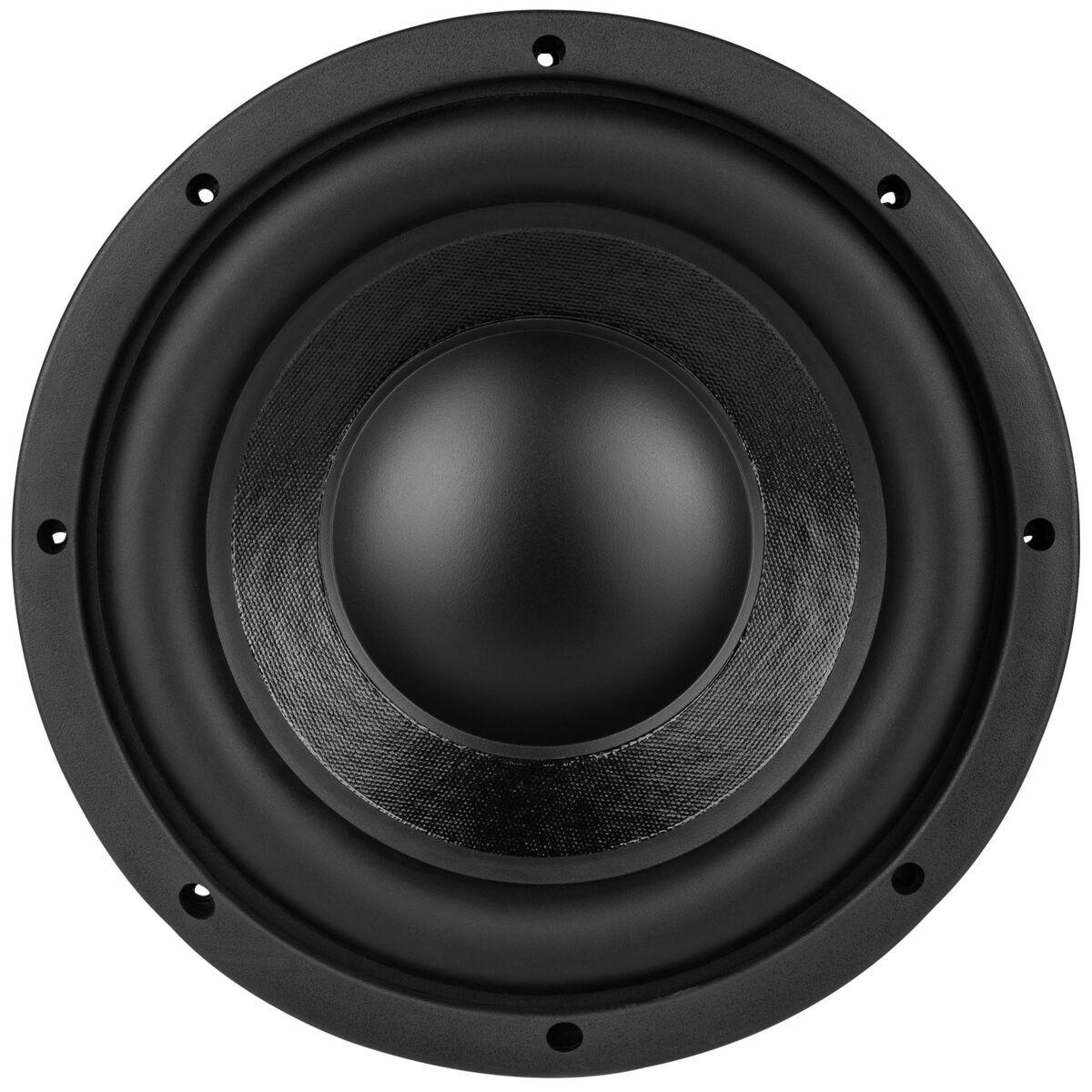

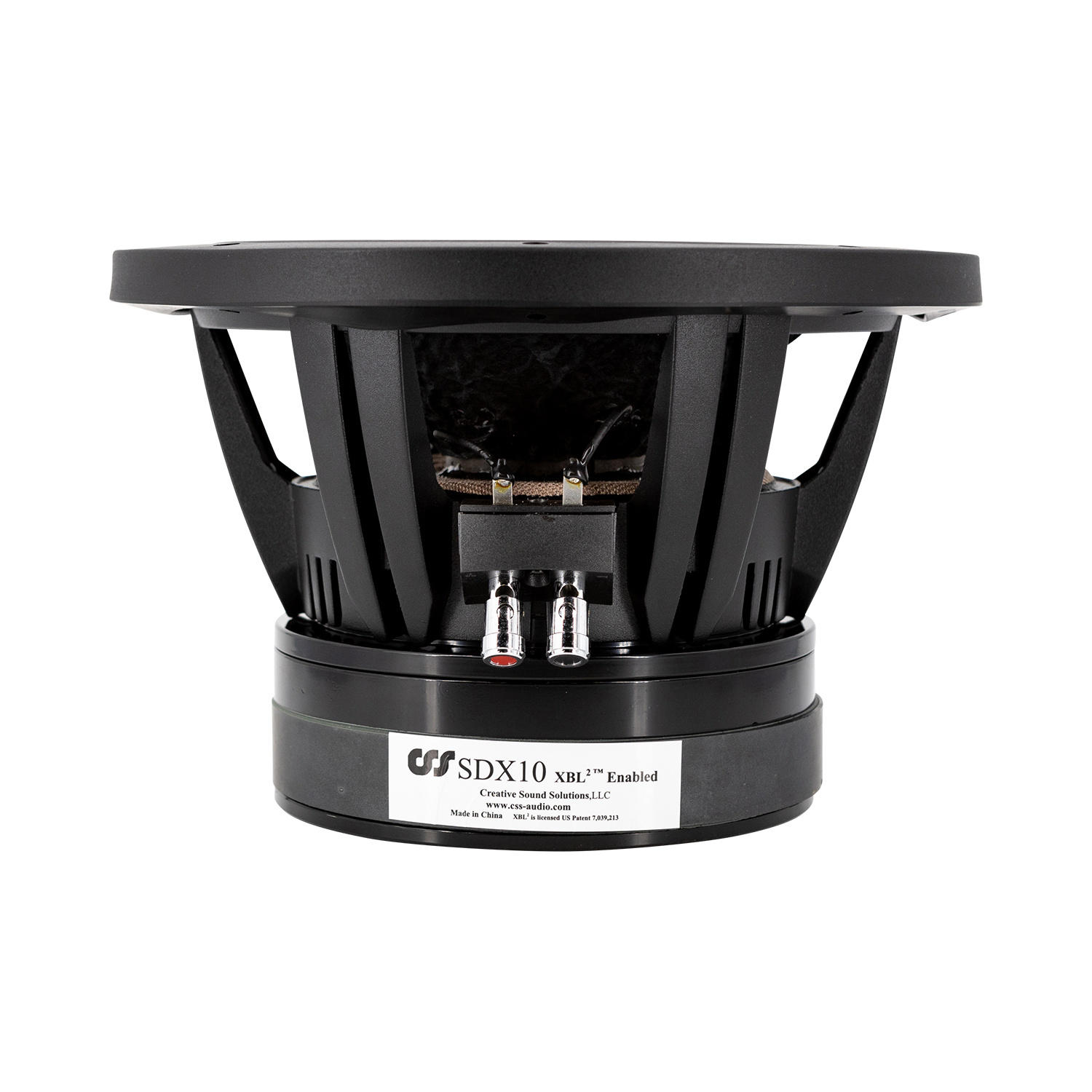

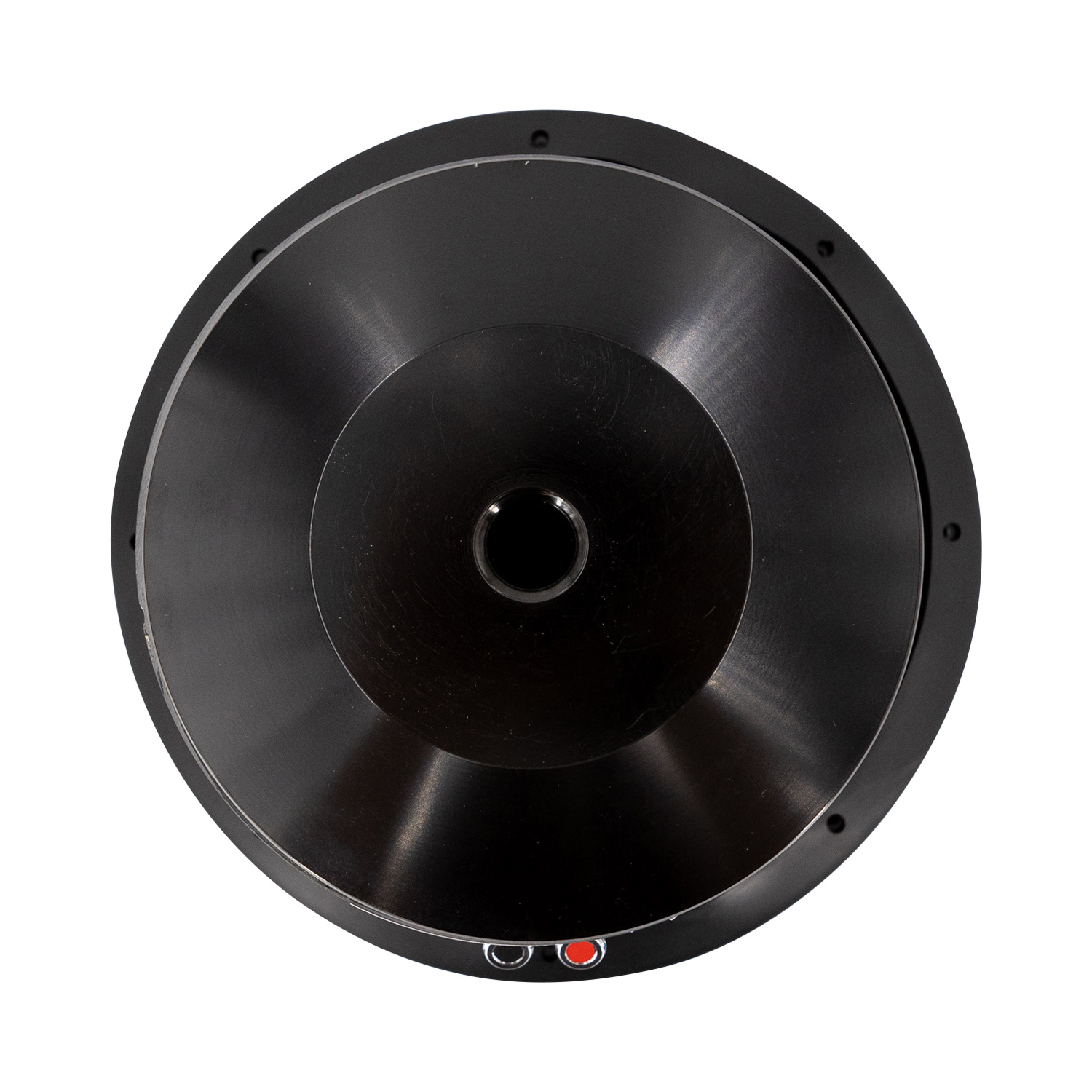

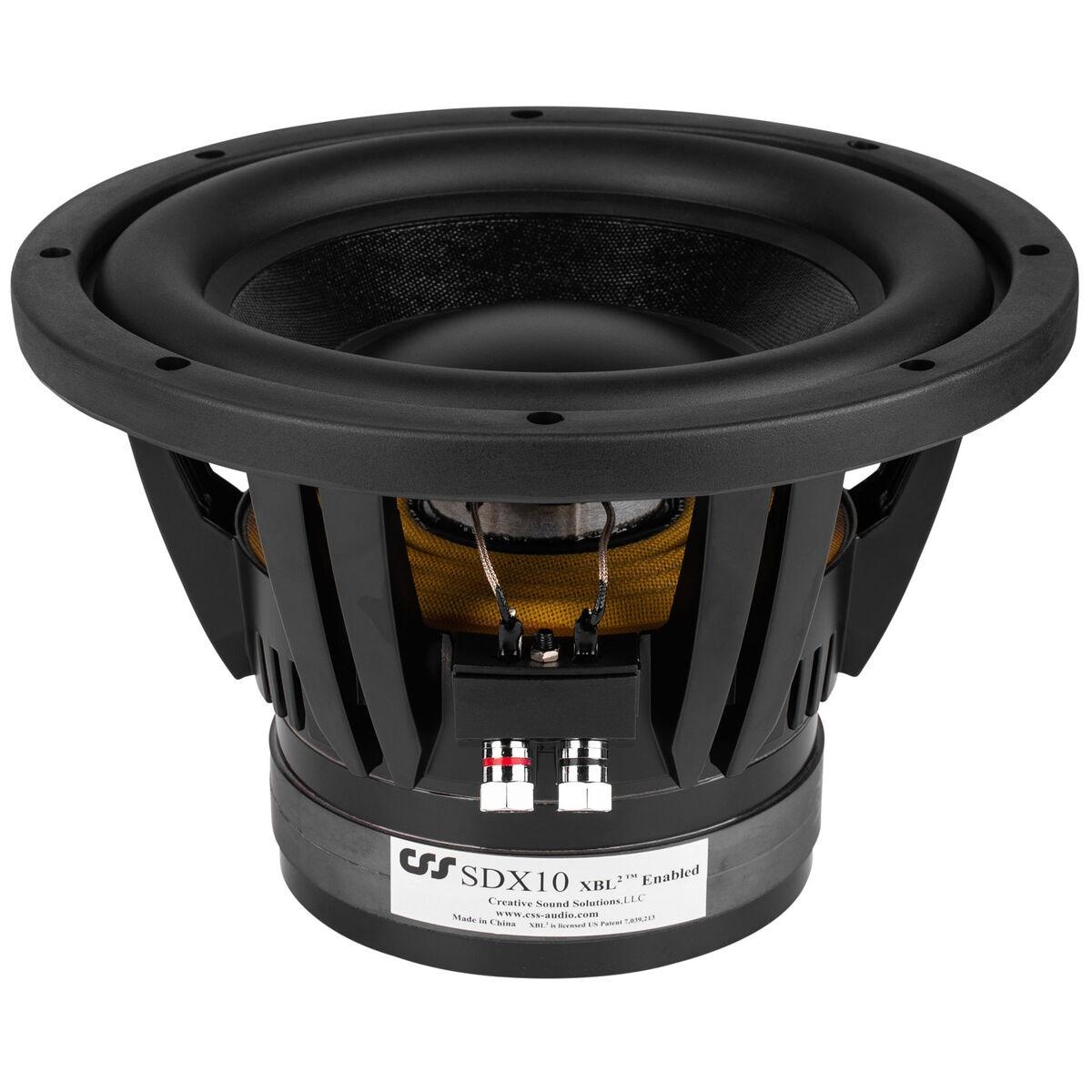

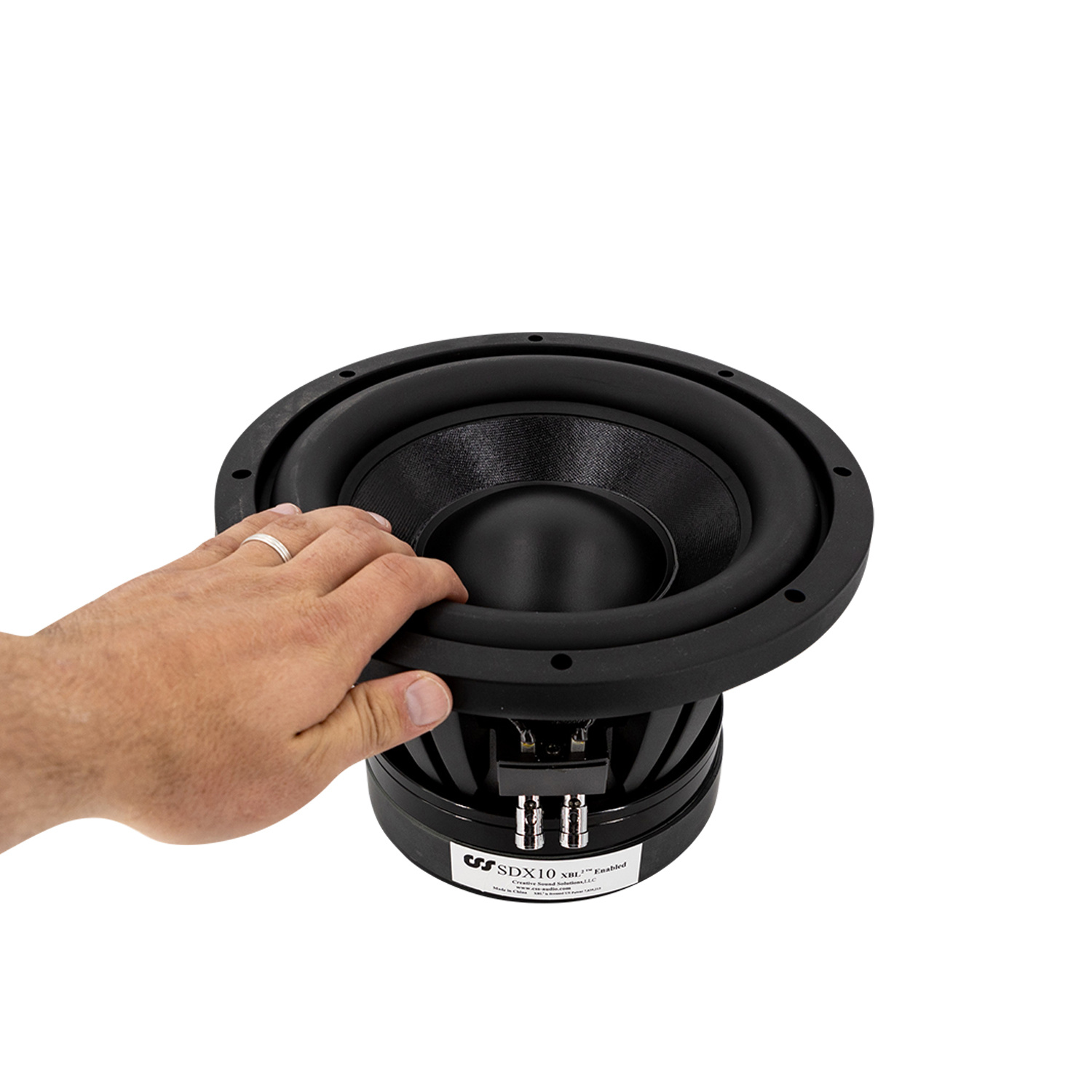

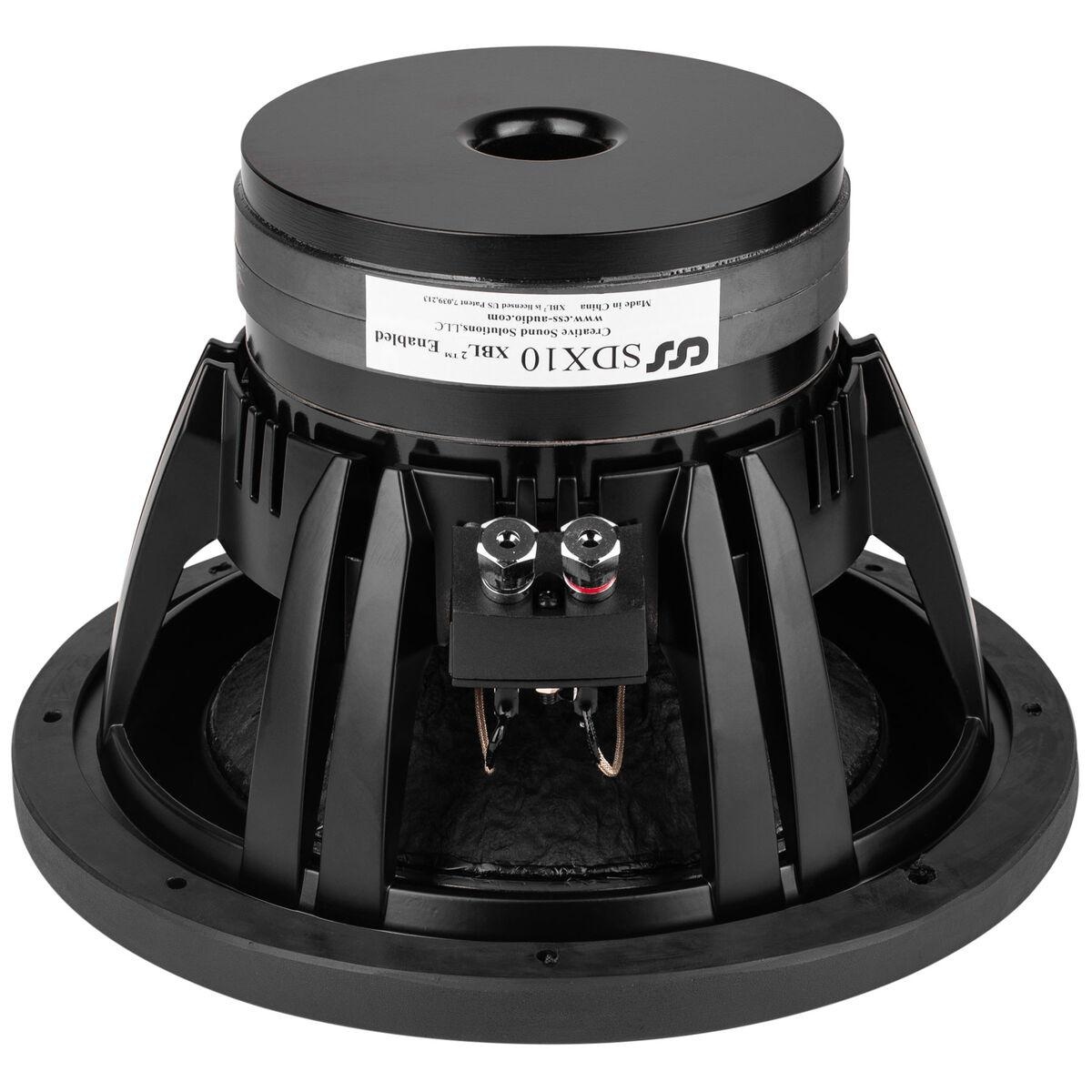

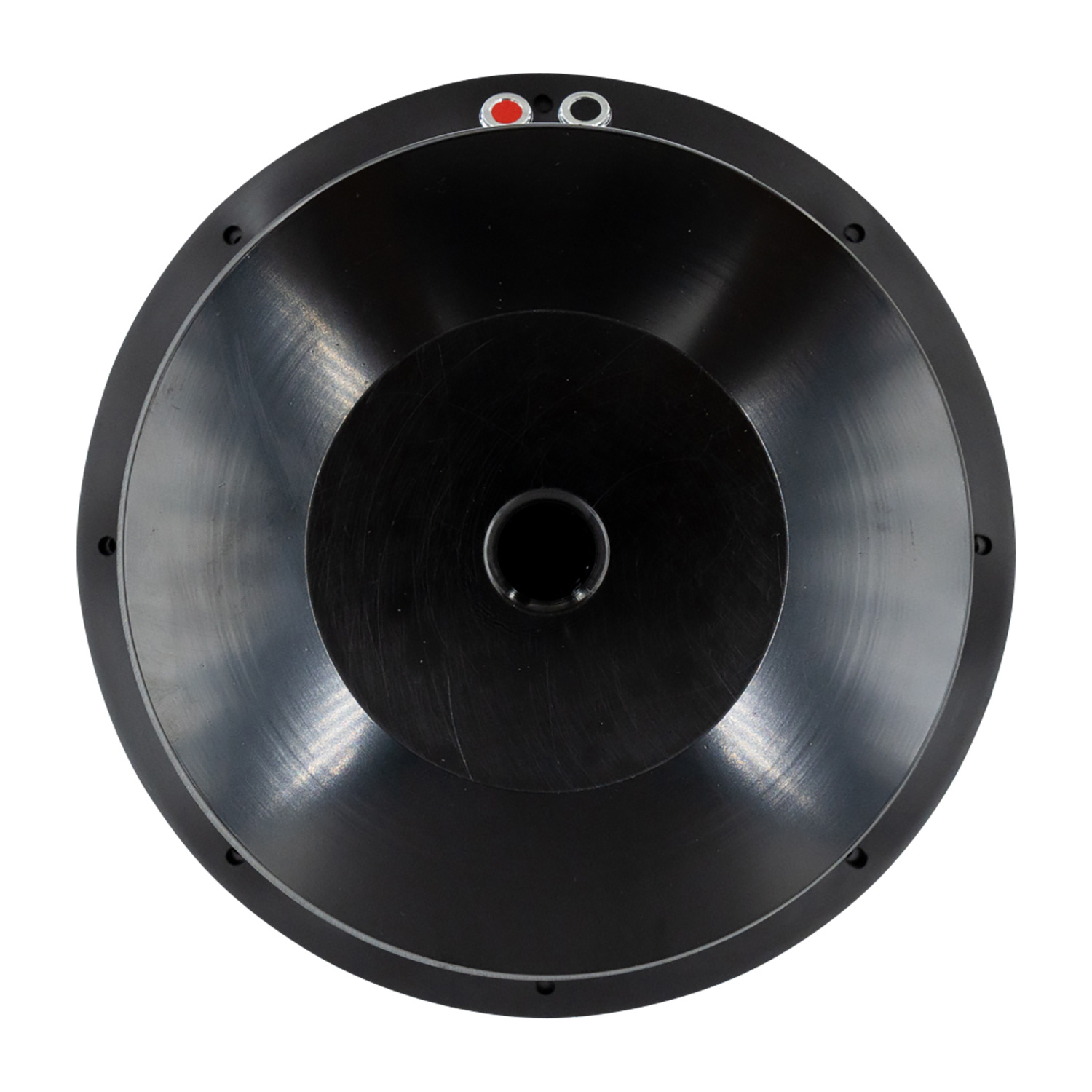

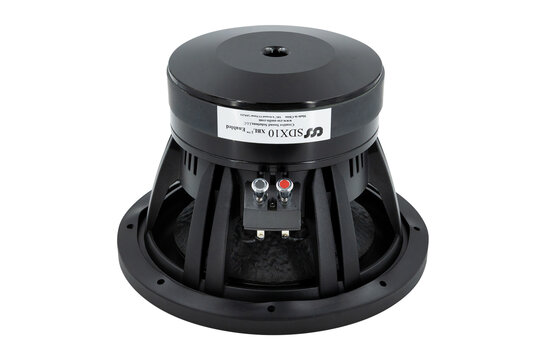

        The CSS SDX10 is a 10" XBL^2 subwoofer engineered for high-excursion, low-distortion bass with 22 mm Klippel-verified Xmax and 750 W RMS power handling.



        Highlights of the CSS SDX10

        • 22 mm Klippel-verified Xmax
        • XBL^2 motor with an extremely flat BL curve and nearly 30 mm one-way BL excursion capability
        • Paper and carbon-fiber blended cone with pressed, surface-treated construction
        • Shorting rings reduce distortion and extend usable frequency response
        • 750 W RMS and 1500 W peak power handling



        Product details CSS SDX10

        CSS SDX10 10" XBL^2 Subwoofer



        The CSS SDX10 uses an improved, larger motor structure designed around XBL^2 technology. This produces an exceptionally broad BL curve, giving the subwoofer strong linear excursion capability for deep, controlled bass. With 22 mm excursion capability at the 20% distortion subwoofer criterion, it is built for demanding low-frequency systems.



        The moving assembly combines a paper and carbon-fiber blended cone with a natural butyl rubber surround and a semi-progressive spider. Together with the cast frame, this construction supports stability, damping and long-travel control. Shorting rings inside the motor help reduce distortion and keep inductance changes minimal across the operating bandwidth.



        Although the SDX10 is highly capable in deep-bass applications, it is not limited to subwoofer duty. Its low-inductance motor gives it a wide, flat usable bandwidth, making it suitable as a woofer in a 3-way loudspeaker design, or even in a 2-way system when paired with a waveguide.



        The driver features a 60.6 mm diameter, 6-layer voice coil and handles 750 W RMS with 1500 W peak capability. Key parameters include 3.89 ohm DC resistance, 314.16 cm² cone area and a large-signal resonance frequency of 16.98 Hz, reflecting its focus on powerful, extended low-frequency output.

        Show more

        Specifications

        Article number
        SDX10
        EAN
        0848864053745
        Nominal Diameter
        10"
        Power Handling (RMS)
        750 Watts
        Power Handling (max)
        1500 Watts
        Impedance (Z)
        4Ω
        Sensitivity (SPL at 1m / 2.83V)
        87.2 dB
        Frequency Response
        16 to 500Hz
        Voice Coil Diameter
        2.39"
        DC Resistance (Re)
        3.5Ω
        Voice Coil Inductance (Le)
        1.42mH
        Resonant Frequency (Fs)
        30 Hz
        Mechanical Q (Qms)
        3.69
        Electromagnetic Q (Qes)
        0.63
        Total Q (Qts)
        0.54
        Diaphragm Mass Inc. Airload (Mms)
        100.5g
        Mechanical Compliance of Suspension (Cms)
        0.28mm/N
        Surface Area of Cone (Sd)
        292.4cm²
        BL Product (BL)
        10.26T·m
        Compliance Equivalent Volume (Vas)
        33,98 liter
        Maximum Linear Excursion (Xmax)
        18.4 mm
        Cone / Diaphragm Material
        Paper / Carbon Fiber
        Surround Material
        Rubber
        Voice Coil Wire Material
        Copper
        Basket / Frame Material
        Cast Aluminum
        Magnet Material
        Ferrite
        Overall Outside Diameter
        10.81"
        Overall Depth
        6.69"
        Baffle Cutout Diameter
        9"
        # Mounting Holes
        8
        Sealed Volume
        29,7 Liter
        Sealed F3
        44.1Hz
        Vented Volume
        42,47 Liter
        Vented F3
        26.7Hz

        Show more
