Taking inspiration from the highly regarded ESA range, the CSA employs the same carefully researched micro-phonics reducing processing parameters. CopperConnect technology dramatically reduces grain boundary crossings in the end connection and enables designs to employ narrower films for reduced capacitor ESR without introducing the corollary increase in end connection impedance. The philosophy of eliminating as many crystal boundaries as possible is extended to the use of premium grade 1.0mm2 tinned oxygen free copper leads.
- CopperConnect technology
- Reduced capacitor ESR
- premium grade 1.0mm2 tinned oxygen free copper leads

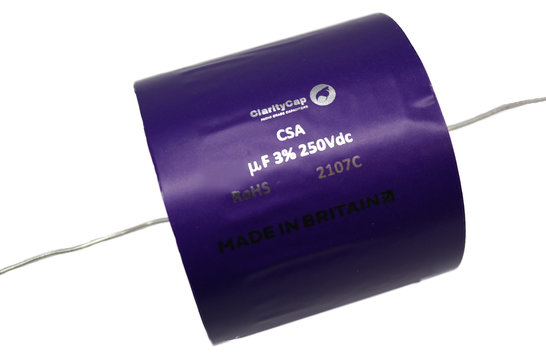

CSA180uH260Vdc | 180 µF | 3% | CSA 250V Capacitor
Claritycap’s unique CopperConnect technology addresses a hitherto underexplored area of audio capacitor performance. Dielectric, electrode and lead wire materials have all been extensively optimised over the years. Connection of capacitor electrodes to the leads has always relied on thermal arc spray of tin-zinc, which results in hundreds of thousands of oxidised grain boundaries introducing; distortion and phase shifts at boundary crossings and increasing propagation impedance with diameter. CopperConnect technology introduces an embedded copper lattice to the end connection, dramatically reducing grain boundary crossings and signal path resistance, freeing capacitor designs to achieve new levels of audio performance.
Dimensions: 60 mm L x 102 mm D
