BlieSMa T25A-6 Aluminum Dome Tweeter | Matched pair

In stock

  • Article code: T25A-6
  • Stock: 2 In stock

25mm aluminium-magnesium alloy dome with variable thickness for ultrasonic first breakup mode. Extremely low moving mass for better transient response and higher efficiency.

€ 269,95 Incl. 21% VAT

Add to wishlist

  • Low international shipping rates Tooltip

    Find all shipping rates and free shipping thresholds here

  • Same day shipping
  • 45-day money back guarantee
  • International payment options

Product description

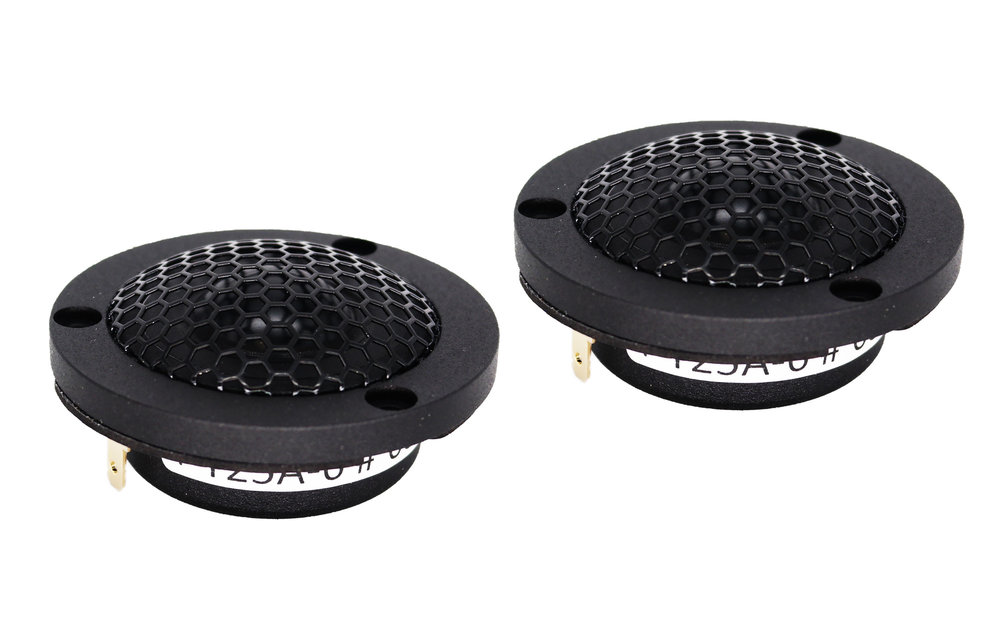

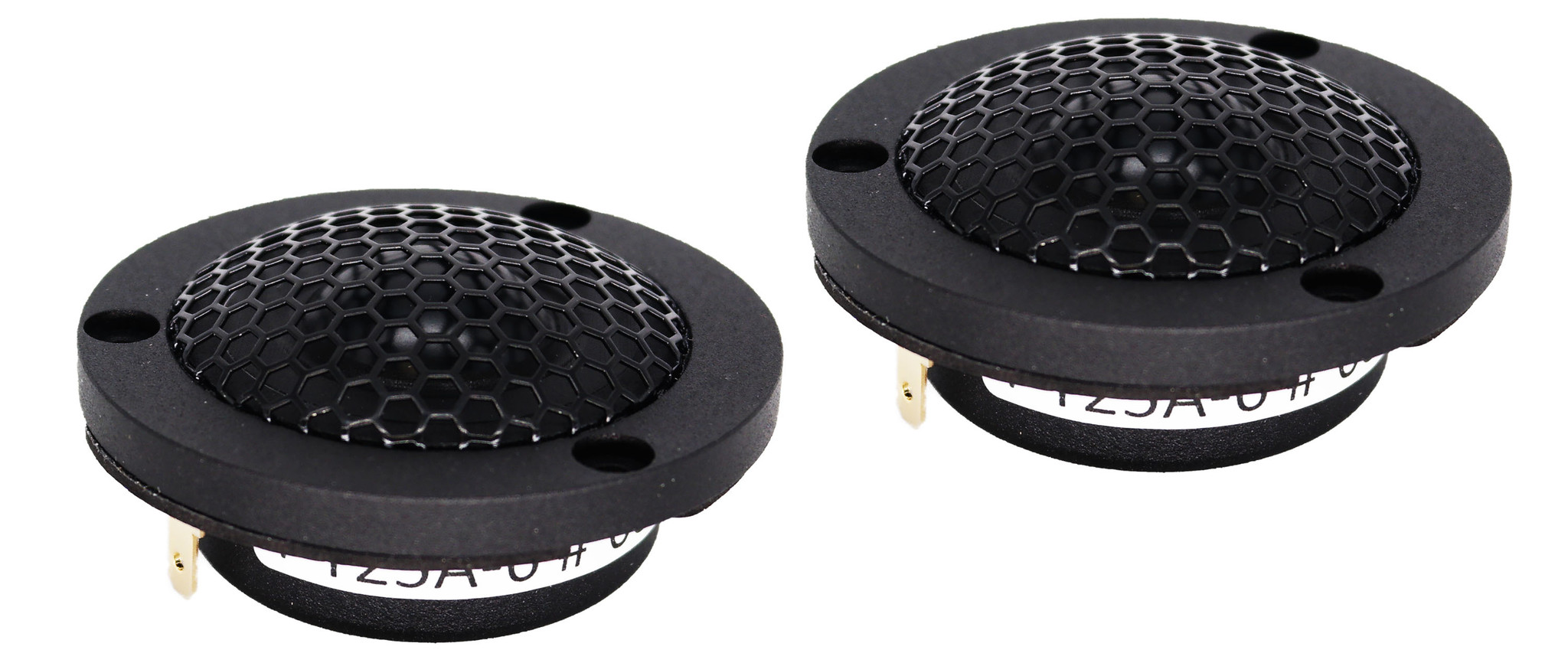

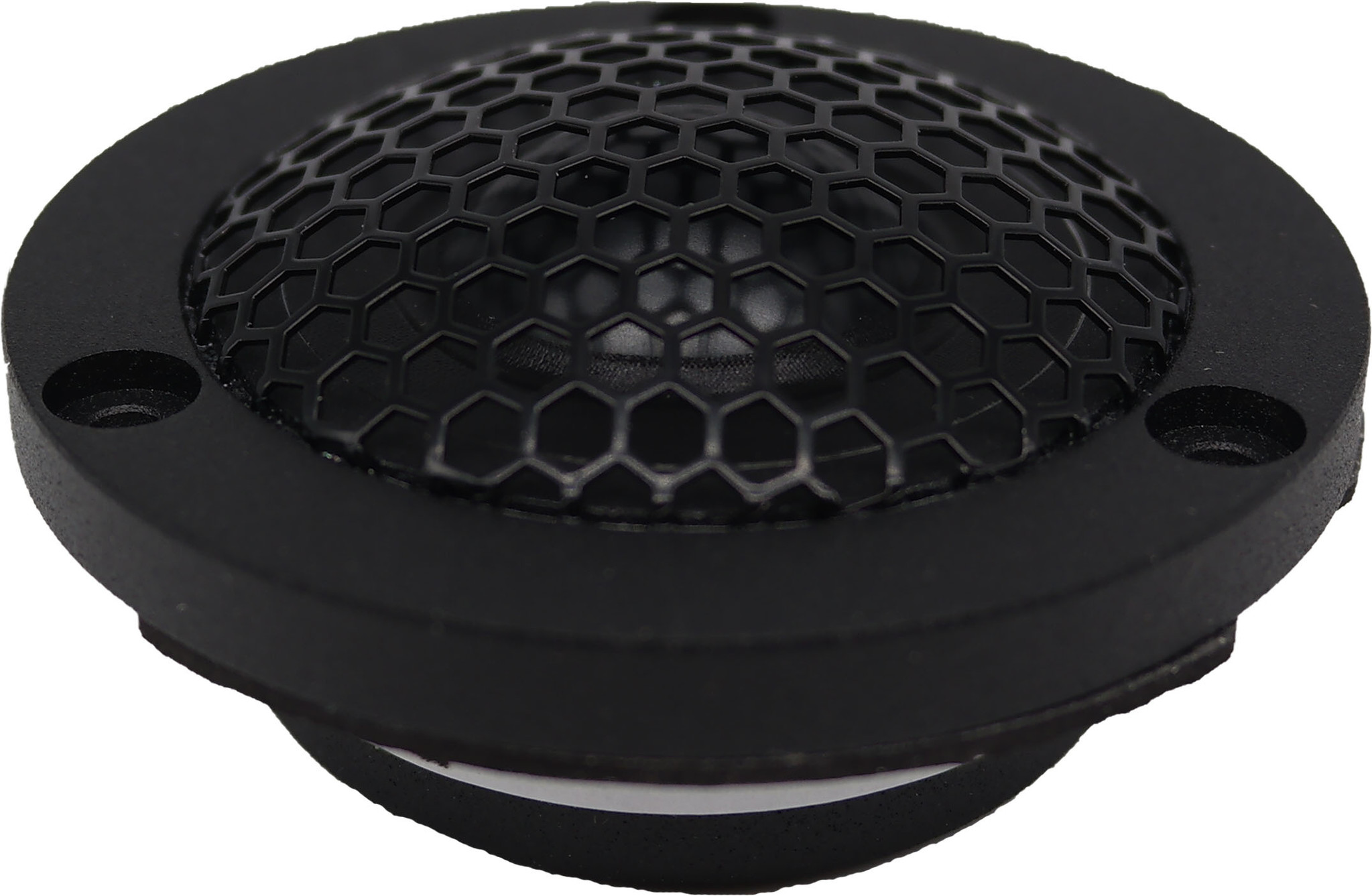

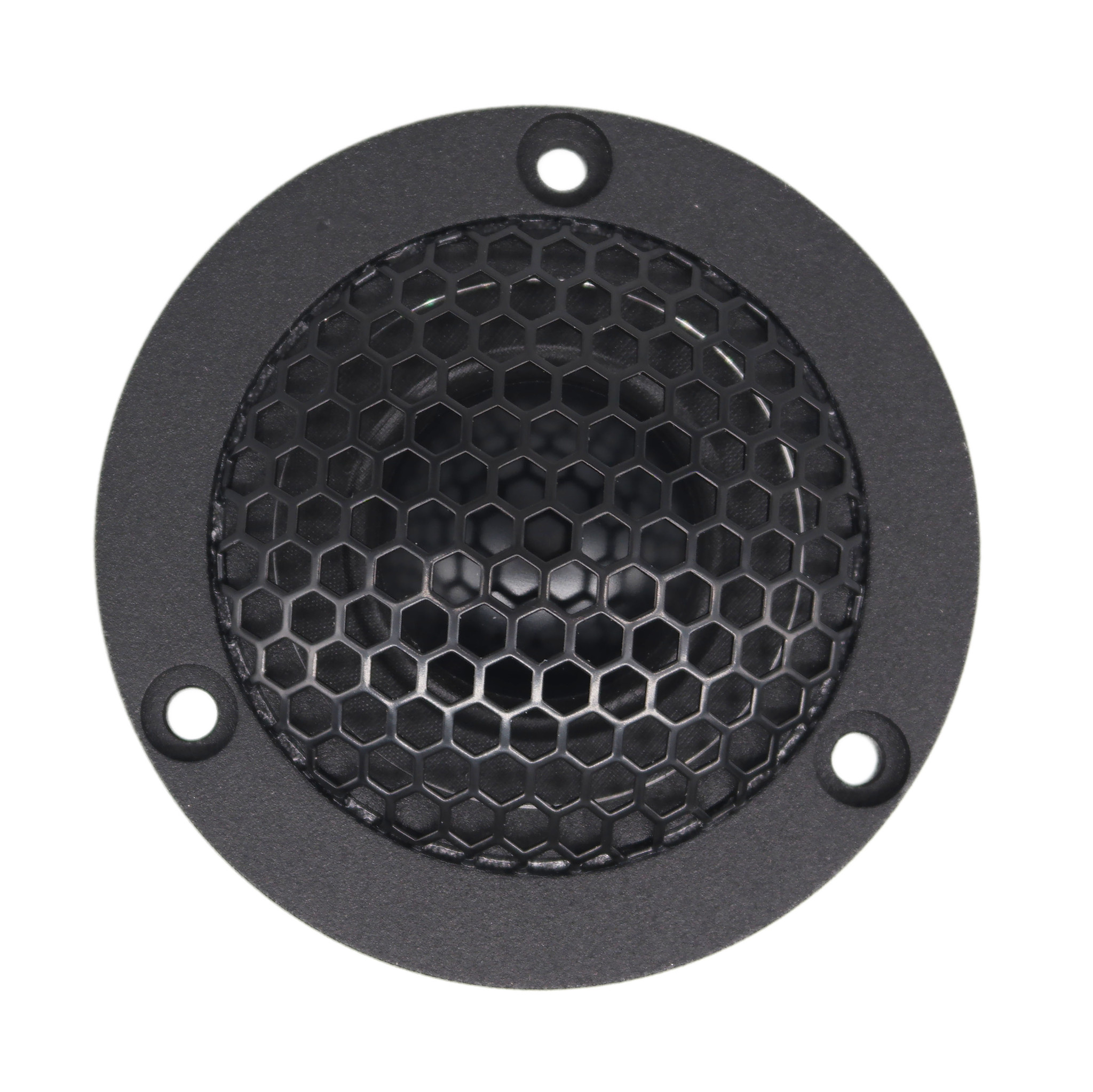

BlieSMa T25A-6 Aluminum Dome Tweeter | Matched pair

Highlights

  • 25mm aluminium-magnesium alloy dome with variable thickness for ultrasonic first breakup mode
  • Extremely low moving mass for better transient response and higher efficiency
  • Fully saturated neodymium motor with copper sleeve for low non linear and modulation distortion
  • 2mm linear excursion and large vent channel for undistorted low frequency operation
  • Narrow surround for less “soft dome” coloration



Product details

BlieSMa T25A-6 Aluminum Dome Tweeter | Matched pair



Flush mounted surround and rear mounted magnet system for flat frequency response and wide off-axis response. No ferrofluid for improved dynamics. Underhung voice coil wound on titanium former. Flexible and lightweight lead wires made in Denmark. Thick aluminium powder coated flange. Aluminium rear chamber with natural wool damping. Gold plated wire terminals. Recommended frequency range 2.2kHz-35kHz.

Specifications

Specifications for: T25A-6 Aluminum Dome Tweeter | Matched pair

  • Tweeter Type Driver type for example: soft domes piezo, ribbon, AMT or bullet tweeter etc. Aluminum Magnesium Dome Tweeter
  • Tweeter Series Specific tweeter production line of the manufacturer.
  • Cone / Dome Diameter Nominal diameter of the dome/cone, measured in inches. 25mm
  • Power Handling (RMS) The average power handling capability of a driver (coil) in electric power (watts) for a long period of time without damaging the driver. RMS stands for Root Mean Square 100 W
  • Power Handling (max) The maximum electrical power that a woofer (coil) can handle for a short period of time before it is damaged.
  • View all specifications
  • Impedance 6 ohms
  • Sensitivity 93 dB
  • Frequency Response 2200 – 35000 Hz
  • Resonant Frequency (Fs) 870 Hz
  • DC Resistance (Re) 5.2 Ω
  • Voice Coil Inductance (Le) 0.008 mH
  • Mechanical Q (Qms) 1.35
  • Electromagnetic Q (Qes) 0.82
  • Total Q (Qts) 0.51
  • Overall Outside Diameter
  • Cutout Diameter
  • Depth
  • Angle
  • Mounting Type
  • Exit Diameter
  • Diaphragm Material
  • Recommended cut frequency
