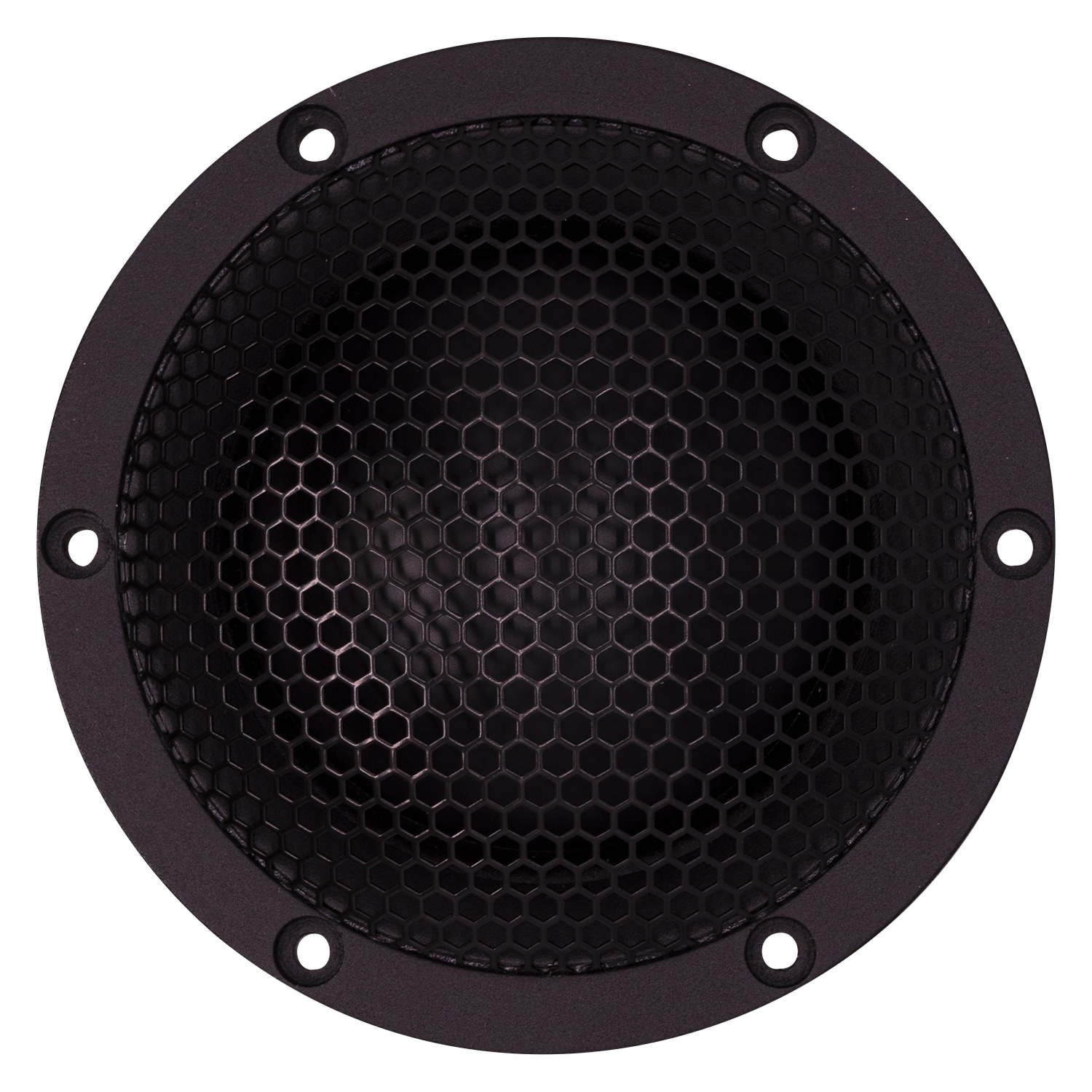

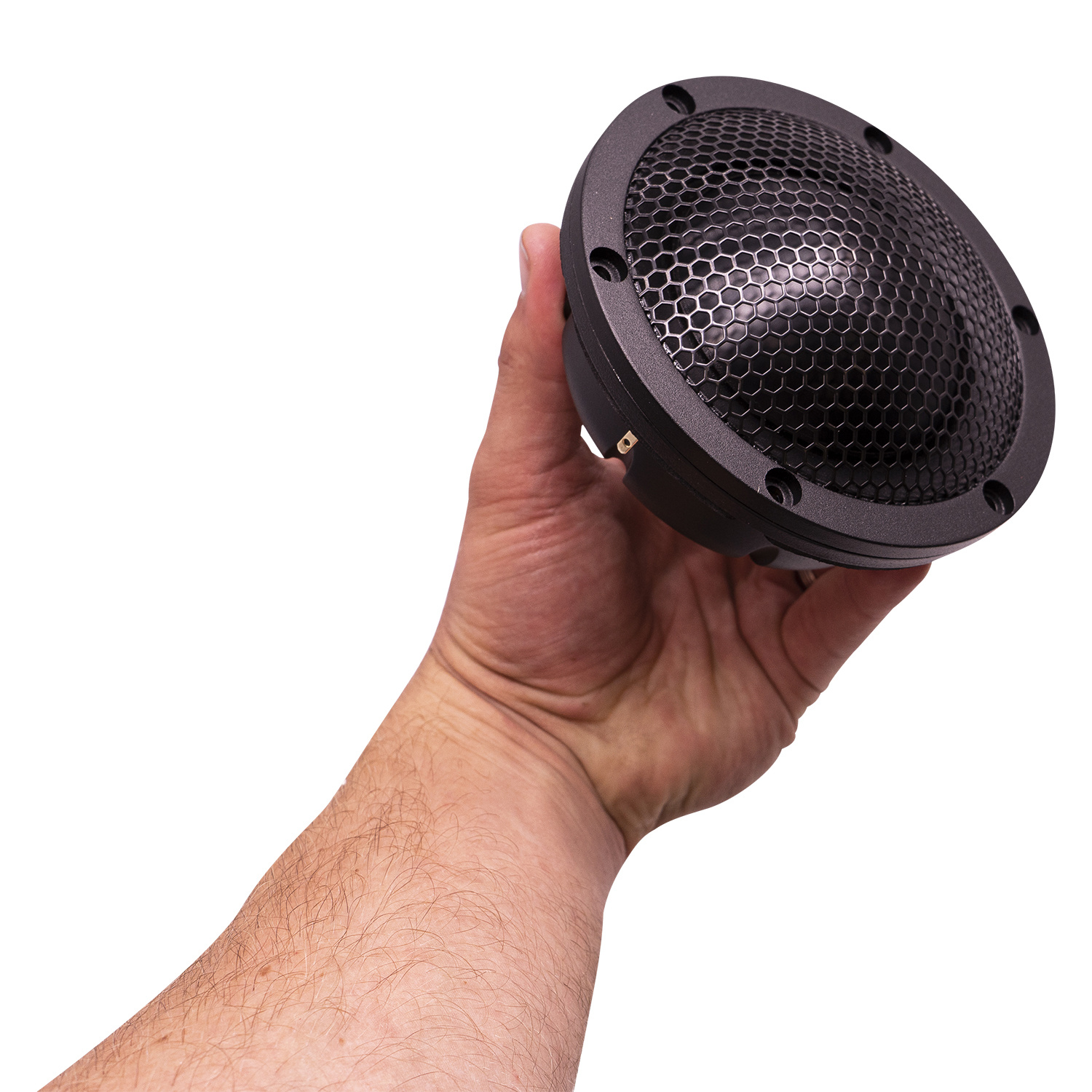

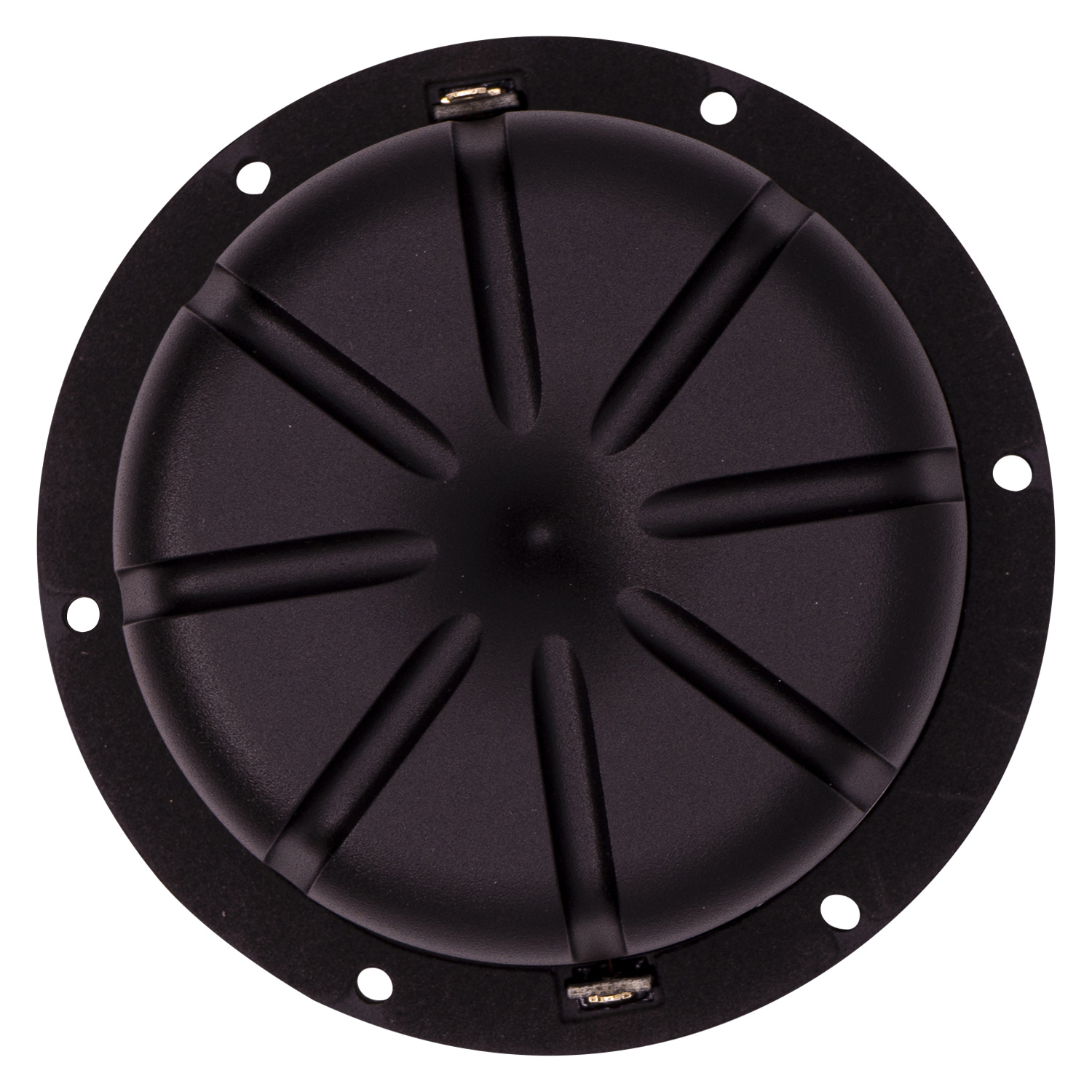

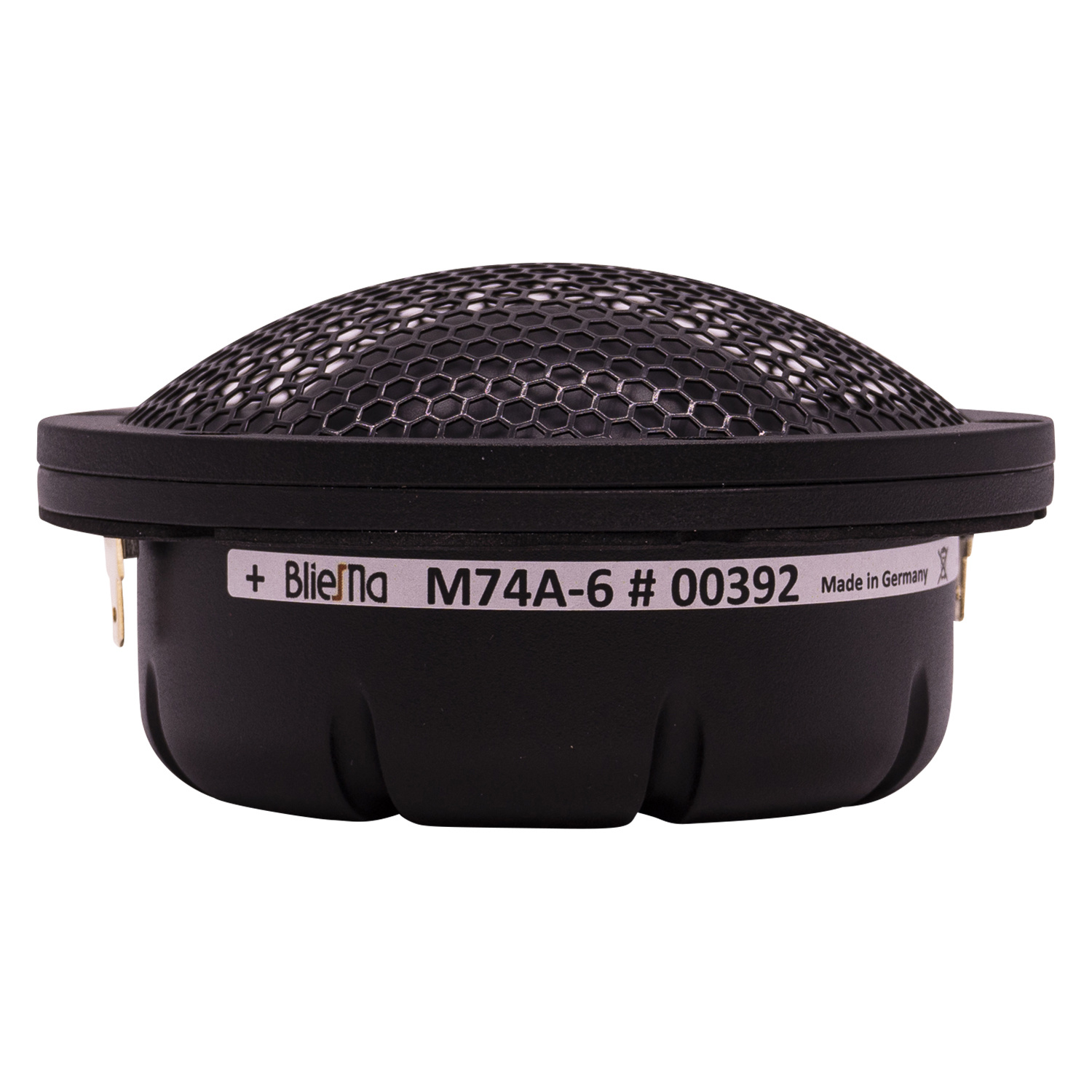

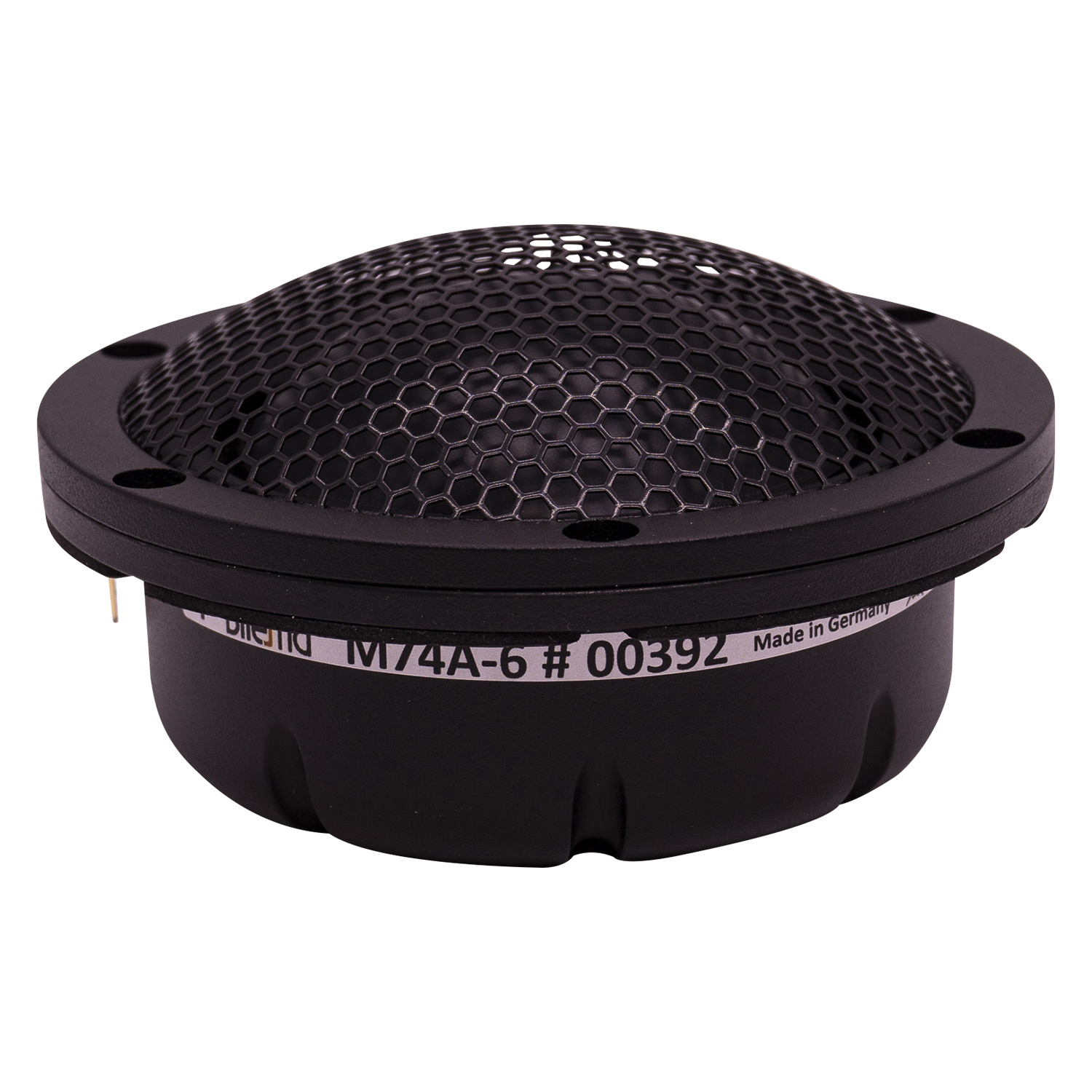

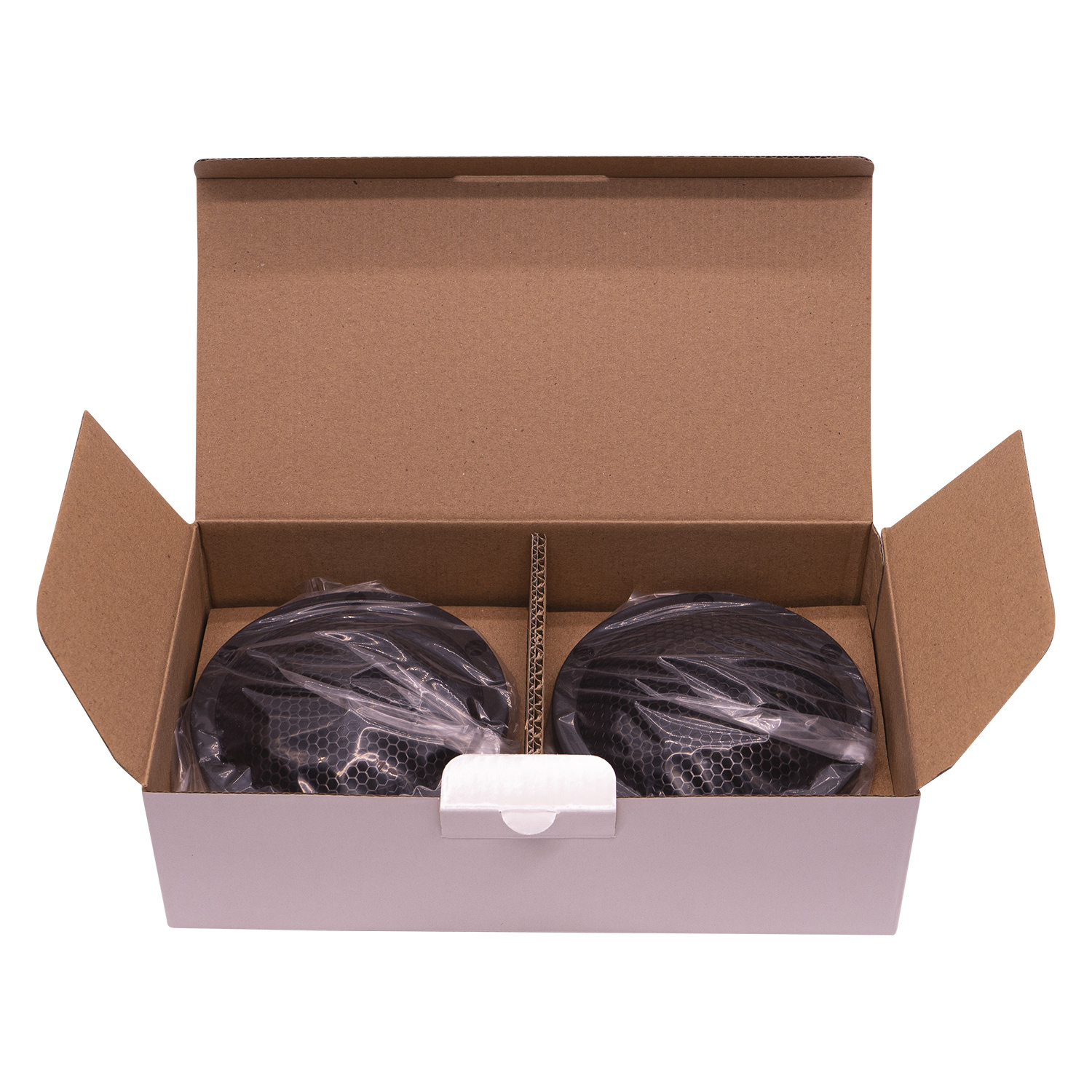

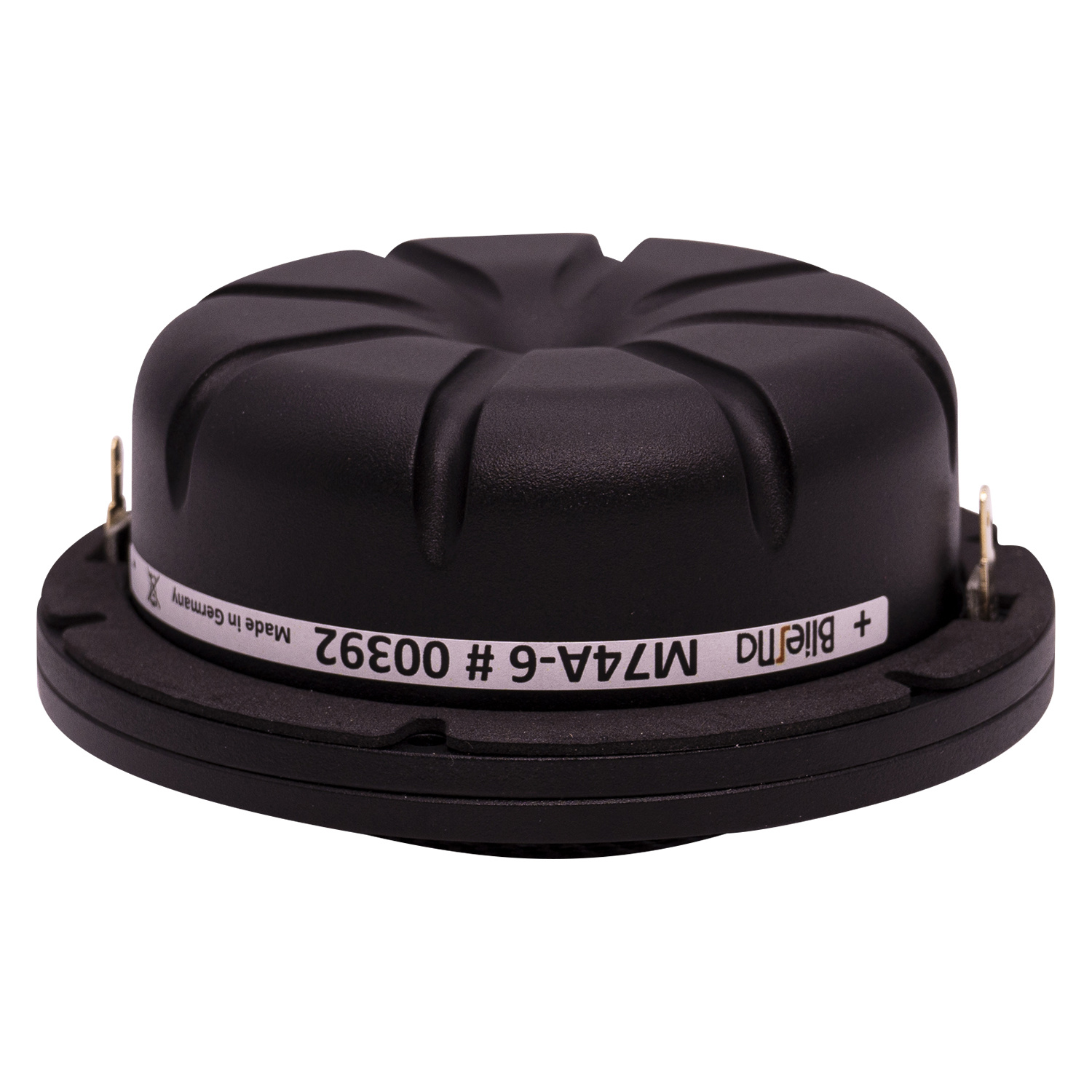

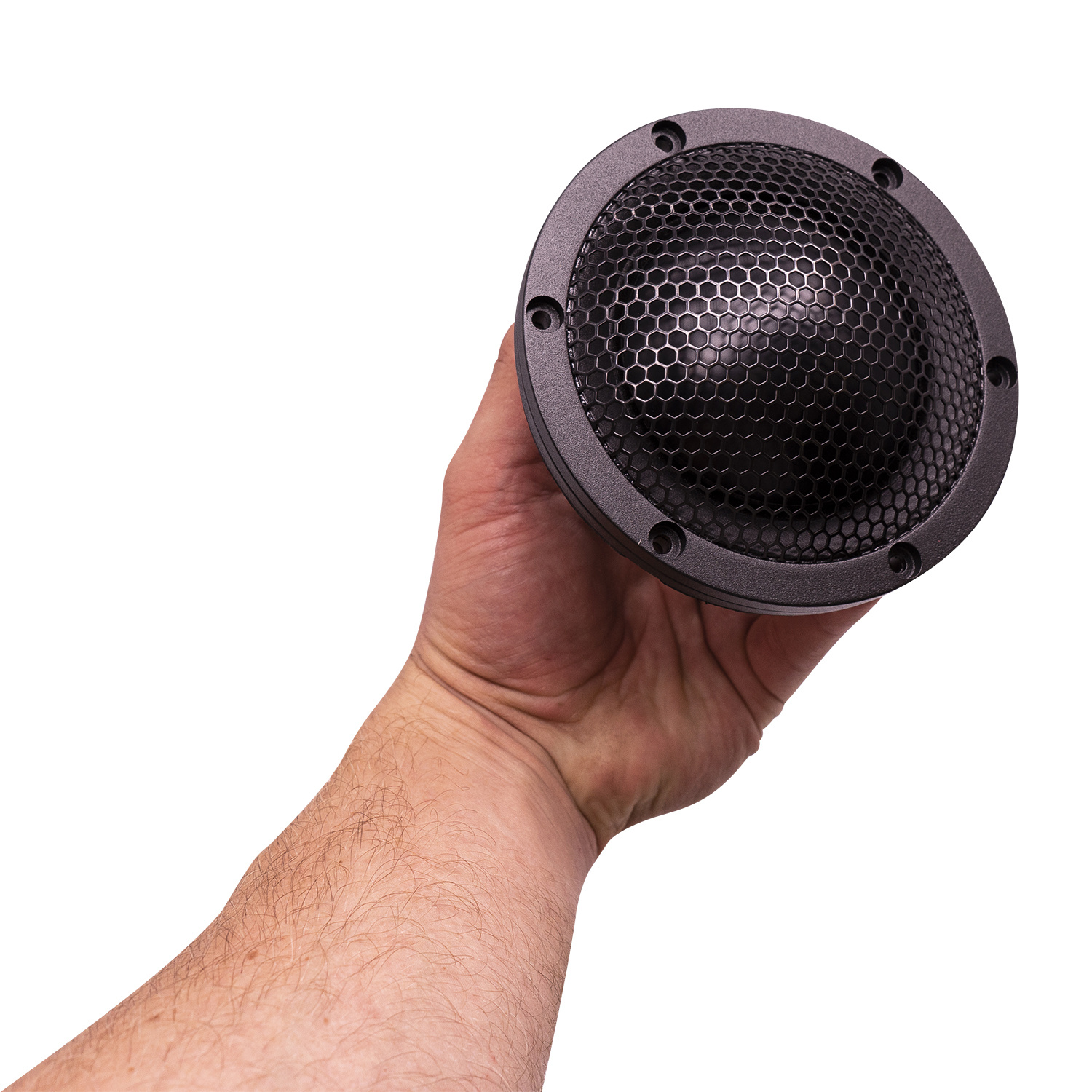

        M74A-6 Mid-range woofer

        M74A-6 Mid-range woofer

        €379,95

        Out of stock

        BlieSMa M74A-6 Mid-range woofer

        1 reviews
        5 from 5
        1 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: BlieSMa
        Show all Mid-range woofer
        Unavailable
        M74A-6 Mid-range woofer
        M74A-6 Mid-range woofer
        M74A-6 Mid-range woofer
        M74A-6 Mid-range woofer
        M74A-6 Mid-range woofer
        M74A-6 Mid-range woofer
        M74A-6 Mid-range woofer
        M74A-6 Mid-range woofer
        M74A-6 Mid-range woofer
        M74A-6 Mid-range woofer
        M74A-6 Mid-range woofer
        M74A-6 Mid-range woofer
        M74A-6 Mid-range woofer
        M74A-6 Mid-range woofer
        € 314,01€ 379,95 Out of stock: End of life. We can not supply this product anymore.
        • -5% Purchase 4 for only € 360,95 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Same day shipping
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        M74A-6 Mid-range woofer
        M74A-6 Mid-range woofer
        M74A-6 Mid-range woofer
        M74A-6 Mid-range woofer
        M74A-6 Mid-range woofer
        M74A-6 Mid-range woofer
        M74A-6 Mid-range woofer
        M74A-6 Mid-range woofer
        M74A-6 Mid-range woofer
        M74A-6 Mid-range woofer
        M74A-6 Mid-range woofer
        M74A-6 Mid-range woofer
        M74A-6 Mid-range woofer
        M74A-6 Mid-range woofer
        M74A-6 Mid-range woofer
        M74A-6 Mid-range woofer

        Product description

        Single-layer ribbon CCAW (Copper-clad Aluminum Wire) voice coil of Bliesma M74A-6 is wound on titanium former. Wire terminals are gold-plated.



        Highlights

        • 74 mm AlMg alloy dome with variable thickness
        • Extremely low moving mass for better transient response and higher efficiency
        • Fully saturated neodymium motor with copper sleeve for low non linear and modulation distortion
        • 2.4 mm linear excursion (P-P) and large vent channel for undistorted low frequency operation
        • Thick aluminium powder coated flange
        • Aluminium rear chamber with natural wool damping
        • Recommended frequency range Fs - 6 kHz



        Product details

        BlieSMa M74A-6 Mid-range woofer



        Thick aluminium mounting flange of Bliesma M74A-6 is powder coated, aluminium rear chamber is filled with natural wool damping.

        Show more

        Specifications

        Article number
        M74A-6
        Woofer Type
        Mid-range Dome
        Impedance (Z)
        6Ω
        Sensitivity (SPL at 1m / 2.83V)
        95 dB
        Voice Coil Diameter
        74 mm
        DC Resistance (Re)
        5.6 Ω
        Voice Coil Inductance (Le)
        0.036 mH
        Resonant Frequency (Fs)
        400 Hz
        Mechanical Q (Qms)
        6.4
        Electromagnetic Q (Qes)
        0.75
        Total Q (Qts)
        0.67
        Diaphragm Mass Inc. Airload (Mms)
        2.3 g
        Surface Area of Cone (Sd)
        50.25 cm²
        BL Product (BL)
        6.8 T*m
        Maximum Linear Excursion (Xmax)
        1.2 mm
        Voice Coil Wire Material
        CCAW

        Show more

        Reviews

        1 reviews
        Review this product
        5 of 5
        This is an excellent mid range driver - absolutely top of the range! High sensitivity and max SPL with very low distortion. Easy to integrate and a very small faceplate to get close to the high frequency driver. Sound: Lot's of detail and precision - that's what I expect from a dome mid driver. More precise and natural as the Bliesma silk 3". Ideally combined with a Bliesma Beryllium Tweeter. Be prepared to hear everything your sound files ...

        Show more

        By JF on 4 October 2022
