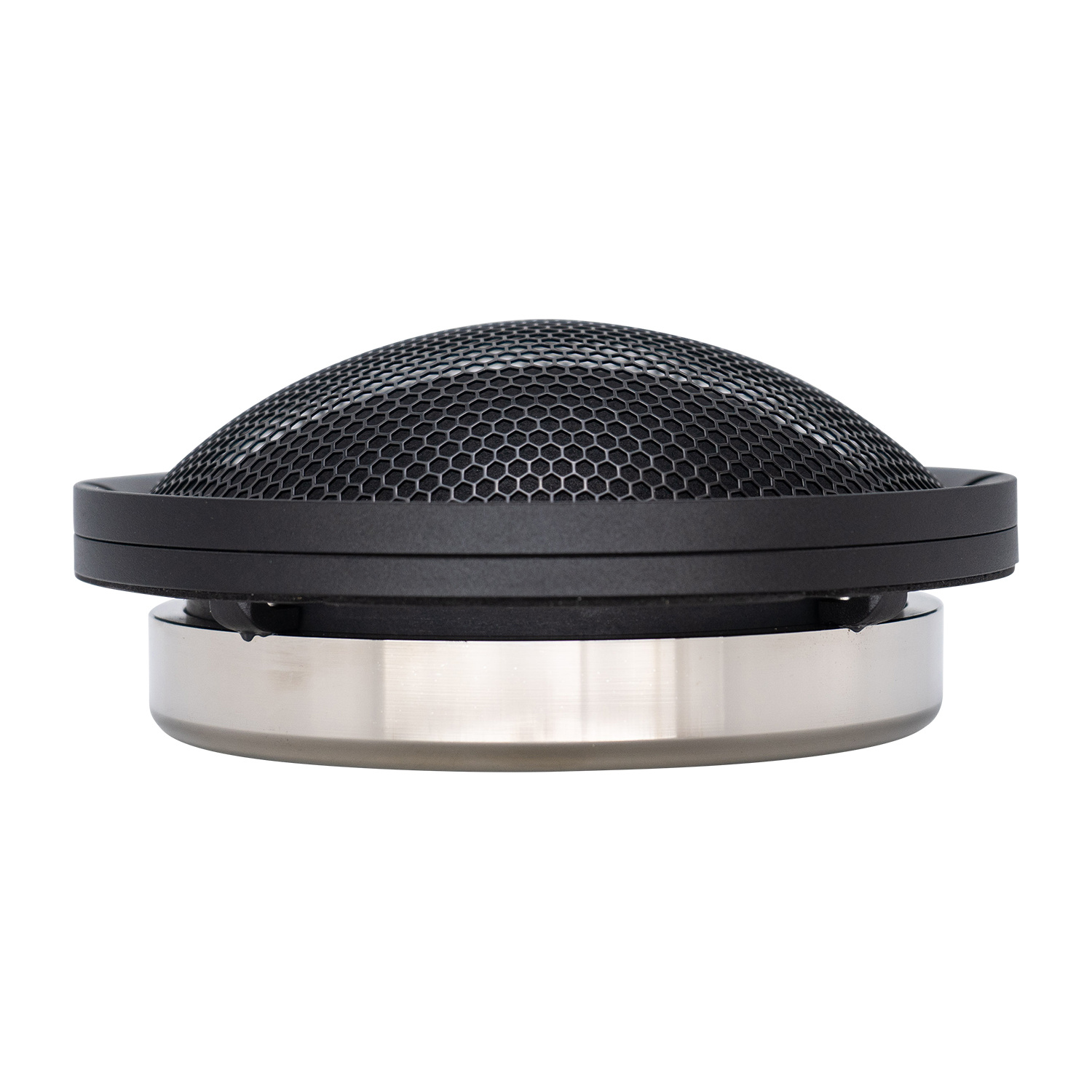

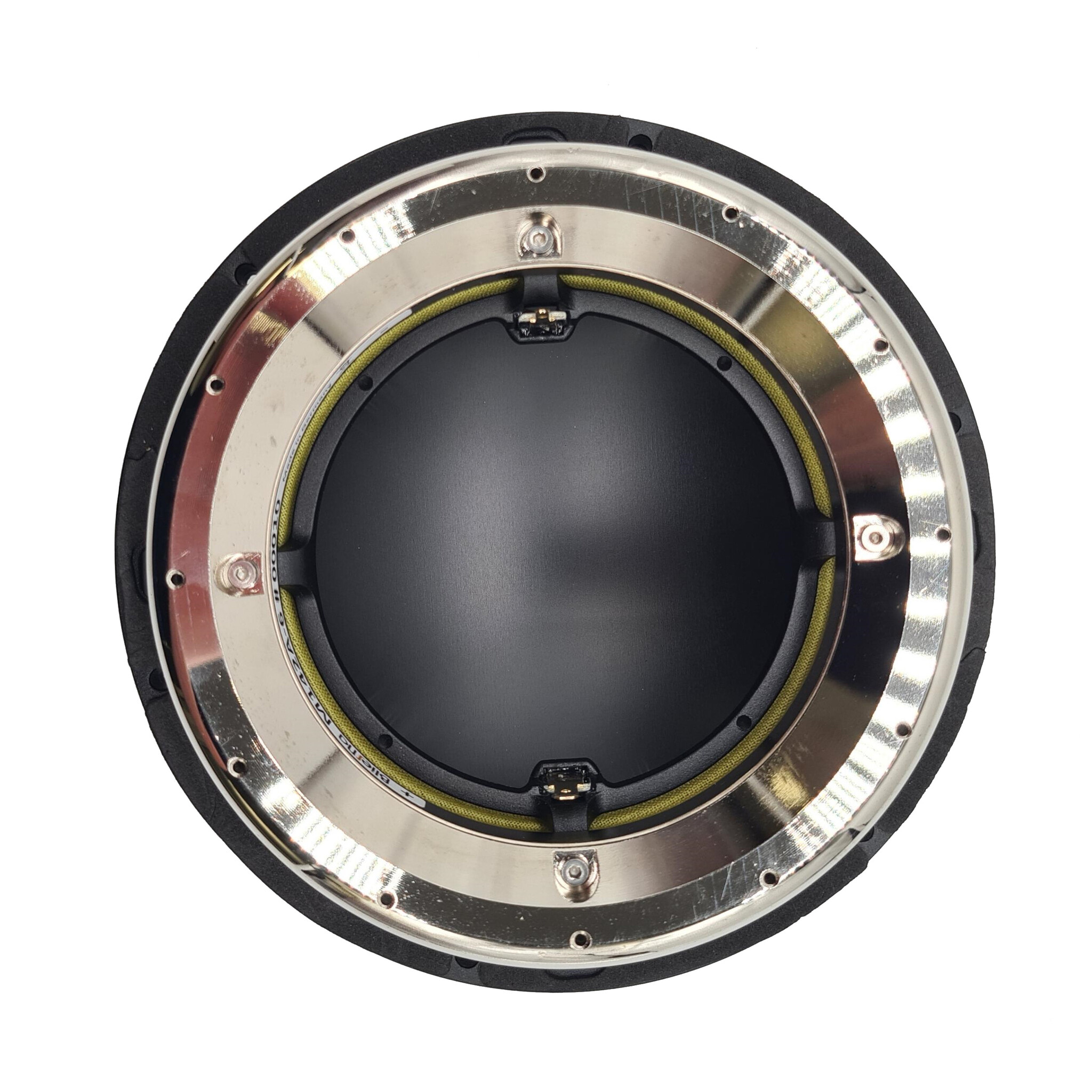

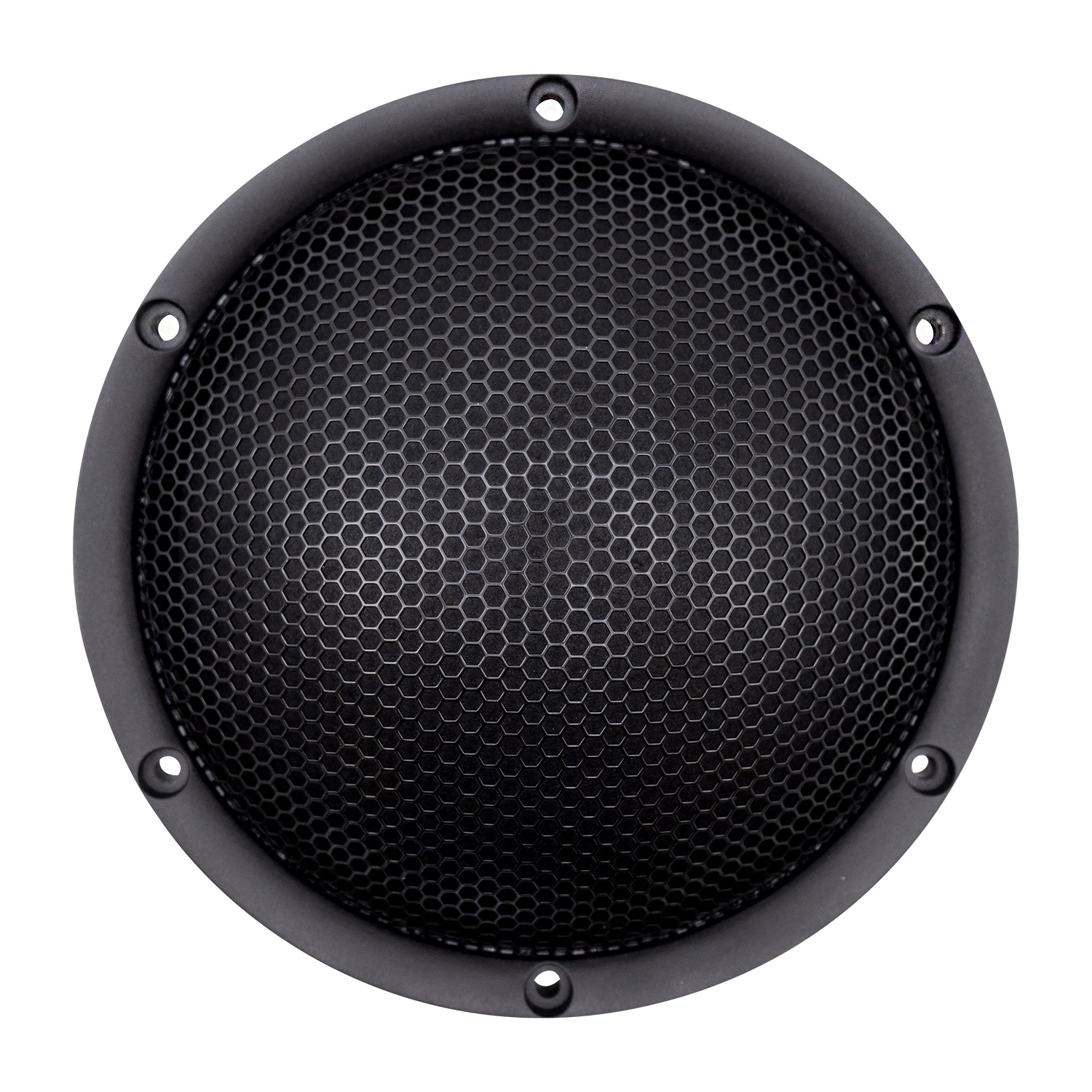

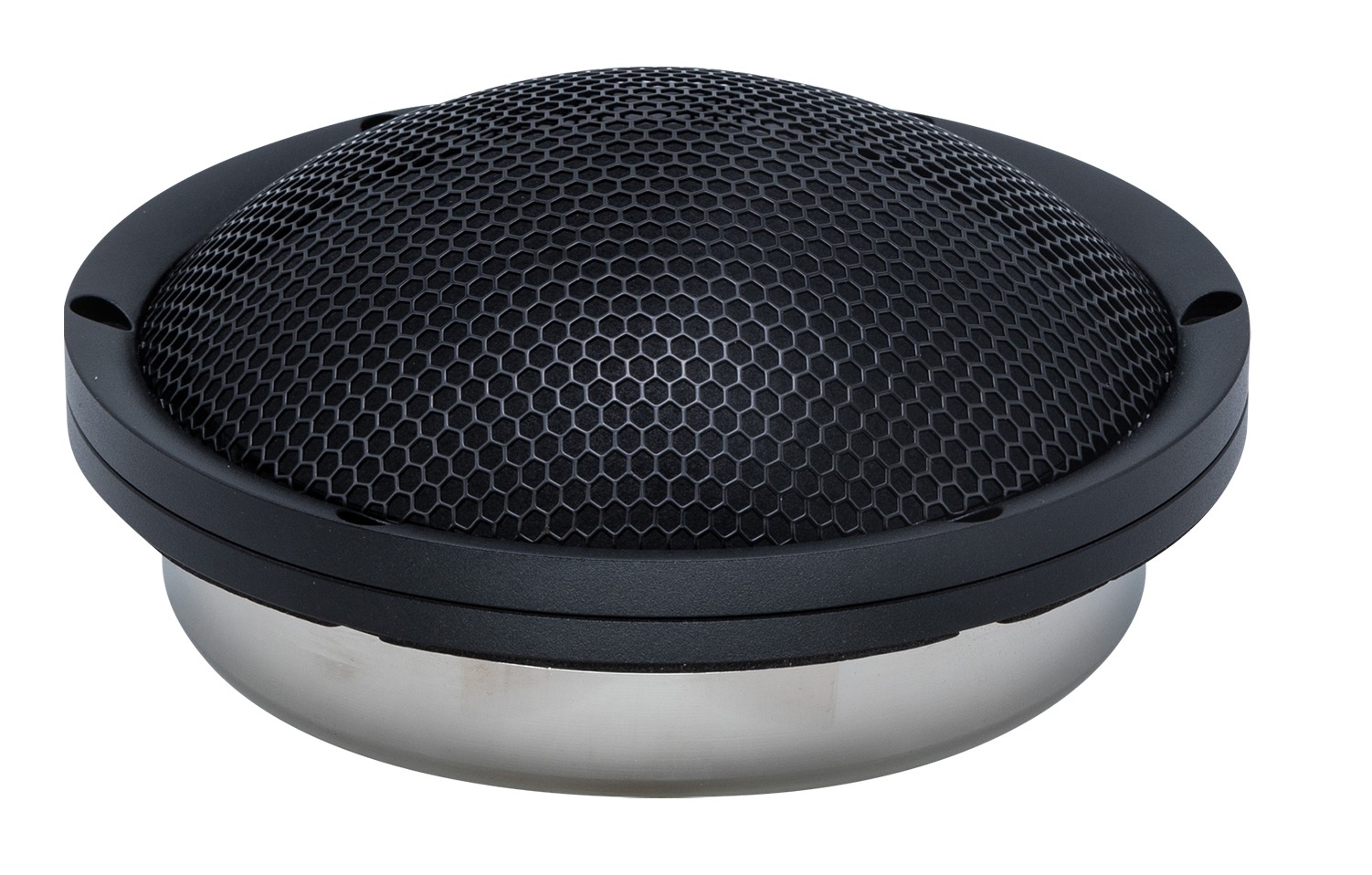

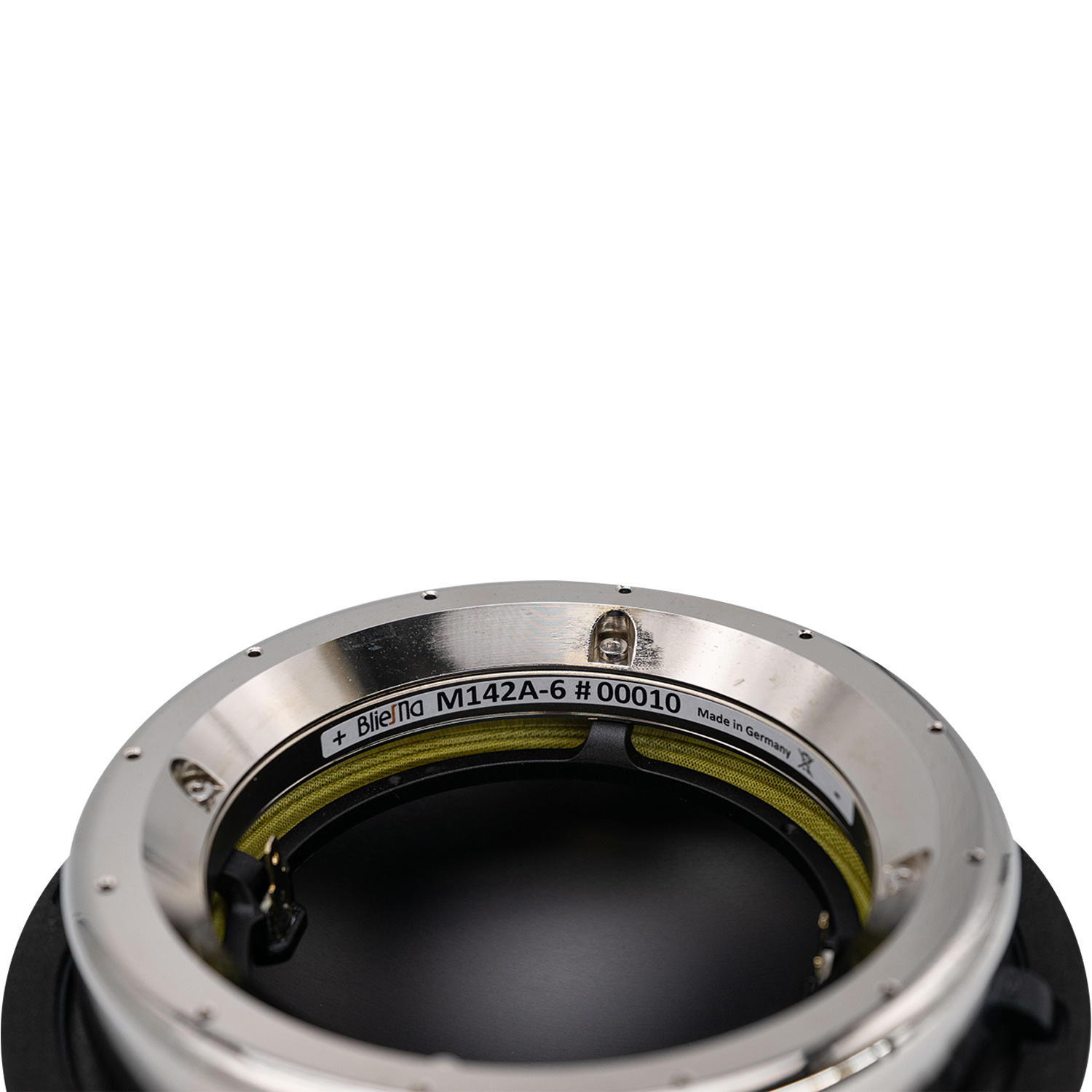

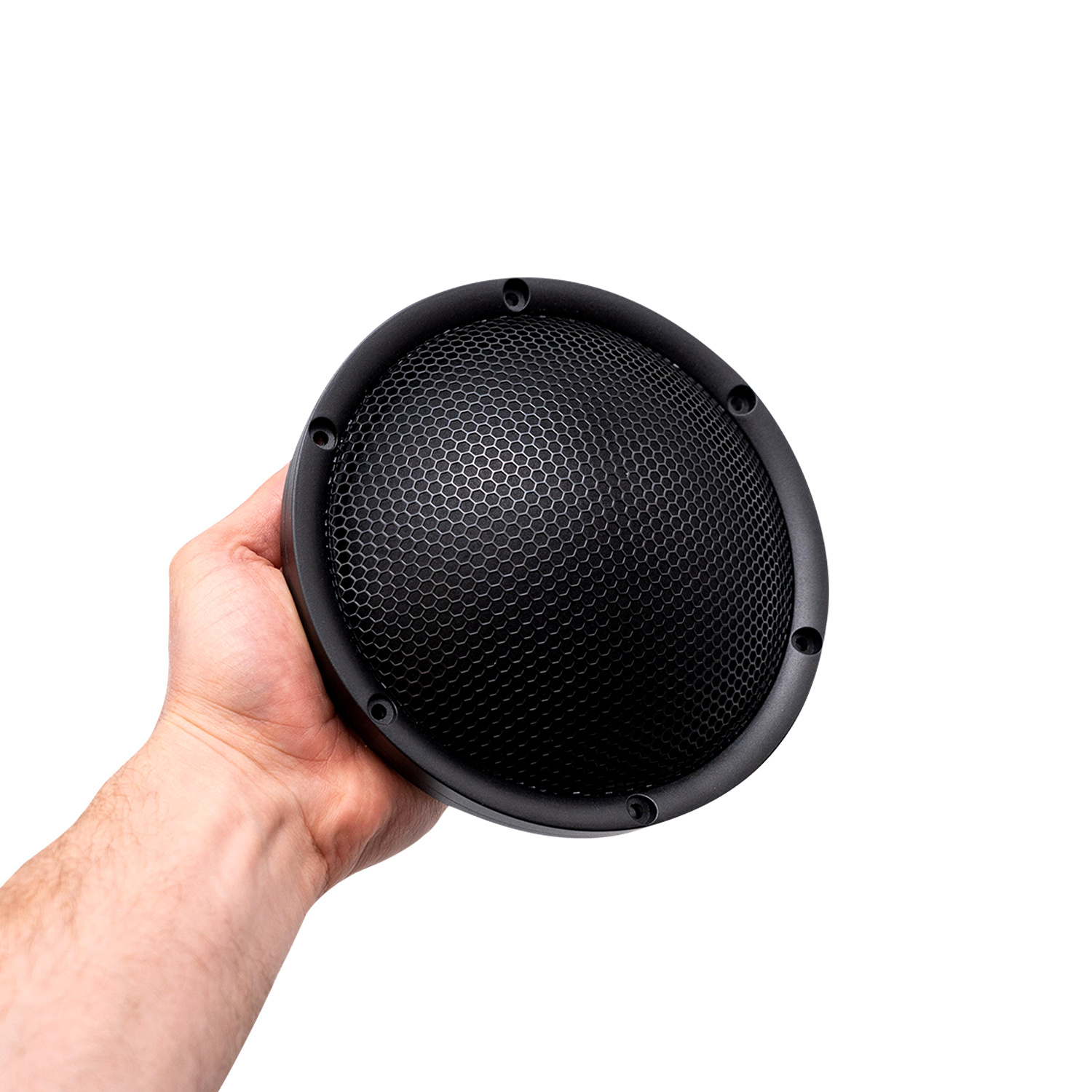

        M142A-6 Mid-range woofer

        BlieSMa M142A-6 Mid-range woofer

        €1.049,95

        Out of stock

        Out of stock

        BlieSMa M142A-6 Mid-range woofer

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: BlieSMa
        Show all Mid-range woofer
        Unavailable
        M142A-6 Mid-range woofer
        M142A-6 Mid-range woofer
        M142A-6 Mid-range woofer
        M142A-6 Mid-range woofer
        M142A-6 Mid-range woofer
        M142A-6 Mid-range woofer
        M142A-6 Mid-range woofer
        M142A-6 Mid-range woofer
        M142A-6 Mid-range woofer
        M142A-6 Mid-range woofer
        M142A-6 Mid-range woofer
        M142A-6 Mid-range woofer
        M142A-6 Mid-range woofer
        M142A-6 Mid-range woofer
        € 867,73€ 1.049,95 Out of stock
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped on Monday
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        M142A-6 Mid-range woofer
        M142A-6 Mid-range woofer
        M142A-6 Mid-range woofer
        M142A-6 Mid-range woofer
        M142A-6 Mid-range woofer
        M142A-6 Mid-range woofer
        M142A-6 Mid-range woofer
        M142A-6 Mid-range woofer
        M142A-6 Mid-range woofer
        M142A-6 Mid-range woofer
        M142A-6 Mid-range woofer
        M142A-6 Mid-range woofer
        M142A-6 Mid-range woofer
        M142A-6 Mid-range woofer
        M142A-6 Mid-range woofer
        M142A-6 Mid-range woofer

        Product description BlieSMa M142A-6 Mid-range woofer

        Highlights

        • Ring magnet system with large rear opening reduces
          for higher first breakup mode backside reflections and improves dipole operation
        • Natural silk surround and cotton spider from Dr. Kurt Müller
          response and higher efficiency GmbH & Co. for higher midrange resolution
        • Surround hidden in basket rim allows significant reduction
        • Thick aluminium powder coated basket
        • Underhung voice coil wound on titanium former
        • Gold plated wire terminals
        • 137 mm voice coil for low thermal compression
        • Recommended frequency range 180 Hz - 2,8 kHz



        Product details

        BlieSMa M142A-6 Mid-range woofer



        142 mm AlMg alloy dome with variable thickness for higher first breakup mode. Extremely low moving mass for better transient response and higher efficiency. Fully saturated neodymium motor with copper sleeve for low non linear and modulation distortion. Single-layer ribbon CCAW voice coil for lower inductance.

        Show more

        Specifications

        Article number
        M142A-6
        EAN
        8785256847181
        Woofer Type
        Midrange Woofer
        Impedance (Z)
        6 Ω
        Sensitivity (SPL at 1m / 2.83V)
        94.5 dB
        Frequency Response
        180 - 2.800 Hz
        Voice Coil Diameter
        137 mm
        DC Resistance (Re)
        5.4 Ω
        Voice Coil Inductance (Le)
        0.03 mH
        Resonant Frequency (Fs)
        65 Hz
        Mechanical Q (Qms)
        8.3
        Electromagnetic Q (Qes)
        0.31
        Total Q (Qts)
        0.3
        Diaphragm Mass Inc. Airload (Mms)
        11 g
        Mechanical Compliance of Suspension (Cms)
        0.54 mm/N
        Surface Area of Cone (Sd)
        180.3 cm²
        BL Product (BL)
        8.8 Tm
        Compliance Equivalent Volume (Vas)
        24.6 Liters
        Maximum Linear Excursion (Xmax)
        +/- 1.85 mm
        Driver's Mechanical Losses (Rms)
        0.54 kg/s
        Voice Coil Former
        Titanium
        Overall Outside Diameter
        180 mm
        Overall Depth
        62 mm
        Baffle Cutout Diameter
        158 mm
        Bolt Circle Diameter
        169 mm
        # Mounting Holes
        6
        Mounting Hole Diameter
        4.5 mm

        Show more
