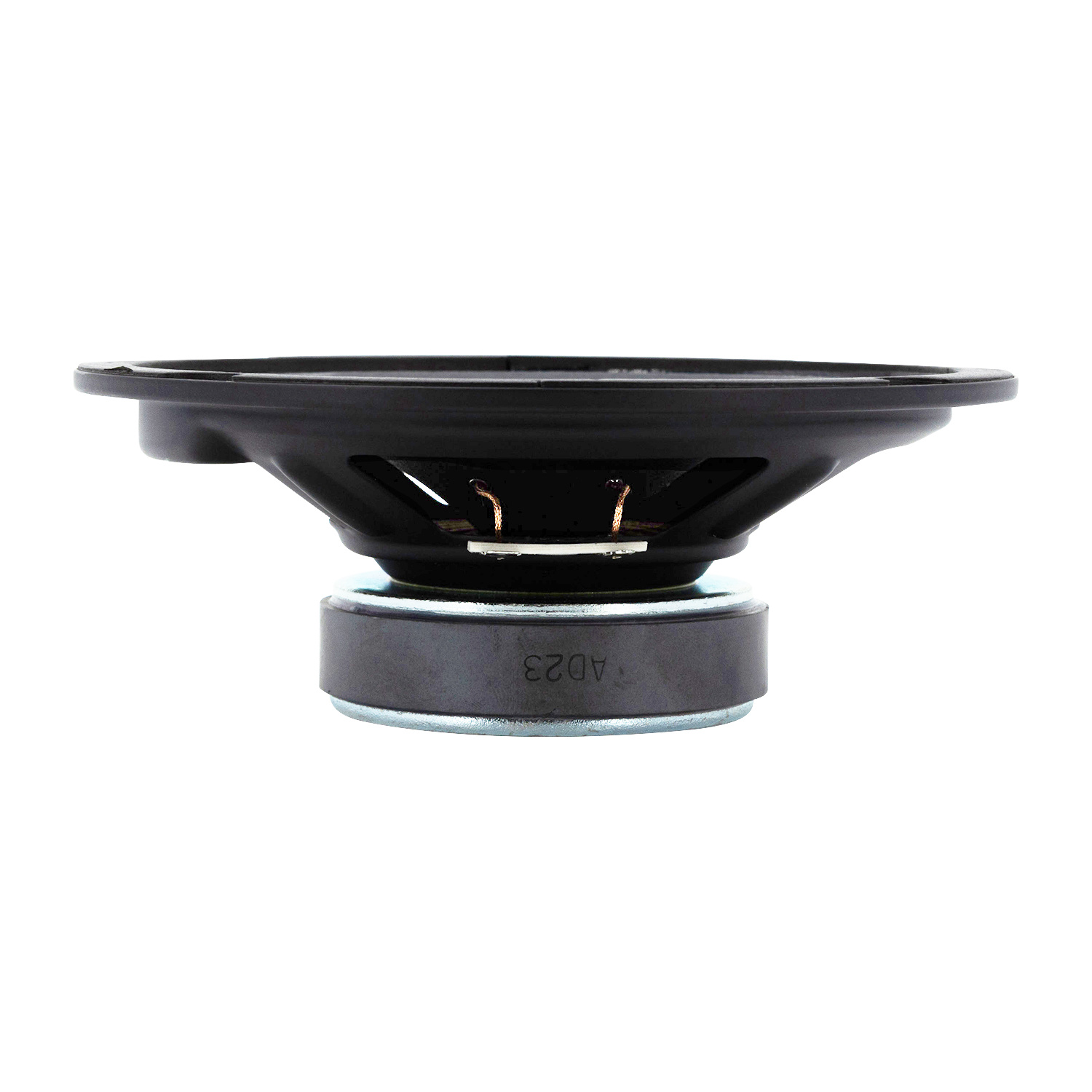

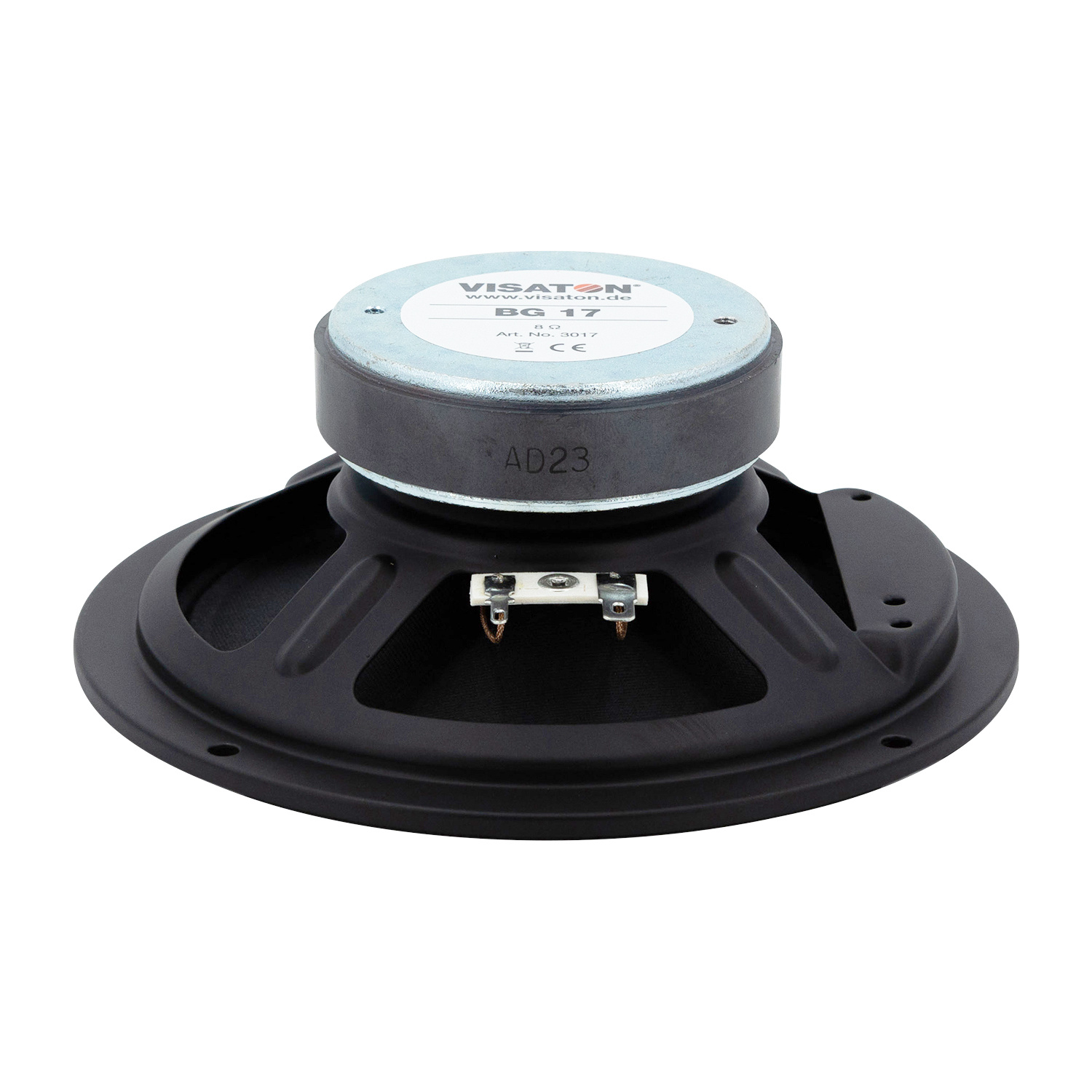

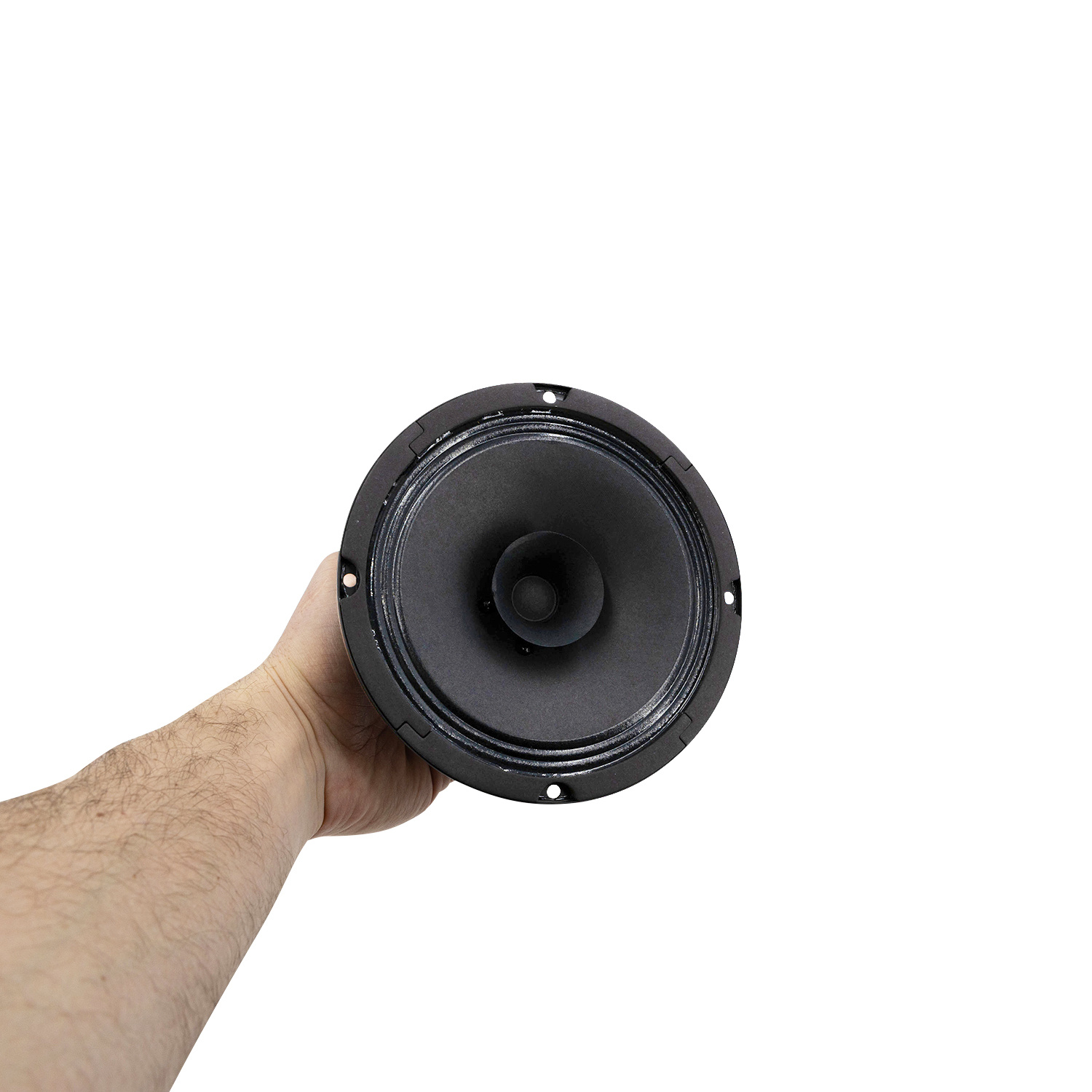

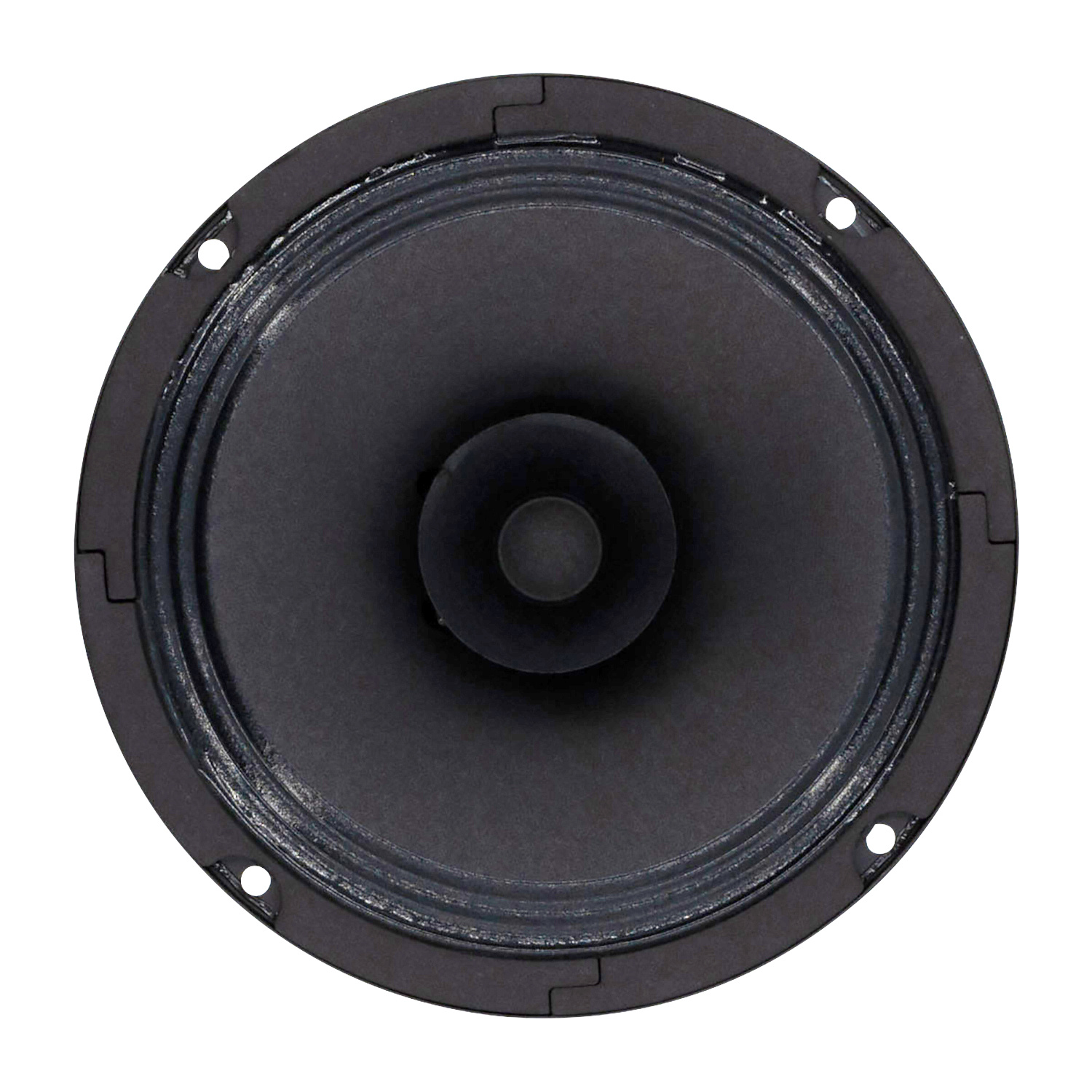

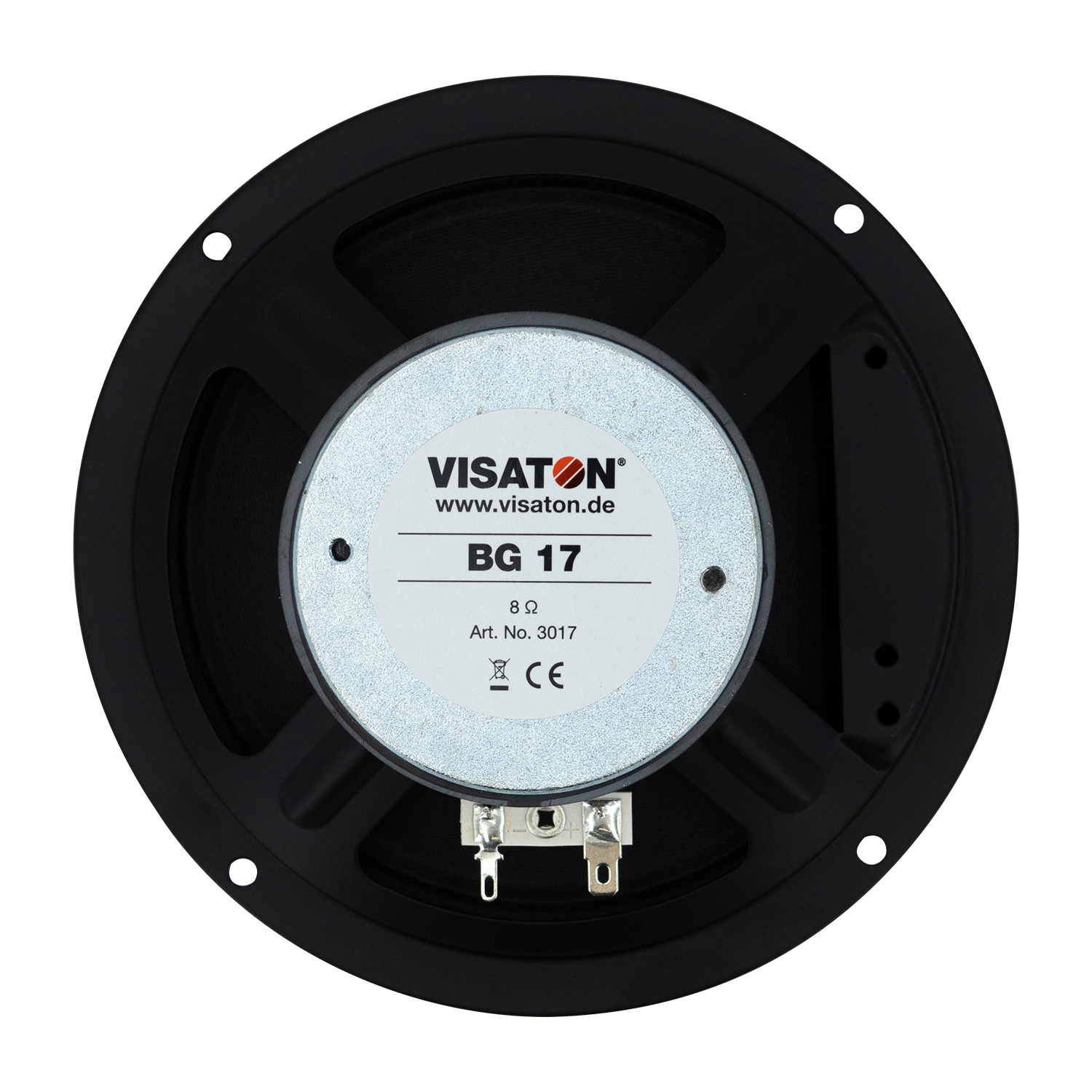

Visaton BG 17 6.5" Full-Range Speaker 8 Ohm

Specifications for: BG 17 6.5" Full-Range Speaker 8 Ohm

• Woofer SeriesSpecific woofer production line of the manufacturer.
• Woofer TypeThe driver type for example subwoofer, mid-woofer, full range or coaxial woofer. Full-Range
• Nominal DiameterThe approximate diameter of the driver, measured in inches. 6.5"
• Power Handling (RMS)The average power handling capability of a driver (coil) in electric power (watts) for a long period of time without damaging the driver. RMS stands for Root Mean Square 40 Watts
• Power Handling (max)The maximum electrical power that a woofer (coil) can handle for a short period of time before it is damaged. 60 Watts
• View all specifications
• Continuous Program Power
• Impedance 8 ohms
• Sensitivity 93 dB (1 W/1 m)
• Frequency Response 80–20,000 Hz
• Voice Coil Diameter 20 mm
• Magnet Weight
• DC Resistance (Re) 6.3 ohm
• Voice Coil Inductance (Le) 0.7 mH
• Resonant Frequency (Fs) 120 Hz
• Mechanical Q (Qms) 2.94
• Electromagnetic Q (Qes) 0.98
• Total Q (Qts) 0.74
• Diaphragm Mass Inc. Airload (Mms) 6.5 g
• Moving Mass Of Diaphragm (Mmd)
• Mechanical Compliance of Suspension (Cms)
• Surface Area of Cone (Sd)
• Volume of Displacement (Vd)
• BL Product (BL)
• Compliance Equivalent Volume (Vas) 8.2 L
• Maximum Linear Excursion (Xmax) 1.5 mm
• Driver's Mechanical Losses (Rms)
• Cone / Diaphragm Material
• Surround Material
• Voice Coil Wire Material
• Voice Coil Former
• Dual Voice Coil
• Basket / Frame Material
• Magnet Material Ferrite
• Shielded
• Overall Outside Diameter 165 mm
• Overall Depth 61.5 mm
• Baffle Cutout Diameter 146 mm
• Bolt Circle Diameter 155 mm
• # Mounting Holes 4
• Mounting Hole Diameter 4.8 mm
• Sealed Volume
• Sealed F3
• Vented Volume
• Vented F3
