        8CX300Fe Coaxial Woofer

        Beyma 8CX300Fe Coaxial Woofer

        €229,95

        6 expected on 02-01-2026

        Add to cart

        Beyma 8CX300Fe Coaxial Woofer

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Beyma
        Show all New products
        8" | 8 Ω
        8CX300Fe Coaxial Woofer
        8CX300Fe Coaxial Woofer
        8CX300Fe Coaxial Woofer
        8CX300Fe Coaxial Woofer
        € 190,04€ 229,95 Out of stock6 expected on 02-01-2026
        • -5% Purchase 4 for only € 218,45 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Back in stock soon
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        8CX300Fe Coaxial Woofer
        8CX300Fe Coaxial Woofer
        8CX300Fe Coaxial Woofer
        8CX300Fe Coaxial Woofer

        Pros and cons

        According to our specialists
        • Weatherproof cone with treatment for both sides of the cone

        Product description Beyma 8CX300Fe Coaxial Woofer

        Robust 8-inch coaxial transducer with ferrite magnet system, ideal for compact full-range speaker designs demanding clarity, efficiency, and wide frequency coverage.



        Highlights of the Beyma 8CX300Fe

        • 600 W / 100 W program power handling (LF / HF) with 95 / 105 dB sensitivity
        • Integrated 2.5” woofer and 1.75” compression driver with shared ferrite magnet
        • Weatherproof cone and PM4 diaphragm for long-lasting, high-fidelity sound
        • 70° conical horn dispersion and shorting cap for extended, linear response



        Product details Beyma 8CX300Fe

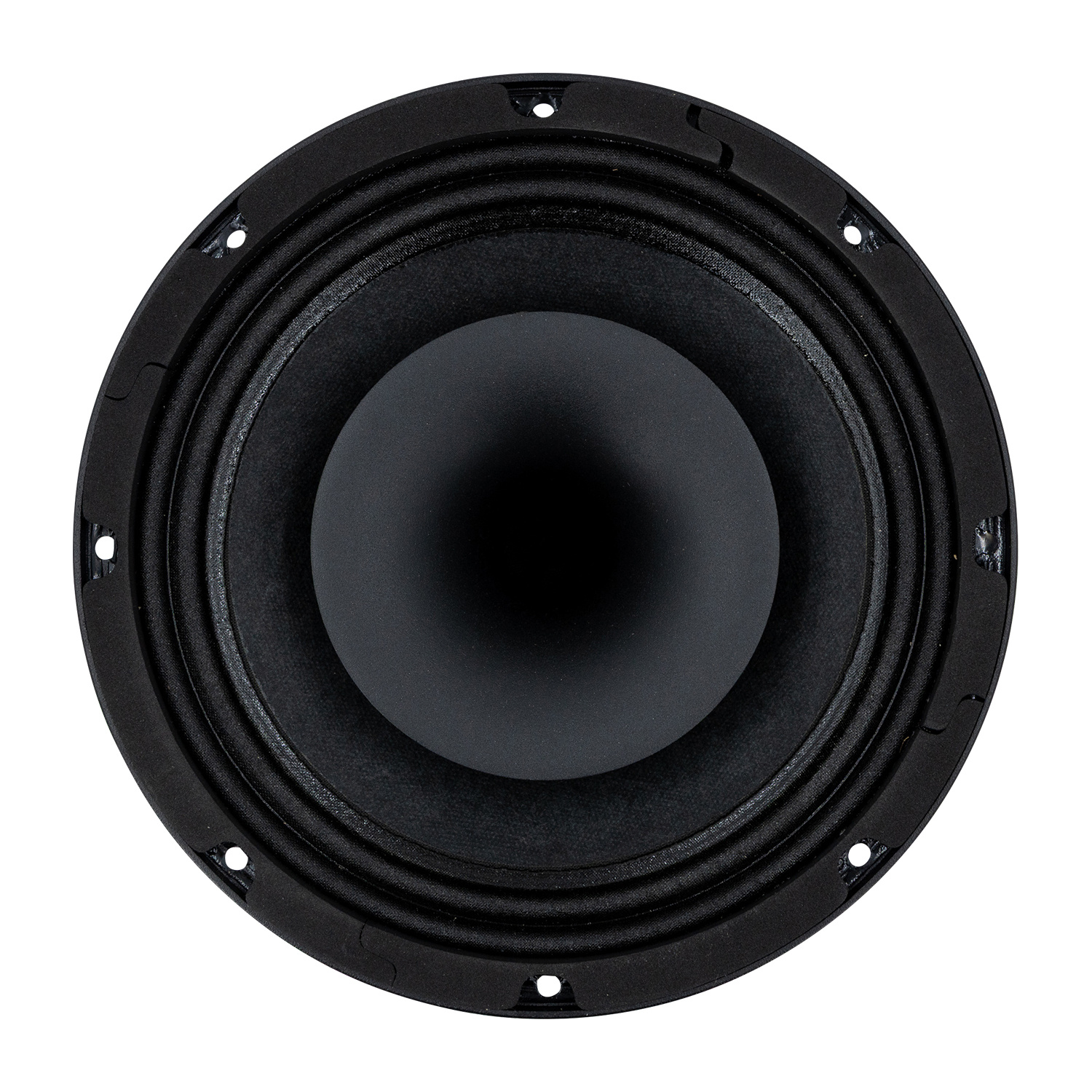

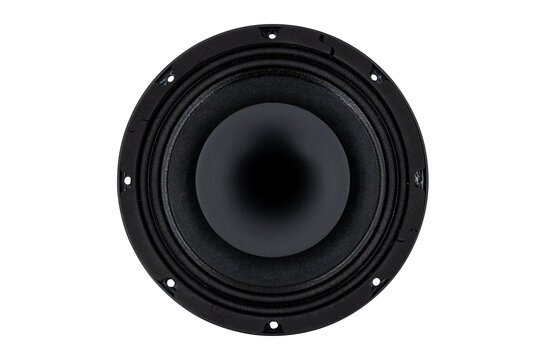

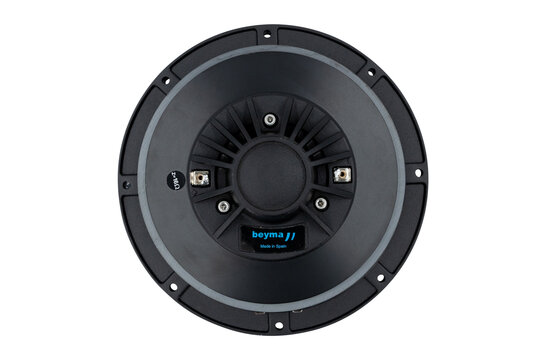

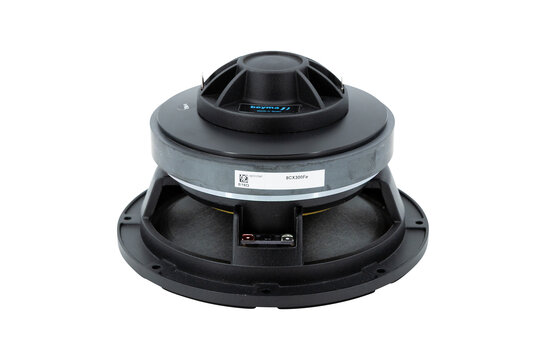

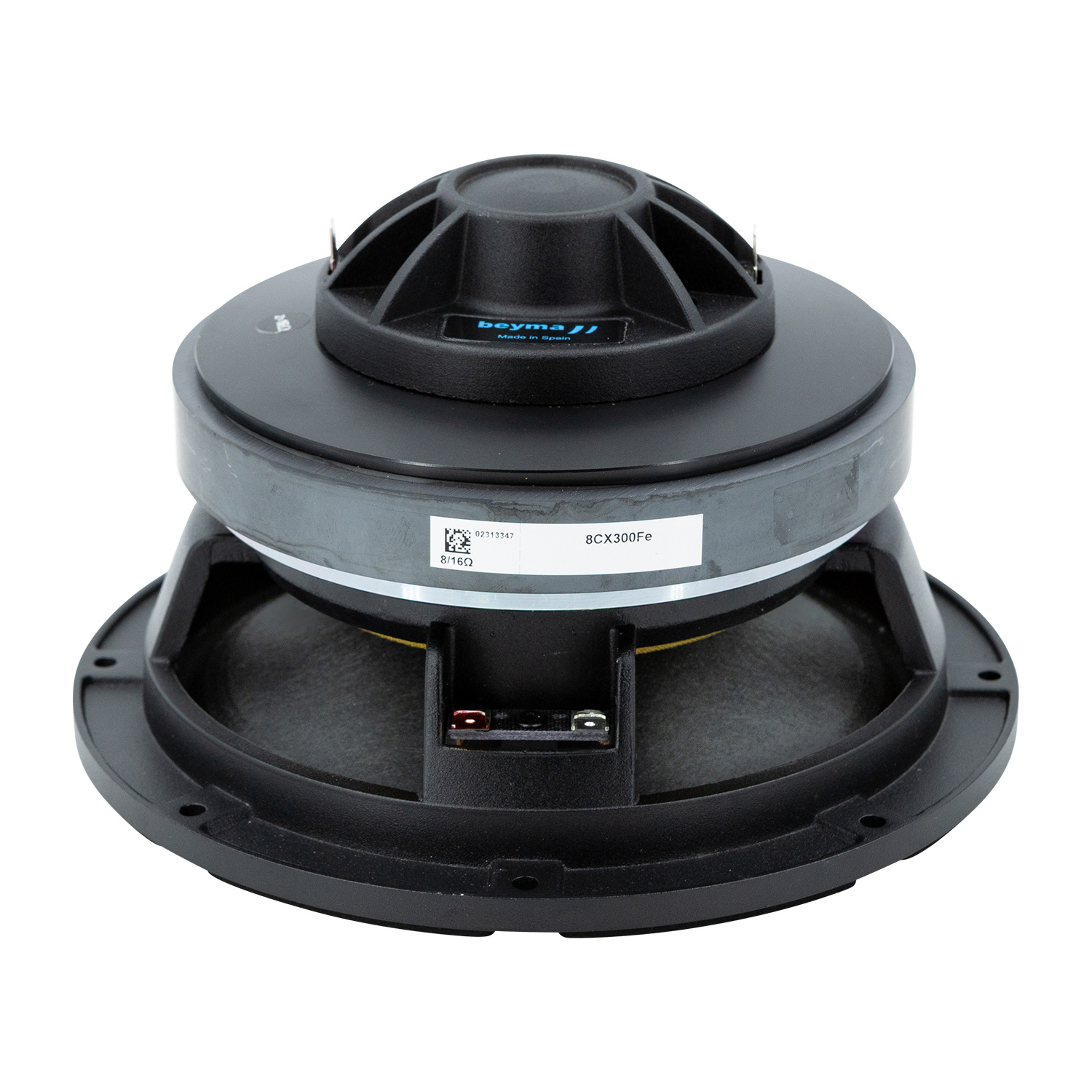

        Beyma 8CX300Fe Coaxial Transducer



        The Beyma 8CX300Fe is an 8” coaxial transducer designed for full-range speaker systems that require compact size, high power handling, and excellent sound fidelity. This model delivers 300 W AES / 600 W program power in the low-frequency section and 50 W AES / 100 W program in the HF section, with a sensitivity of 95 dB (LF) and 105 dB (HF). A 2.5” woofer voice coil and 1.75” compression driver voice coil are aligned coaxially, driven by a common FEA-optimized ferrite magnet system that ensures phase coherence and compact form factor. The driver operates across a wide frequency range from 90 Hz to 20 kHz, with a recommended crossover at 2 kHz (12 dB/oct slope minimum). Durability and acoustic quality are reinforced by a weatherproof cone treated on both sides, a PM4 diaphragm in the HF driver for smooth high-frequency reproduction, and a shorting cap to reduce harmonic distortion and extend upper range linearity. A 70° conical dispersion horn ensures broad and even HF coverage. Weighing 4.6 kg and with a depth of just 126 mm, the 8CX300Fe is ideal for portable PA systems, installation-grade compact monitors, or professional single-point source solutions that require robust output and clarity in a small footprint.

        Show more

        Specifications

        Article number
        8CX300Fe
        EAN
        8435469041820
        Woofer Type
        Coaxial Transducer
        Nominal Diameter
        Woofer 8", Tweeter 1.75"
        Power Handling (RMS)
        600 Watts
        Continuous Program Power
        Woofer 600 Watts, Tweeter 100 Watts
        Impedance (Z)
        Woofer 8 Ω, Tweeter 16 Ω
        Sensitivity (SPL at 1m / 2.83V)
        Woofer 95 dB, Tweeter 105 dB
        Frequency Response
        90-20.000 Hz.
        Voice Coil Diameter
        Woofer 2.5”, Tweeter 1.75”
        DC Resistance (Re)
        5.2 Ω
        Voice Coil Inductance (Le)
        0,2 mH
        Resonant Frequency (Fs)
        89 Hz
        Mechanical Q (Qms)
        4.2
        Electromagnetic Q (Qes)
        0.63
        Total Q (Qts)
        0.55
        Diaphragm Mass Inc. Airload (Mms)
        0,020 kg
        Mechanical Compliance of Suspension (Cms)
        158 µm / N
        Surface Area of Cone (Sd)
        0,022 m²
        Volume of Displacement (Vd)
        132 cm³
        BL Product (BL)
        9,6 N/A
        Compliance Equivalent Volume (Vas)
        10,8 l
        Maximum Linear Excursion (Xmax)
        +/- 6 mm
        Driver's Mechanical Losses (Rms)
        2,7 kg / s
        Magnet Material
        Ferrite
        Overall Outside Diameter
        211.5 mm
        Overall Depth
        126 mm

        Show more
