        8CMV2 Bass-midwoofer

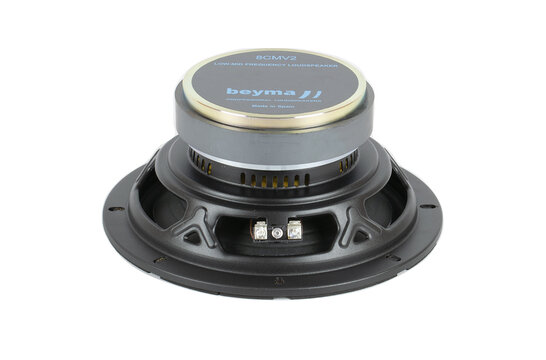

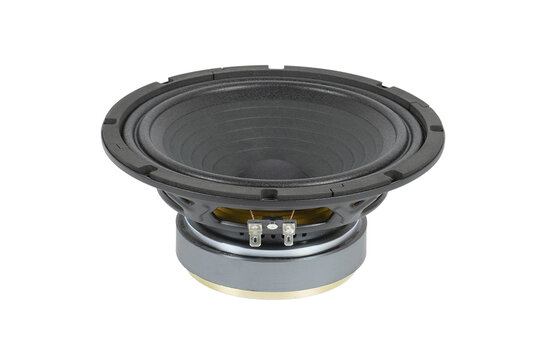

        Beyma 8CMV2 Bass-midwoofer

        €52,95

        4 In stock

        Add to cart

        Beyma 8CMV2 Bass-midwoofer

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Beyma
        Show all New products
        8" | 8 Ω
        8CMV2 Bass-midwoofer
        8CMV2 Bass-midwoofer
        8CMV2 Bass-midwoofer
        8CMV2 Bass-midwoofer
        € 43,76€ 52,95 4 In stock
        • -5% Purchase 4 for only € 50,30 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped on Monday
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        8CMV2 Bass-midwoofer
        8CMV2 Bass-midwoofer
        8CMV2 Bass-midwoofer
        8CMV2 Bass-midwoofer

        Pros and cons

        According to our specialists
        • Designed for bass and midbass applications in compact vented cabinets

        Product description Beyma 8CMV2 Bass-midwoofer

        The Beyma 8CMV2 is a compact 8” low and mid-frequency transducer designed for efficient, linear performance in vented cabinets. With a 1.5” CCAW voice coil and pressed steel frame, it combines durability with clean, low-distortion response across a broad frequency range.



        Highlights of the Beyma 8CMV2

        • 250 W AES / 500 W program power with 94 dB sensitivity
        • 1.5” CCAW voice coil with ferrite magnet motor
        • Wide frequency response from 80 Hz to 8,000 Hz
        • Treated double roll cloth surround and pressed steel frame



        Product details Beyma 8CMV2

        Beyma 8CMV2 Low & Mid Frequency Transducer



        The Beyma 8CMV2 is an 8-inch low and mid-frequency transducer ideal for compact vented speaker enclosures where natural tonal balance and high power handling are required. Designed with a 1.5” CCAW (copper-clad aluminum wire) voice coil, it handles 250 W AES and 500 W program power while maintaining a sensitivity of 94 dB (1W/1m). Its linear response from 80 Hz to 8,000 Hz makes it suitable for bass and midbass roles in 2- or 3-way systems. The unit features a ferrite magnet structure and an optimized pressed steel frame for mechanical stability. The treated double roll cloth surround supports low distortion and clean excursion. With an Xmax of 5.7 mm, peak-to-peak excursion of 29 mm, and a resonant frequency of 75 Hz, the 8CMV2 performs optimally in a 20-liter bass-reflex cabinet tuned to 74 Hz. Its compact 92 mm depth and light 2.4 kg weight make it a strong candidate for portable PA cabinets, monitors, and compact hi-fi systems that require efficient and articulate low-mid frequency output.

        Show more

        Specifications

        Article number
        8CMV2
        EAN
        8435469050983
        Woofer Type
        Low & Mid Frequency Transducer
        Nominal Diameter
        8"
        Power Handling (RMS)
        500 Watts
        Continuous Program Power
        500 Watts
        Impedance (Z)
        8 Ω
        Sensitivity (SPL at 1m / 2.83V)
        94 dB
        Frequency Response
        80-8.000 Hz
        Voice Coil Diameter
        1.5"
        DC Resistance (Re)
        5.1 Ω
        Voice Coil Inductance (Le)
        0.6 mH
        Mechanical Q (Qms)
        7.7
        Electromagnetic Q (Qes)
        0.55
        Total Q (Qts)
        0.52
        Diaphragm Mass Inc. Airload (Mms)
        0,021 kg
        Mechanical Compliance of Suspension (Cms)
        213 µm / N
        Surface Area of Cone (Sd)
        0,022 m²
        Volume of Displacement (Vd)
        125 cm³
        BL Product (BL)
        9,6 N/A
        Compliance Equivalent Volume (Vas)
        14.6 Liters
        Maximum Linear Excursion (Xmax)
        +/- 5.7 mm
        Driver's Mechanical Losses (Rms)
        1,3 kg / s
        Basket / Frame Material
        Steel
        Magnet Material
        Ferrite
        Overall Outside Diameter
        210 mm
        Overall Depth
        92 mm
        Baffle Cutout Diameter
        180 mm
        Bolt Circle Diameter
        196 mm
        # Mounting Holes
        8
        Mounting Hole Diameter
        5.5 mm

        Show more
