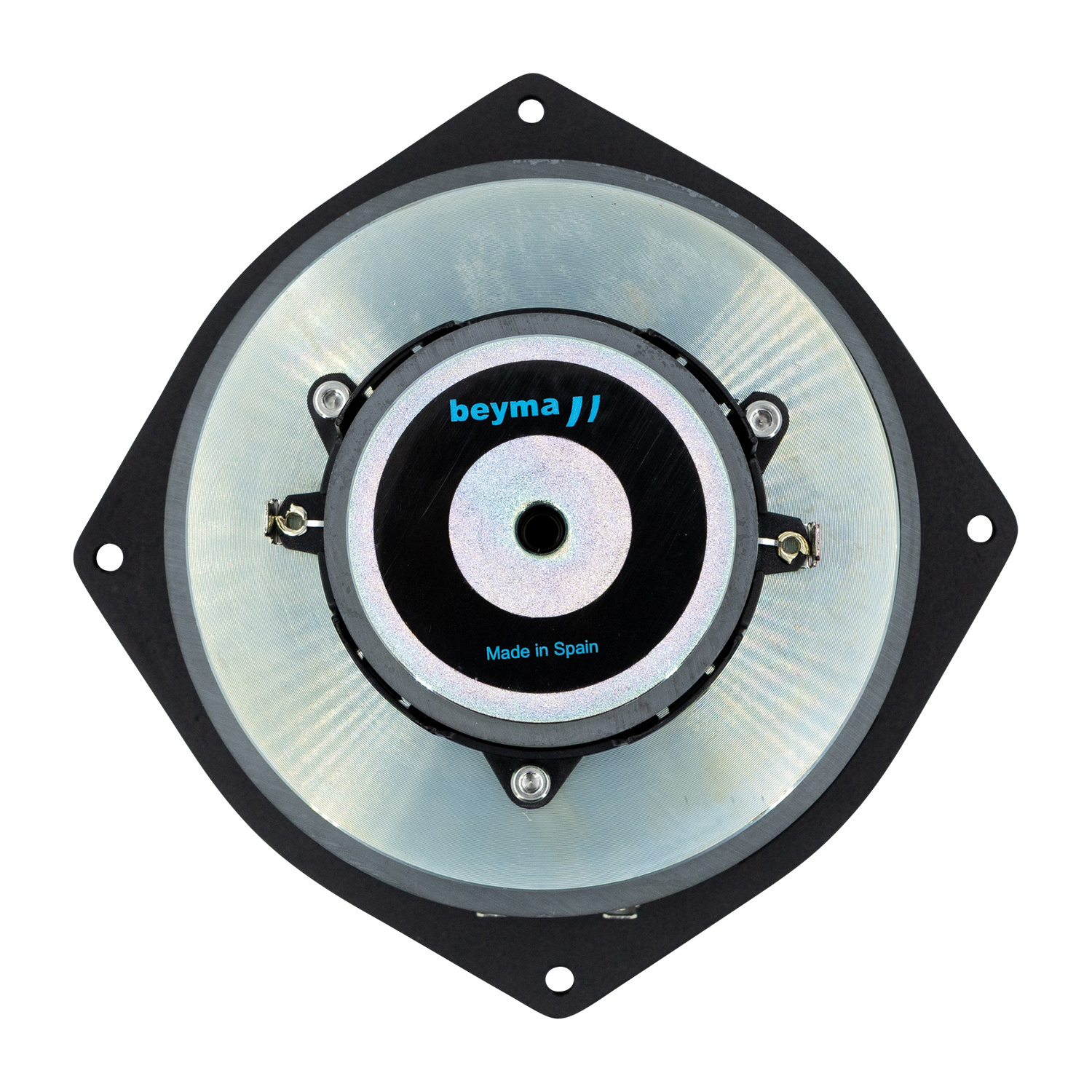

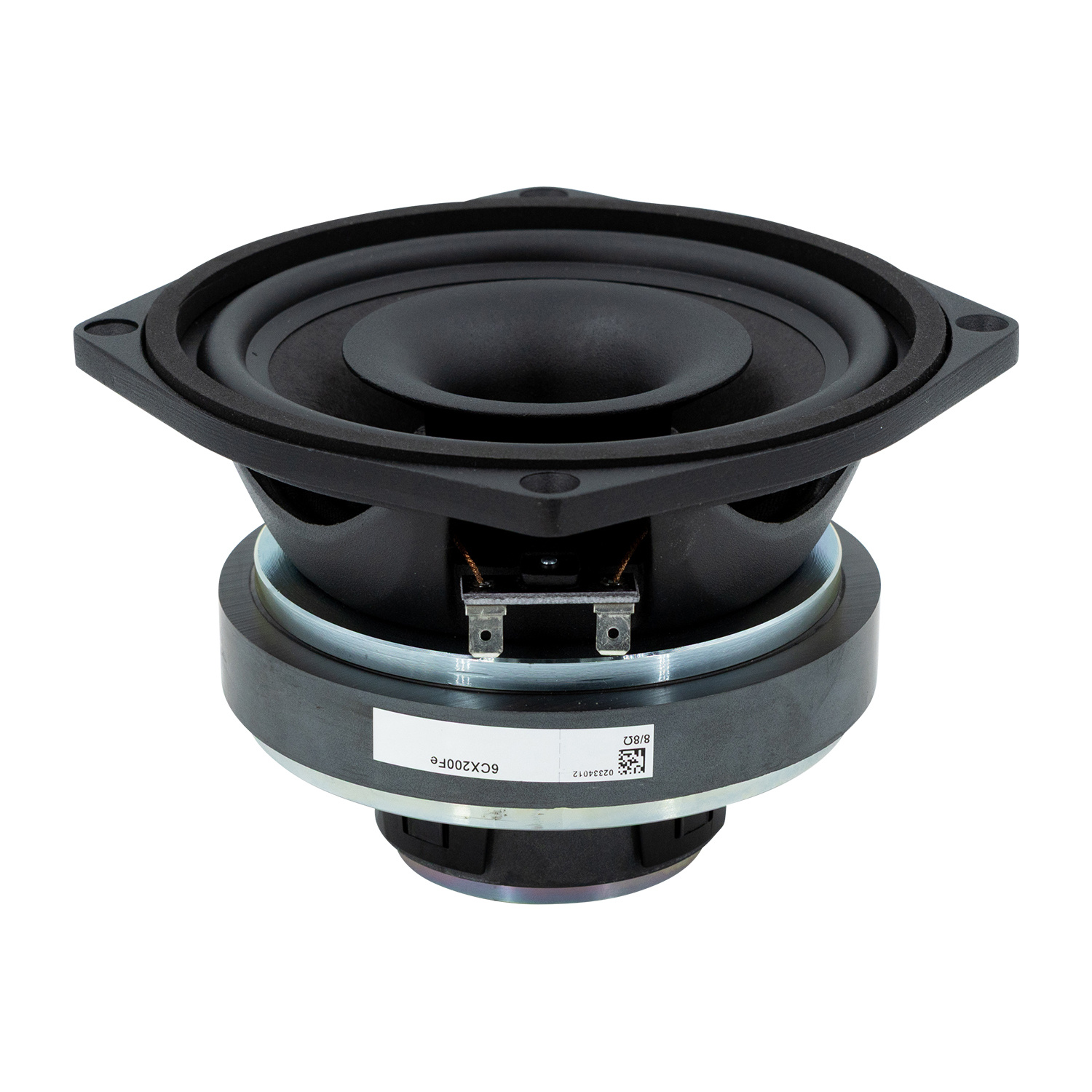

        6CX200Fe Coaxial Woofer

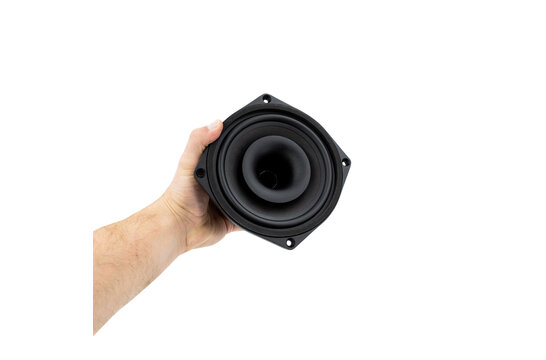

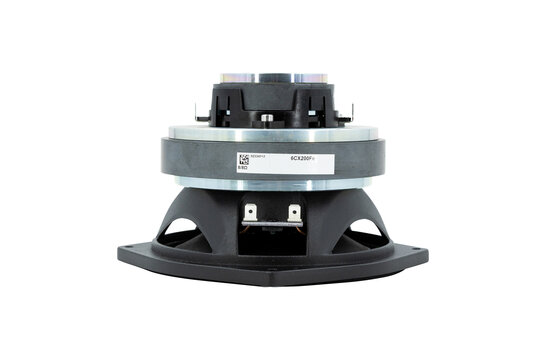

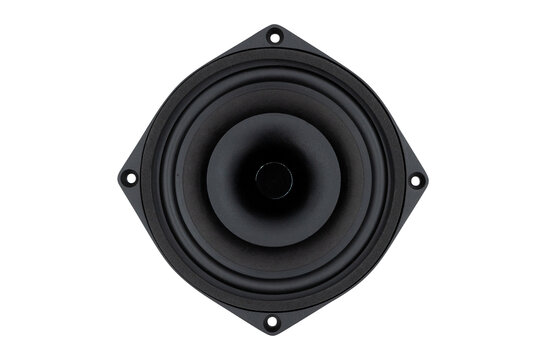

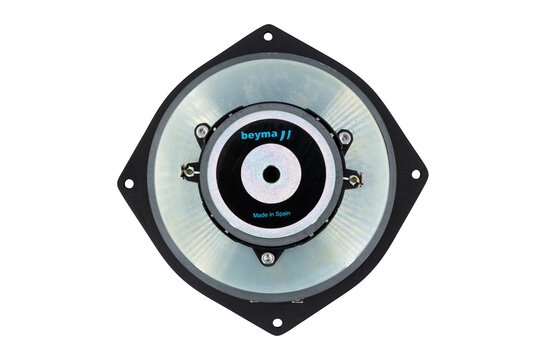

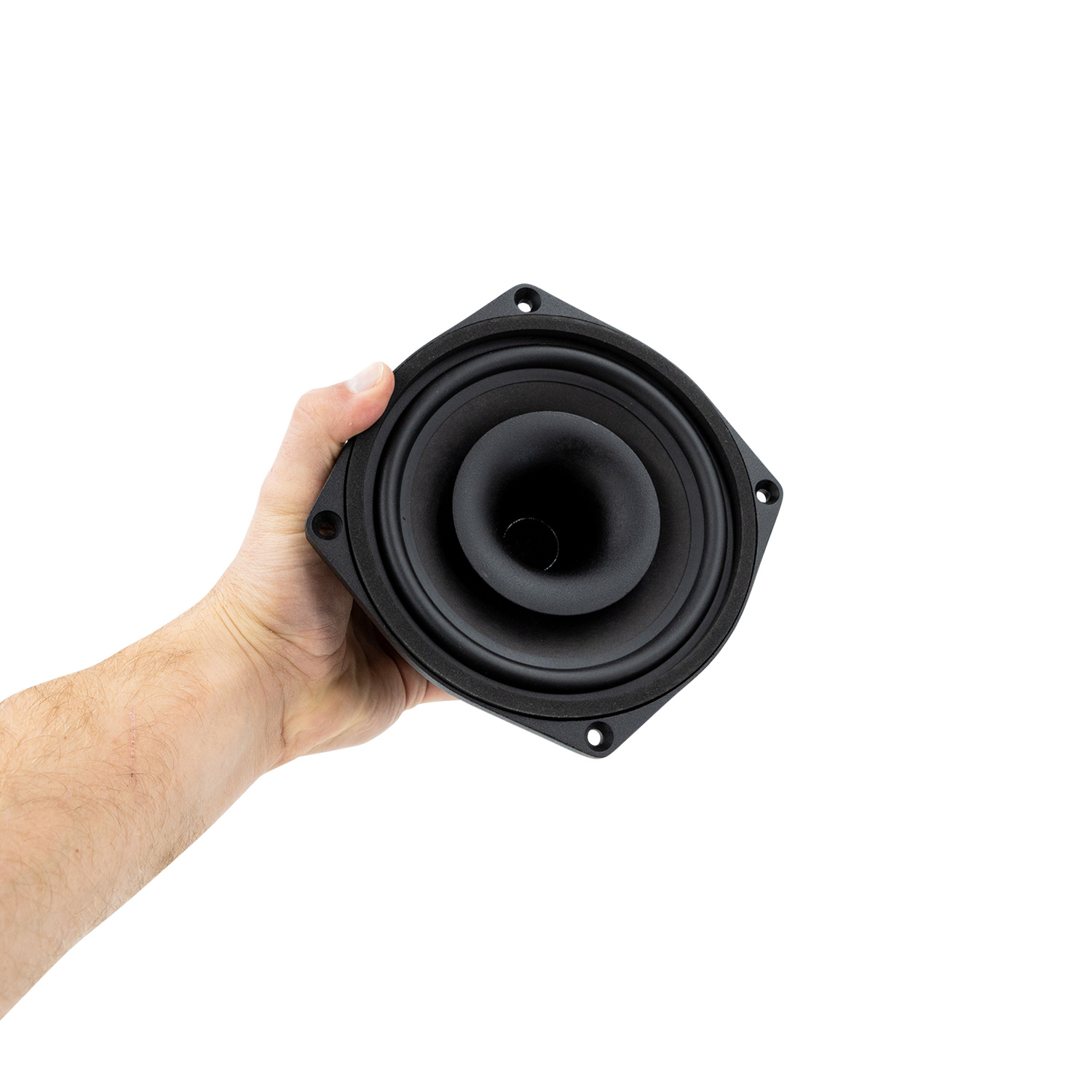

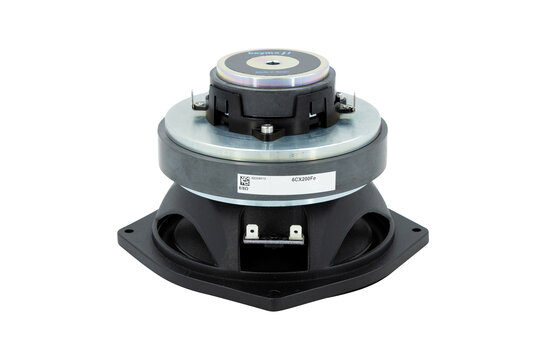

        Beyma 6CX200Fe Coaxial Woofer

        €149,95

        4 In stock

        Add to cart

        Beyma 6CX200Fe Coaxial Woofer

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Beyma
        Show all New products
        6" | 8 Ω
        6CX200Fe Coaxial Woofer
        6CX200Fe Coaxial Woofer
        6CX200Fe Coaxial Woofer
        6CX200Fe Coaxial Woofer
        € 123,93€ 149,95 4 In stock
        • -5% Purchase 4 for only € 142,45 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Same day shipping
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        6CX200Fe Coaxial Woofer
        6CX200Fe Coaxial Woofer
        6CX200Fe Coaxial Woofer
        6CX200Fe Coaxial Woofer

        Pros and cons

        According to our specialists
        • Weatherproof paper cone with SantopreneTM surround

        Product description Beyma 6CX200Fe Coaxial Woofer

        High-sensitivity 6.5-inch coaxial transducer with ferrite magnet system, delivering full-range performance and controlled dispersion in compact audio designs.



        Highlights of the Beyma 6CX200Fe

        • 400 W / 50 W program power handling (LF / HF) with 94 / 102 dB sensitivity
        • 2” / 1” voice coils with shared ferrite magnet and shorting cap
        • Weatherproof paper cone, Santoprene™ surround, and CONEX spider
        • 70º HF horn dispersion with PM4 diaphragm for smooth off-axis response



        Product details Beyma 6CX200Fe

        Beyma 6CX200Fe Coaxial Transducer



        The Beyma 6CX200Fe is a compact 6.5” coaxial transducer engineered for full-range audio systems that require accurate sound reproduction, high output, and rugged construction. Featuring 200 W AES / 400 W program power handling in the LF section and 25 W AES / 50 W program in the HF, this model delivers excellent sensitivity at 94 dB (LF) and 102 dB (HF). This unit combines a 2” woofer voice coil and 1” HF compression driver, utilizing a shared ferrite magnet system to maintain phase alignment and efficient power use. The transducer covers a frequency range of 60 Hz to 20 kHz with a recommended HF crossover at 3.5 kHz (12 dB/oct minimum). Key components include a weather-treated paper cone with a Santoprene™ surround for durability, a CONEX spider for stable suspension, and a shorting cap that extends response and reduces distortion. A PM4 diaphragm in the HF section and a 70º dispersion horn ensure clear, wide off-axis coverage. With an Xmax of ±5 mm and peak-to-peak mechanical excursion of 32 mm, the 6CX200Fe can handle high dynamic output without compromising clarity. Its compact form factor (115 mm depth) and 3.6 kg weight make it ideal for portable monitors, compact PA speakers, and fixed installation systems.

        Show more

        Specifications

        Article number
        6CX200Fe
        EAN
        8435469041462
        Woofer Type
        Coaxial Transducer
        Nominal Diameter
        12"
        Power Handling (RMS)
        400 Watts
        Continuous Program Power
        Woofer 400 Watts/Tweeter 50 Watts
        Impedance (Z)
        8 Ω/8 Ω
        Sensitivity (SPL at 1m / 2.83V)
        102 dB
        Frequency Response
        60-20.000 Hz
        Voice Coil Diameter
        Woofer 2" (50.8 mm) Tweeter 1" (25.4 mm)
        DC Resistance (Re)
        4.9 Ω
        Voice Coil Inductance (Le)
        0.3 mH
        Resonant Frequency (Fs)
        65 Hz
        Mechanical Q (Qms)
        5.1
        Electromagnetic Q (Qes)
        0.34
        Total Q (Qts)
        0.32
        Diaphragm Mass Inc. Airload (Mms)
        0,014 kg
        Mechanical Compliance of Suspension (Cms)
        408 µm / N
        Surface Area of Cone (Sd)
        0,0135 cm²
        Volume of Displacement (Vd)
        64 cm³
        BL Product (BL)
        9,2 N/A
        Compliance Equivalent Volume (Vas)
        10.5 Liters
        Maximum Linear Excursion (Xmax)
        +/- 5 mm
        Driver's Mechanical Losses (Rms)
        1,1 kg / s
        Overall Outside Diameter
        188 mm
        Baffle Cutout Diameter
        145 mm
        Bolt Circle Diameter
        172 mm
        # Mounting Holes
        4
        Mounting Hole Diameter
        5.3 mm

        Show more
