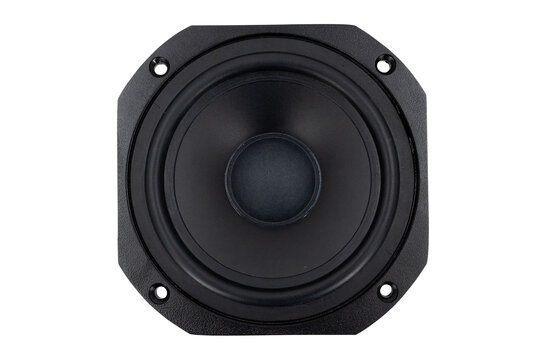

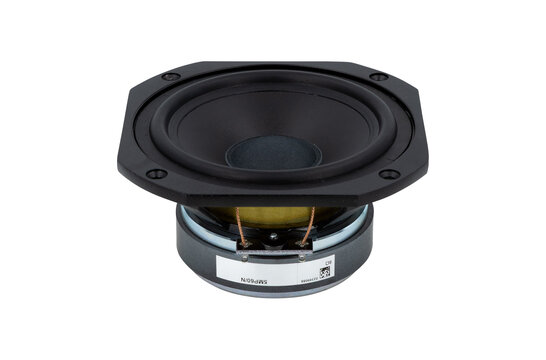

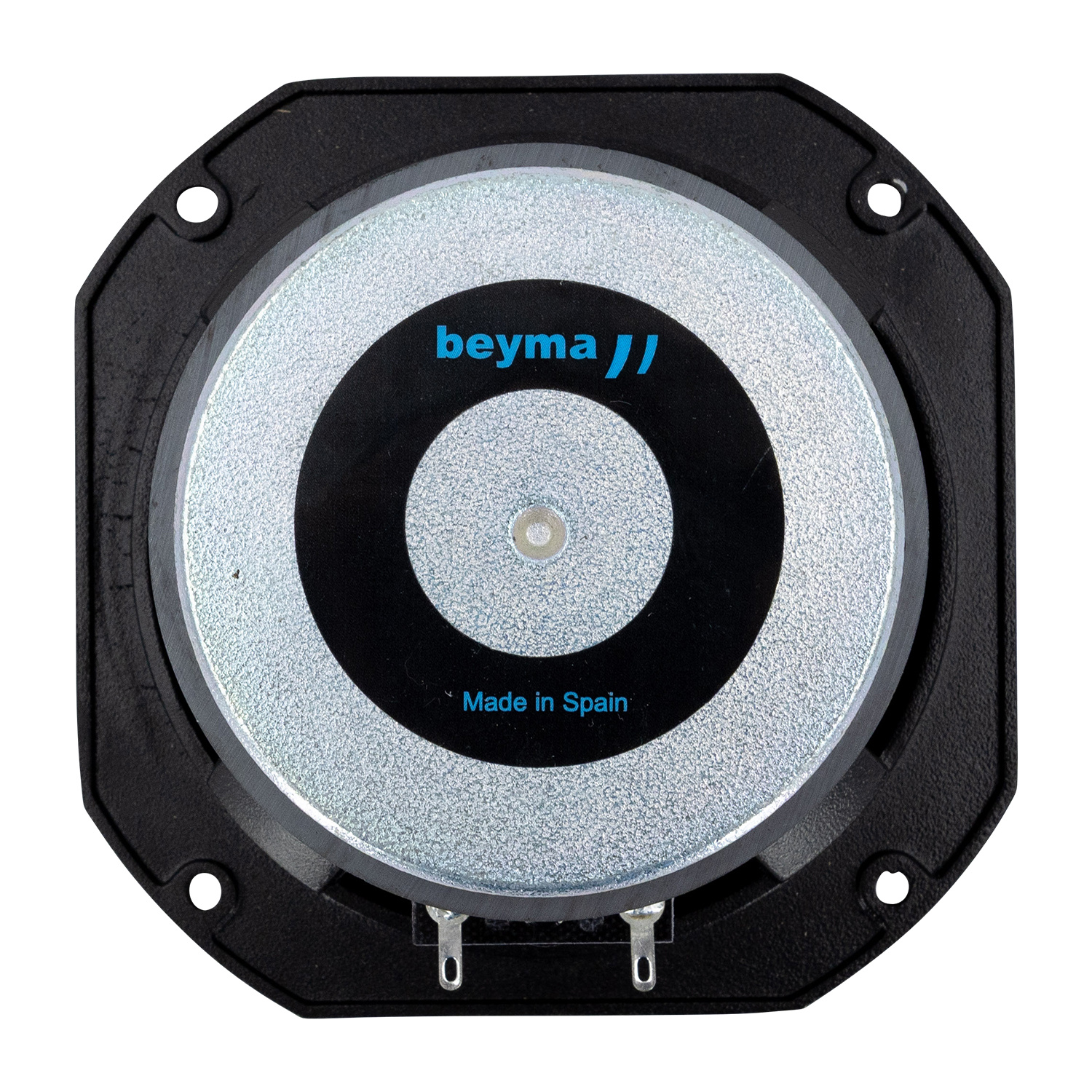

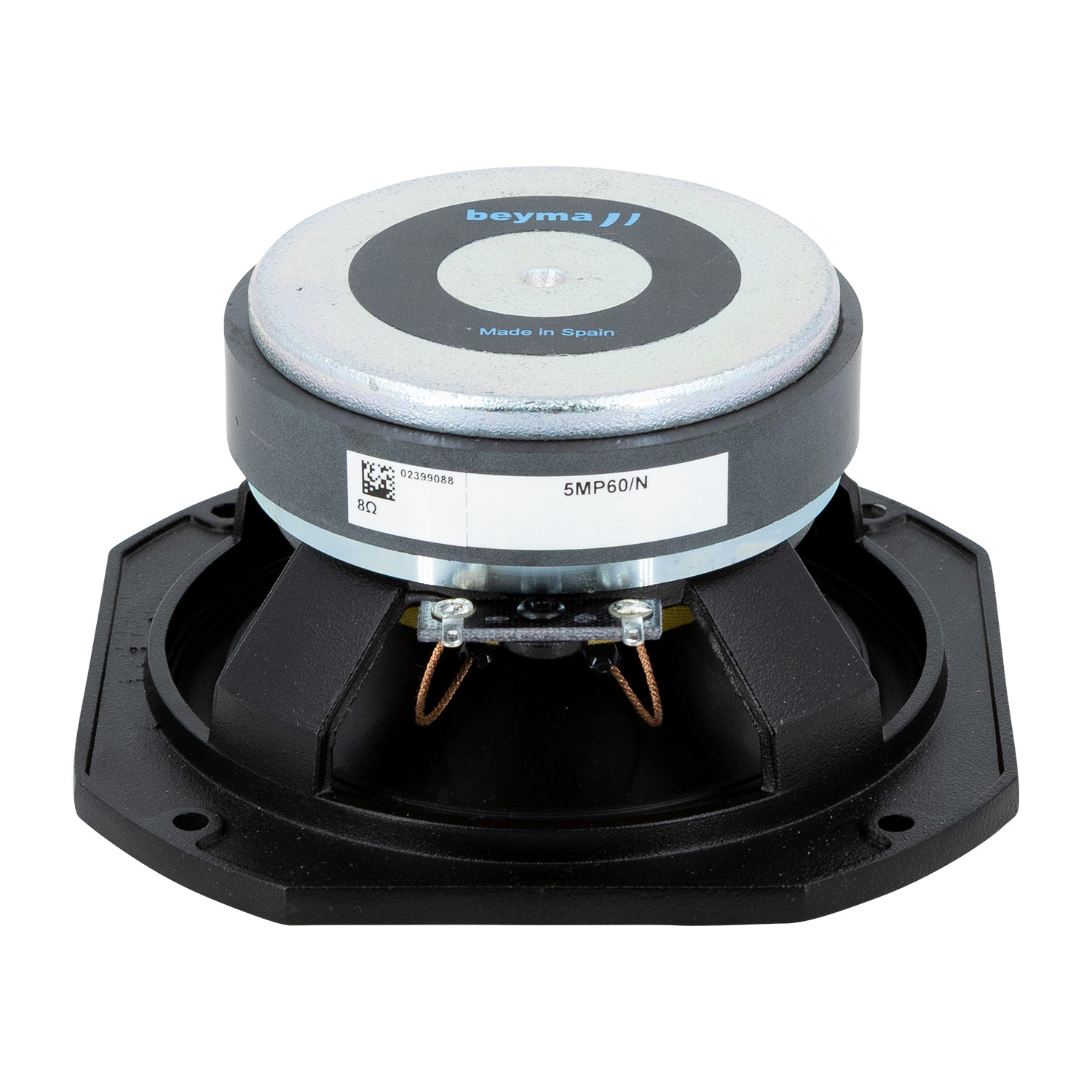

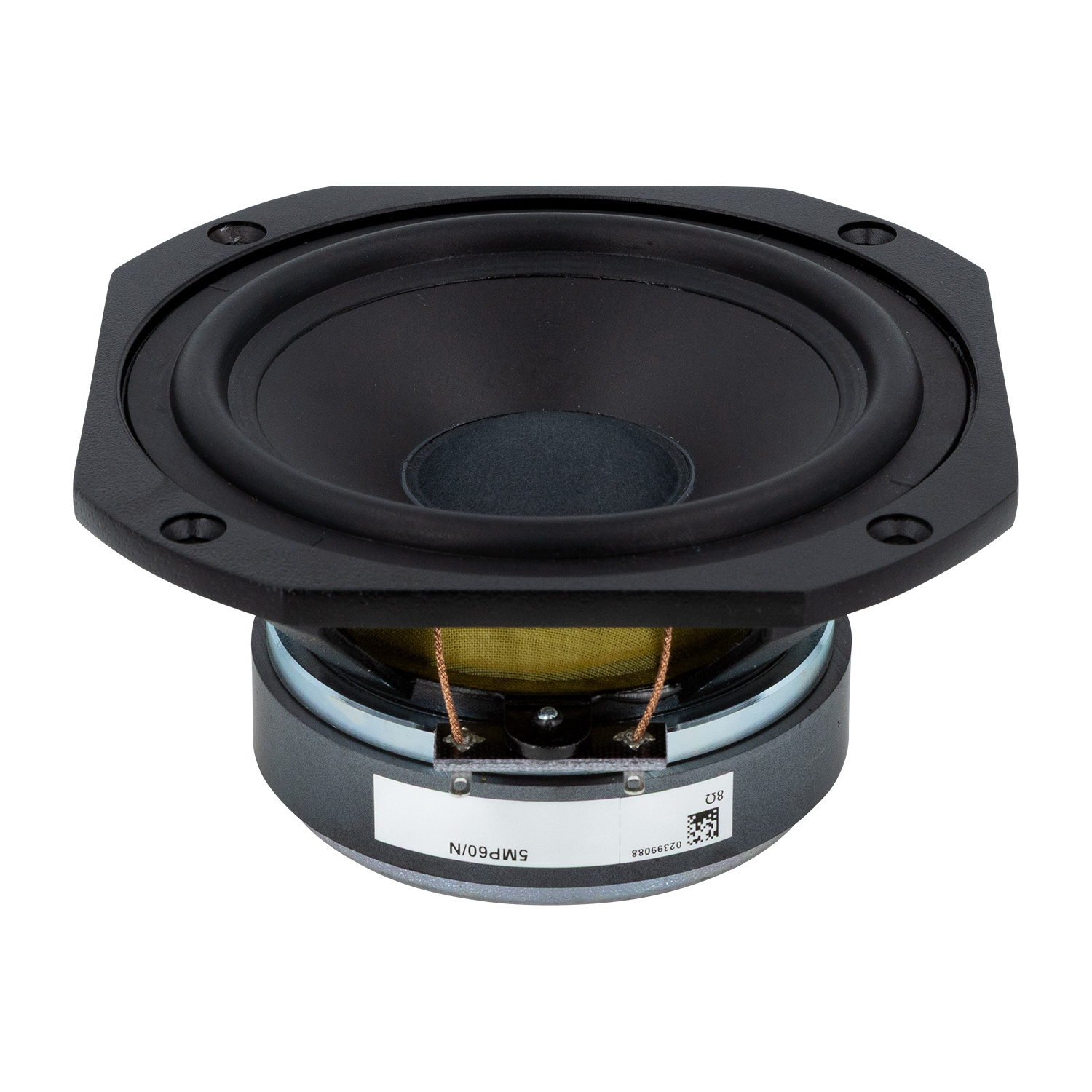

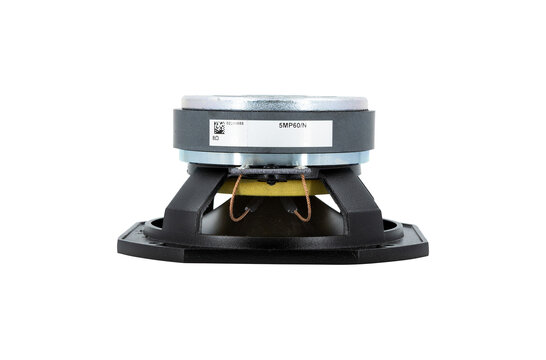

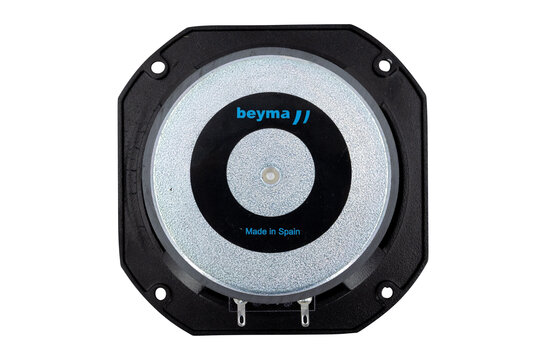

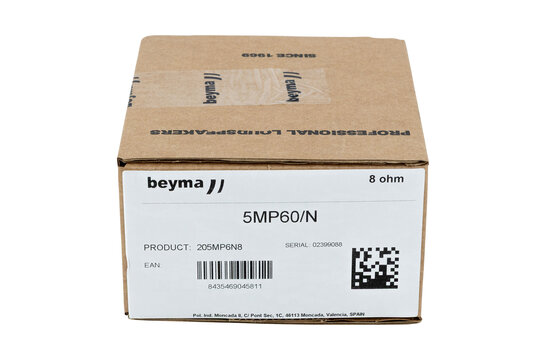

        5MP60/N Bass-midwoofer

        Beyma 5MP60/N Bass-midwoofer

        €64,95

        3 In stock

        Add to cart

        Beyma 5MP60/N Bass-midwoofer

        1 reviews
        5 from 5
        1 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Beyma
        Show all New products
        5" | 8 Ω
        5MP60/N Bass-midwoofer
        5MP60/N Bass-midwoofer
        5MP60/N Bass-midwoofer
        5MP60/N Bass-midwoofer
        € 53,68€ 64,95 3 In stock
        • -5% Purchase 4 for only € 61,70 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        5MP60/N Bass-midwoofer
        5MP60/N Bass-midwoofer
        5MP60/N Bass-midwoofer
        5MP60/N Bass-midwoofer

        Pros and cons

        According to our specialists
        • Especially well suited for small bass-reflex cabinets for high quality monitor applications

        Product description Beyma 5MP60/N Bass-midwoofer

        Compact 5-inch bass-midrange driver with smooth frequency response, designed for high-quality monitoring and full-range systems in tight enclosure volumes.



        Highlights of the Beyma 5MP60/N

        • 100 W program power handling with 88 dB sensitivity
        • Flat response from 65 Hz to 12,000 Hz for accurate midrange clarity
        • Shorting cap to reduce harmonic distortion and improve transient response
        • ±5.5 mm Xmax with 20 mm peak-to-peak excursion for extended linear motion



        Product details Beyma 5MP60/N

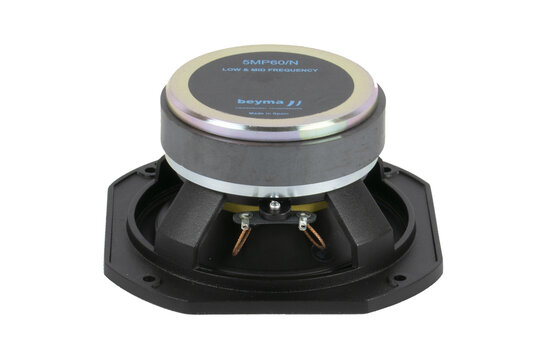

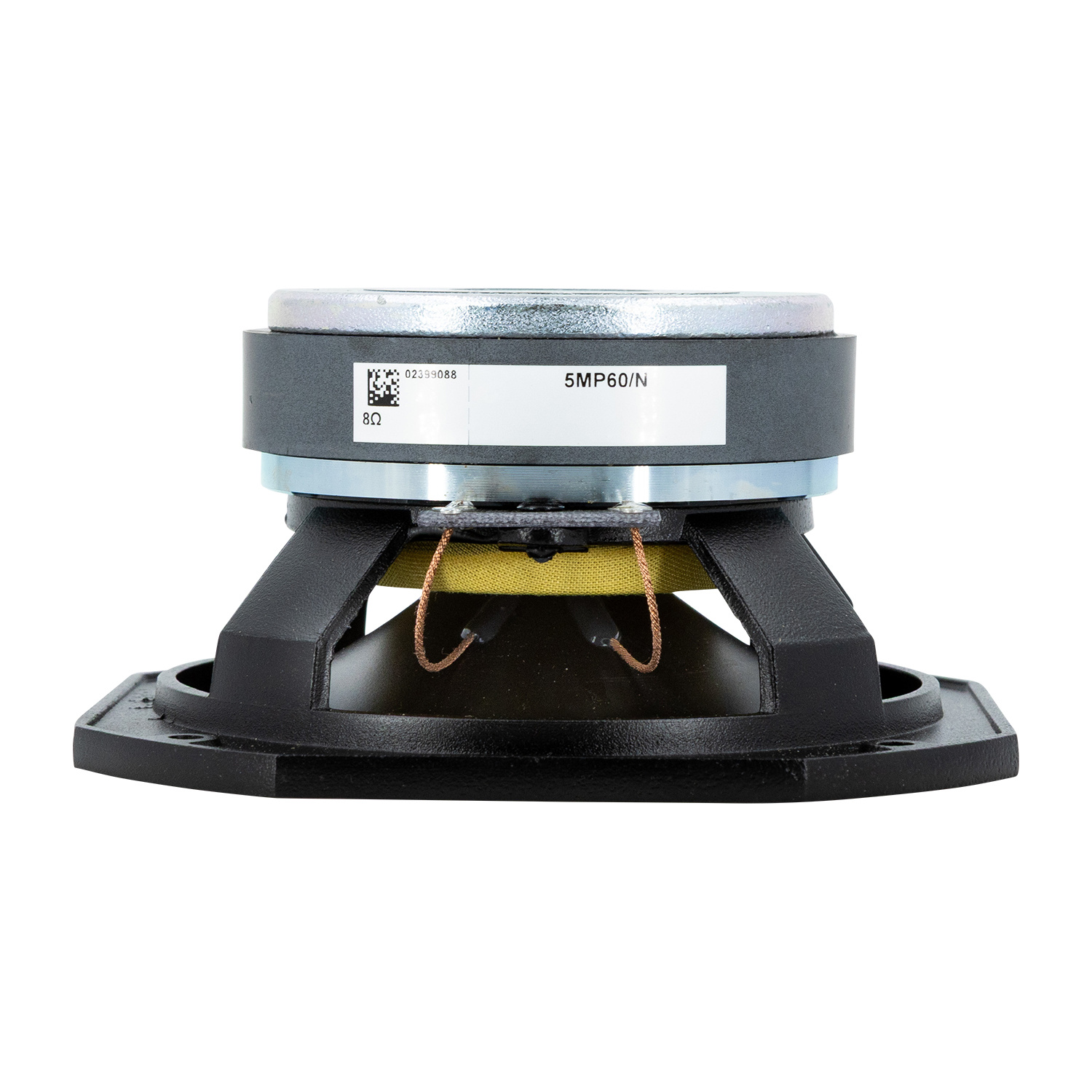

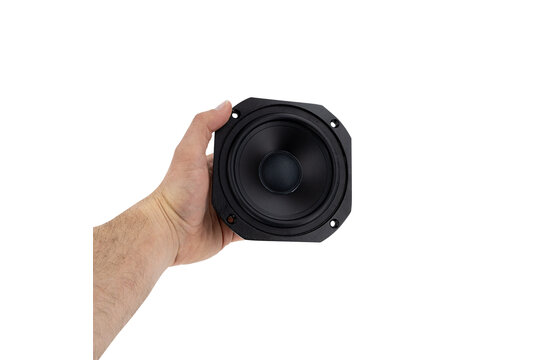

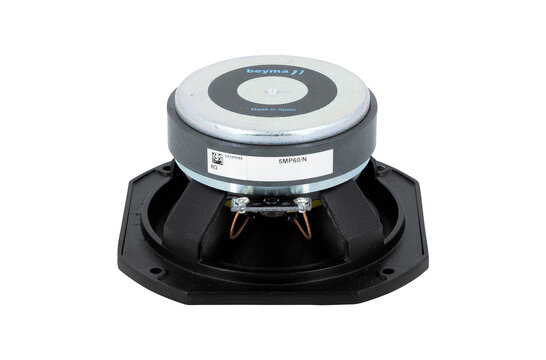

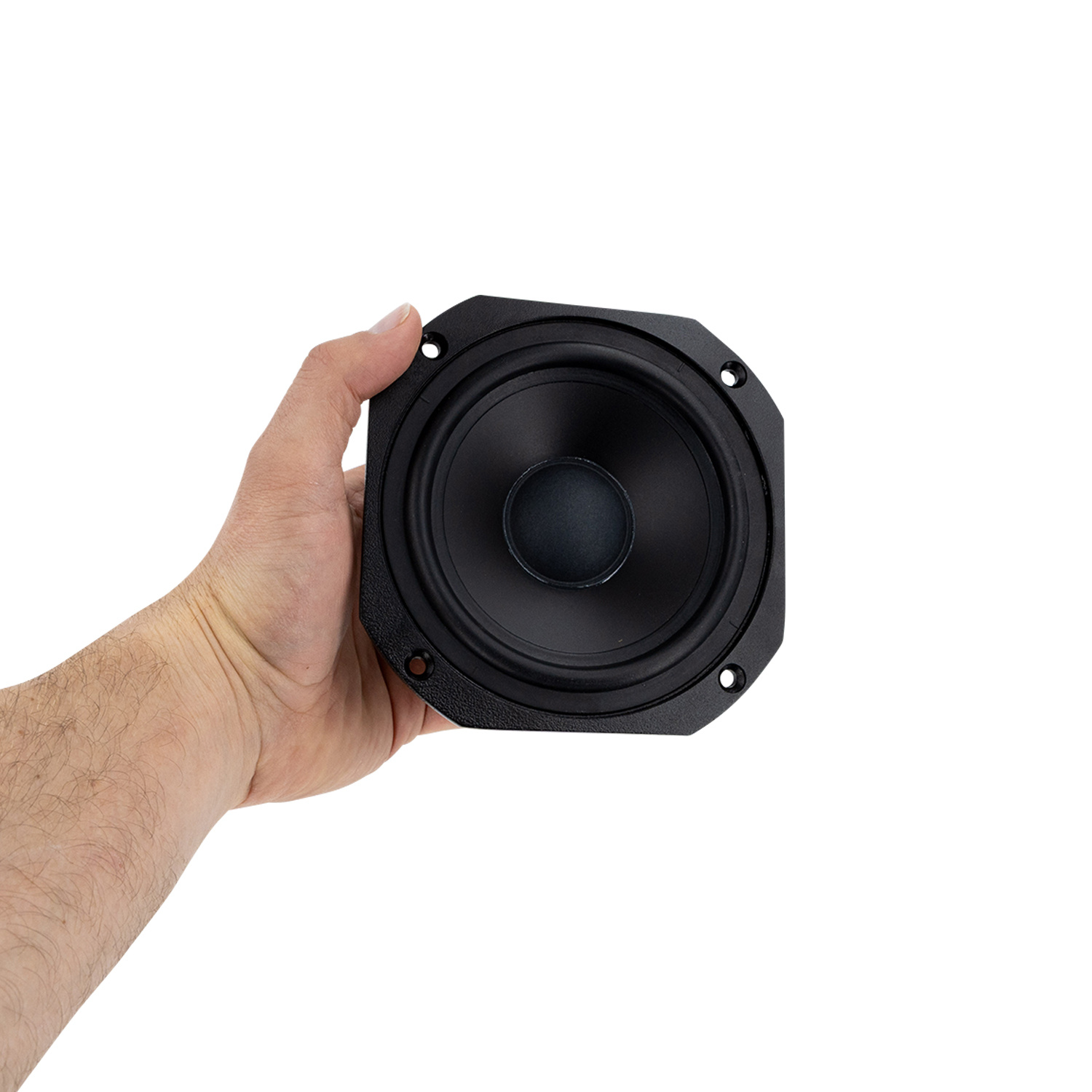

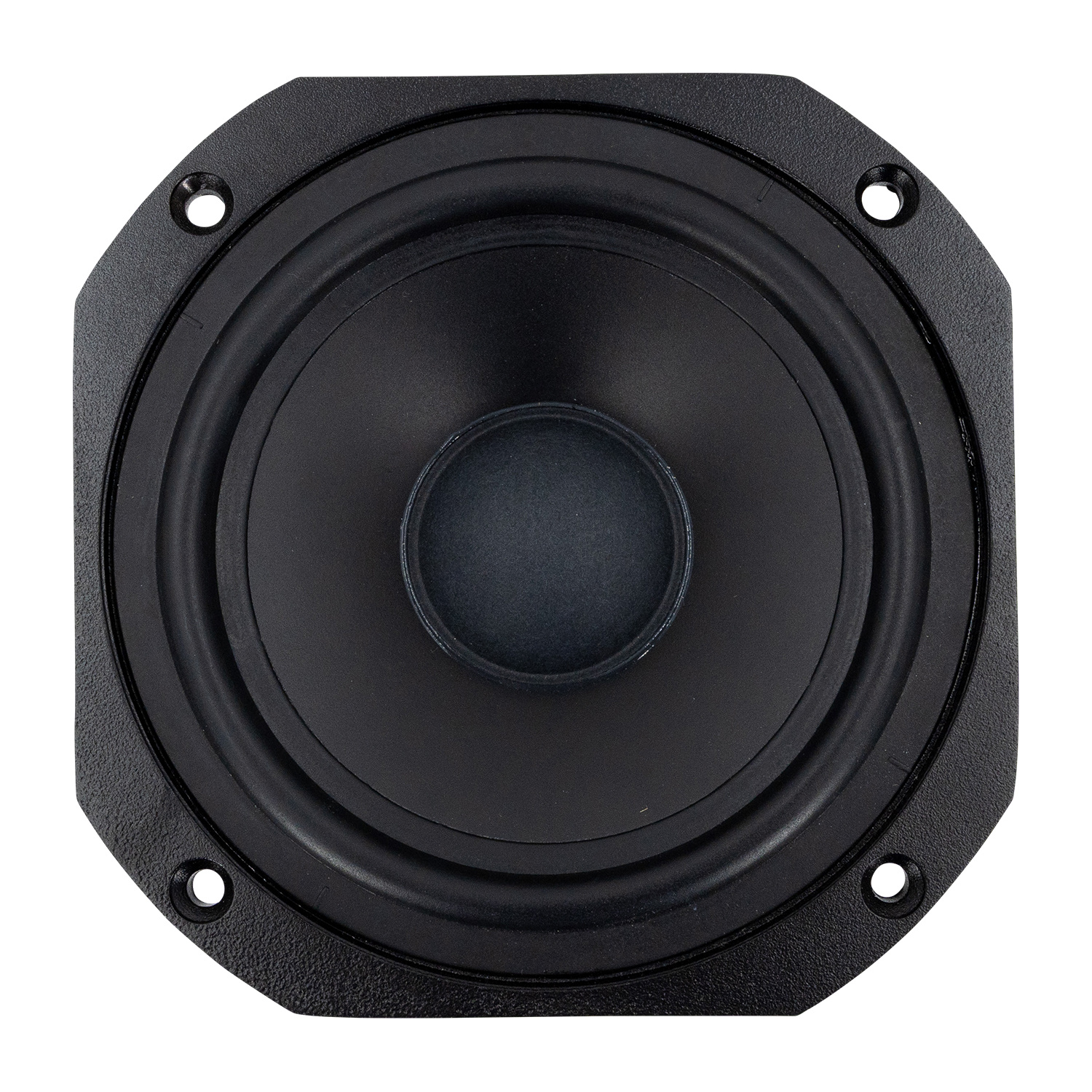

        Beyma 5MP60/N Low & Mid Frequency Transducer



        The Beyma 5MP60/N is a precision-engineered 5” low and mid-frequency transducer tailored for compact full-range and monitor speaker systems. Rated at 50 W RMS and 100 W program power, this driver delivers clean, articulate sound reproduction across a wide frequency range of 65 to 12,000 Hz, with a sensitivity of 88 dB (1W/1m). Built for reliability and accuracy, the 5MP60/N features a 1” voice coil and a copper shorting cup to suppress harmonic distortion and extend high-frequency response. Its extended linear excursion of ±5.5 mm ensures clean performance even under demanding dynamic conditions, with a peak-to-peak mechanical excursion limit of 20 mm. The lightweight 1.2 kg design, combined with a recommended bass-reflex enclosure of just 8 liters (Fb = 54 Hz), makes this transducer especially suitable for space-limited applications. Whether integrated into a desktop monitor or a compact mobile PA system, the 5MP60/N delivers refined performance with tight bass and transparent mids.

        Show more

        Specifications

        Article number
        5MP60/N
        EAN
        8435469045811
        Woofer Type
        Low and Mid Frequency Transducer
        Nominal Diameter
        5"
        Power Handling (RMS)
        50 Watts
        Continuous Program Power
        100 Watts
        Impedance (Z)
        8 Ω
        Sensitivity (SPL at 1m / 2.83V)
        88 dB
        Frequency Response
        65-12.000 Hz
        Voice Coil Diameter
        1"
        DC Resistance (Re)
        5.3 Ω
        Voice Coil Inductance (Le)
        0.2 mH
        Resonant Frequency (Fs)
        63 Hz
        Mechanical Q (Qms)
        2.3
        Electromagnetic Q (Qes)
        0.58
        Total Q (Qts)
        0.46
        Diaphragm Mass Inc. Airload (Mms)
        0,011 kg
        Mechanical Compliance of Suspension (Cms)
        564 µm / N
        Surface Area of Cone (Sd)
        0,0085 m²
        Volume of Displacement (Vd)
        46 cm³
        BL Product (BL)
        6,4 N/A
        Compliance Equivalent Volume (Vas)
        5.8 Liters
        Maximum Linear Excursion (Xmax)
        5.5 mm
        Driver's Mechanical Losses (Rms)
        2 kg / s
        Overall Outside Diameter
        150 mm
        Overall Depth
        68 mm
        Baffle Cutout Diameter
        120 mm
        Bolt Circle Diameter
        137 mm
        # Mounting Holes
        4

        Show more

        Reviews

        1 reviews
        Review this product
        5 of 5
        -
        By lieven on 9 December 2025
