        5G40Nd/N Bass-midwoofer

        Beyma 5G40Nd/N Bass-midwoofer

        €104,95

        2 In stock

        Add to cart

        Beyma 5G40Nd/N Bass-midwoofer

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Beyma
        Show all New products
        5" | 8 Ω
        5G40Nd/N Bass-midwoofer
        5G40Nd/N Bass-midwoofer
        5G40Nd/N Bass-midwoofer
        5G40Nd/N Bass-midwoofer
        5G40Nd/N Bass-midwoofer
        5G40Nd/N Bass-midwoofer
        € 86,74€ 104,95 2 In stock
        • -5% Purchase 4 for only € 99,70 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped tomorrow
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        5G40Nd/N Bass-midwoofer
        5G40Nd/N Bass-midwoofer
        5G40Nd/N Bass-midwoofer
        5G40Nd/N Bass-midwoofer
        5G40Nd/N Bass-midwoofer
        5G40Nd/N Bass-midwoofer

        Pros and cons

        According to our specialists
        • Shorting cap for extended response and low harmonic distortion

        Product description Beyma 5G40Nd/N Bass-midwoofer

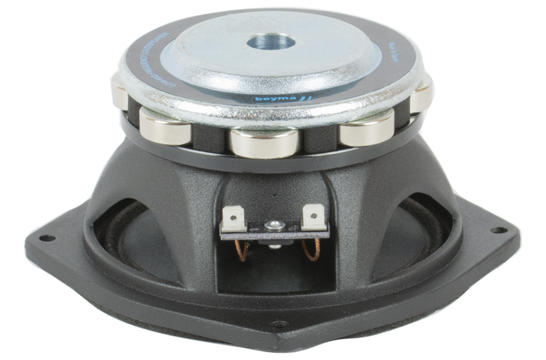

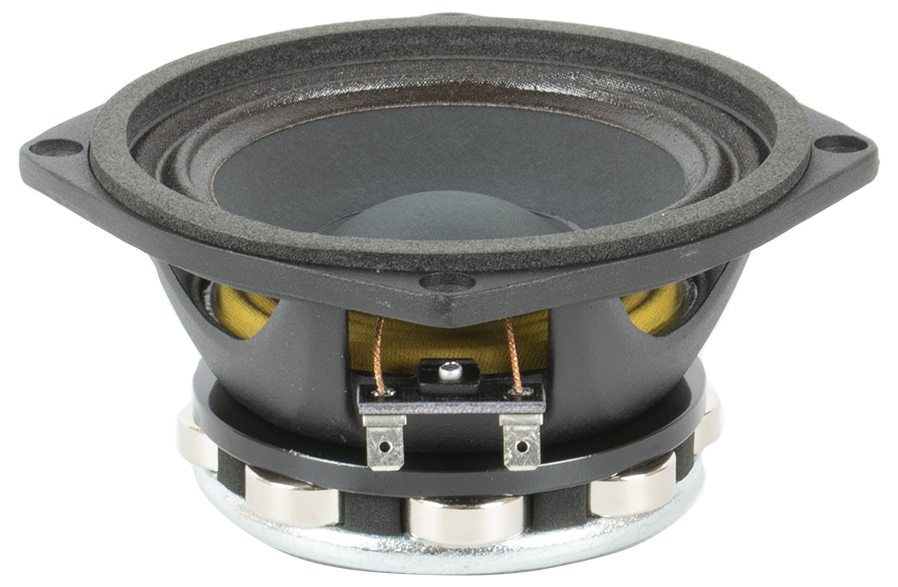

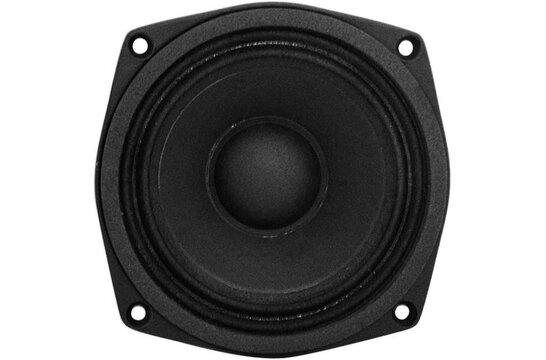

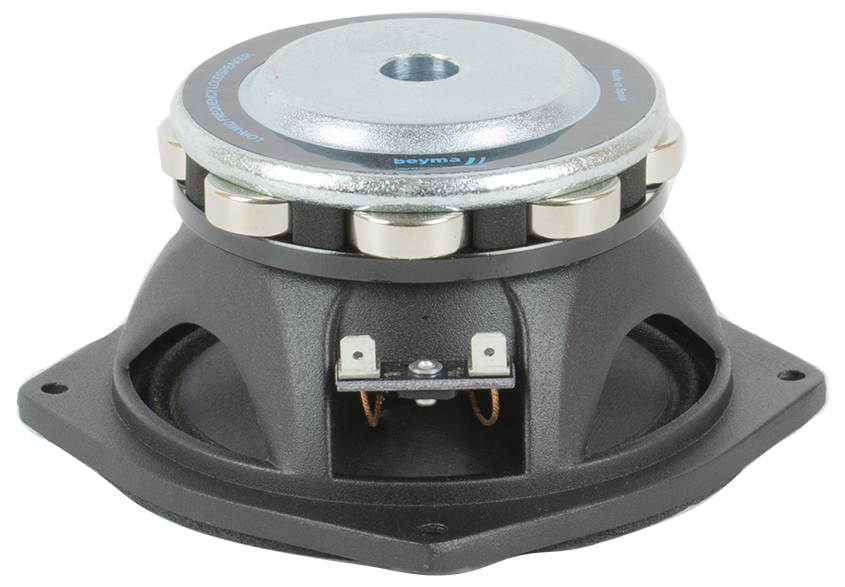

        Compact yet powerful, the Beyma 5G40Nd/N is a 5-inch low and mid-frequency transducer engineered for precision and durability. With a neodymium magnetic circuit and a lightweight aluminum voice coil, this driver delivers high sensitivity and low distortion, making it ideal for professional audio systems, especially compact line arrays and midbass applications.



        Highlights of the Beyma 5G40Nd/N

        • High power handling: 200 W program power
        • 92 dB sensitivity (1W / 1m) for efficient output
        • 1.5" aluminum voice coil with shorting cap for reduced distortion
        • Neodymium magnet with FEA-optimized design for weight and performance



        Product details Beyma 5G40Nd/N

        Beyma 5G40Nd/N low and mid-frequency transducer



        The Beyma 5G40Nd/N is a 5-inch transducer developed for high-efficiency midbass applications where compact dimensions and controlled excursion are essential. With a nominal impedance of 8 ohms and AES power handling of 100 W (200 W program), it features a 38.1 mm (1.5”) aluminum voice coil wound on a Kapton former. The motor structure includes a neodymium magnet and shorting cap, designed through FEA optimization to reduce harmonic distortion and improve transient response.



        Its extended controlled displacement (Xmax ±3 mm) and peak-to-peak excursion of 20 mm before damage ensure reliability even at higher sound pressure levels. The unit offers a frequency response from 150 Hz to 17,000 Hz and is optimized for use in line array configurations or compact professional audio enclosures. With a mounting depth of 72 mm and a net weight of just 1.2 kg, the 5G40Nd/N delivers exceptional performance in a lightweight package, making it an excellent choice for high-performance portable systems and custom speaker builds.

        Show more

        Specifications

        Article number
        5G40Nd/N
        EAN
        8435469041301
        Woofer Series
        Beyma G40 series
        Woofer Type
        Bass-Midwoofer
        Nominal Diameter
        5"
        Power Handling (RMS)
        100 Watts
        Power Handling (max)
        200 Watts
        Impedance (Z)
        8 Ω
        Sensitivity (SPL at 1m / 2.83V)
        92 dB
        Frequency Response
        150 - 17.000 Hz
        Voice Coil Diameter
        38.1 mm
        DC Resistance (Re)
        6.6 Ω
        Voice Coil Inductance (Le)
        0.2 mH
        Resonant Frequency (Fs)
        140 Hz
        Mechanical Q (Qms)
        2.8
        Electromagnetic Q (Qes)
        0.53
        Total Q (Qts)
        0.45
        Mechanical Compliance of Suspension (Cms)
        143 µm/N
        Surface Area of Cone (Sd)
        8.5 cm²
        Volume of Displacement (Vd)
        26 cm³
        BL Product (BL)
        10 N/A
        Compliance Equivalent Volume (Vas)
        1.4 Liters
        Maximum Linear Excursion (Xmax)
        ± 3 mm
        Driver's Mechanical Losses (Rms)
        2.9 kg/s
        Magnet Material
        Neodymium
        Overall Outside Diameter
        155 mm
        Overall Depth
        72 mm
        Baffle Cutout Diameter
        120 mm
        Bolt Circle Diameter
        141.5 mm
        # Mounting Holes
        4
        Mounting Hole Diameter
        5.5 mm

        Show more
