        15MCS500 Bass-midwoofer

        Beyma 15MCS500 Bass-midwoofer

        €179,95

        4 In stock

        Add to cart

        Beyma 15MCS500 Bass-midwoofer

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Beyma
        Show all New products
        15" | 8 Ω
        15MCS500 Bass-midwoofer
        15MCS500 Bass-midwoofer
        15MCS500 Bass-midwoofer
        15MCS500 Bass-midwoofer
        € 148,72€ 179,95 4 In stock
        • -5% Purchase 4 for only € 170,95 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        15MCS500 Bass-midwoofer
        15MCS500 Bass-midwoofer
        15MCS500 Bass-midwoofer
        15MCS500 Bass-midwoofer

        Pros and cons

        According to our specialists
        • Optimized for 2 or 3 way PA systems and line array applications
        • High power handling: 1.000 W program power

        Product description Beyma 15MCS500 Bass-midwoofer

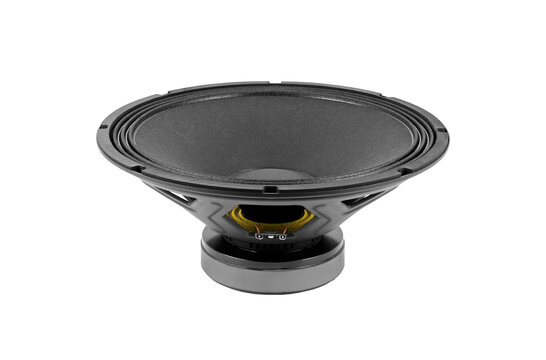

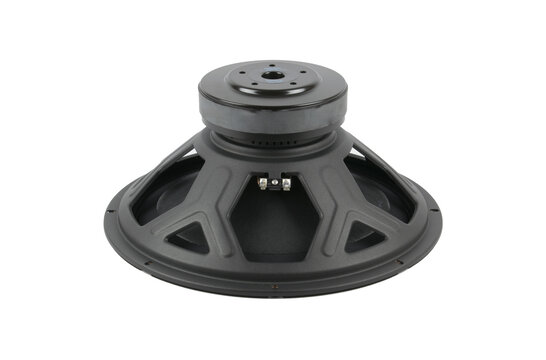

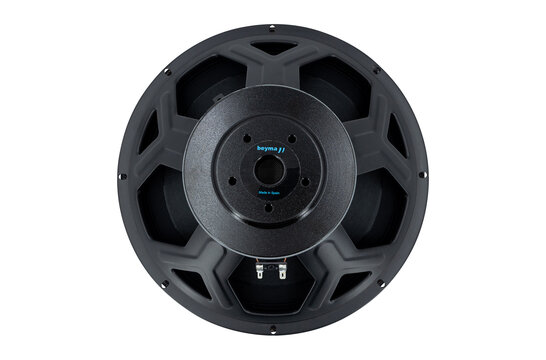

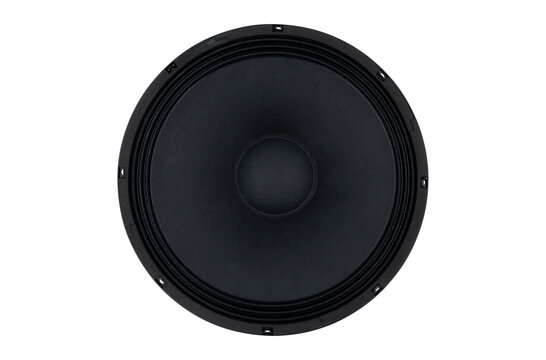

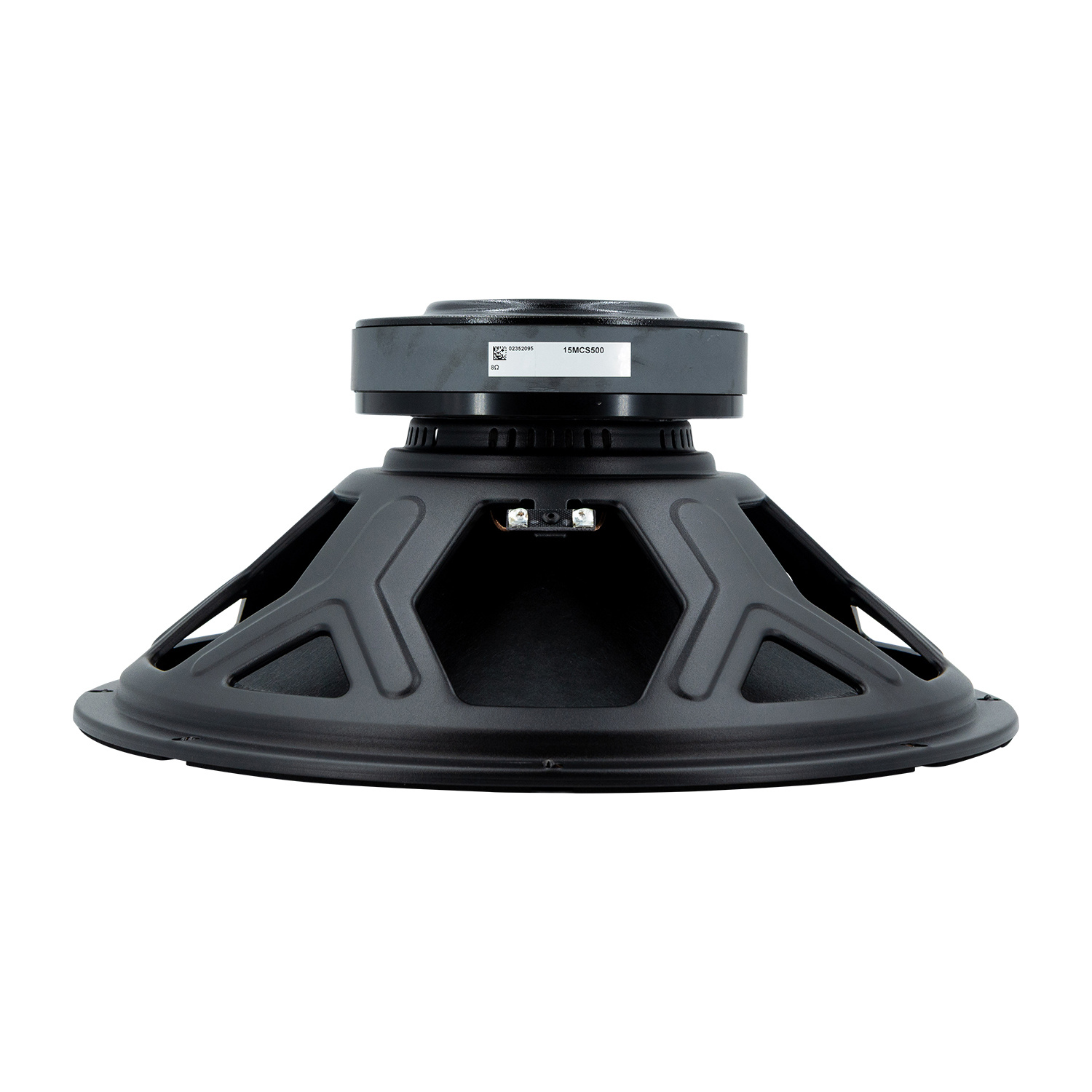

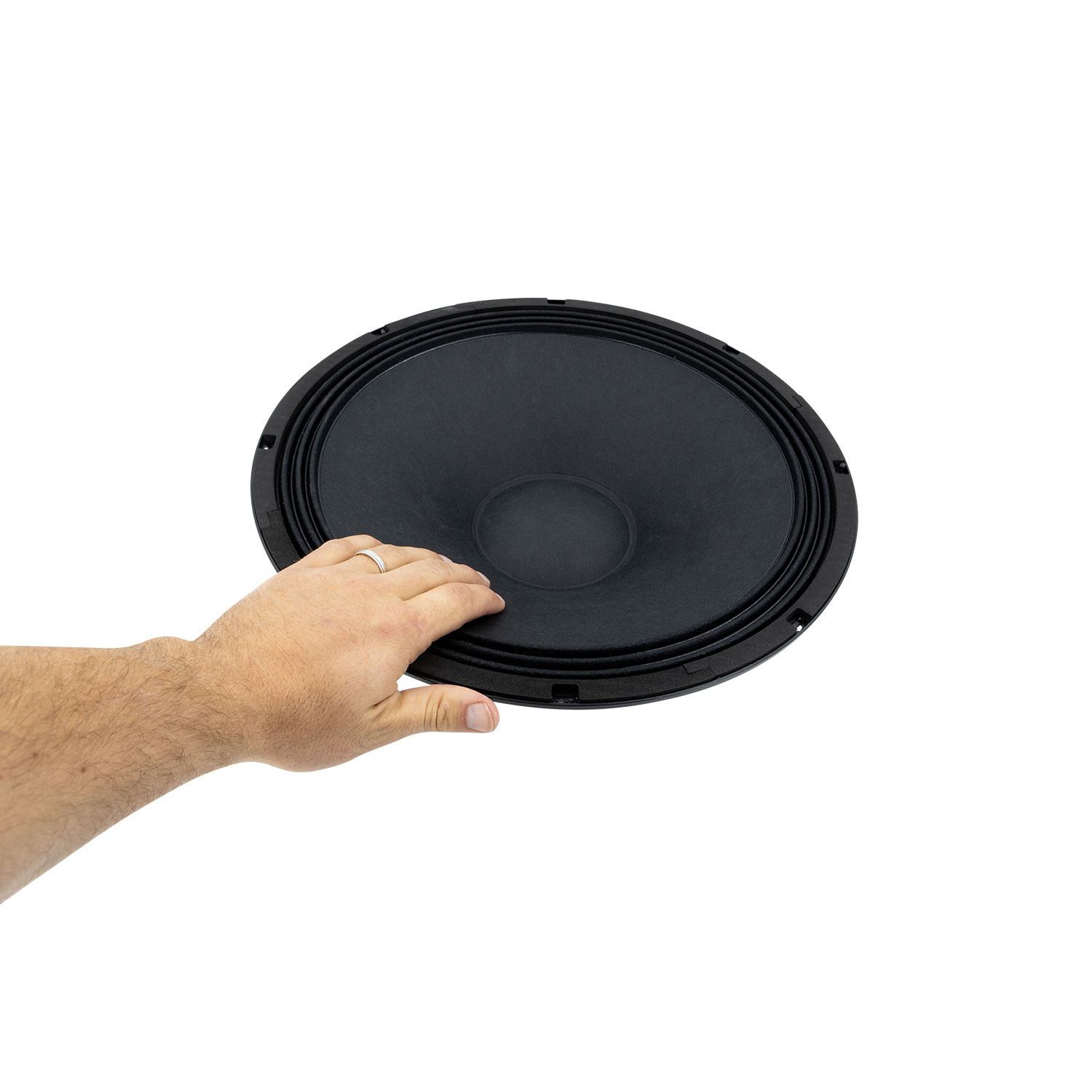

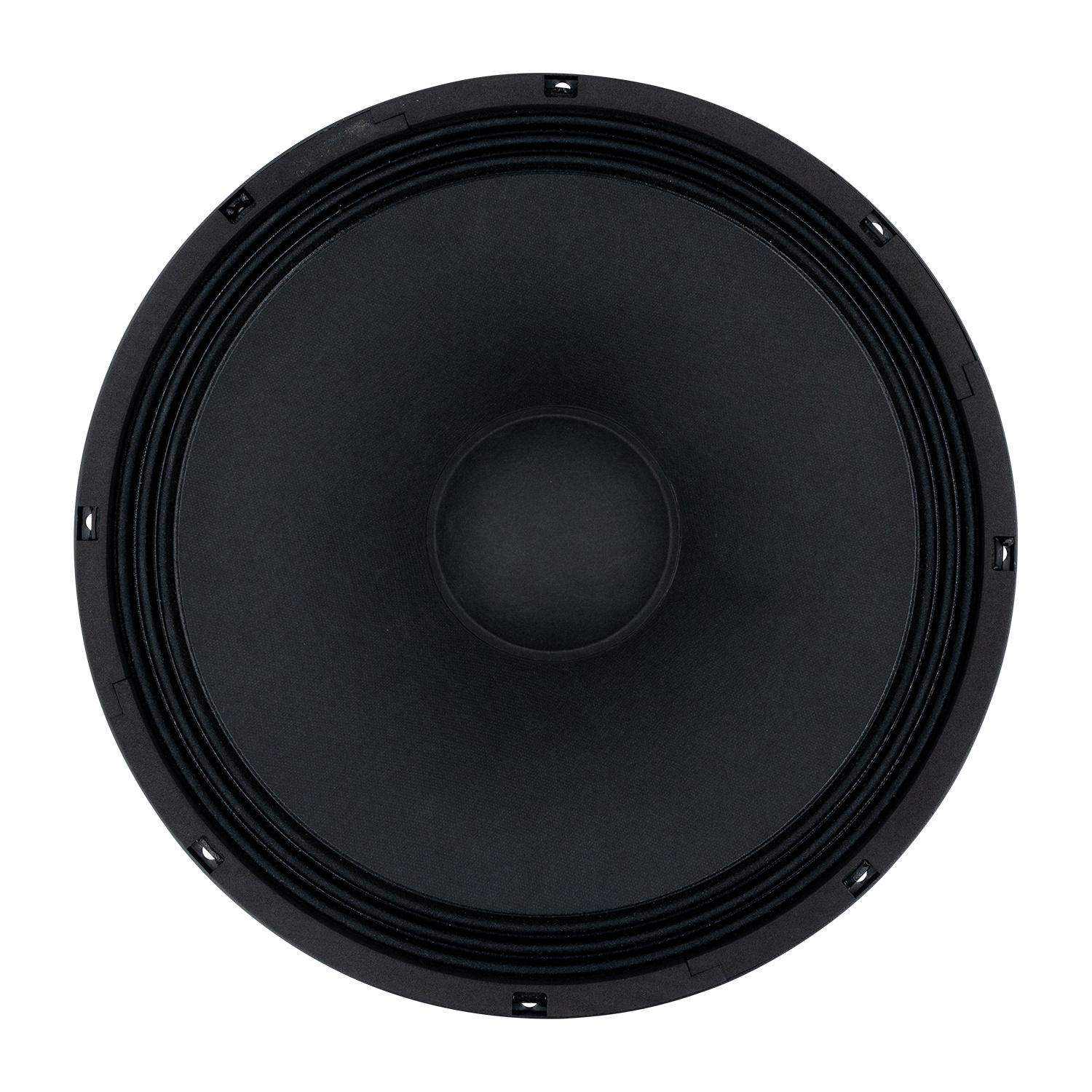

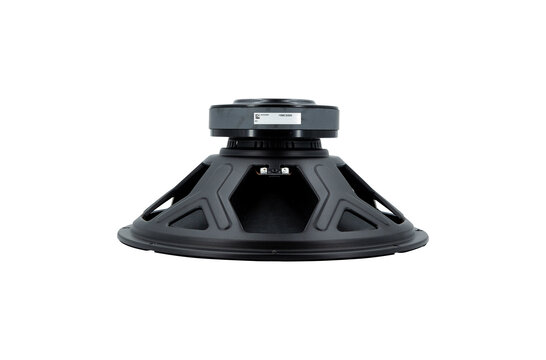

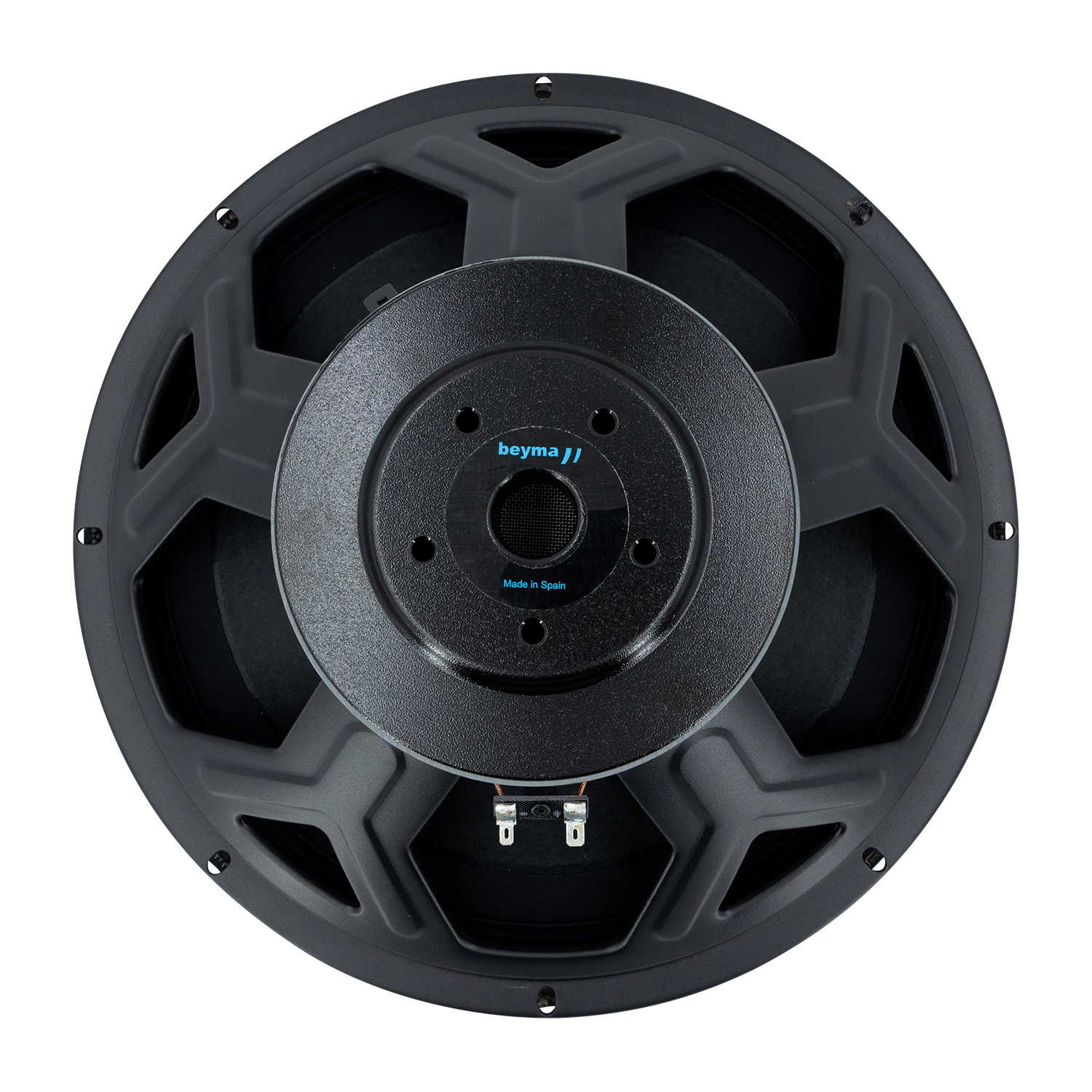

        Durable and efficient, the Beyma 15MCS500 is a 15" low/mid frequency transducer designed with a pressed steel frame, combining professional-grade performance and weather-resistant reliability for mobile and fixed PA systems.



        Highlights of the Beyma 15MCS500

        • 500W AES / 1000W program power for high-output applications
        • 98 dB sensitivity and wide frequency response from 50 Hz to 4,000 Hz
        • 2.5” copper voice coil with Malt Cross® Cooling System
        • Weatherproof cone treatment and FEA-optimized magnetic circuit



        Product details Beyma 15MCS500

        Beyma 15MCS500 Low & Mid Frequency Transducer



        The Beyma 15MCS500 is a robust 15-inch transducer tailored for low and mid-frequency reproduction in demanding professional audio systems. With a power rating of 500W AES and 1000W program, it delivers consistent high output, aided by a high sensitivity of 98 dB. The transducer operates effectively within a 50 Hz to 4,000 Hz frequency range, making it suitable for 2- or 3-way PA system configurations and line arrays. The 15MCS500 features a 2.5” copper wire voice coil and is equipped with Beyma’s proprietary Malt Cross® Cooling System to ensure low power compression and extended operational longevity. Built with an optimized pressed steel frame, it provides structural strength while maintaining lightweight integration (6.2 kg net weight). An FEA-optimized magnetic circuit and aluminum demodulating ring help reduce distortion and improve linearity. The weatherproof cone treatment on both sides enhances durability for both indoor and outdoor use. With an Xmax of ±8 mm and peak-to-peak damage excursion of 40 mm, the 15MCS500 is engineered for dynamic performance in modern sound reinforcement systems.

        Show more

        Specifications

        Article number
        15MCS500
        EAN
        8435469043770
        Woofer Series
        Beyma MC series
        Woofer Type
        Low & Mid Frequency Transducer
        Nominal Diameter
        15"
        Power Handling (RMS)
        500 Watts
        Power Handling (max)
        1.000 Watts
        Impedance (Z)
        8 Ω
        Sensitivity (SPL at 1m / 2.83V)
        98 dB
        Frequency Response
        50-4.000 Hz
        Voice Coil Diameter
        2.5"
        DC Resistance (Re)
        5.6 Ω
        Voice Coil Inductance (Le)
        1.1 mH
        Resonant Frequency (Fs)
        46 Hz
        Mechanical Q (Qms)
        7.8
        Electromagnetic Q (Qes)
        0.51
        Total Q (Qts)
        0.48
        Diaphragm Mass Inc. Airload (Mms)
        0,098 kg
        Mechanical Compliance of Suspension (Cms)
        122 µm / N
        Surface Area of Cone (Sd)
        0,088 m²
        Volume of Displacement (Vd)
        704 cm³
        BL Product (BL)
        17,6 N/A
        Compliance Equivalent Volume (Vas)
        134 Liters
        Maximum Linear Excursion (Xmax)
        8 mm
        Driver's Mechanical Losses (Rms)
        3,6 kg / s
        Voice Coil Wire Material
        Copper
        Basket / Frame Material
        Steel
        Magnet Material
        FEA optimized magnetic circuit
        Overall Outside Diameter
        385 mm
        Overall Depth
        172 mm
        Baffle Cutout Diameter
        353 mm
        Bolt Circle Diameter
        367 mm
        # Mounting Holes
        8
        Mounting Hole Diameter
        6.50 mm

        Show more
