        12WR400 Bass-midwoofer

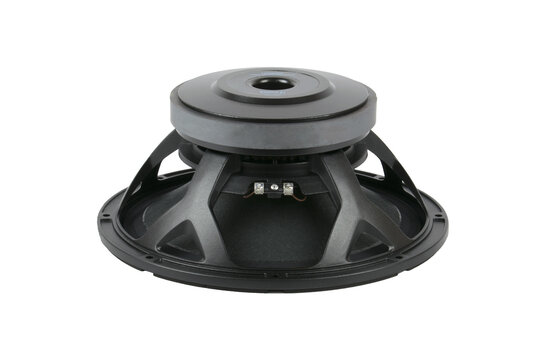

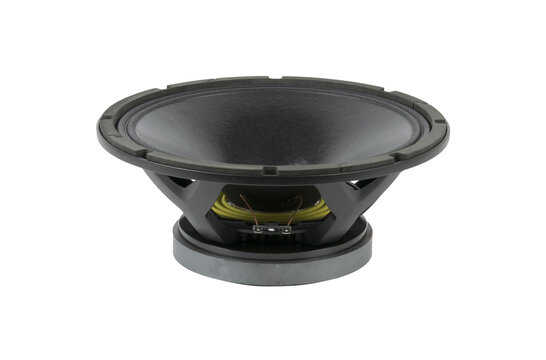

        Beyma 12WR400 Bass-midwoofer

        €179,95

        3 In stock

        Add to cart

        Beyma 12WR400 Bass-midwoofer

        1 reviews
        5 from 5
        1 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Beyma
        Show all New products
        12" | 8 Ω
        12WR400 Bass-midwoofer
        12WR400 Bass-midwoofer
        12WR400 Bass-midwoofer
        12WR400 Bass-midwoofer
        € 148,72€ 179,95 3 In stock
        • -5% Purchase 4 for only € 170,95 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped tomorrow
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        12WR400 Bass-midwoofer
        12WR400 Bass-midwoofer
        12WR400 Bass-midwoofer
        12WR400 Bass-midwoofer

        Pros and cons

        According to our specialists
        • Weatherproof cone treatment for both sides of the cone
        • FEA optimized ceramic magnetic circuit

        Product description Beyma 12WR400 Bass-midwoofer

        The Beyma 12WR400 is a versatile 12” low-frequency transducer optimized for wide-range bass and midbass reproduction. With a weather-resistant cone and efficient ceramic magnet motor, it delivers clean, reliable output for both indoor and outdoor use.



        Highlights of the Beyma 12WR400

        • 400 W AES / 800 W program power with 97 dB sensitivity
        • 3” copper wire voice coil and FEA-optimized ceramic magnet system
        • ±6.3 mm Xmax and 30 mm peak-to-peak excursion for extended displacement
        • Weatherproof cone and low harmonic distortion across 45–5,000 Hz



        Product details Beyma 12WR400

        Beyma 12WR400 Low Frequency Transducer



        The Beyma 12WR400 is a 12-inch low-frequency transducer from the WR Series, designed for extended low-end performance in portable and installed audio systems. Capable of handling 400 W AES and 800 W program power, it offers a high sensitivity of 97 dB (1W/1m), making it suitable for efficient systems with solid low-frequency output. Its 3” copper voice coil works with an FEA-optimized ceramic magnetic circuit to deliver linear response with minimal harmonic distortion. The mechanical structure allows for an Xmax of ±6.3 mm and a peak-to-peak excursion of 30 mm, supporting strong low-end performance without compromising clarity. The cone is treated on both sides for weather resistance, making the 12WR400 reliable in outdoor environments. Designed for bass-reflex enclosures between 30 to 100 liters, and operating over a frequency range of 45 to 5,000 Hz, it’s a dependable choice for bass and mid-low applications in touring, fixed installs, and PA systems. With a shallow depth of 131 mm and net weight of 5.5 kg, integration is simple and space-efficient.

        Show more

        Specifications

        Article number
        12WR400
        EAN
        8435469043299
        Woofer Type
        Low Frequency Transducer
        Nominal Diameter
        12"
        Power Handling (RMS)
        400 Watts
        Continuous Program Power
        800 Watts
        Impedance (Z)
        8 Ω
        Sensitivity (SPL at 1m / 2.83V)
        97 dB
        Frequency Response
        45-5.000 Hz
        Voice Coil Diameter
        3"
        DC Resistance (Re)
        5.6 Ω
        Voice Coil Inductance (Le)
        1 mH
        Resonant Frequency (Fs)
        42 Hz
        Mechanical Q (Qms)
        5.6
        Electromagnetic Q (Qes)
        0.28
        Total Q (Qts)
        0.27
        Diaphragm Mass Inc. Airload (Mms)
        0,063 kg
        Mechanical Compliance of Suspension (Cms)
        228 µm / N
        Surface Area of Cone (Sd)
        0,053 m²
        Volume of Displacement (Vd)
        334 cm³
        BL Product (BL)
        18 N/A
        Compliance Equivalent Volume (Vas)
        91 Liters
        Maximum Linear Excursion (Xmax)
        6.3 mm
        Driver's Mechanical Losses (Rms)
        3 kg / s
        Overall Outside Diameter
        313 mm
        Overall Depth
        131 mm
        Bolt Circle Diameter
        294.5 mm
        # Mounting Holes
        8
        Mounting Hole Diameter
        6.5 mm
