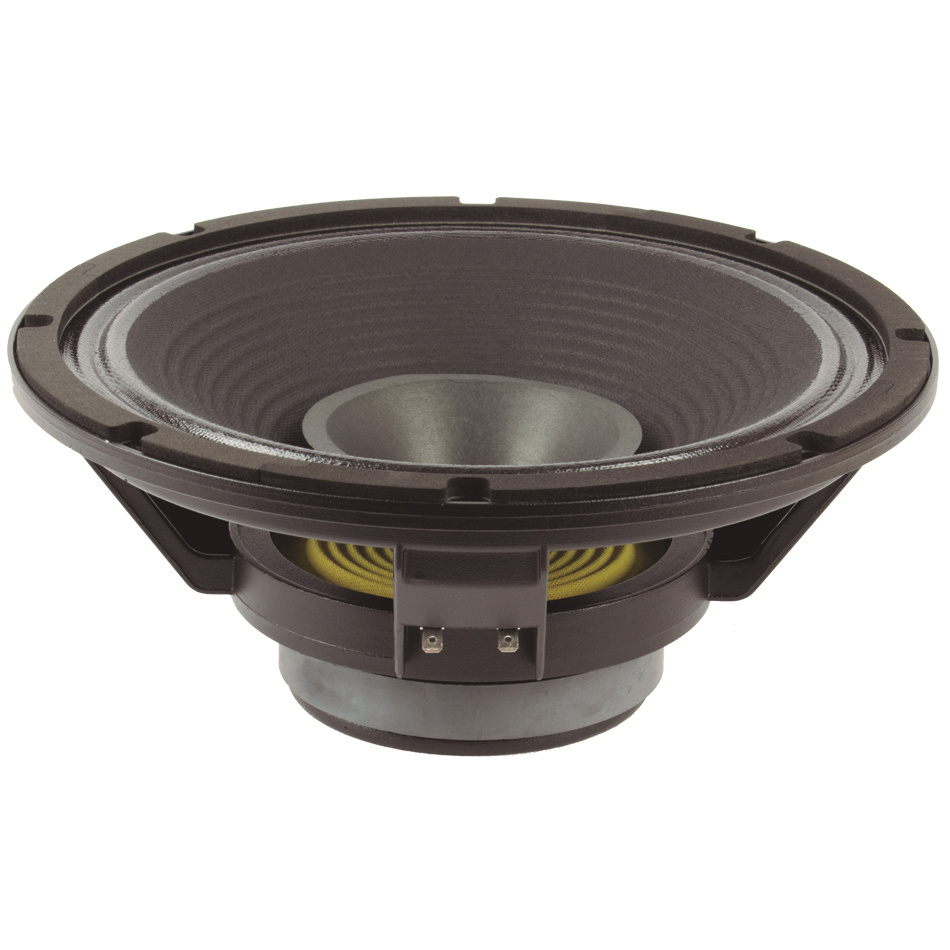

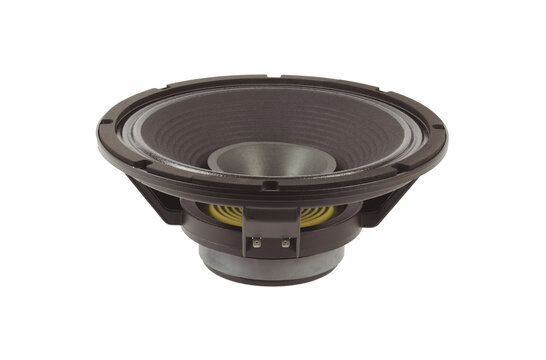

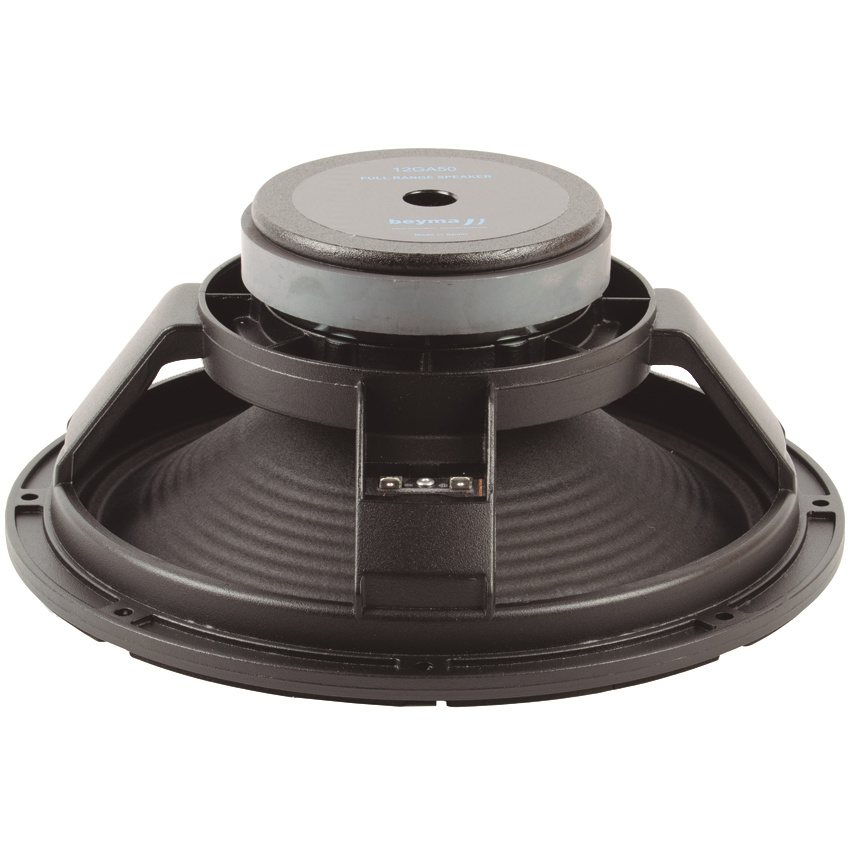

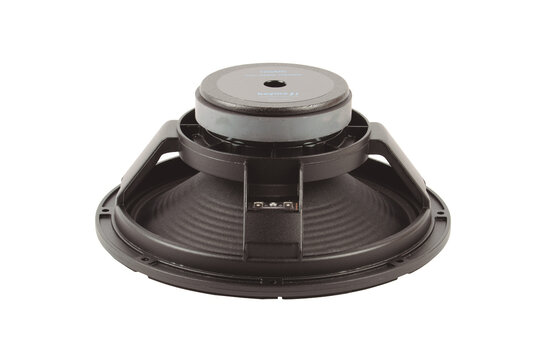

        12GA50 Full-range Woofer

        Beyma 12GA50 Full-range Woofer

        €119,95

        4 expected on 02-01-2026

        Add to cart

        Beyma 12GA50 Full-range Woofer

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Beyma
        Show all New products
        12" | 8 Ω
        12GA50 Full-range Woofer
        12GA50 Full-range Woofer
        12GA50 Full-range Woofer
        12GA50 Full-range Woofer
        € 99,13€ 119,95 Out of stock4 expected on 02-01-2026
        • -5% Purchase 4 for only € 113,95 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Back in stock soon
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        12GA50 Full-range Woofer
        12GA50 Full-range Woofer
        12GA50 Full-range Woofer
        12GA50 Full-range Woofer

        Pros and cons

        According to our specialists
        • Double cone for an extended bandwith coverage

        Product description Beyma 12GA50 Full-range Woofer

        High-sensitivity 12-inch full-range transducer designed for extended frequency response and linearity, ideal for musical instrument reinforcement and compact PA systems.



        Highlights of the Beyma 12GA50

        • 250 W AES / 500 W program power with 102 dB sensitivity
        • Double cone design for extended bandwidth from 100 Hz to 18,000 Hz
        • 2” aluminum voice coil with copper shorting cap for low distortion
        • Specially treated surround for smooth, linear frequency response



        Product details Beyma 12GA50

        Beyma 12GA50 Full-Range Frequency Transducer



        The Beyma 12GA50 is a high-efficiency 12” full-range transducer designed to deliver wide bandwidth and accurate sound reproduction in compact enclosures. It is rated at 250 W AES power and 500 W program power, achieving a remarkably high sensitivity of 102 dB (1W/1m), making it suitable for high-output applications with minimal amplification. This unit incorporates a double cone structure to ensure extended frequency response from 100 Hz to 18,000 Hz, offering balanced performance across both low and high frequencies. Its 2” aluminum voice coil, combined with a copper shorting cap, reduces harmonic distortion and enhances transient accuracy. The cone surround is specially treated for linearity and smooth response, contributing to the driver’s natural tonal character—ideal for music instrument amplification and full-range PA systems. It features a 3 mm Xmax and a peak-to-peak excursion limit of 24 mm, supporting dynamic performance while maintaining control. With a mounting depth of 139 mm and a net weight of 3.5 kg, the 12GA50 provides a well-balanced solution for loudspeaker systems requiring clarity, projection, and wide-range performance in a single driver.

        Show more

        Specifications

        Article number
        12GA50
        EAN
        8435469042896
        Woofer Type
        Full range woofer
        Nominal Diameter
        12"
        Power Handling (RMS)
        250 Watts
        Continuous Program Power
        500 Watts
        Impedance (Z)
        8 Ω
        Sensitivity (SPL at 1m / 2.83V)
        102 dB
        Frequency Response
        100-18.000 Hz
        Voice Coil Diameter
        2" (50.8 mm)
        DC Resistance (Re)
        6.2 Ω
        Voice Coil Inductance (Le)
        0.6 mH
        Resonant Frequency (Fs)
        90 Hz
        Mechanical Q (Qms)
        14.8
        Electromagnetic Q (Qes)
        1.26
        Total Q (Qts)
        1,16
        Diaphragm Mass Inc. Airload (Mms)
        0,034 kg
        Mechanical Compliance of Suspension (Cms)
        0.087 mm/N
        Surface Area of Cone (Sd)
        0,053 cm²
        Volume of Displacement (Vd)
        159 cm³
        BL Product (BL)
        10 N/A
        Compliance Equivalent Volume (Vas)
        34 Liters
        Maximum Linear Excursion (Xmax)
        +/- 3 mm
        Driver's Mechanical Losses (Rms)
        1,3 kg /s
        Overall Outside Diameter
        312 mm
        Overall Depth
        139 mm
        Baffle Cutout Diameter
        278 mm
        Bolt Circle Diameter
        294.5 mm
        # Mounting Holes
        8
        Mounting Hole Diameter
        6.5 mm

        Show more
