        12BR70 Bass-midwoofer

        Beyma 12BR70 Bass-midwoofer

        €119,95

        8 expected on 02-01-2026

        Add to cart

        Beyma 12BR70 Bass-midwoofer

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Beyma
        Show all New products
        12" | 8 Ω
        12BR70 Bass-midwoofer
        12BR70 Bass-midwoofer
        12BR70 Bass-midwoofer
        12BR70 Bass-midwoofer
        € 99,13€ 119,95 Out of stock8 expected on 02-01-2026
        • -5% Purchase 4 for only € 113,95 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Back in stock soon
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        12BR70 Bass-midwoofer
        12BR70 Bass-midwoofer
        12BR70 Bass-midwoofer
        12BR70 Bass-midwoofer

        Pros and cons

        According to our specialists
        • Designed for low frequency reproduction
        • 250 W program power

        Product description Beyma 12BR70 Bass-midwoofer

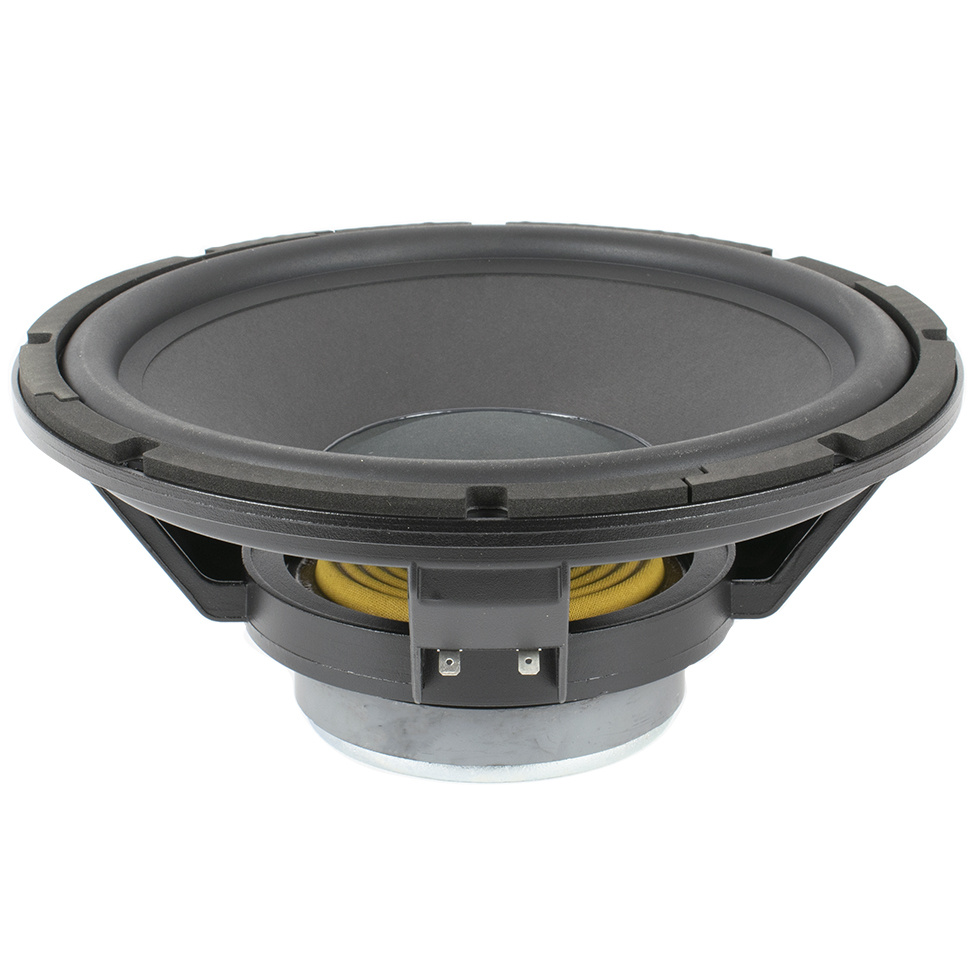

        The Beyma 12BR70 is a 12” low-frequency transducer designed for reliable bass performance in compact enclosures. With a 2” copper voice coil and a sensitivity of 93 dB, it provides clean, musical low-end ideal for budget-conscious sound reinforcement systems.



        Highlights of the Beyma 12BR70

        • 125 W AES / 250 W program power handling
        • 2” copper voice coil with ferrite magnet
        • ±8 mm Xmax and 26 mm peak-to-peak excursion for strong low-end performance
        • Low resonance frequency (31 Hz) for extended bass response



        Product details Beyma 12BR70

        Beyma 12BR70 Low Frequency Transducer



        The Beyma 12BR70 is a versatile 12-inch woofer optimized for low-frequency reproduction in compact enclosures. Designed to handle 125 W AES and 250 W program power, it features a 2” copper voice coil and ferrite magnet structure that provides a balanced performance in budget-sensitive applications. Operating from 35 Hz to 4,000 Hz, this transducer excels in bass and sub-bass duties with a sensitivity of 93 dB (1W/1m). The unit’s Xmax of ±8 mm and 26 mm peak-to-peak excursion enable it to reproduce low frequencies cleanly and with minimal distortion, making it well-suited for small PA cabinets and hi-fi subwoofer systems. With a low resonant frequency of 31 Hz and high mechanical compliance (345 µm/N), the 12BR70 performs efficiently in enclosures ranging from 50 to 120 liters. Its compact 134 mm depth and lightweight 3.6 kg build ensure easy integration into portable systems, making it a reliable choice for DIYers, audio hobbyists, and small venue applications.

        Show more

        Specifications

        Article number
        12BR70
        EAN
        8435469045897
        Woofer Type
        Low Frequency Transducer
        Nominal Diameter
        12"
        Power Handling (RMS)
        125 Watts
        Continuous Program Power
        250 Watts
        Impedance (Z)
        8 Ω
        Sensitivity (SPL at 1m / 2.83V)
        93 dB
        Frequency Response
        35-4.000 Hz
        Voice Coil Diameter
        2"
        DC Resistance (Re)
        5.6 Ω
        Voice Coil Inductance (Le)
        0.8 mH
        Resonant Frequency (Fs)
        31 Hz
        Mechanical Q (Qms)
        4.4
        Electromagnetic Q (Qes)
        0.56
        Total Q (Qts)
        0.50
        Diaphragm Mass Inc. Airload (Mms)
        0,074 kg
        Mechanical Compliance of Suspension (Cms)
        345 µm / N
        Surface Area of Cone (Sd)
        0,054 m²
        Volume of Displacement (Vd)
        340 cm³
        BL Product (BL)
        12,1 N/A
        Compliance Equivalent Volume (Vas)
        142 Liters
        Maximum Linear Excursion (Xmax)
        +/- 8 mm
        Driver's Mechanical Losses (Rms)
        3,3 kg / s
        Voice Coil Former
        Copper
        Magnet Material
        Ferrite
        Overall Outside Diameter
        312 mm
        Overall Depth
        134 mm
        Baffle Cutout Diameter
        278 mm
        Bolt Circle Diameter
        294.5 mm
        # Mounting Holes
        8
        Mounting Hole Diameter
        6.5 mm

        Show more
