        10WRS300 Bass-midwoofer

        Beyma 10WRS300 Bass-midwoofer

        €109,95

        4 In stock

        Add to cart

        Beyma 10WRS300 Bass-midwoofer

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Beyma
        Show all New products
        10" | 8 Ω
        10WRS300 Bass-midwoofer
        10WRS300 Bass-midwoofer
        10WRS300 Bass-midwoofer
        10WRS300 Bass-midwoofer
        € 90,87€ 109,95 4 In stock
        • -5% Purchase 4 for only € 104,45 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Same day shipping
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        10WRS300 Bass-midwoofer
        10WRS300 Bass-midwoofer
        10WRS300 Bass-midwoofer
        10WRS300 Bass-midwoofer

        Pros and cons

        According to our specialists
        • High power handling: 600 W program power
        • Weatherproof cone treatment for both sides of the cone

        Product description Beyma 10WRS300 Bass-midwoofer

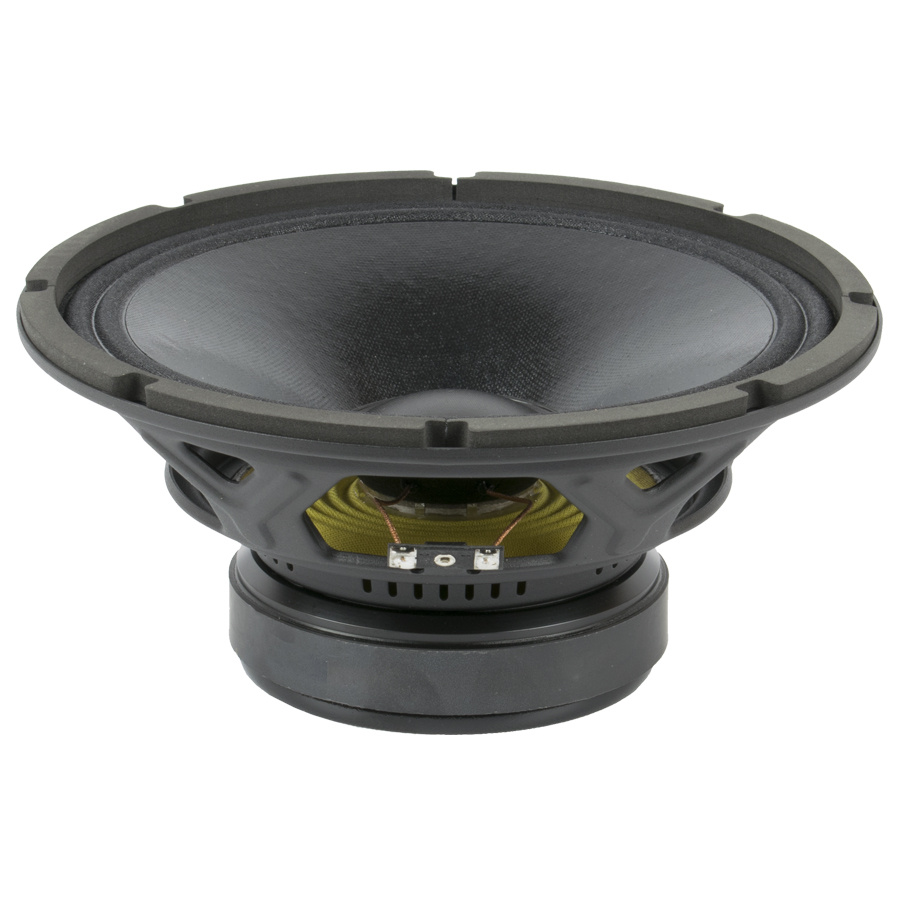

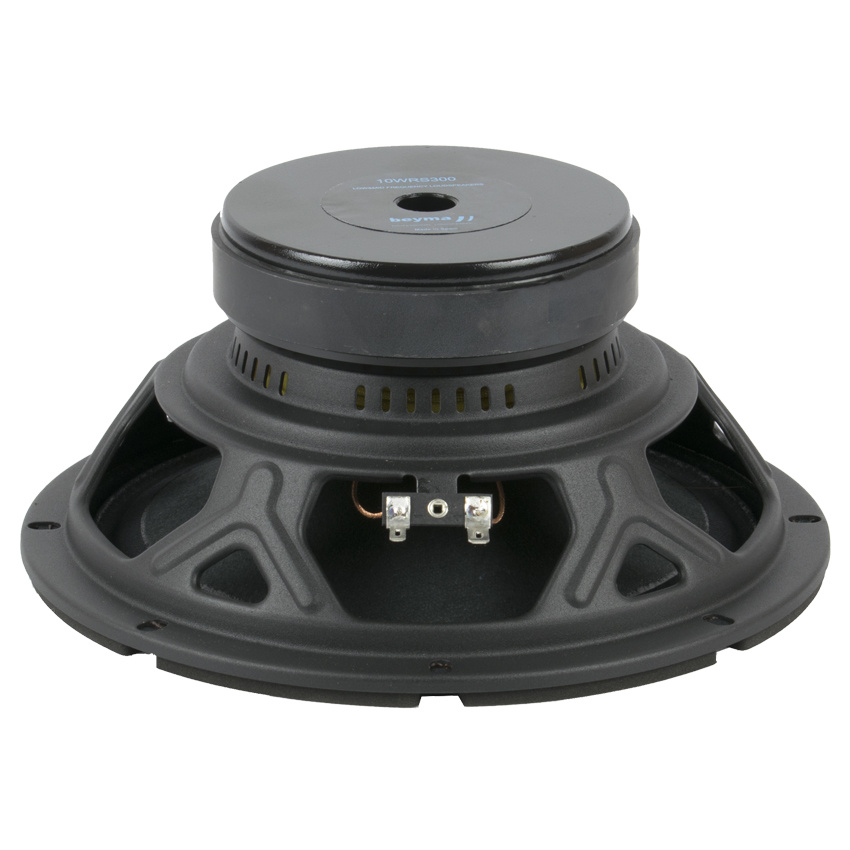

        The Beyma 10WRS300 is a compact 10” low-frequency transducer delivering efficient and articulate bass performance. Built with a pressed steel frame and weather-treated cone, it's an ideal choice for compact PA systems and versatile bass applications.



        Highlights of the Beyma 10WRS300

        • 300 W AES / 600 W program power with 95 dB sensitivity
        • 2” copper voice coil and FEA-optimized ceramic magnetic circuit
        • Weatherproof cone treatment on both sides for durability
        • ±6 mm Xmax with controlled linear excursion for clean bass



        Product details Beyma 10WRS300

        Beyma 10WRS300 Low Frequency Transducer



        The Beyma 10WRS300 is a 10-inch woofer from the WRS Series, developed for wide-range low-frequency reproduction in compact systems. Delivering 300 W AES (600 W program) power and a sensitivity of 95 dB (1W/1m), it is engineered for efficiency in portable and installed PA applications. Equipped with a 2” copper voice coil and supported by a pressed steel frame, this driver features a robust FEA-optimized ceramic magnetic circuit to ensure linear behavior and low harmonic distortion. It supports a ±6 mm Xmax and 30 mm peak-to-peak excursion, enabling smooth and controlled bass even at high output levels. Designed for bass-reflex enclosures between 15 and 50 liters, the 10WRS300 performs optimally across a wide frequency range of 55 Hz to 5,000 Hz. A weatherproof-treated cone on both sides enhances its durability in challenging environments. With a shallow 114 mm depth and lightweight 3.5 kg frame, the 10WRS300 is an excellent choice for compact systems that require powerful, reliable bass performance.

        Show more

        Specifications

        Article number
        10WRS300
        EAN
        8435469042681
        Woofer Series
        Beyma WRS Series
        Woofer Type
        Low Frequency Transducer
        Nominal Diameter
        10"
        Power Handling (RMS)
        300 Watts
        Continuous Program Power
        600 Watts
        Impedance (Z)
        8 Ω
        Sensitivity (SPL at 1m / 2.83V)
        95 dB
        Frequency Response
        55-5.000 Hz
        Voice Coil Diameter
        2"
        DC Resistance (Re)
        6.1 Ω
        Voice Coil Inductance (Le)
        1 mH
        Resonant Frequency (Fs)
        52 Hz
        Mechanical Q (Qms)
        5.5
        Electromagnetic Q (Qes)
        0.40
        Total Q (Qts)
        0.38
        Diaphragm Mass Inc. Airload (Mms)
        0,039 kg
        Mechanical Compliance of Suspension (Cms)
        242 µm / N
        Surface Area of Cone (Sd)
        0,035 m²
        Volume of Displacement (Vd)
        210 cm³
        BL Product (BL)
        13,9 N/A
        Compliance Equivalent Volume (Vas)
        42 Liters
        Maximum Linear Excursion (Xmax)
        +/- 6 mm
        Driver's Mechanical Losses (Rms)
        2,3 kg / s
        Voice Coil Former
        Copper
        Basket / Frame Material
        Steel
        Magnet Material
        Ceramic
        Overall Outside Diameter
        258 mm
        Overall Depth
        114 mm
        Baffle Cutout Diameter
        230 mm
        Bolt Circle Diameter
        241 mm
        # Mounting Holes
        8
        Mounting Hole Diameter
        6.5 mm
