        Pros and cons

        According to our specialists
        • Weatherproof cone with treatment for both sides
        • High power handling: 1.400 W program power

        Product description Beyma 10MC700Nd Bass-midwoofer

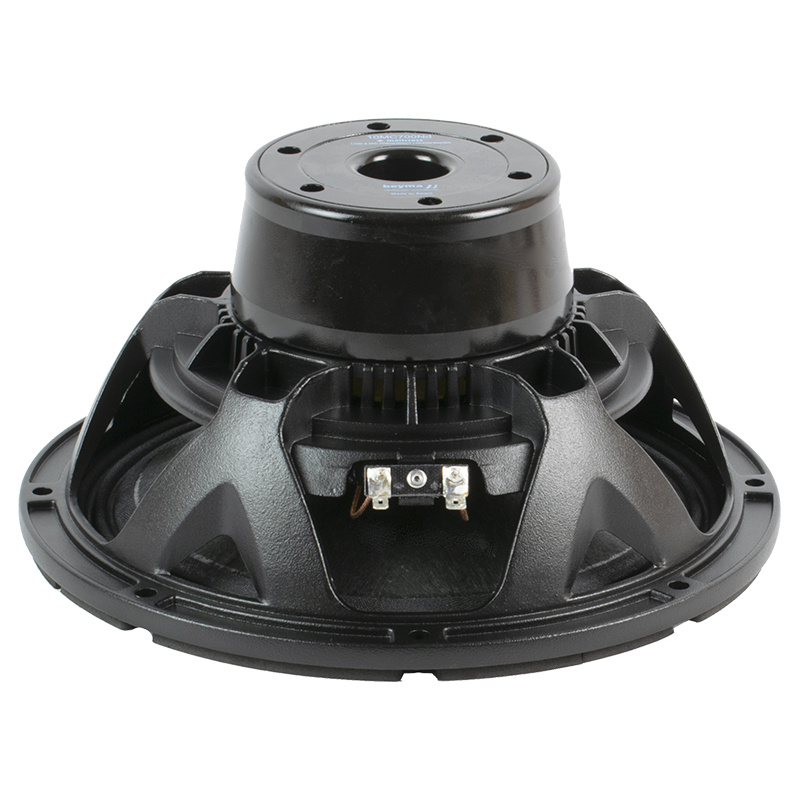

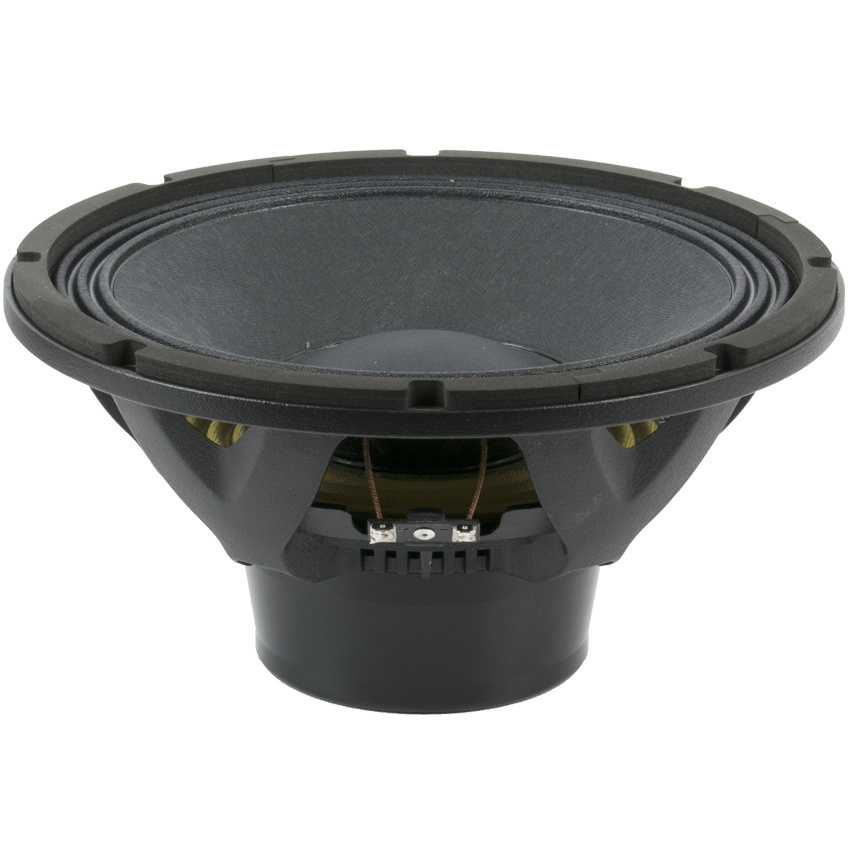

        The Beyma 10MC700Nd is a compact, high-output 10” low and mid-frequency transducer designed for premium PA systems. With a powerful 3” DUO voice coil and neodymium motor, it delivers exceptional clarity, high sensitivity, and durability in demanding audio environments.



        Highlights of the Beyma 10MC700Nd

        • 700 W AES / 1,400 W program power handling
        • 3” DUO double-layer copper in/out voice coil with Malt Cross® Cooling System
        • High sensitivity of 97 dB and frequency response from 65 Hz to 4,000 Hz
        • ±7 mm Xmax with 48 mm peak-to-peak damage excursion



        Product details Beyma 10MC700Nd

        Beyma 10MC700Nd Low & Mid Frequency Transducer



        The Beyma 10MC700Nd is a 10-inch transducer from the MC Series, optimized for low and mid-frequency reproduction in high-performance audio systems. With a power capacity of 700 W AES (1,400 W program) and a sensitivity of 97 dB (1W/1m), this speaker provides powerful and accurate output suitable for both bass and midrange use. It features a 3” DUO in/out copper voice coil cooled by Beyma’s proprietary Malt Cross® Technology, ensuring low power compression and consistent thermal behavior under continuous operation. The magnetic system, designed with FEA-optimized neodymium and an aluminum demodulating ring, minimizes distortion and improves transient response. The weatherproof-treated cone, combined with a linear Xmax of ±7 mm and 48 mm peak-to-peak excursion limit, ensures robust performance and extended mechanical control. Operating within a compact 14-liter bass-reflex enclosure tuned at 76 Hz, the 10MC700Nd weighs just 3.7 kg, making it ideal for portable systems, compact PA setups, and line array configurations where performance and efficiency must meet in a small footprint.

        Show more

        Specifications

        Article number
        10MC700Nd
        EAN
        8435469042506
        Woofer Series
        Beyma MC series
        Woofer Type
        Low and Mid Frequency Transducer
        Nominal Diameter
        10"
        Power Handling (RMS)
        700 Watts
        Continuous Program Power
        1400 Watts
        Impedance (Z)
        8 Ω
        Sensitivity (SPL at 1m / 2.83V)
        97 dB
        Frequency Response
        65-4.000 Hz
        Voice Coil Diameter
        3"
        DC Resistance (Re)
        5.2 Ω
        Voice Coil Inductance (Le)
        1 mH
        Resonant Frequency (Fs)
        63 Hz
        Mechanical Q (Qms)
        3.8
        Electromagnetic Q (Qes)
        0.24
        Total Q (Qts)
        0.22
        Diaphragm Mass Inc. Airload (Mms)
        0,054 kg
        Mechanical Compliance of Suspension (Cms)
        115 µm / N
        Surface Area of Cone (Sd)
        0,035 m²
        Volume of Displacement (Vd)
        245 cm³
        BL Product (BL)
        21,8 N/A
        Compliance Equivalent Volume (Vas)
        20 Liters
        Maximum Linear Excursion (Xmax)
        +/- 7 mm
        Driver's Mechanical Losses (Rms)
        5,6 kg / s
        Voice Coil Former
        Copper
        Magnet Material
        Neodymium
        Overall Outside Diameter
        261 mm
        Overall Depth
        127 mm
        Baffle Cutout Diameter
        228 mm
        Bolt Circle Diameter
        243.5 mm
        # Mounting Holes
        8
        Mounting Hole Diameter
        6.5 mm

        Show more
