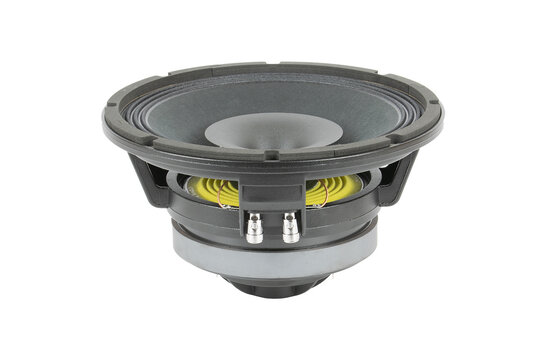

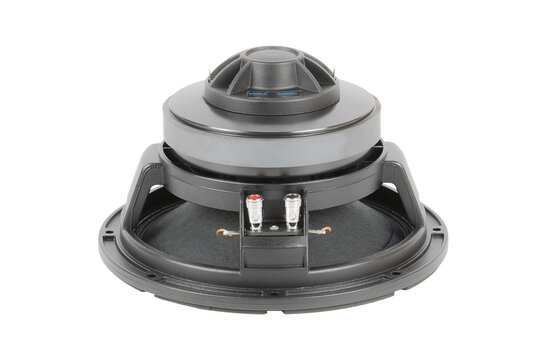

        10CX300/Fe Coaxial Woofer

        Beyma 10CX300/Fe Coaxial Woofer

        €289,95

        2 In stock

        Add to cart

        Beyma 10CX300/Fe Coaxial Woofer

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Beyma
        Show all New products
        10" | 8 Ω
        10CX300/Fe Coaxial Woofer
        10CX300/Fe Coaxial Woofer
        10CX300/Fe Coaxial Woofer
        10CX300/Fe Coaxial Woofer
        € 239,63€ 289,95 2 In stock
        • -5% Purchase 4 for only € 275,45 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped on Monday
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        10CX300/Fe Coaxial Woofer
        10CX300/Fe Coaxial Woofer
        10CX300/Fe Coaxial Woofer
        10CX300/Fe Coaxial Woofer

        Pros and cons

        According to our specialists
        • This unit includes a weatherproof cone with treatment on both sides,

        Product description Beyma 10CX300/Fe Coaxial Woofer

        Versatile 10-inch coaxial transducer with ferrite magnet system, engineered for compact full-range systems requiring clarity, output efficiency, and wide dispersion.



        Highlights of the Beyma 10CX300Fe

        • 600 W / 100 W program power (LF / HF) with 96.5 / 104 dB sensitivity
        • Integrated 2.5” woofer and 1.75” HF compression driver with shared magnet
        • Wide frequency response from 50 Hz to 20,000 Hz with 70° conical HF dispersion
        • Weatherproof cone and PM4 diaphragm for reliable performance in varied environments



        Product details Beyma 10CX300Fe

        Beyma 10CX300Fe Coaxial Transducer



        The Beyma 10CX300Fe is a compact yet powerful 10” coaxial transducer designed for full-range sound systems, offering high output and wide frequency coverage. This dual-driver unit combines a 2.5” voice coil woofer and a 1.75” compression driver in a coaxial configuration, delivering 300 W AES (600 W program) in the LF and 50 W AES (100 W program) in the HF section. The system achieves 96.5 dB sensitivity on the low end and an impressive 104 dB on the high end, covering a broad 50 Hz to 20 kHz frequency range. Designed around a ferrite magnet structure optimized via FEA, the 10CX300Fe provides excellent alignment and phase coherence between drivers, supported by a recommended HF crossover of 2 kHz or higher. Built for durability and clarity, this unit includes a weatherproof cone with treatment on both sides, a PM4 diaphragm in the HF section, and a shorting cap for improved transient response and reduced harmonic distortion. A 70° conical dispersion horn ensures consistent high-frequency coverage, making the 10CX300Fe ideal for stage monitors, compact PA systems, and portable sound reinforcement setups. With a mounting depth of just 145 mm and a manageable 5.1 kg weight, the 10CX300Fe balances robust performance with installation flexibility.

        Show more

        Specifications

        Article number
        10CX300/Fe
        EAN
        8435469042308
        Woofer Type
        Coaxial Transducer
        Nominal Diameter
        Woofer 10", Compression driver 1.75”
        Power Handling (RMS)
        600 Watts
        Continuous Program Power
        Woofer 600 Watts, Tweeter 100 Watts
        Impedance (Z)
        Woofer 8 Ω, Tweeter 16 Ω
        Sensitivity (SPL at 1m / 2.83V)
        Woofer 96.5 dB, Tweeter 104 dB
        Frequency Response
        50-20.000 Hz
        Voice Coil Diameter
        Woofer 2.5", Compression driver1.75"
        DC Resistance (Re)
        5.2 Ω
        Voice Coil Inductance (Le)
        0.4 mH
        Resonant Frequency (Fs)
        48 Hz
        Mechanical Q (Qms)
        5.3
        Electromagnetic Q (Qes)
        0.41
        Total Q (Qts)
        0.38
        Diaphragm Mass Inc. Airload (Mms)
        0,035 kg
        Mechanical Compliance of Suspension (Cms)
        307 µm / N
        Surface Area of Cone (Sd)
        0,038 m²
        Volume of Displacement (Vd)
        256 cm³
        BL Product (BL)
        11,6 N/A
        Compliance Equivalent Volume (Vas)
        63 Liters
        Maximum Linear Excursion (Xmax)
        +/- 6.7 mm
        Driver's Mechanical Losses (Rms)
        2 kg / s
        Magnet Material
        Ferrite
        Overall Outside Diameter
        260.5 mm
        Overall Depth
        145 mm
        Baffle Cutout Diameter
        228 mm
        Bolt Circle Diameter
        243.5 mm
        # Mounting Holes
        8
        Mounting Hole Diameter
        5.5 mm

        Show more
