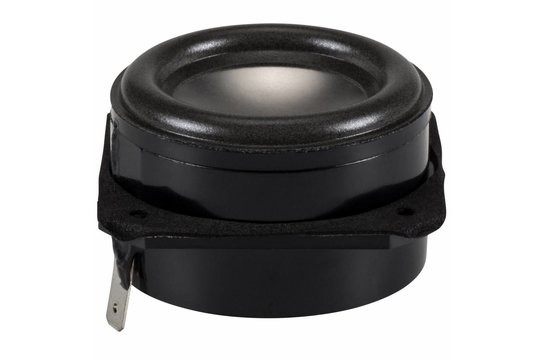

AuraSound NS2-326-8AT Whisper 2" Extended Range Speaker Driver 8 Ohm

In stock

  • Article code: NS2-326-8AT
  • Stock: 9 In stock

AuraSound designed the 2" extended range "Whisper" driver with bleeding edge loudspeaker technology for the highest quality, full range sound, in the smallest possible package. Great for modern applications such as speaker bars, desktop computer speakers,

€ 16,95 Incl. 21% VAT

  • Buy 4 for €16,10 each and save 5% Sale 5%

Add to wishlist

  • Low international shipping rates Tooltip

    Find all shipping rates and free shipping thresholds here

  • Same day shipping
  • 45-days the right to cancel
  • International payment options

Product description

AuraSound NS2-326-8AT Whisper 2" Extended Range Speaker Driver 8 Ohm

AuraSound designed the 2" extended range "Whisper" driver with bleeding edge loudspeaker technology for the highest quality, full range sound, in the smallest possible package. Great for modern applications such as speaker bars, desktop computer speakers, thin tower speakers, and line arrays.



Highlights

  • NRT radial neodymium motor for extremely low distortion
  • Full range, 2" underhung driver with 3 mm of Xmax
  • Small frame size for reduced center-to-center distance and reduced comb filtering when used in arrays
  • Extreme ventilation for great power handling
  • Great for modern audio applications including sound bars and ultra-thin tower speakers



Product details

AuraSound NS2-326-8AT Whisper 2" Extended Range Speaker Driver 8 Ohm



The AuraSound "Whisper" NSW2-326-8A 2" extended range driver is packed with next-gen speaker technology. An NRT™ neodymium radial magnet motor submerses the 32.6 mm, underhung voice coil in magnetic flux for supreme control, low distortion, high output (for its size), and wide frequency range without stray magnetic fields that could potentially damage sensitive electronics, while the extreme venting provided by a capless pole piece evacuates air that would otherwise be compressed (in a driver this size).



A titanium cone is mated to a foam surround to reduce cone breakup, for an extremely linear frequency response from 250 to 15,000 Hz. The low, 250 Hz free air resonance combines with 3 mm of Xmax (6 mm maximum peak-to-peak excursion) to allow for low crossover points, meaning you can pair the Whisper with nearly any woofer up to 5 feet away (2-1/2 ft. is the recommended maximum) seamlessly.



AuraSound built the NSW2-326-8A with a non-resonant, minimalistic, rear-mount frame for close center-to-center placement which is especially important in line arrays to minimize comb filtering. When used in series-parallel groups of four, the Whisper's output is increased from 84 dB 1W/1m to roughly 90 dB 1W/1m, with power handling increased to 60 watts RMS. Grouping eight together, and wiring for 4 ohms, yields roughly 96 dB of output at 1W/1m with power handling increased to 120 watts RMS.

Specifications

Specifications for: NS2-326-8AT Whisper 2" Extended Range Speaker Driver 8 Ohm

  • Woofer Series Specific woofer production line of the manufacturer. NS Series
  • Woofer Type The driver type for example subwoofer, mid-woofer, full range or coaxial woofer. Extended Range
  • Nominal Diameter The approximate diameter of the driver, measured in inches. 2"
  • Power Handling (RMS) The average power handling capability of a driver (coil) in electric power (watts) for a long period of time without damaging the driver. RMS stands for Root Mean Square 15 Watts
  • Power Handling (max) The maximum electrical power that a woofer (coil) can handle for a short period of time before it is damaged.
  • View all specifications
  • Continuous Program Power
  • Impedance 8 ohms
  • Sensitivity 84 dB 1W/1m
  • Frequency Response 250 to 15,000 Hz
  • Voice Coil Diameter 1.28"
  • Magnet Weight
  • DC Resistance (Re) 6.4 ohms
  • Voice Coil Inductance (Le)
  • Resonant Frequency (Fs) 250 Hz
  • Mechanical Q (Qms) 4.72
  • Electromagnetic Q (Qes) 0.80
  • Total Q (Qts) 0.68
  • Diaphragm Mass Inc. Airload (Mms)
  • Moving Mass Of Diaphragm (Mmd)
  • Mechanical Compliance of Suspension (Cms)
  • Surface Area of Cone (Sd) 13.2 cm²
  • Volume of Displacement (Vd)
  • BL Product (BL)
  • Compliance Equivalent Volume (Vas) 13.2 cm²
  • Maximum Linear Excursion (Xmax)
  • Driver's Mechanical Losses (Rms)
  • Cone / Diaphragm Material Titanium
  • Surround Material Foam
  • Voice Coil Wire Material Aluminum
  • Voice Coil Former
  • Dual Voice Coil
  • Basket / Frame Material Polymer
  • Magnet Material Neodymium
  • Shielded
  • Overall Outside Diameter 2.36" diagonally, 1.93"
  • Overall Depth 1.16"
  • Baffle Cutout Diameter 1.85"
  • Bolt Circle Diameter 2.13”
  • # Mounting Holes 4
  • Mounting Hole Diameter
  • Sealed Volume 0.10 ft.³
  • Sealed F3 95 Hz
  • Vented Volume 0.12 ft.³
  • Vented F3 50 Hz
