      Arylic Up2Stream amp 2.0 V4 WiFi and Bluetooth 5.0 Stereo Amplifier Board

      € 82,60€ 99,95 Out of stock: 10+ expected on 10-8-2022
      Bulk discount Enjoy these awesome discount deals
      • -5% Order 4 for only € 94,95 per piece
      • 24h express shipping available
      • Low international shipping rates
      • Same day shipping
      • In-house technical support
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      Does your next project require a high-end amplifier, Bluetooth 5.0 connection, Wi-Fi streaming, multi-room use or maybe even all of them? Then boy, do I have news for you! The brand new Up2Stream Amp V3 is here to satisfy all your needs!



      Highlights

      • Wireless streamer and amplifier in one
      • Bluetooth 5.0 and Wi-Fi streaming using the free app
      • Supports multi-room use.



      Product details

      Arylic Up2Stream amp 2.0 V4 WiFi and Bluetooth 5.0 Stereo Amplifier Board



      Does your next project require a high-end amplifier, Bluetooth 5.0 connection, Wi-Fi streaming, multi-room use, or maybe even all of them? Boy, do I have good news for you! The brand new Up2Stream Amp is here to satisfy all your needs!



      This amplifier can stream music off of any reputable streaming service using its free Android and iOS app; Wi-Fi, Bluetooth 5.0, DLNA, AirPlay, Spotify, Deezer, Tidal, Qobuz, iheartRadio, Napster, internet radio you name it. Not only is the app very useful for uncompressed music streaming, but it also allows you to change the name of every Arylic product on your network and to set up a multi-room sound system.



      The amplifier uses a powerful low distortion class D amplifier chip outputting up to 50 Watts per channel into 4 Ohms. It features every connection one may need and even has a USB port that can either be used as a USB DAC or for USB storage of your favorite tracks.



      To control the amplifier, the free app, a PC or the optional remote control can be used.



      Difference between V3 and V4

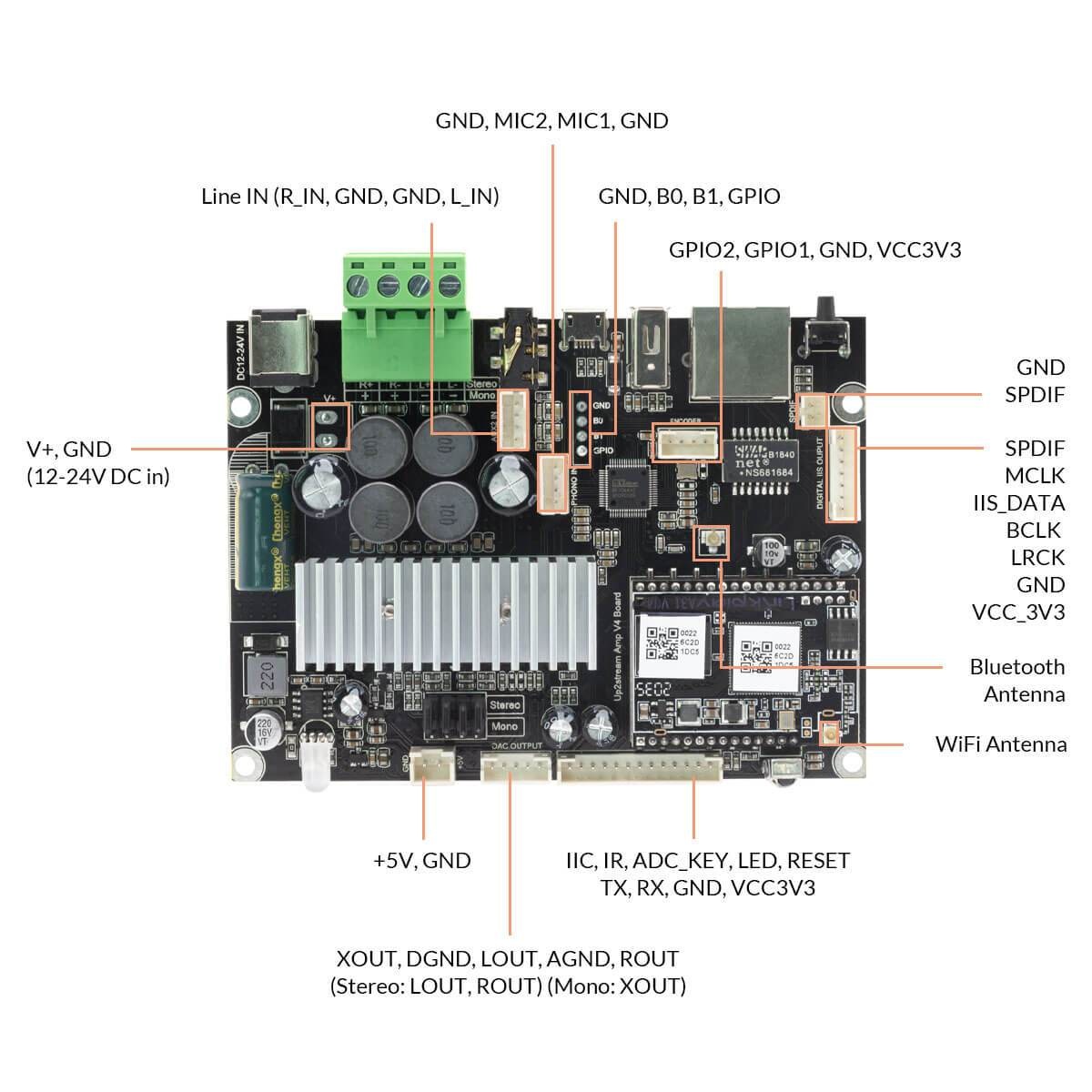

      The version 4 has received a hardware revision, which supports more features with ACPWorkbench Audio effect tools. Like adjust L/R balance, L/R EQ settings etc. And ads more DIY pins like I2S and DAC output, so you have more options to connect DIY modules.



      What’s in the box?

      • Up2Stream 2.0 Amp
      • 4-pin analog connector
      • 4-pin cable
      • Screw Driver

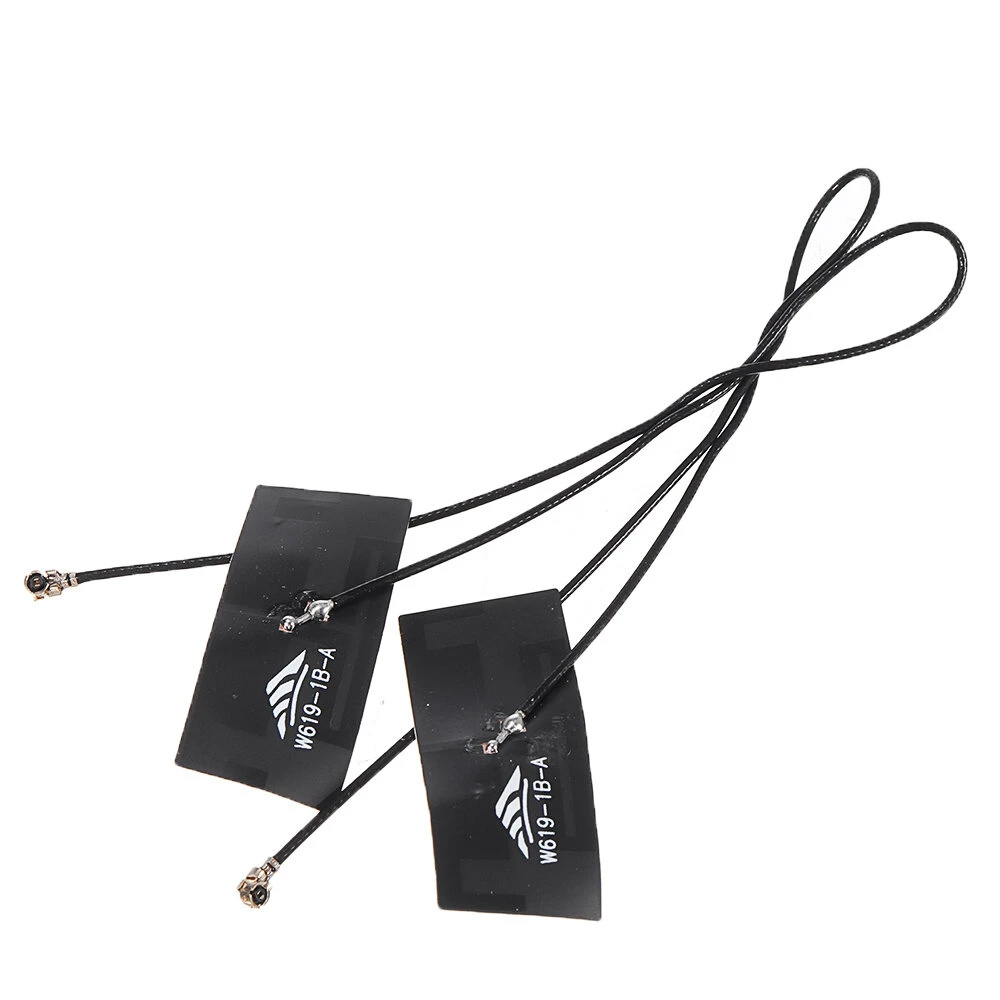

      • Wi-Fi Antenna
      • User manual



      Warning:Up2Stream Amp 2.0 V4 must use 12V-26 VDC input, higher voltage power supply may damage the board.

      Specifications

      Article number
      Up2Stream Amp 2.0
      Rated power output (RMS)
      2 x 50 watts at 4 ohms (21 V)
      Bridged power output (RMS)
      -
      Minimum load
      4 Ohms
      Signal-to-noise ratio (SNR)
      91 dB
      Distortion
      0.03 % THD at 1 kHz, 50 Watts
      Distortion bridged
      -
      Efficiency
      -
      Frequency response
      20 - 20,000 Hz
      Input impedance
      -
      Input sensitivity
      -
      Auto turn-on sensitivity
      -
      DSP
      -
      DAC
      micro-USB DAC
      Maximum sampling rate
      up to 24bit, 192kHZ
      Circuit Topology
      -
      Amplifier classification
      Class D
      Speaker output channels
      Left and Right
      Subwoofer output channel
      -
      Analog in/out
      2/1
      Optical S/PDIF in/out
      -
      Coaxial in/out
      -
      RCA in/out
      -
      AUX in/out
      -
      Bus in/out
      -
      XLR in/out
      -
      USB
      USB power, USB DAC, USB storage
      Memory card slot
      -
      Network connection
      Single 10/100M RJ45
      Headphone jack
      -
      Subwoofer pre-out
      -
      Bluetooth
      Bluetooth 5.0
      NFC
      -
      Wi-Fi
      IEEE802.11 b/g/n 2.4G
      Banana plug compatible
      -
      Remote control
      IR remote compatible
      App control
      Free Android and iOS app
      Auto turn-on
      -
      Accepted file formats
      FLAC, MP3, AAC, AAC+, ALAC, APE, WAVE
      Equalizer (EQ) adjustment
      in-app equalizer adjustment
      Equalizer (EQ) profiles
      -
      Multi zone/room
      App supports Multi-Room playback
      Crossover frequency adjustment
      -
      Bridge mode
      -
      Power requirements
      DC 12V-26V 4A
      Power inlet connector
      5.5 mm x 2.1 mm DC plug
      Stand-by power consumption
      -
      Dimensions (D x W x H)
      80 x 100 x 20 mm

      Show more

      Reviews

      5 from 5Based on 4 reviews
      Review this product
      4 of 5
      I am impressed. Used this amp to replace my 30yr old receiver and turn my old stereo boxes into active. Sound is for this small size very impressive - already out of the box. With the additional SW (1* less for the additional 20,- for this) you can tweak almost everything.
      By Ralf on 20 April 2022
      4 of 5
      Absolut auf Höhe der Zeit. Kompakt, nein geradezu winzig in Abmessungen und vollgestopft mit technischen Möglichkeiten. Bis hier hin hätte ich dem Produkt fünf Sterne gegeben. Aber ! Der Hersteller sollte unbedingt darauf hinweisen, dass die Verstärkermodule ausschließlich zur Wiedergabe von Musik konzipiert sind. Filme, Videos oder TV funktioniert nicht. Zumindest ist das bei mir der Fall. ( Up2stream V4 + Up2stream Subwoofer Modul ) Die Verstärkermodule bringen eine nicht unerhebliche Latenz mit, weshalb der Ton bei Filmen und so weiter nie Lippen Synchron wiedergegeben wird. Ansonsten, wirklich super.
      By Frank Knoll on 13 January 2022
