        78616 300 VA | 2 x 25 V Toroidal Transformer

        Product description Amplimo 78616 300 VA | 2 x 25 V Toroidal Transformer

        The Amplimo 78616 is a 300 VA toroidal transformer with a 230 V primary and dual 25 V secondaries rated at 6 A each, supplied with mounting hardware and approvals for reliable integration.

        Highlights of the Amplimo 78616

        • 300 VA toroidal transformer with 230 V primary
        • Dual 25 V secondary windings rated at 6 A each
        • Secondary windings support series or parallel operation
        • Compact 124 mm diameter and 55 mm height
        • Supplied with metal washer, two neoprene washers, bolt and nut

        Product details Amplimo 78616

        Amplimo 78616 300 VA 2 x 25 V Toroidal Transformer

        The Amplimo 78616 is built around a toroidal transformer design with a rated power of 300 VA. It uses a 230 V primary winding and provides two 25 V secondary windings, each rated at 6 A under full ohmic load. With a specified regulation of 6.4%, it is a practical choice for builders selecting components for power supplies and related electromechanics assemblies.

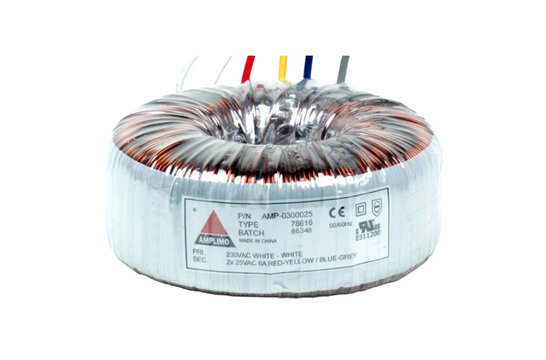

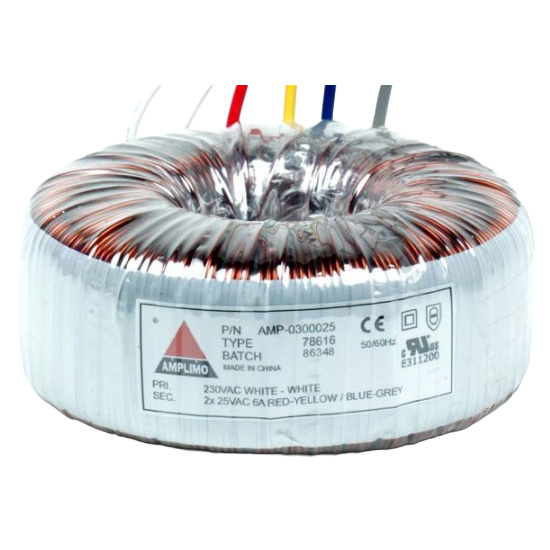

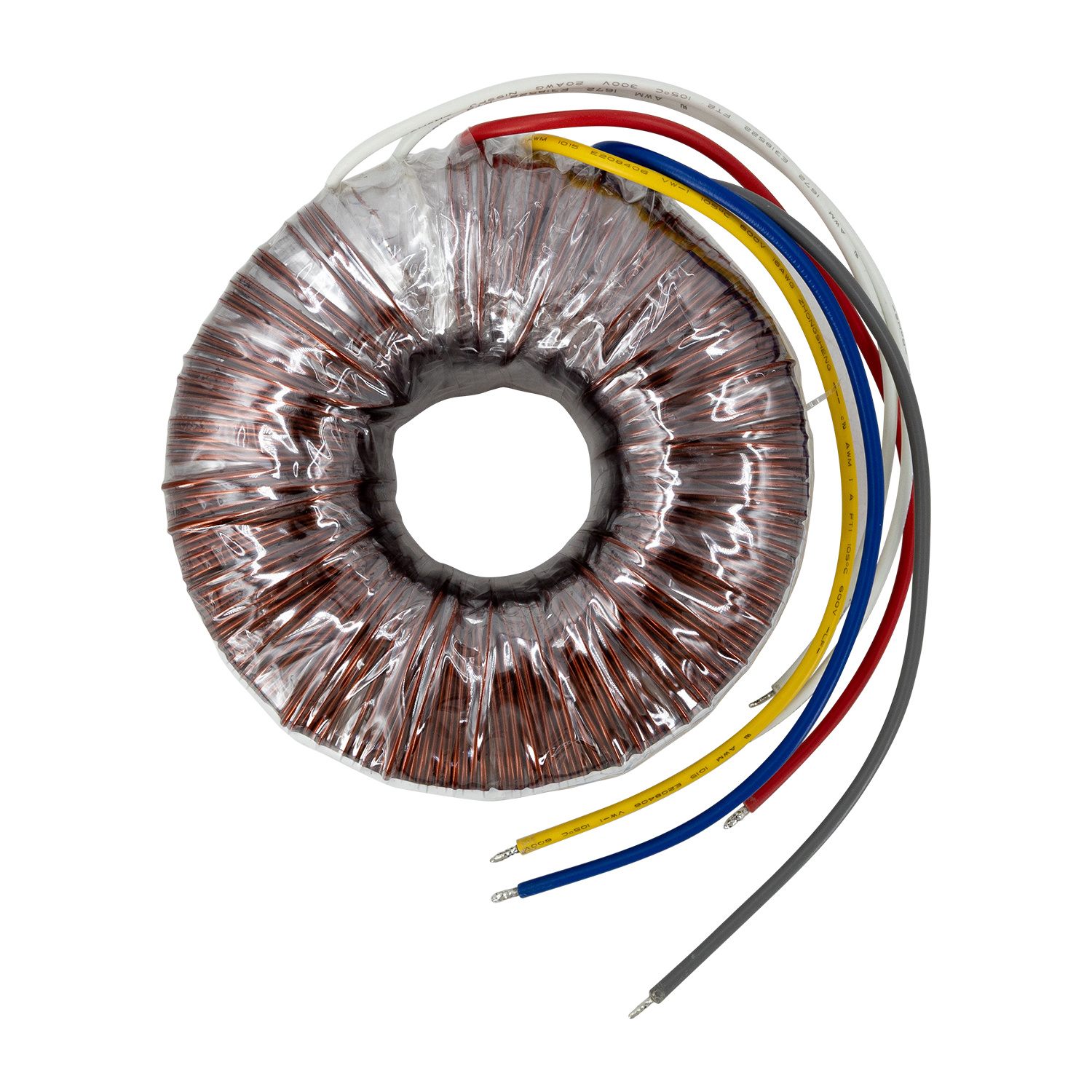

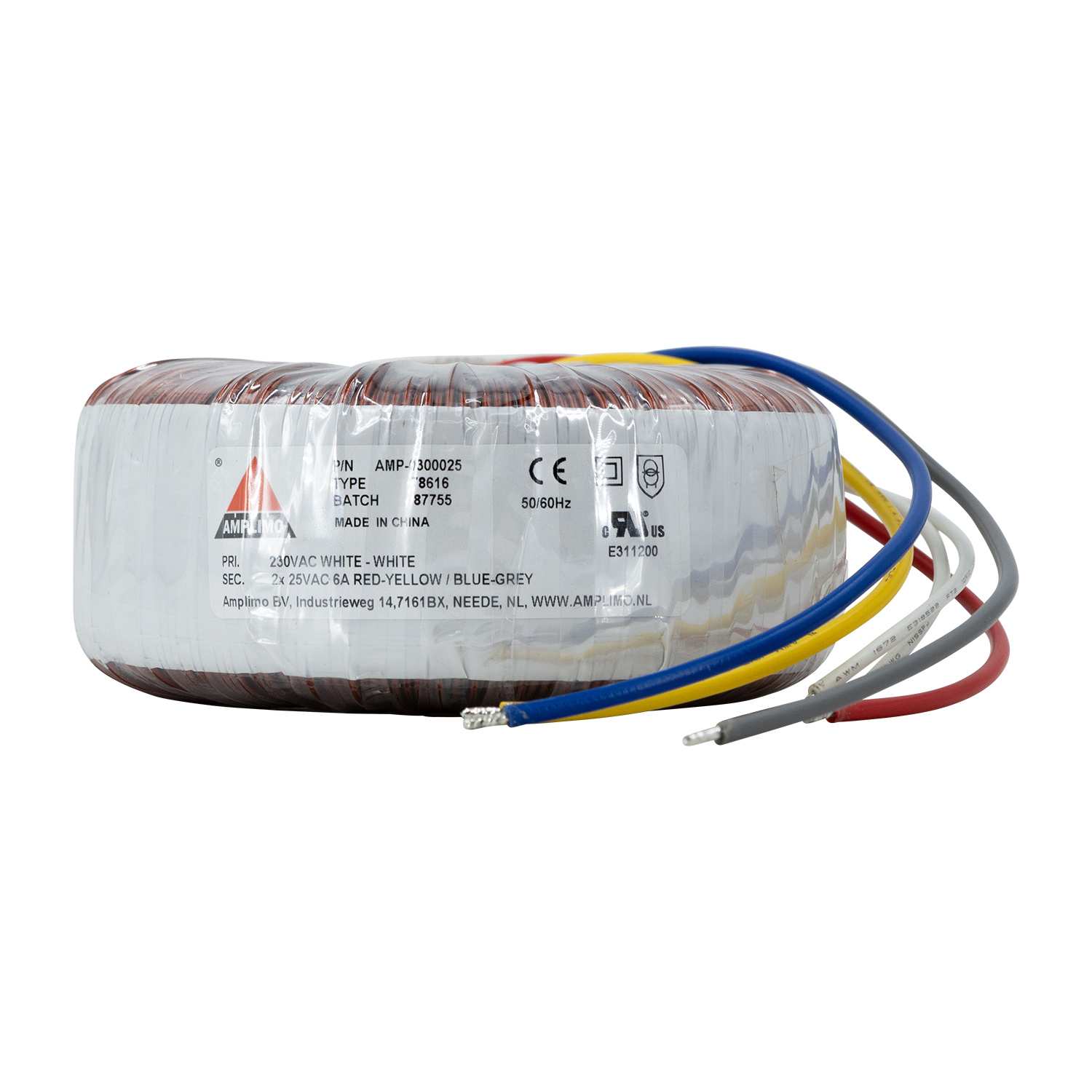

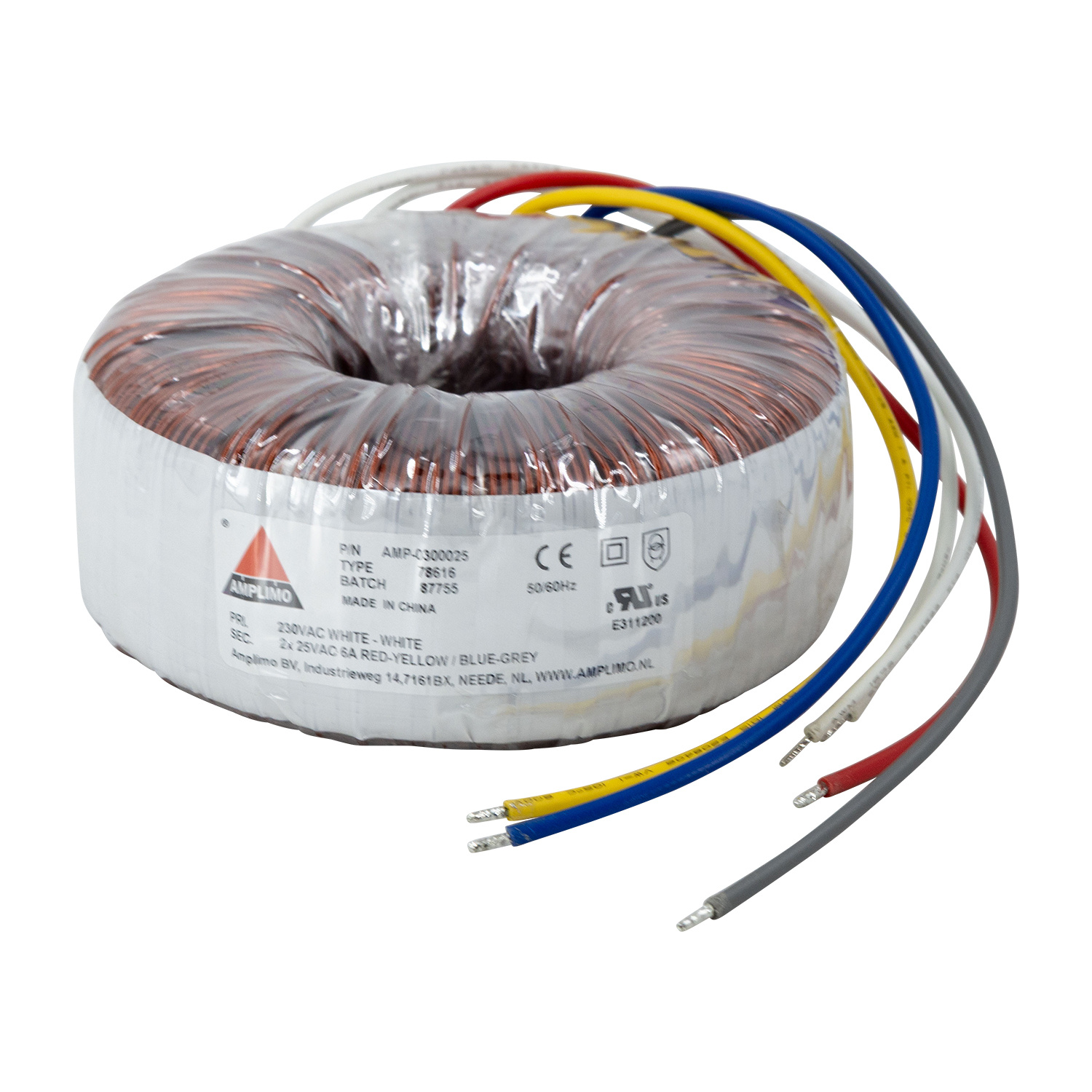

        The two secondary windings offer flexible configuration options. They can be connected in series to double the secondary voltage, or in parallel to double the available secondary current. The primary connection uses two white leads, while the secondary windings are identified as red-yellow and blue-grey, making wiring straightforward during installation.

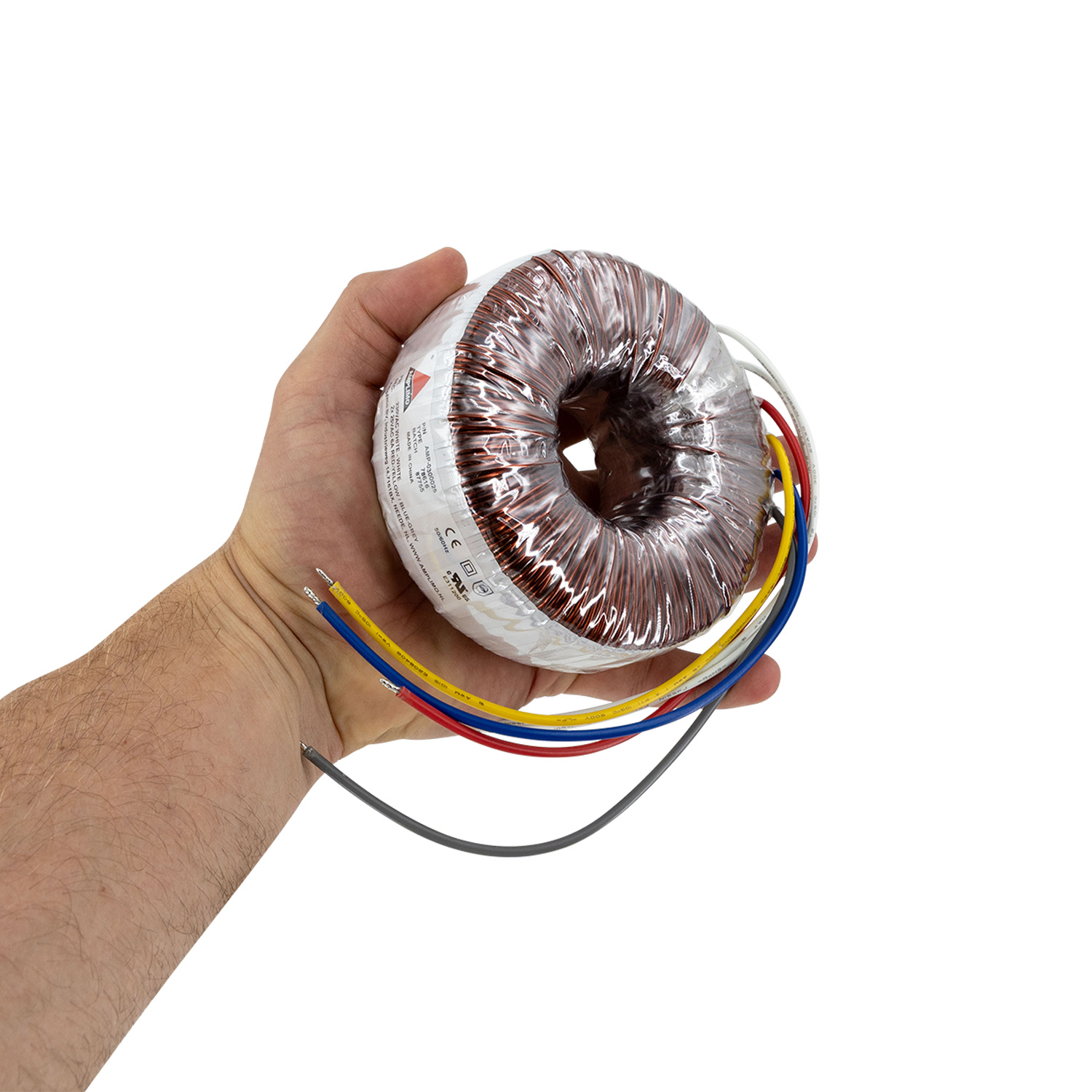

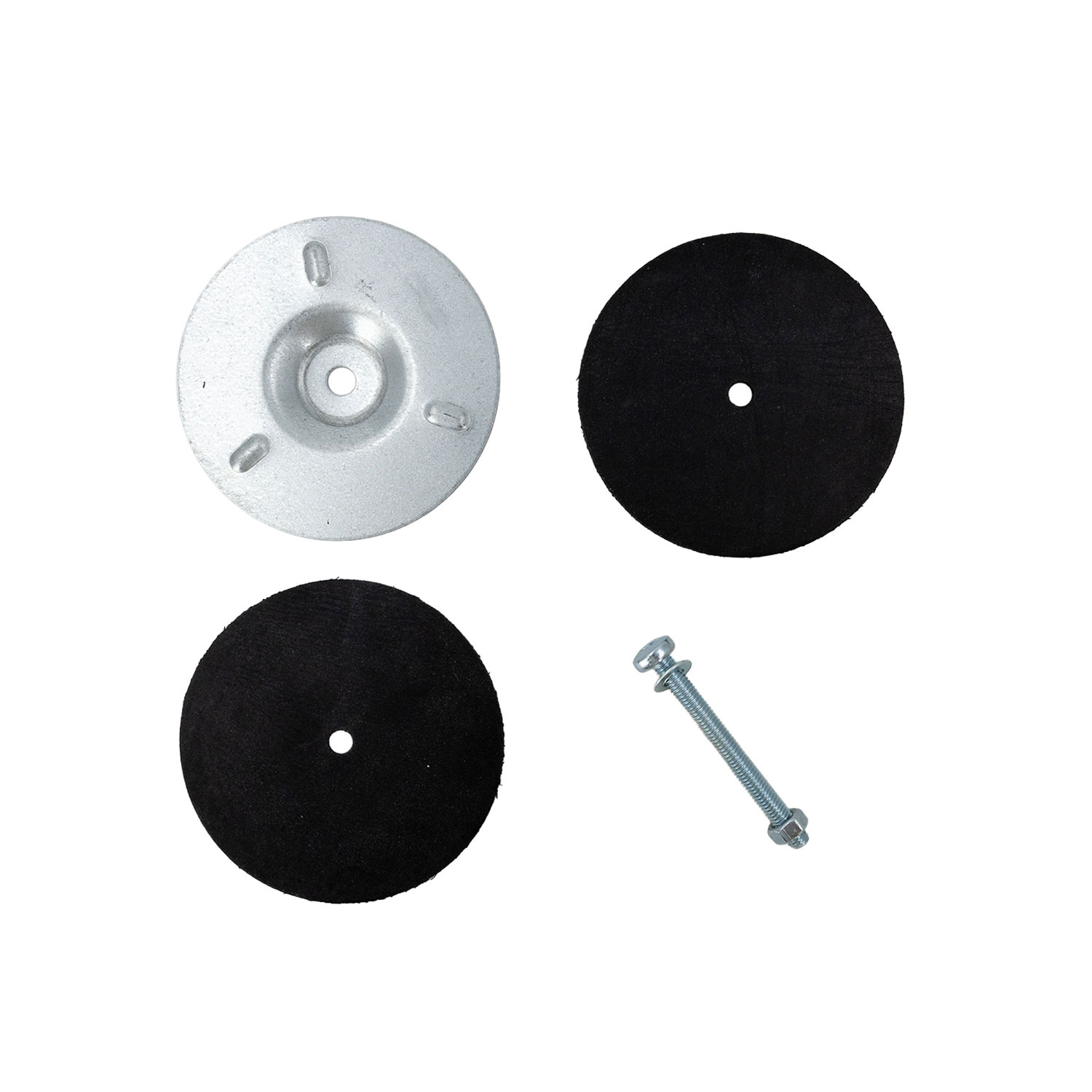

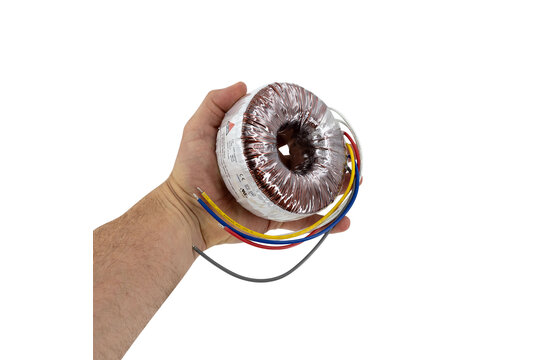

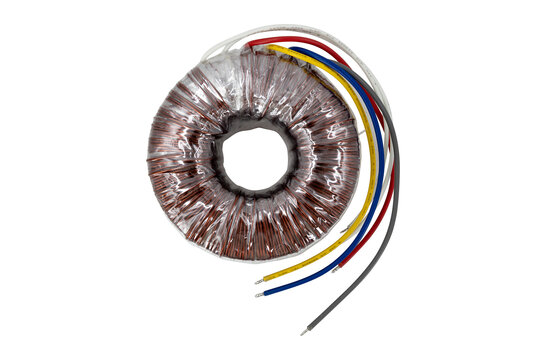

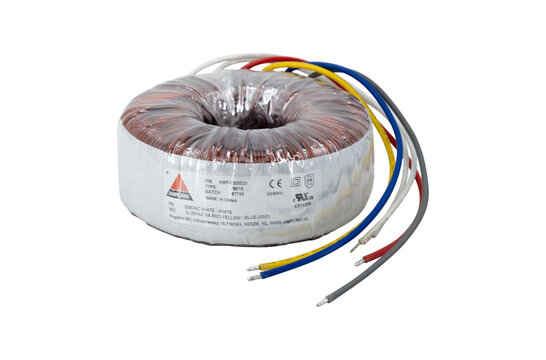

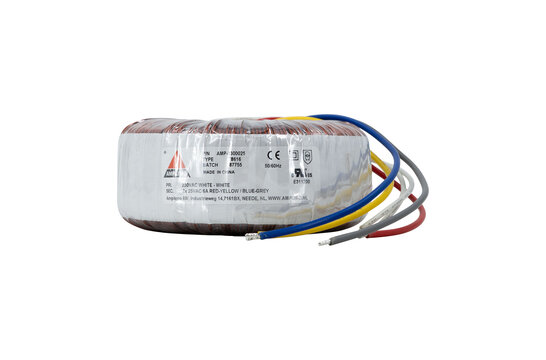

        With a diameter of 124 mm and a height of 55 mm, the transformer delivers substantial 300 VA capacity in a compact round form factor. It weighs 2.75 kg without mounting materials, and all leads are approximately 200 mm long. The supplied mounting set includes one metal washer, two neoprene washers, and a bolt with nut for secure mechanical installation.


        The 78616 is manufactured in accordance with EN61558 and carries CE and UL/CSA approvals, with UL file number E311200. It is also RoHS compliant, supporting dependable integration in compliant electrical builds and amplifier-related projects.

        Show more

        Specifications

        Article number
        78616
        EAN
        9509197718640
