        78015 300 VA | 2 x 22 V Toroidal Transformer

        Amplimo 78015 300 VA | 2 x 22 V Toroidal Transformer

        €112,95

        2 In stock

        Add to cart

        Amplimo 78015 300 VA | 2 x 22 V Toroidal Transformer

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Amplimo
        Show all Power supply modules
        NEW
        78015 300 VA | 2 x 22 V Toroidal Transformer
        78015 300 VA | 2 x 22 V Toroidal Transformer
        78015 300 VA | 2 x 22 V Toroidal Transformer
        78015 300 VA | 2 x 22 V Toroidal Transformer
        78015 300 VA | 2 x 22 V Toroidal Transformer
        78015 300 VA | 2 x 22 V Toroidal Transformer
        78015 300 VA | 2 x 22 V Toroidal Transformer
        78015 300 VA | 2 x 22 V Toroidal Transformer
        78015 300 VA | 2 x 22 V Toroidal Transformer
        78015 300 VA | 2 x 22 V Toroidal Transformer
        78015 300 VA | 2 x 22 V Toroidal Transformer
        78015 300 VA | 2 x 22 V Toroidal Transformer
        78015 300 VA | 2 x 22 V Toroidal Transformer
        € 93,35€ 112,95 2 In stock
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        78015 300 VA | 2 x 22 V Toroidal Transformer
        78015 300 VA | 2 x 22 V Toroidal Transformer
        78015 300 VA | 2 x 22 V Toroidal Transformer
        78015 300 VA | 2 x 22 V Toroidal Transformer
        78015 300 VA | 2 x 22 V Toroidal Transformer
        78015 300 VA | 2 x 22 V Toroidal Transformer
        78015 300 VA | 2 x 22 V Toroidal Transformer
        78015 300 VA | 2 x 22 V Toroidal Transformer
        78015 300 VA | 2 x 22 V Toroidal Transformer
        78015 300 VA | 2 x 22 V Toroidal Transformer
        78015 300 VA | 2 x 22 V Toroidal Transformer
        78015 300 VA | 2 x 22 V Toroidal Transformer
        78015 300 VA | 2 x 22 V Toroidal Transformer
        78015 300 VA | 2 x 22 V Toroidal Transformer

        Product description Amplimo 78015 300 VA | 2 x 22 V Toroidal Transformer

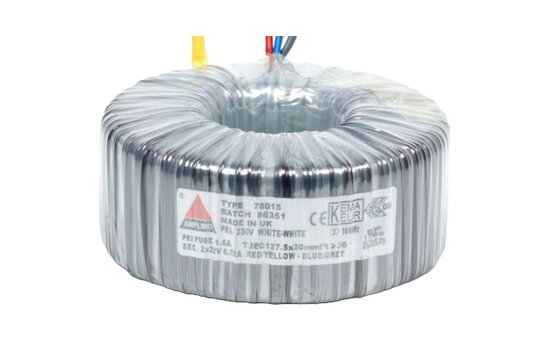

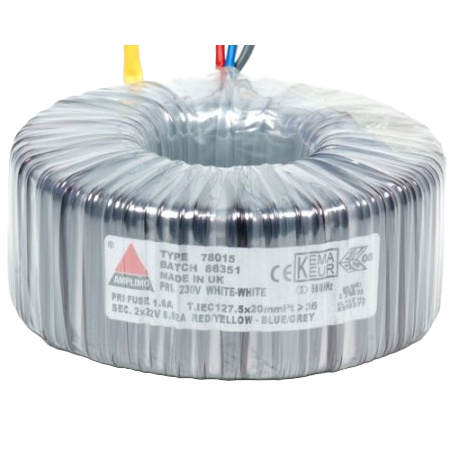

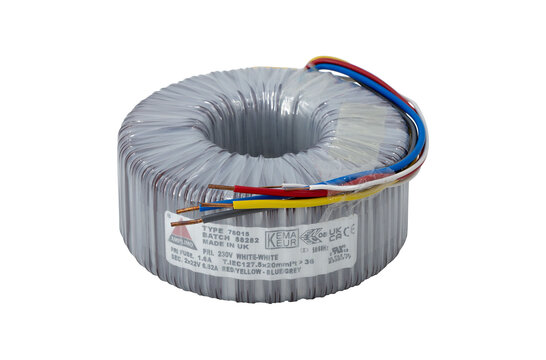

        The Amplimo 78015 is a 300 VA toroidal transformer with a 230 VAC primary and two 22 V secondary windings rated at 6.82 A each, supplied with mounting hardware and certified for reliable integration.



        Highlights of the Amplimo 78015

        • 300 VA toroidal transformer with 230 VAC, 50/60 Hz primary
        • Dual 22 V secondary windings rated at 6.82 A each
        • 5% regulation for stable transformer performance
        • Series or parallel secondary operation for higher voltage or higher current configurations
        • Supplied with metal washer, neoprene washers, M5 bolt and nut



        Product details Amplimo 78015

        Amplimo 78015 300 VA | 2 x 22 V Toroidal Transformer



        The Amplimo 78015 is designed as a compact, high-power toroidal transformer for robust AC power conversion. With a 300 VA power rating, 230 VAC primary input and 50/60 Hz compatibility, it is well suited for use in custom power supplies where a dual secondary voltage is required.



        The two secondary windings deliver 22 V at 6.82 A each. They can be wired in series to double the secondary voltage or in parallel to double the secondary current, giving you flexibility when integrating the transformer into suitable electromechanics and power-stage designs.

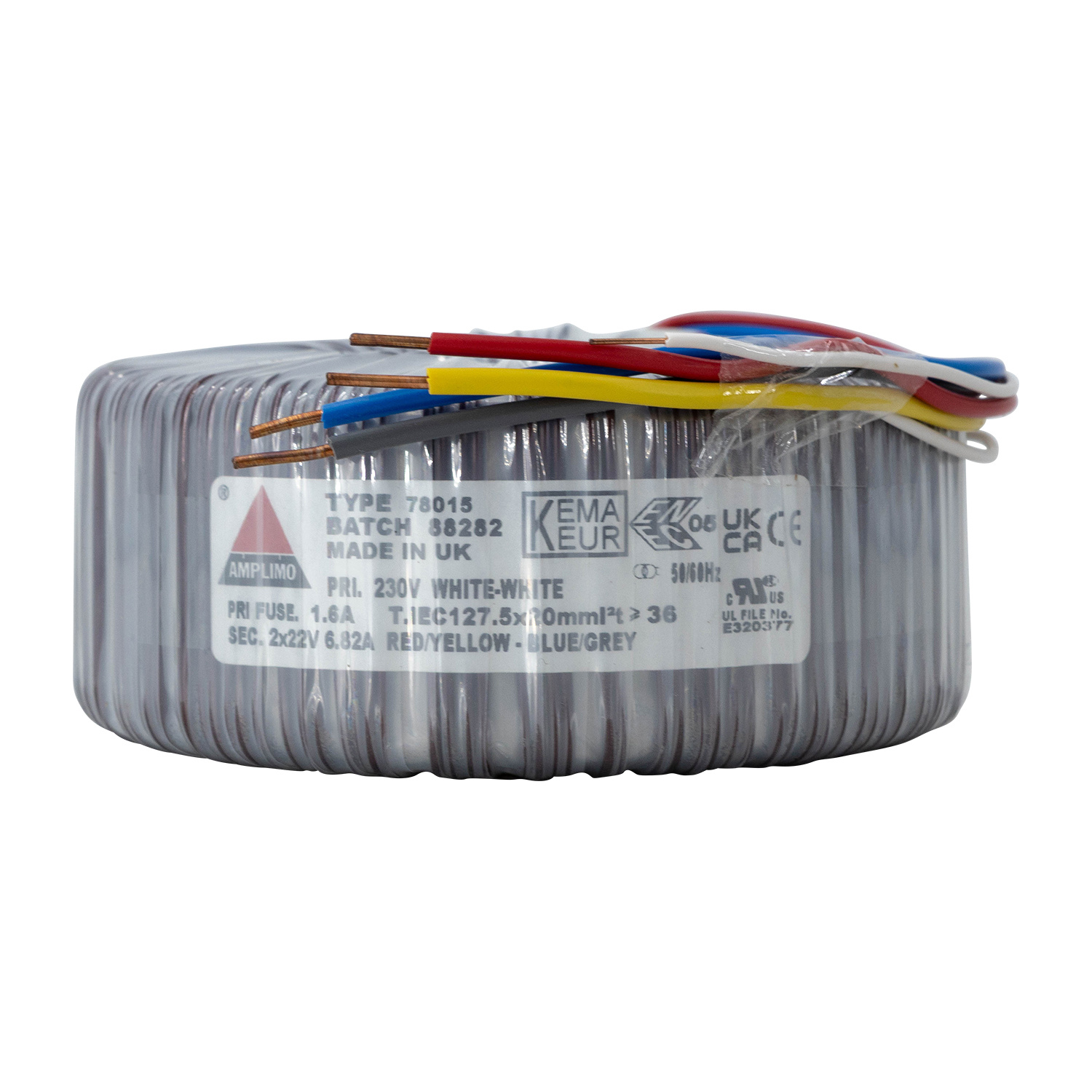

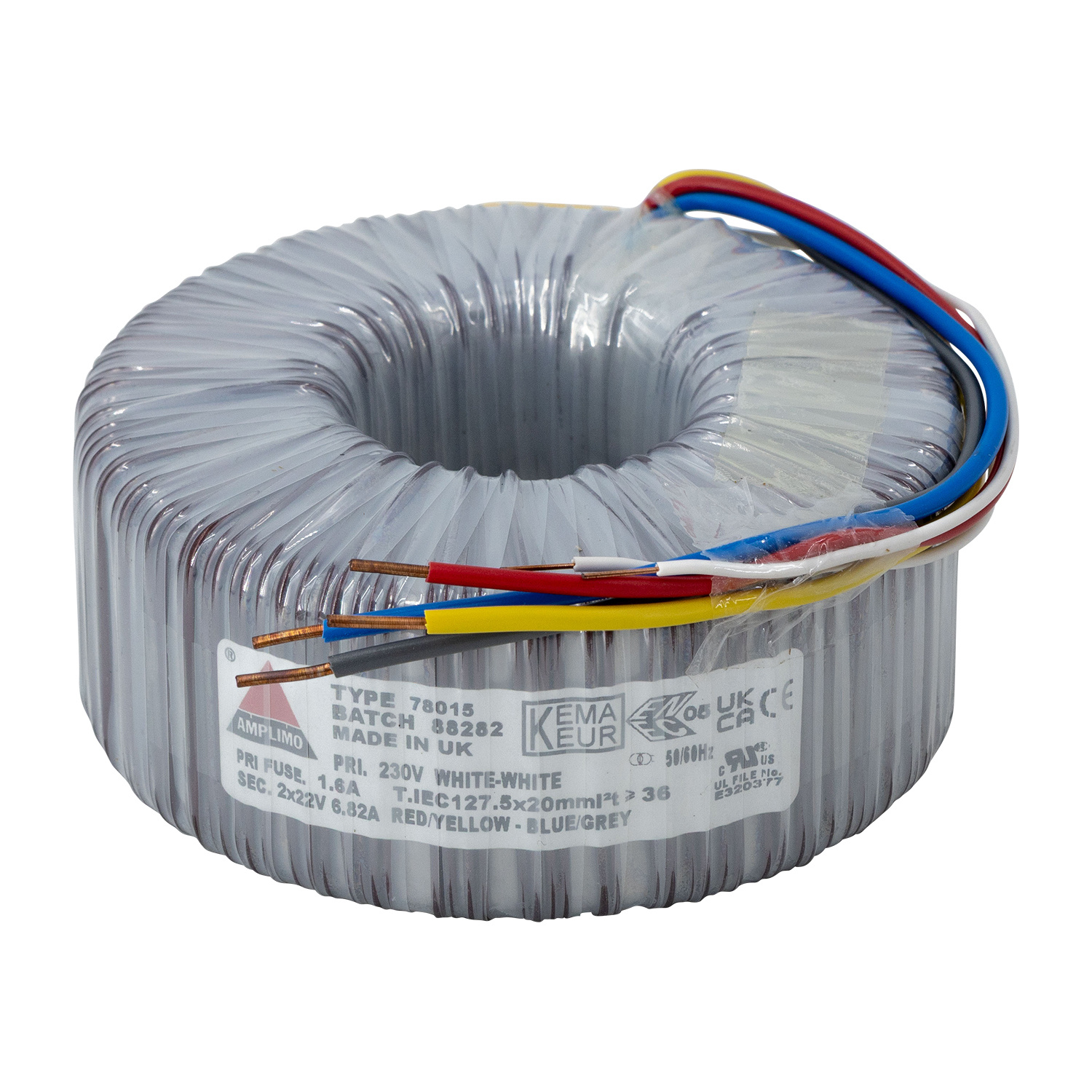

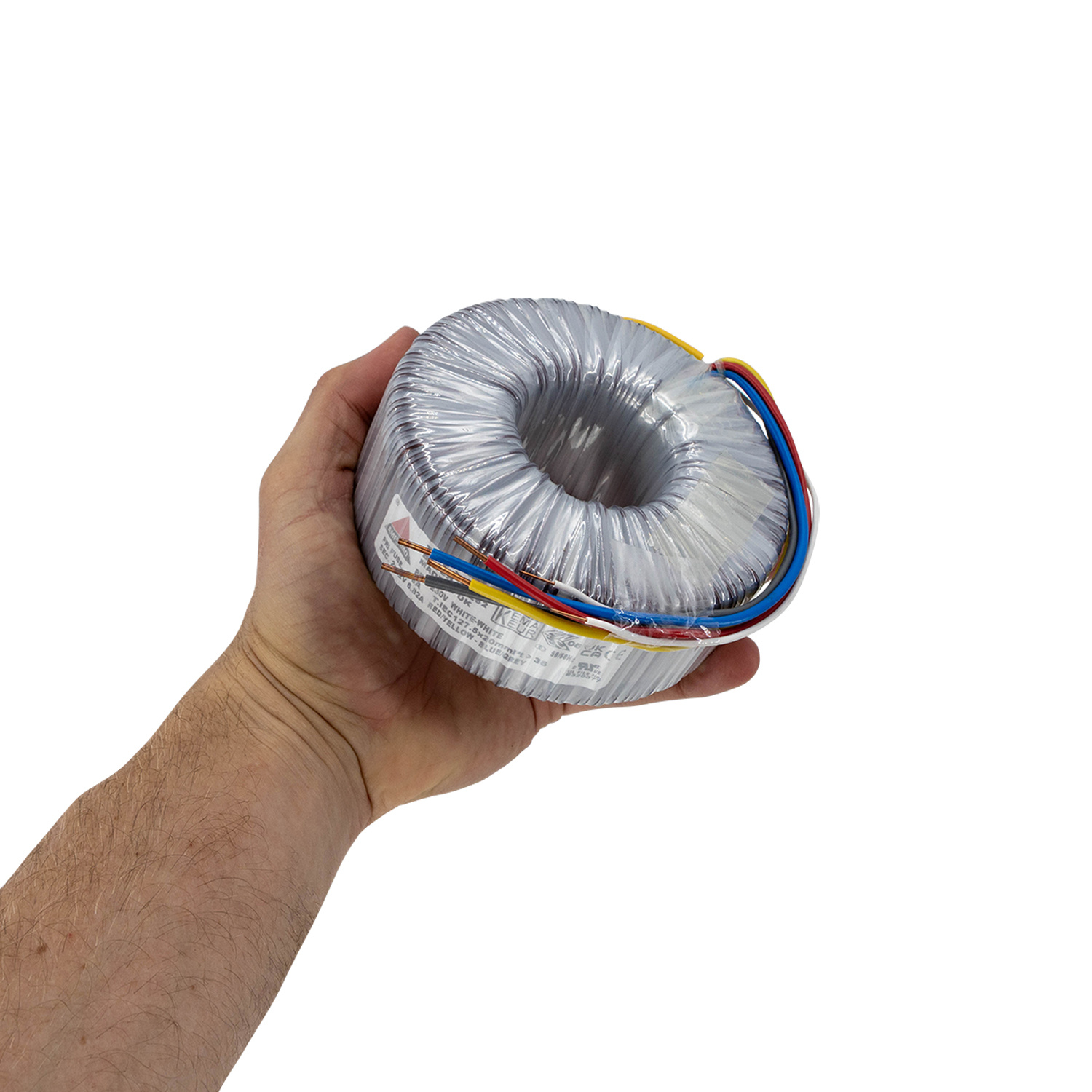

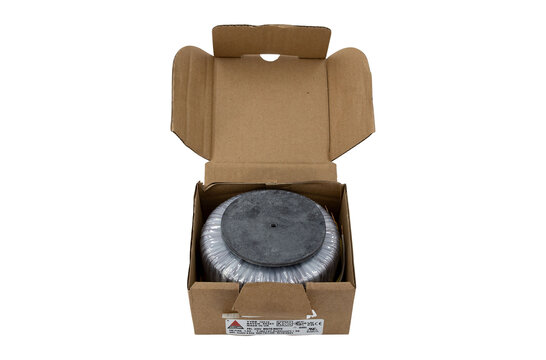

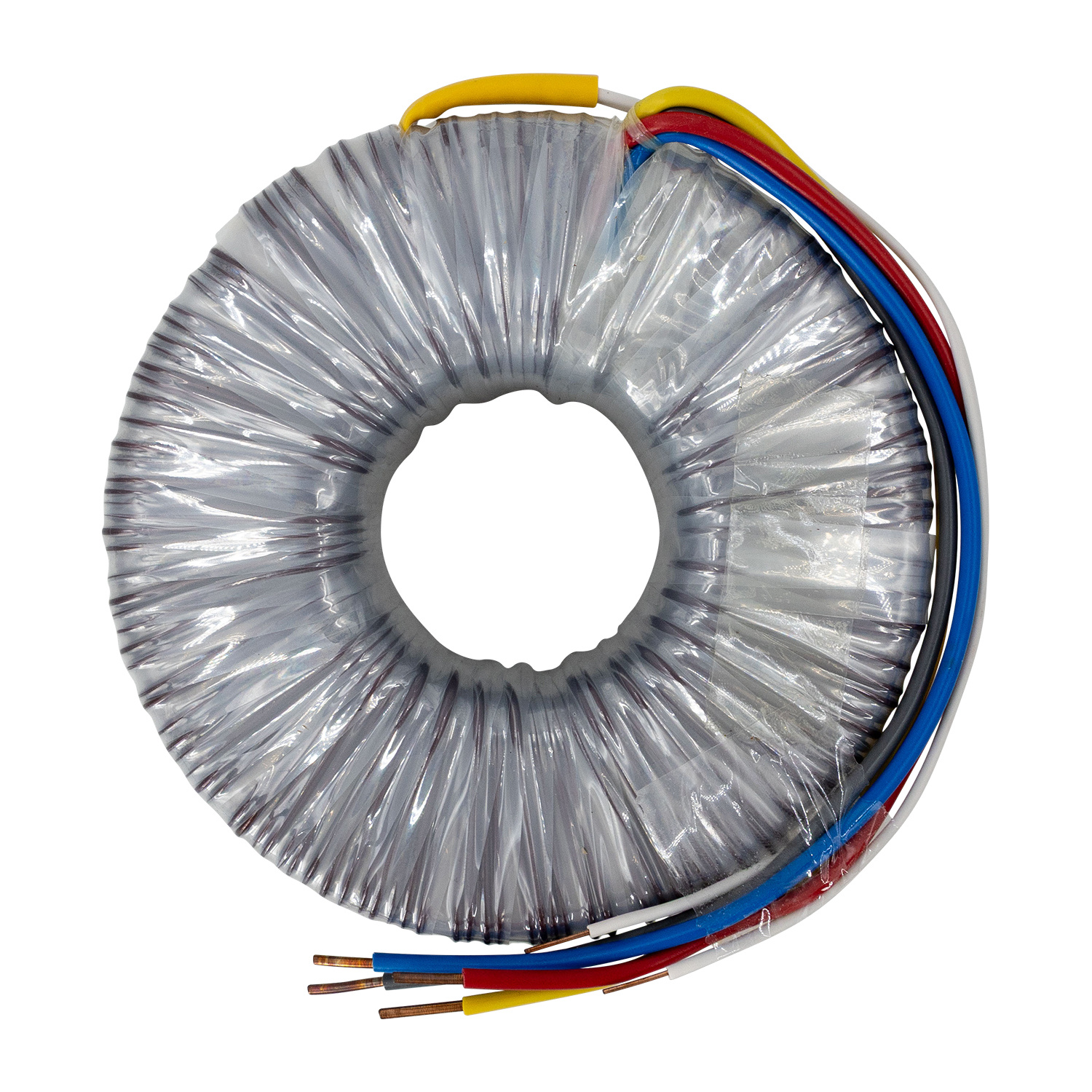

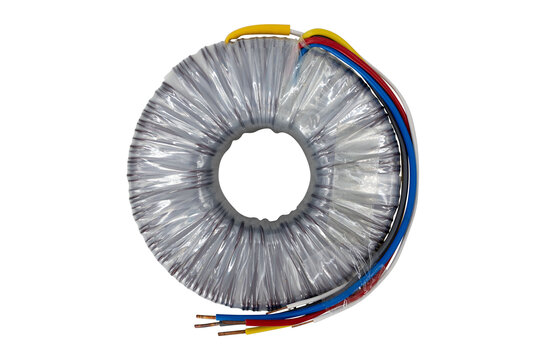

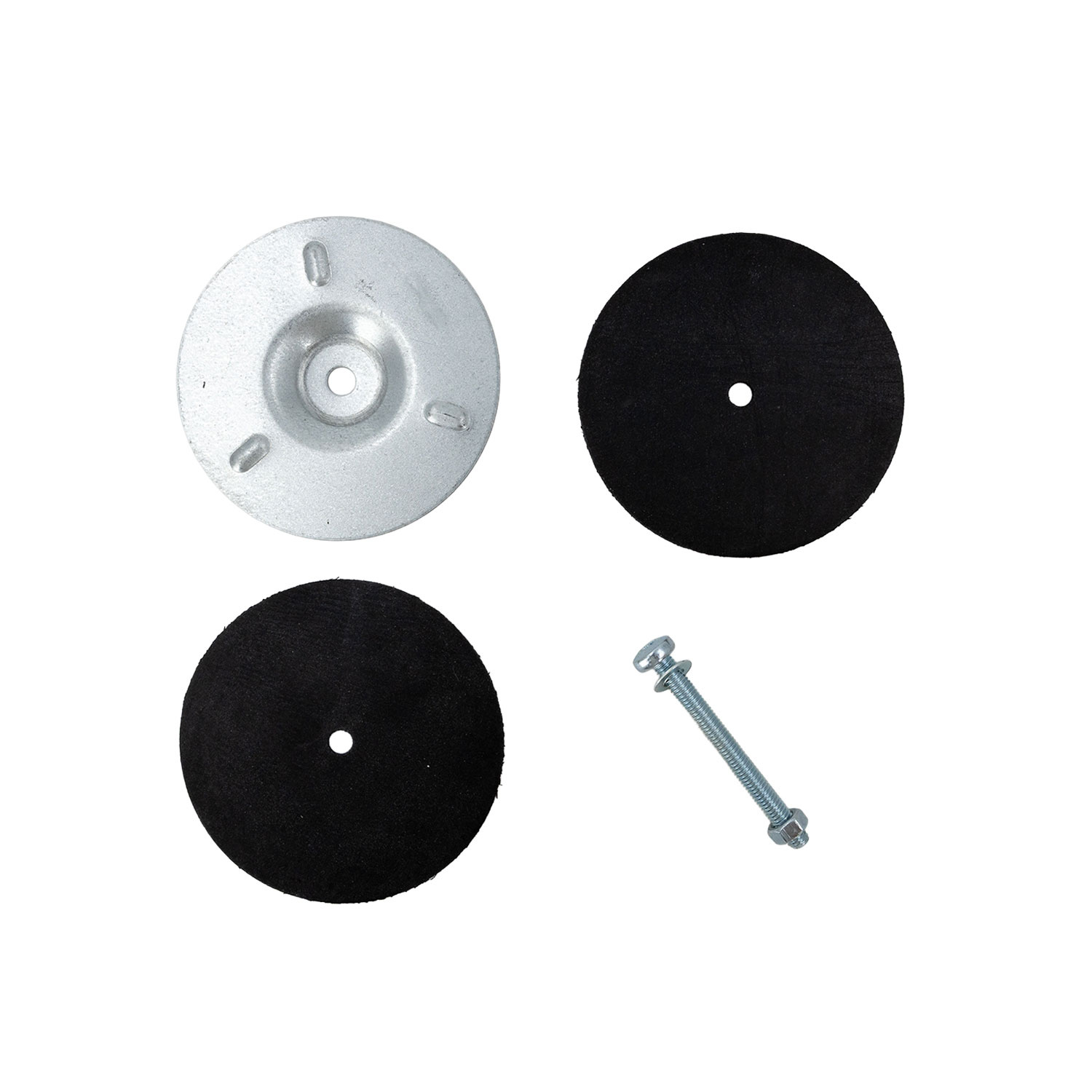

        Installation is straightforward thanks to the included mounting set: one 90 mm metal washer, two 90 mm neoprene washers, and an M5 x 70 mm bolt with nut. The transformer has a diameter of 121 mm, a height of 56 mm and a weight of 2.9 kg, measured without mounting materials. All leads are solid and approximately 200 mm long.

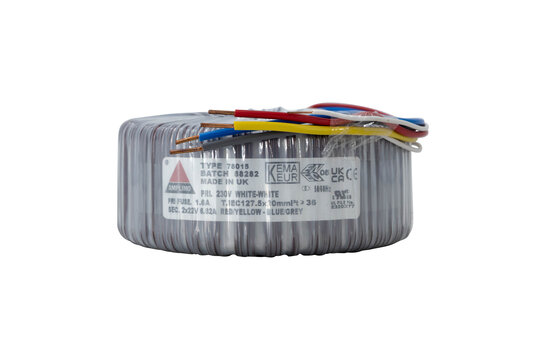

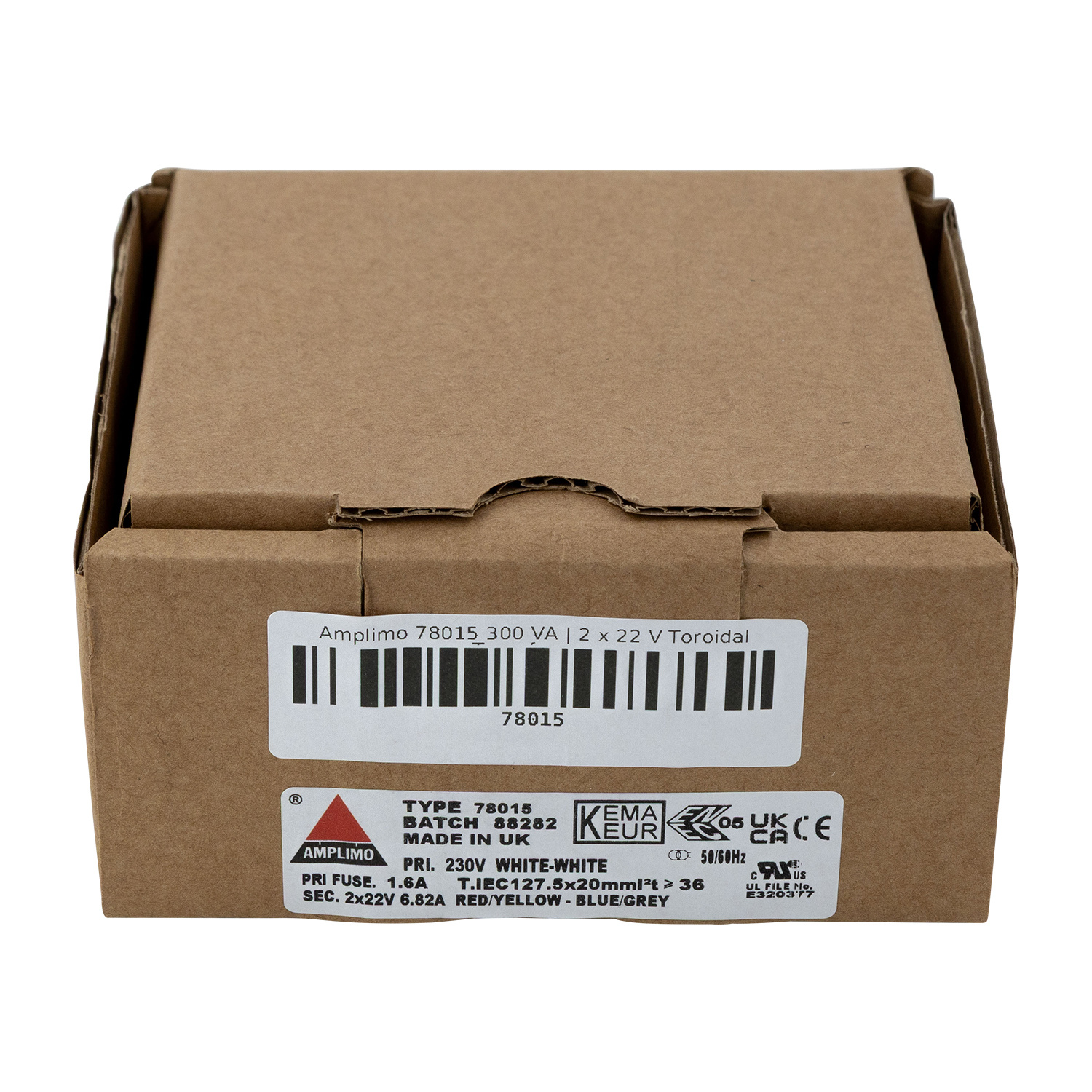

        The 78015 is CE marked and RoHS compliant, with KEMA KEUR, ENEC and UL/CSA approvals. For primary protection, use a 1.6 A time lag fuse in 5 x 20 mm IEC127 format with a high I²t value. No secondary fuse is specified.

        Show more

        Specifications

        Article number
        78015
        EAN
        9504617243481
        Transformer Type
        Toroidal transformer
        Primary Voltage
        230 V
        Secundary Voltage
        2 x 22 V
        Power Handling
        300 VA
        Core Type
        Toroidal
        Max Output Voltage
        44 V
        Frequency Response
        50/60 Hz
        # Mounting holes
        1
        Diameter
        121 mm
        Height
        56 mm

        Show more
