        Product description Amplimo 65PP20KG Output Transformer Push-Pull 65 Watt

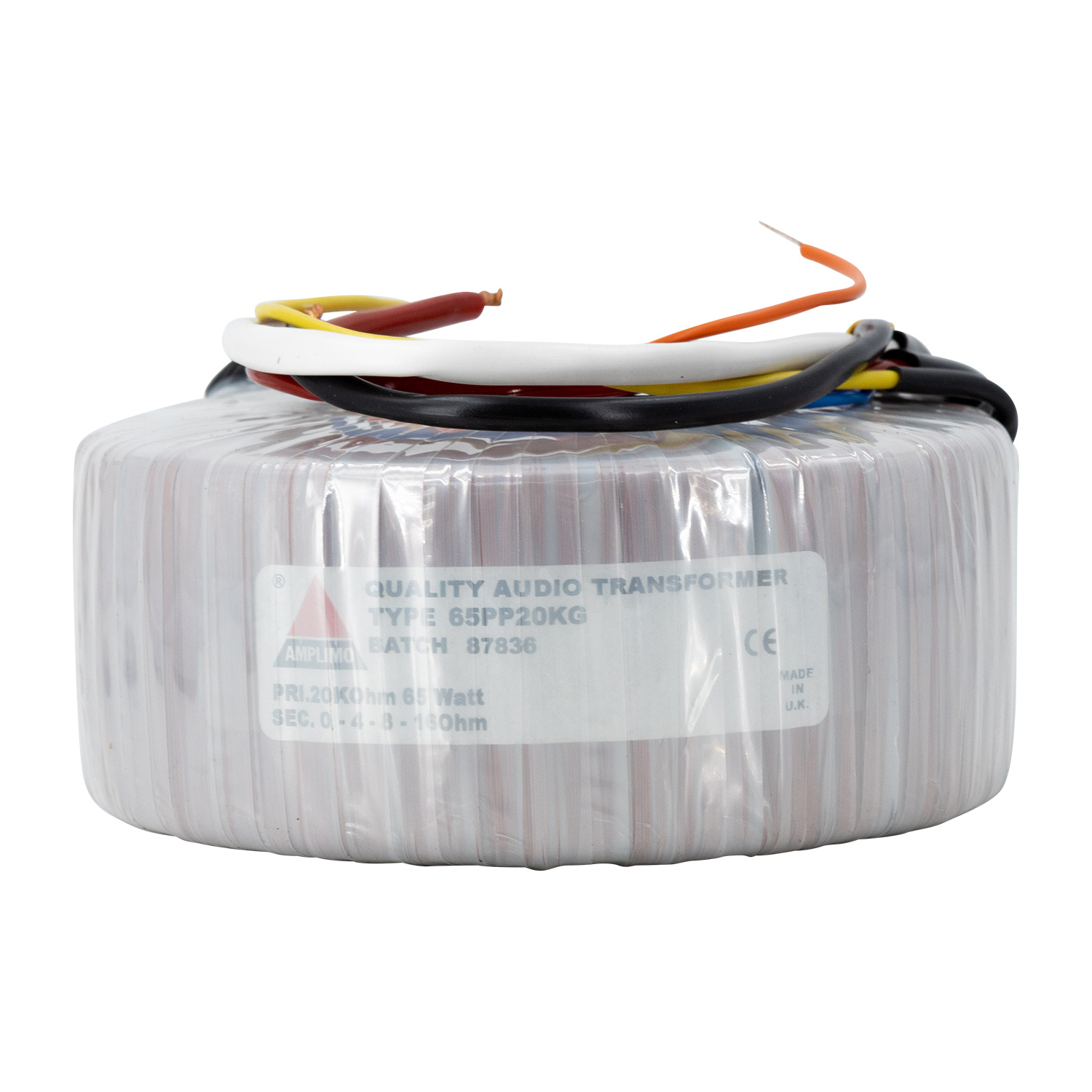

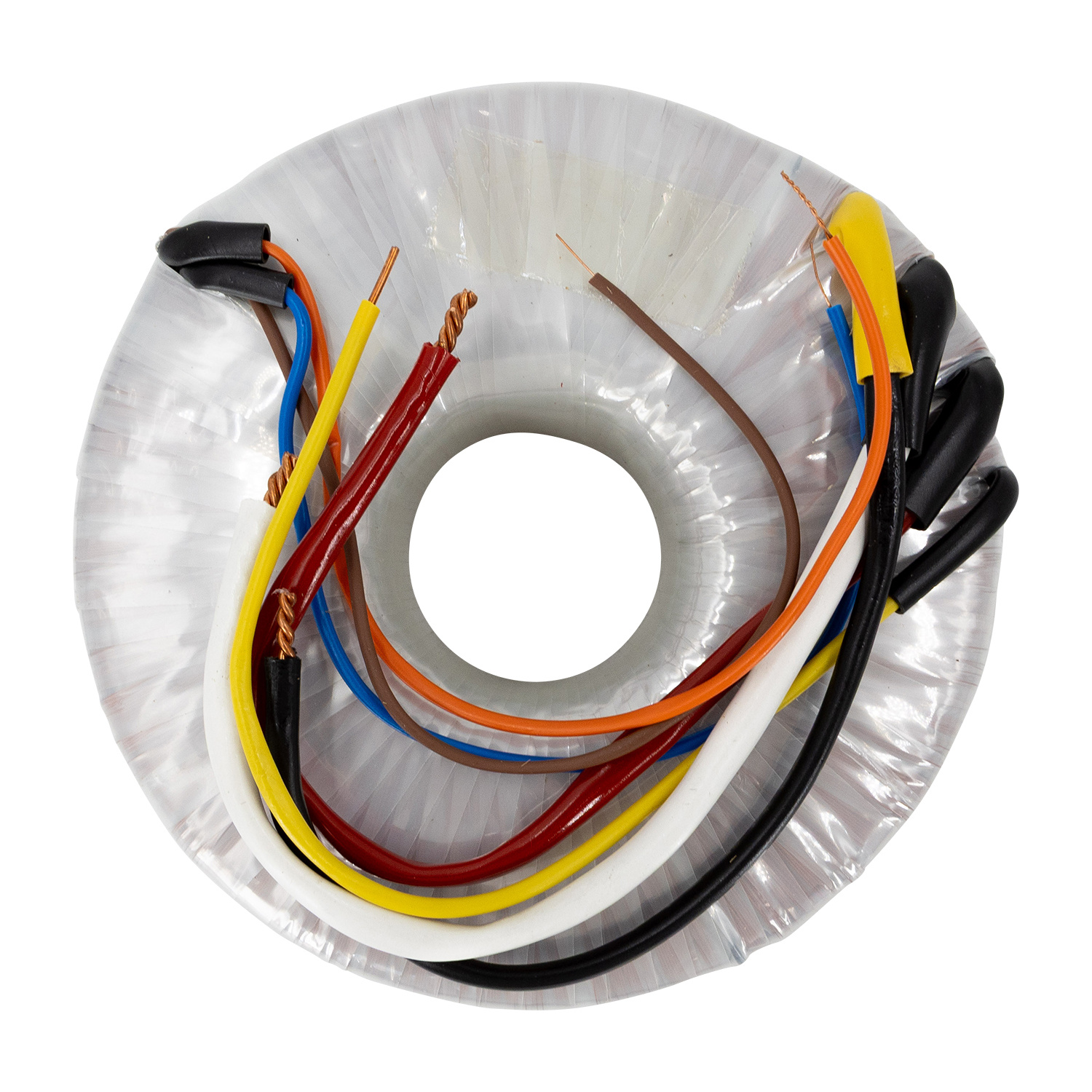

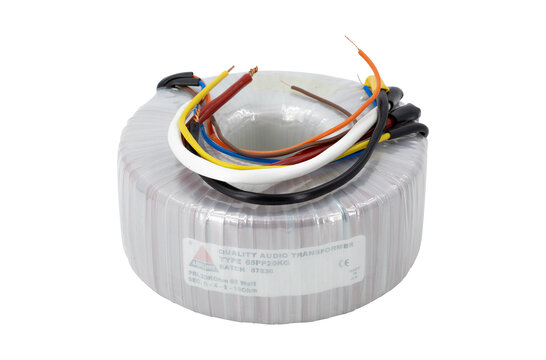

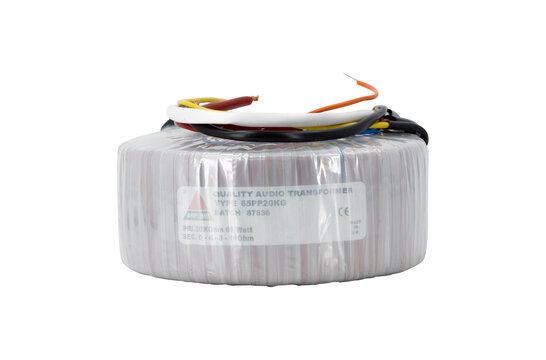

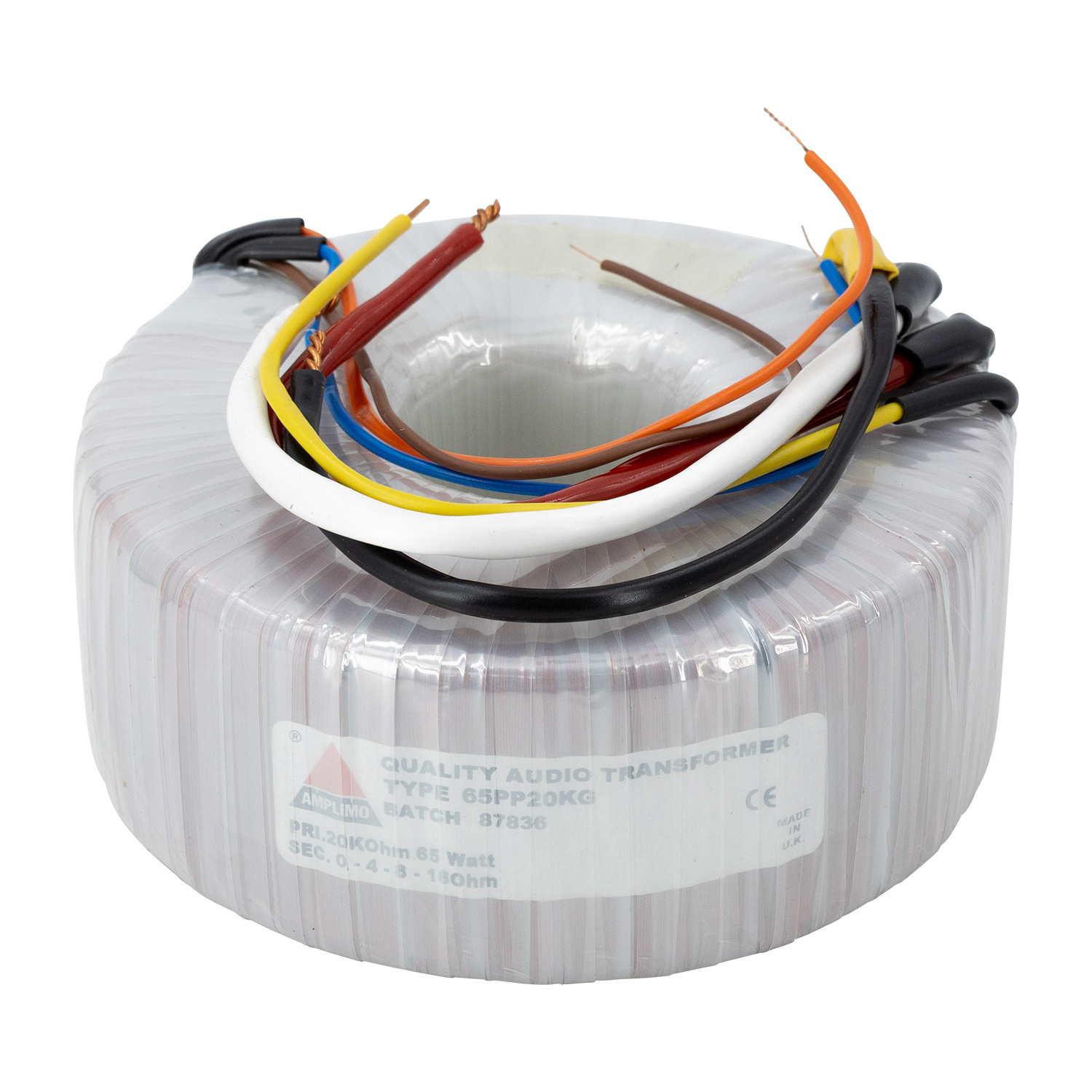

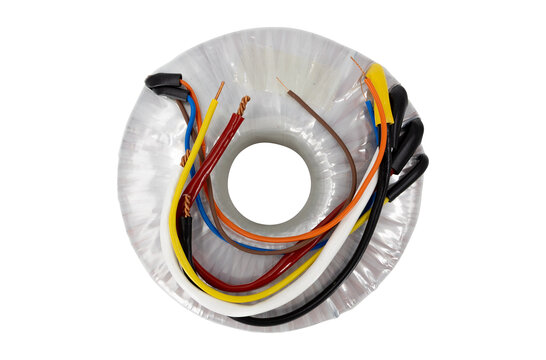

        The Amplimo 65PP20KG Output Transformer Push-Pull Push-Pull 65 Watt | 20 kΩ is a wide bandwidth toroidal tube output transformer with 65 W nominal power, 20 kΩ primary impedance, and 4, 8, and 16 ohm secondary taps.



        Highlights of the Amplimo 65PP20KG

        • Wide bandwidth toroidal tube output transformer
        • 20 kΩ primary impedance with 0, 4, 8, and 16 ohm secondary connections
        • 65 W nominal power rating
        • Frequency bandwidth of 7 Hz to 22 kHz at 1 mW
        • Power bandwidth starts at 35 Hz at -3 dB
        • Supplied for toroidal clamp and washer mounting



        Product details Amplimo 65PP20KG

        Amplimo 65PP20KG Wide bandwidth toroidal tube output transformer, push-pull, 65 W, 20 kΩ



        The Amplimo 65PP20KG is designed as a toroidal tube output transformer for push-pull amplifier circuits. With a 20 kΩ primary impedance and 65 W nominal power handling, it is a specialised choice for high-quality audio components where wide bandwidth and robust construction are required.



        On the secondary side, the transformer provides 0, 4, 8, and 16 ohm connections, making it suitable for matching common loudspeaker impedances in tube amplifiers. The winding ratios are 70.3 for 4 ohm, 50.0 for 8 ohm, and 35.6 for 16 ohm. Only one secondary tap should be used at a time.



        Performance specifications include a -3 dB frequency bandwidth from 7 Hz to 22 kHz at 1 mW, with power bandwidth starting at 35 Hz. The transformer has a primary inductance of 1400 H, primary leakage inductance of 13 mH, and primary capacitance of 410 pF, supporting stable operation across a broad audio range.

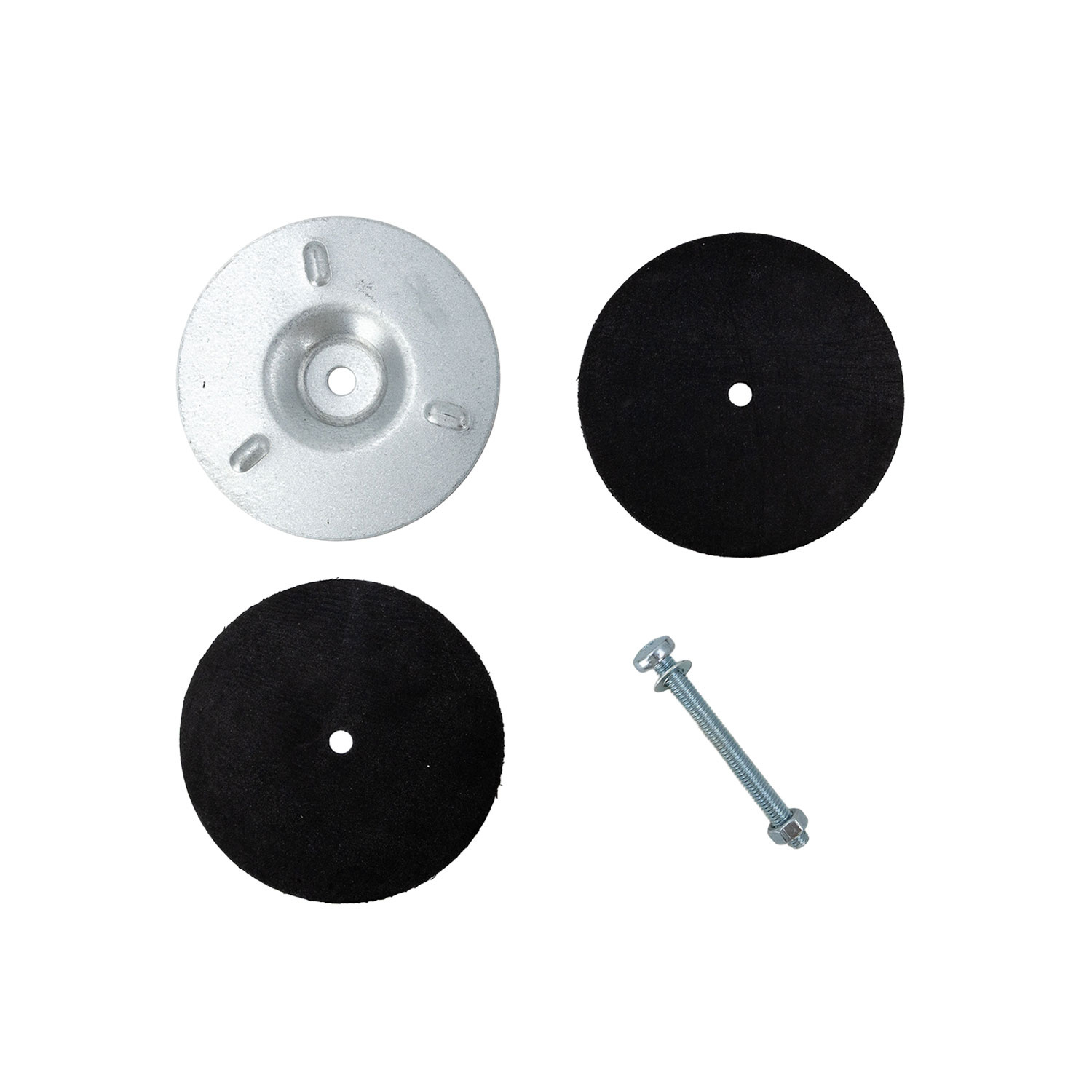

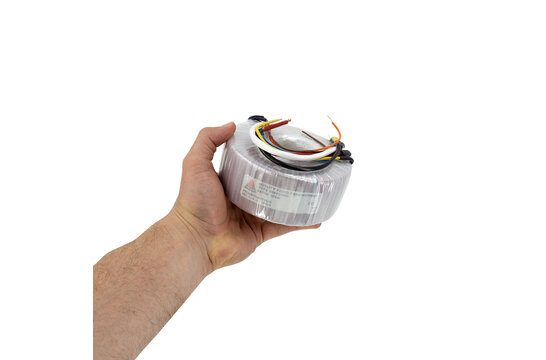

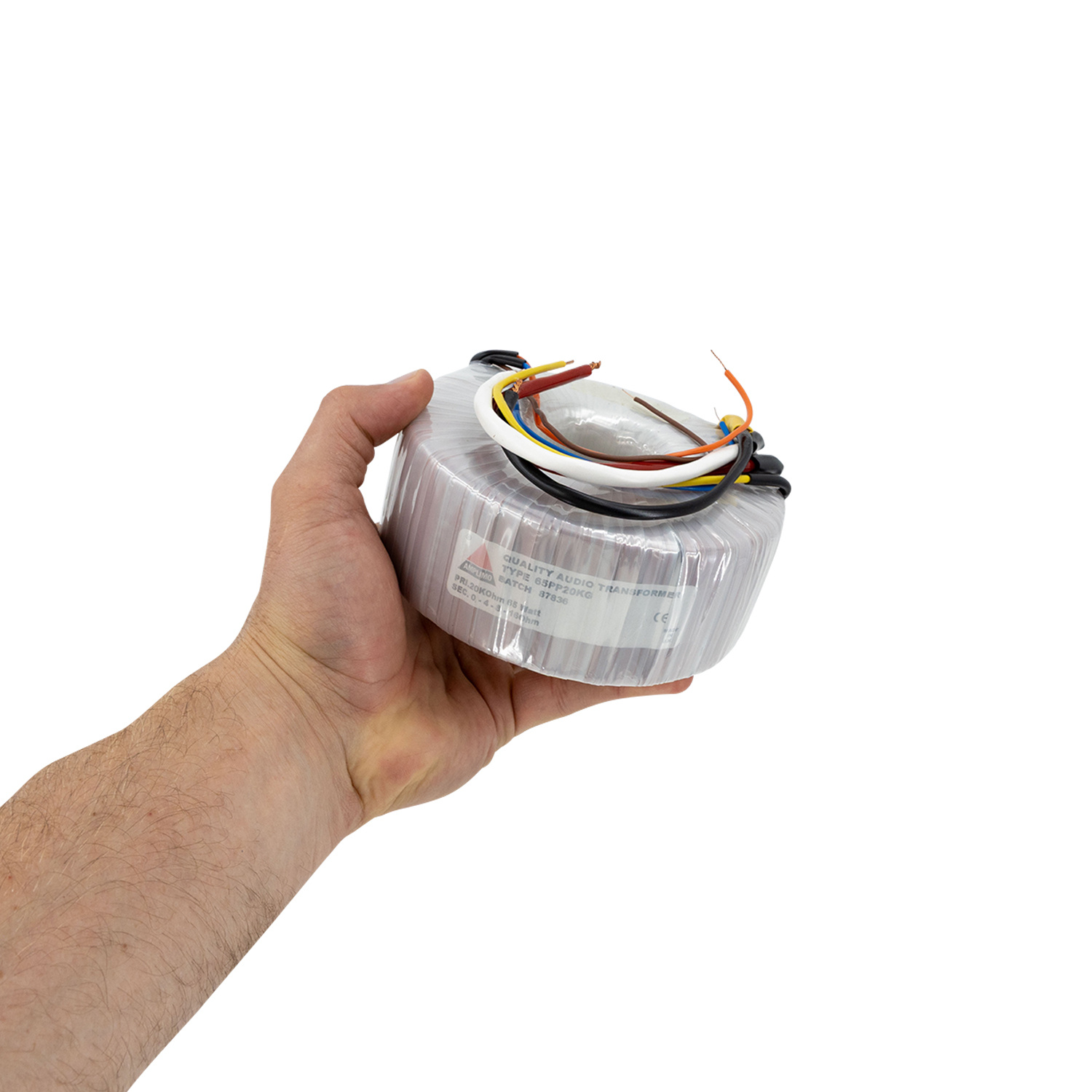

        The 65PP20KG has a toroidal form factor with dimensions of 140 mm outer diameter by 62 mm height and a weight of 4.2 kg. It is intended for toroidal clamp and washer mounting, providing a secure installation method for amplifier builds and service projects.

        Show more

        Specifications

        Article number
        65PP20KG
        EAN
        9507395416221
        Transformer Type
        Wide bandwidth toroidal tube output transformer
        Primary Impedance
        20000 Ω
        Secundary Impedance
        4 - 8 - 16 Ω
        Power Handling
        65 W
        Core Type
        Toroidal
        Inductance
        1400 H
        Turns Ratio
        70.3 / 50.0 / 35.6
        Frequency Response
        7 - 22.000 Hz
        Diameter
        140 mm
        Height
        62 mm
