        58615 160 VA | 2 x 22 V Toroidal Transformer

        Product description Amplimo 58615 160 VA | 2 x 22 V Toroidal Transformer

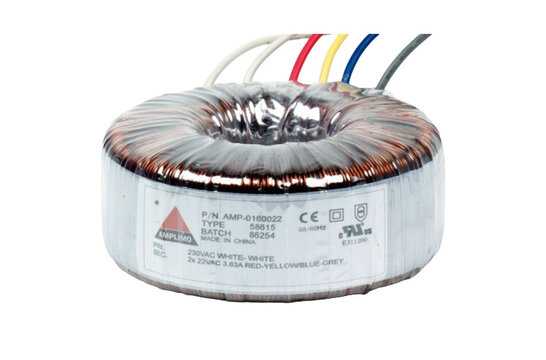

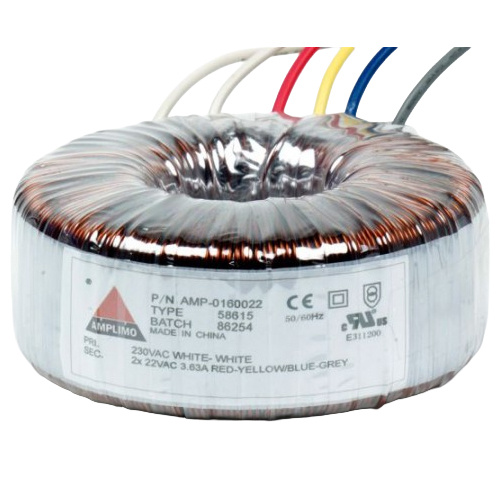

        The Amplimo 58615 is a 160 VA toroidal transformer with a 230 VAC primary and two 22 VAC secondary windings rated at 3.63 A each. It offers flexible series or parallel secondary wiring, compact dimensions, and supplied mounting materials for clean installation.

        Highlights of the Amplimo 58615

        • 160 VA toroidal transformer with 230 VAC primary
        • Dual 22 VAC secondary windings rated at 3.63 A each
        • Secondary windings can be connected in series or parallel
        • Compact 103 mm diameter and 45 mm height
        • Supplied with metal washer, two neoprene washers, bolt and nut

        Product details Amplimo 58615

        Amplimo 58615 160 VA 2 x 22 V Toroidal Transformer

        The Amplimo 58615 is built around a toroidal transformer design with a 160 VA power rating. Its 230 VAC primary and two 22 VAC secondary windings make it a practical core component for suitable low-voltage power supplies. The rated secondary voltages apply under full ohmic load, with a regulation value of 7%.


        The transformer provides flexible secondary configuration. The red-yellow and blue-grey secondary windings can be used separately, connected in series to double the secondary voltage, or connected in parallel to double the secondary current. The primary connection uses white-white leads, and all leads are approximately 200 mm long for convenient internal wiring.


        With a diameter of 103 mm, a height of 45 mm, and a weight of 1.75 kg without mounting materials, the 58615 is compact for its power rating. It is supplied with the necessary mounting accessories: one metal washer, two neoprene washers, and one bolt with nut.


        The Amplimo 58615 is designed for 50/60 Hz operation and manufactured in accordance with EN61558. It carries CE and UL/CSA approvals, including UL file number E311200, and is RoHS-compliant for use in compliant electronic assemblies.

        Show more

        Specifications

        Article number
        58615
        EAN
        9502179322224
