        58026 160 VA | 2 x 40 V Toroidal Transformer

        Product description Amplimo 58026 160 VA | 2 x 40 V Toroidal Transformer

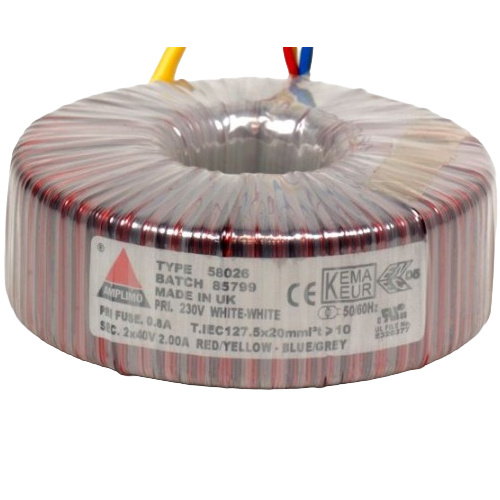

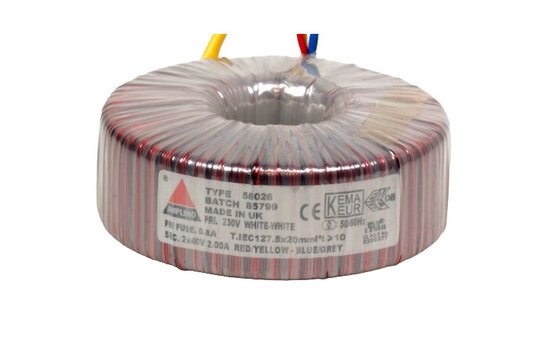

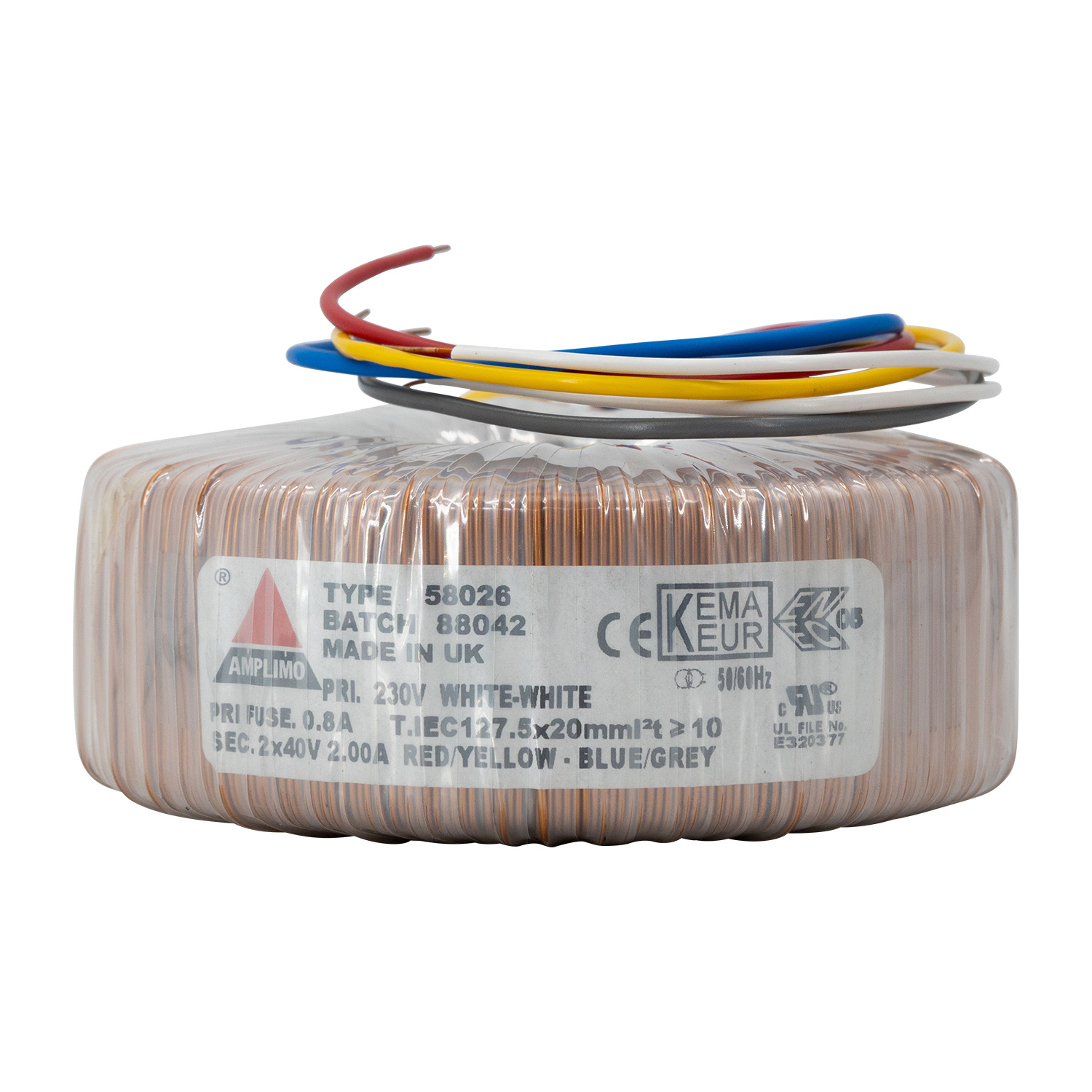

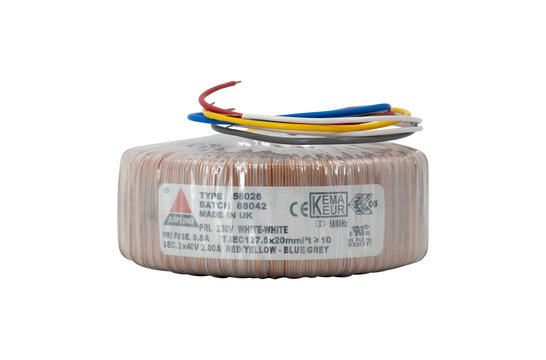

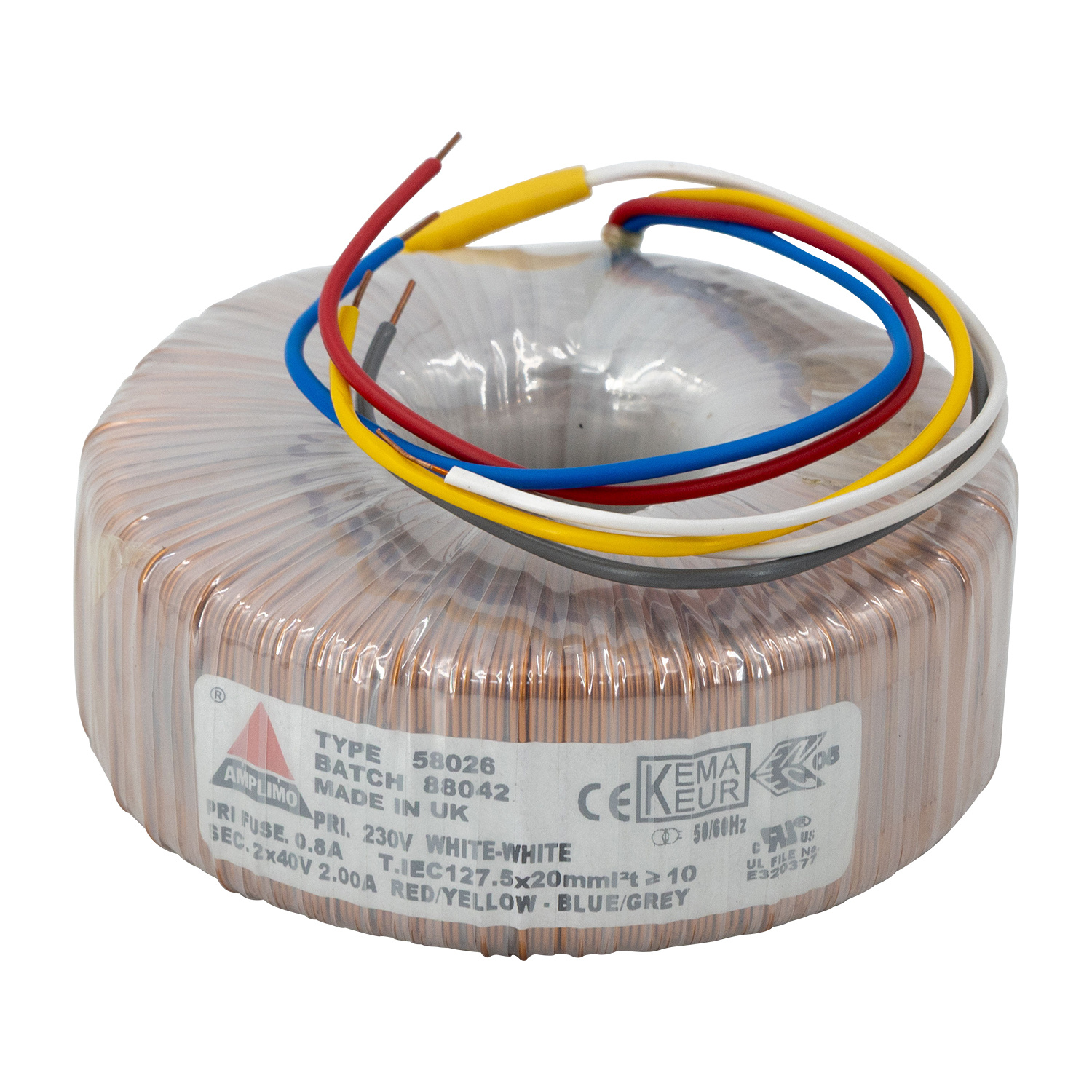

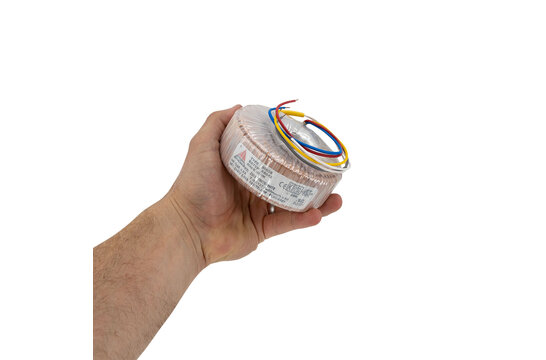

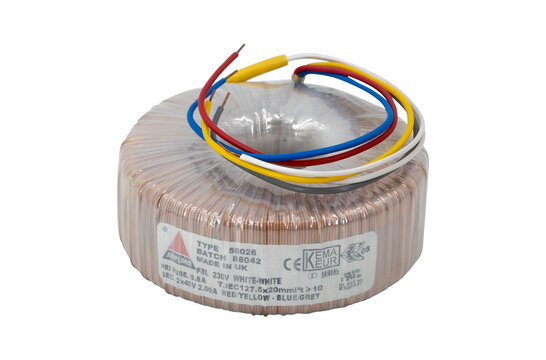

        The Amplimo 58026 is a 160 VA toroidal transformer with a 230 VAC primary and two 40 V secondaries, each rated at 2.00 A. It is built for 50/60 Hz operation and supplied with mounting materials for straightforward installation.

        Highlights of the Amplimo 58026

        • 160 VA toroidal transformer for 230 VAC, 50/60 Hz mains input
        • Dual 40 V secondary windings, each rated at 2.00 A
        • Secondary windings can be used in series or parallel operation
        • 7% regulation with compact 110 mm diameter and 43 mm height

        Product details Amplimo 58026

        Amplimo 58026 160 VA 2 x 40 V Toroidal Transformer

        The Amplimo 58026 delivers 160 VA from a 230 VAC primary and is suitable for 50/60 Hz operation. With two 40 V secondary windings rated at 2.00 A each, it is a practical transformer choice for custom power supplies that require dual secondary outputs.


        The two secondary windings give you installation flexibility. They can be connected in series to double the secondary voltage, or in parallel to double the secondary current, making the transformer adaptable to different circuit requirements within its rated specification.

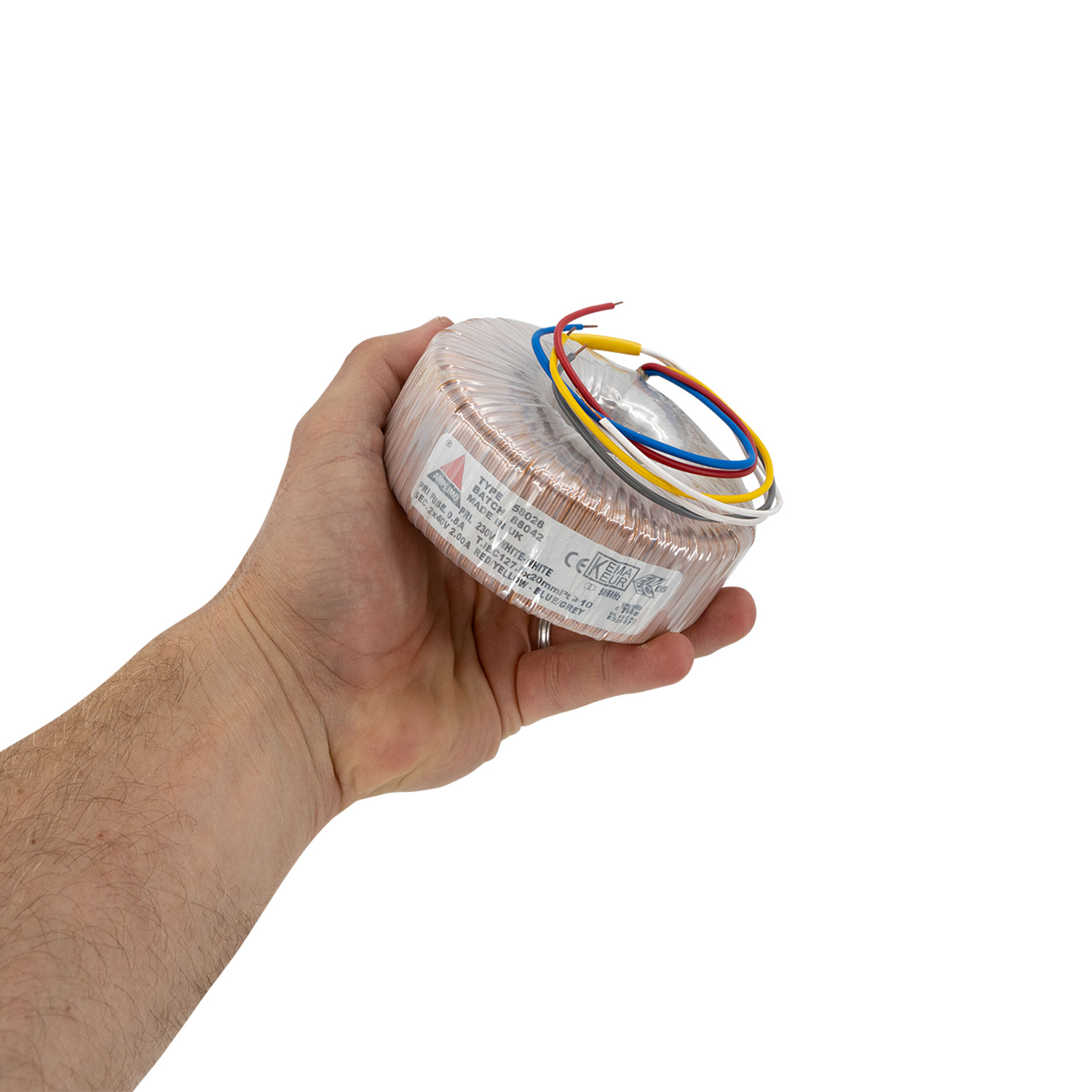

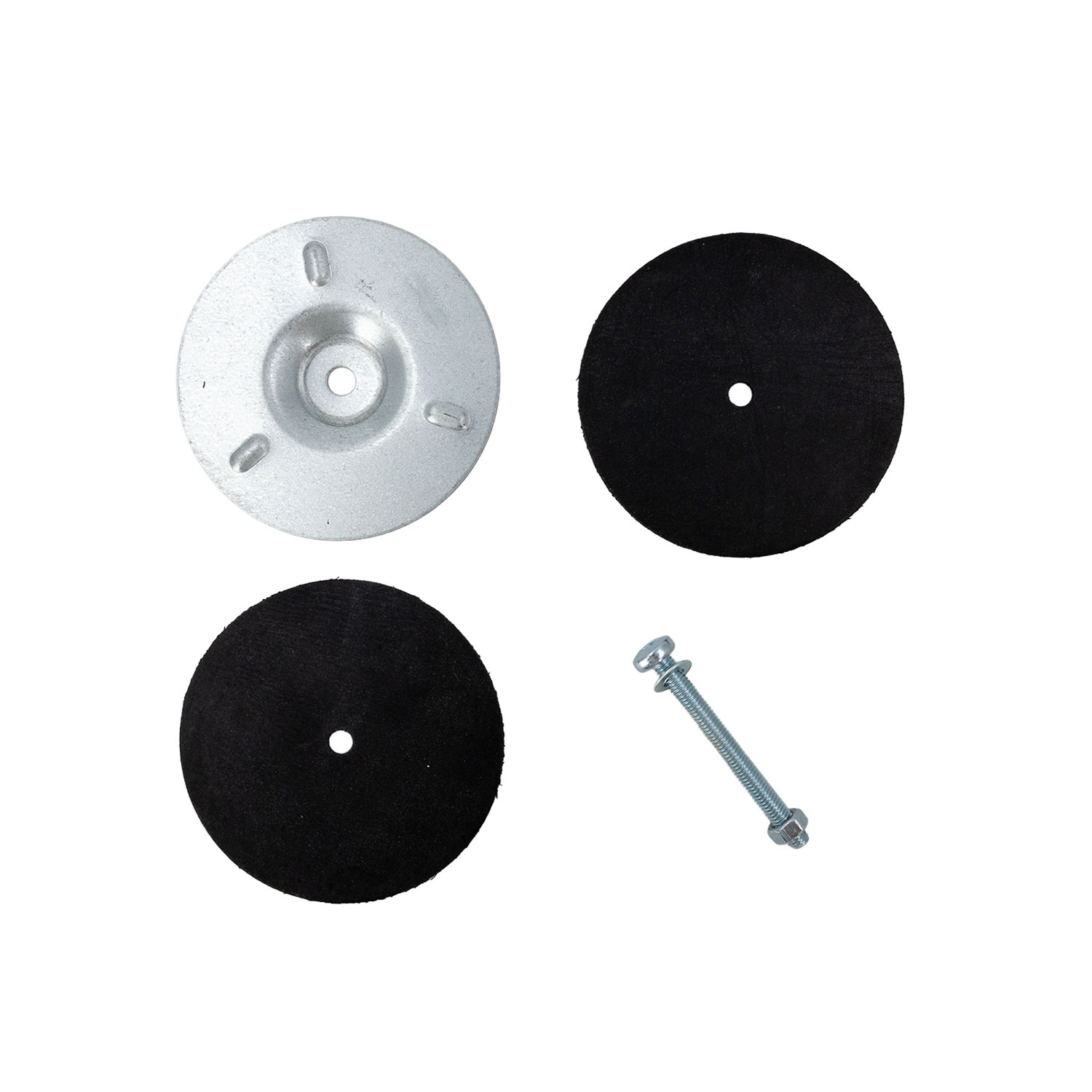

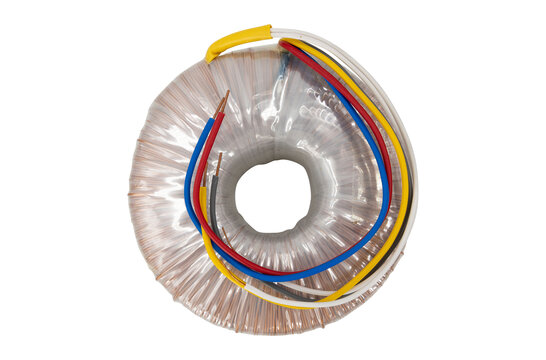

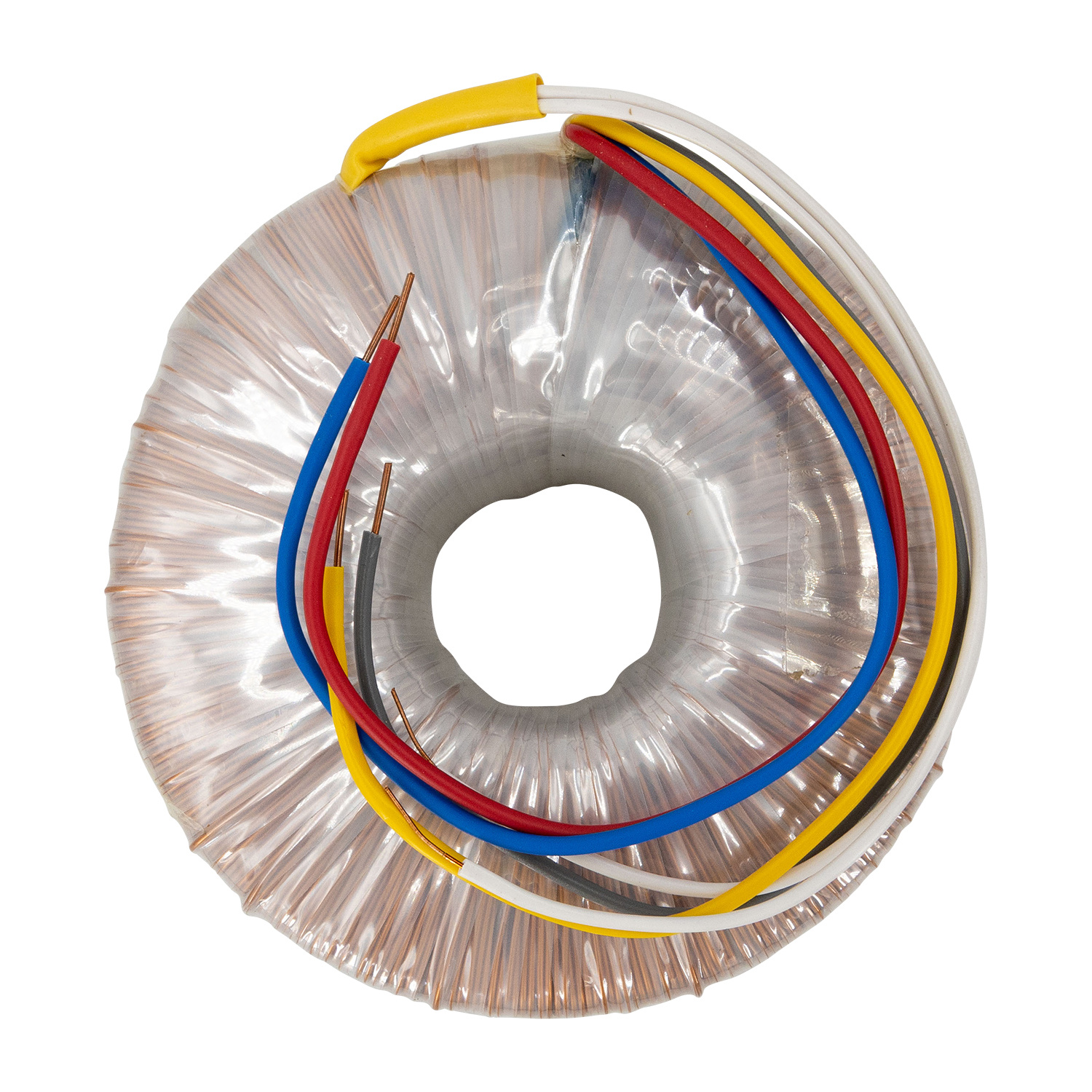

        Installation is supported by the included accessories: one 90 mm metal washer, two 90 mm neoprene washers and an M5 x 50 mm bolt with nut. All leads are solid and approximately 200 mm long, while the transformer itself measures 110 mm in diameter and 43 mm in height, excluding mounting materials.


        The 58026 weighs 1.9 kg and carries KEMA KEUR, ENEC and UL/CSA approvals, with CE marking and RoHS compliance. Time-lag fuses are required on the primary side, specified at 0.8 A in 5 x 20 mm IEC127 format with a high I²t value.

        Show more

        Specifications

        Article number
        58026
        EAN
        9509638847762
