        58016 160 VA | 2 x 25 V Toroidal Transformer

        Product description Amplimo 58016 160 VA | 2 x 25 V Toroidal Transformer

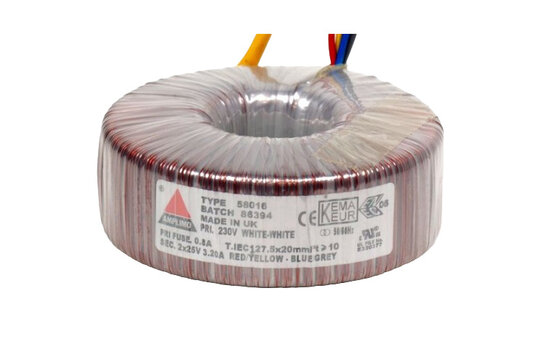

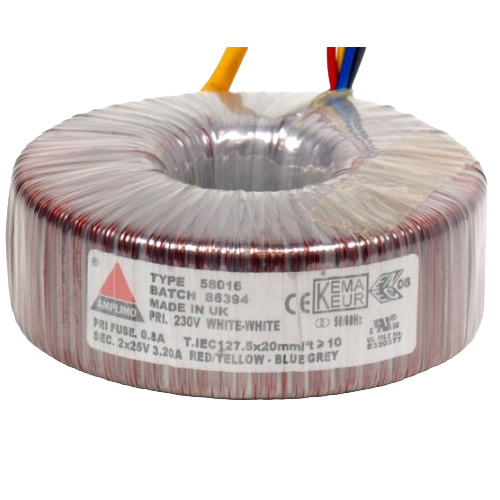

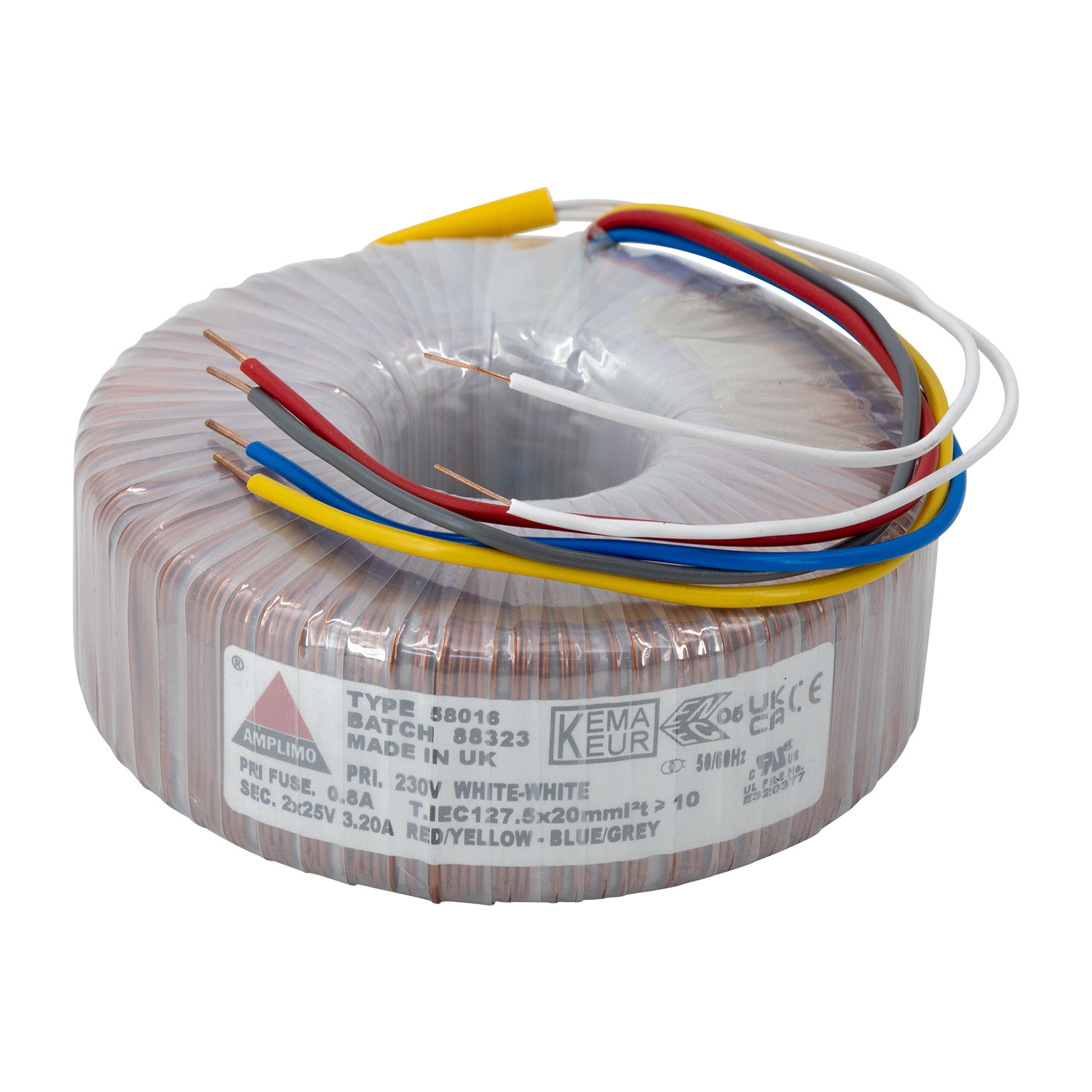

        The Amplimo 58016 is a 160 VA toroidal transformer with a 230 VAC primary and dual 25 V secondary windings rated at 3.20 A each. Its compact toroidal format, supplied mounting hardware and international approvals make it a dependable choice for robust AC power conversion.

        Highlights of the Amplimo 58016

        • 160 VA toroidal transformer with 230 VAC, 50/60 Hz primary
        • Dual 25 V secondary windings rated at 3.20 A each
        • Secondary windings can be connected in series for higher voltage or in parallel for higher current
        • Compact 110 mm diameter and 43 mm height, excluding mounting materials
        • Supplied with metal washer, neoprene washers and M5 mounting bolt with nut

        Product details Amplimo 58016

        Amplimo 58016 160 VA 2 x 25 V Toroidal Transformer

        The Amplimo 58016 is built around a toroidal transformer design, offering a 160 VA power rating in a compact mechanical package. With a primary voltage of 230 VAC at 50/60 Hz and two 25 V secondary outputs, it is a practical electromechanics component for mains-powered low-voltage AC conversion.


        Each secondary winding delivers 25 V at 3.20 A. The two secondary windings can be wired in series to double the secondary voltage or in parallel to double the available secondary current, giving flexibility when designing suitable power supplies around the required output configuration.

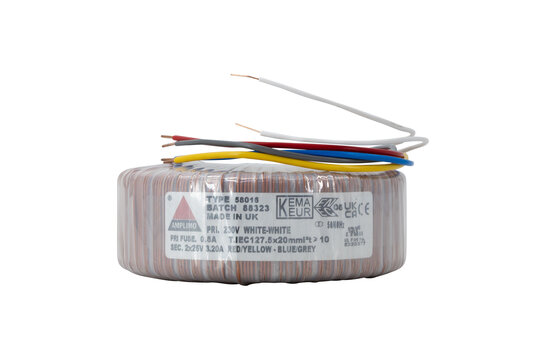

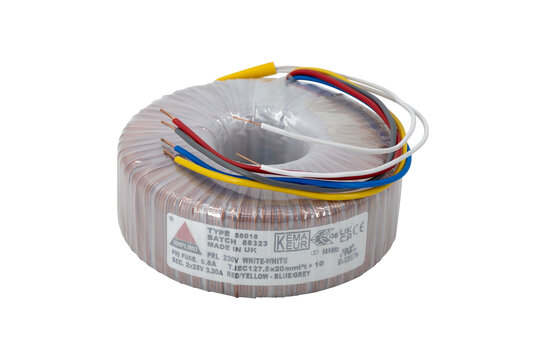

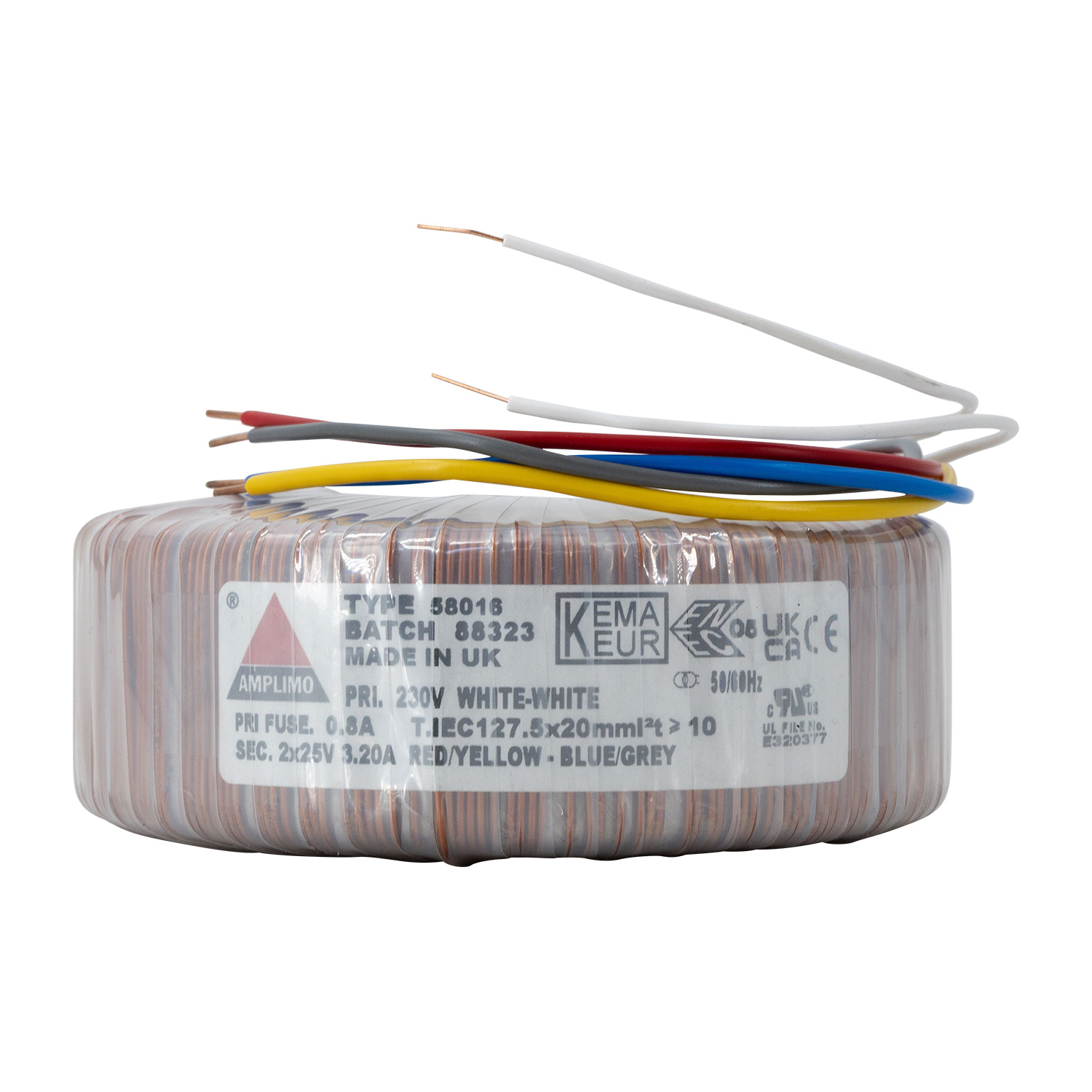

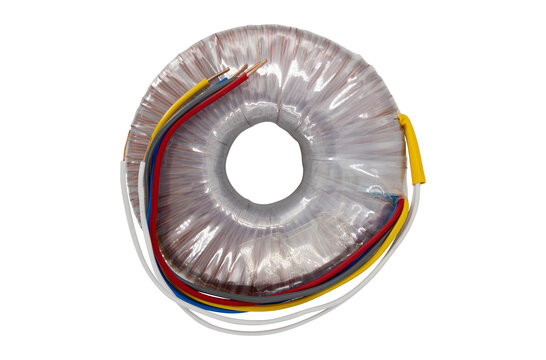

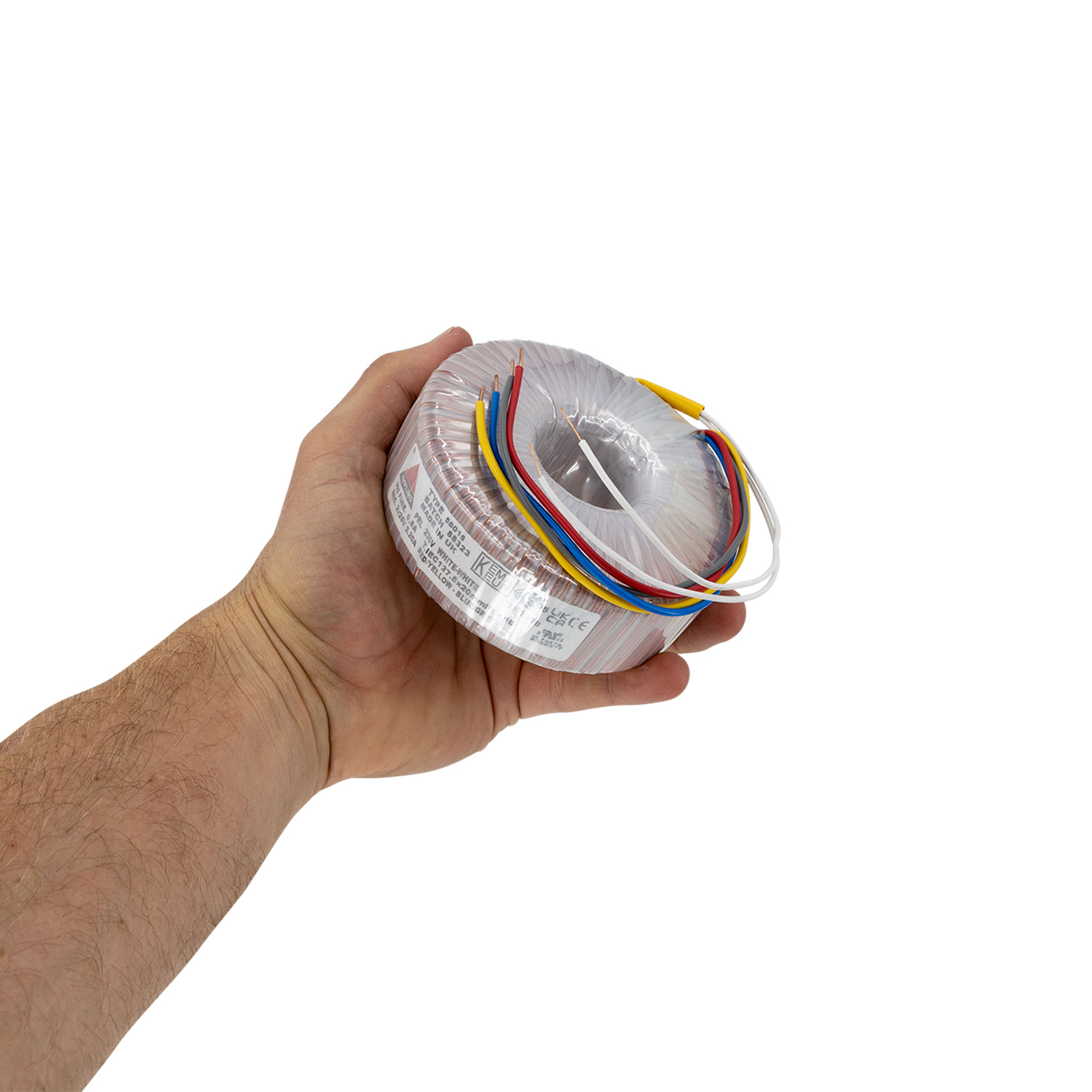

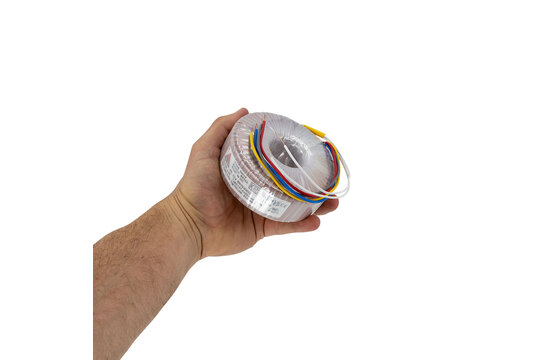

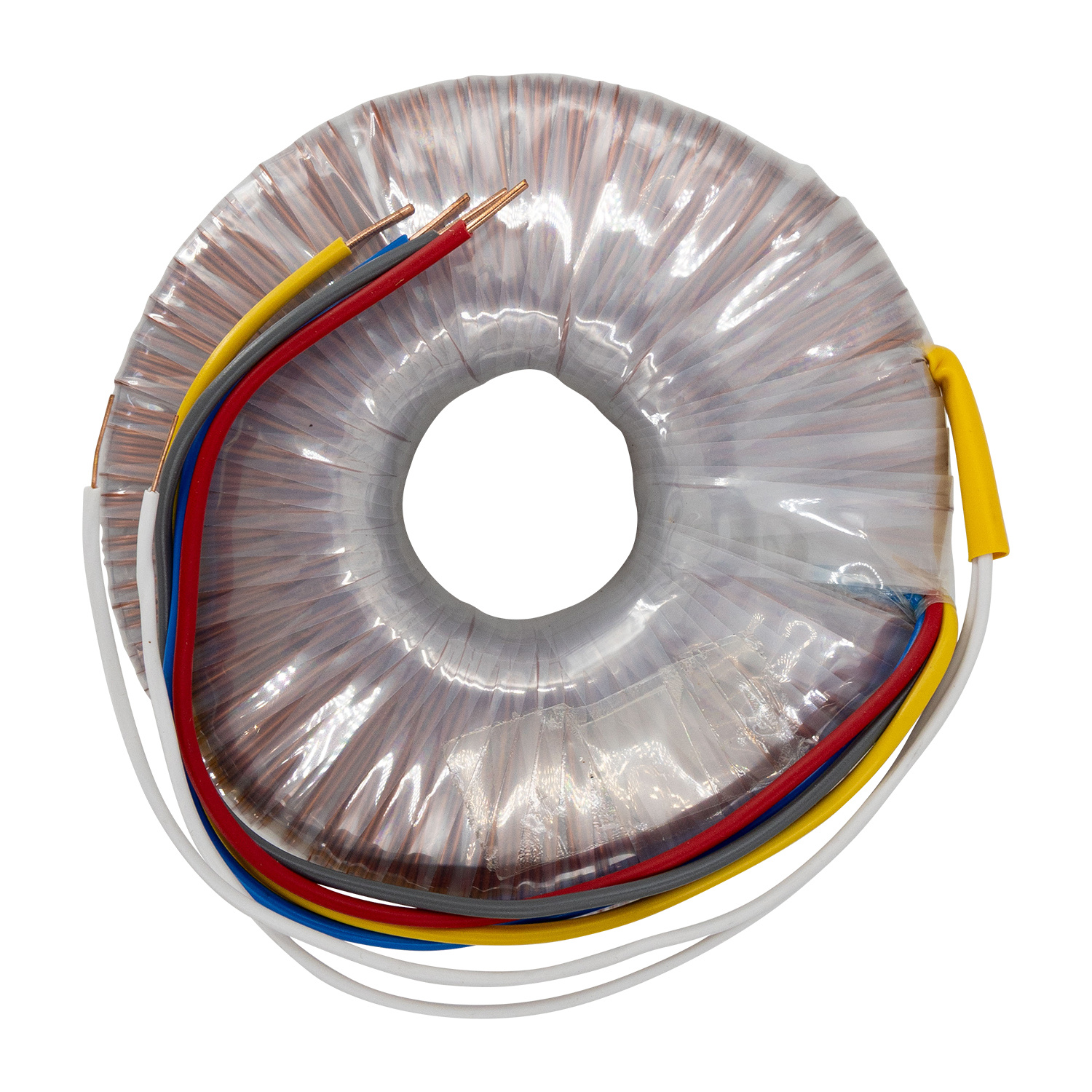

        The transformer measures 110 mm in diameter and 43 mm in height, with a weight of 1.9 kg. Height and weight are measured without the mounting materials. All leads are solid and approximately 200 mm long, supporting straightforward installation and wiring in compatible equipment.

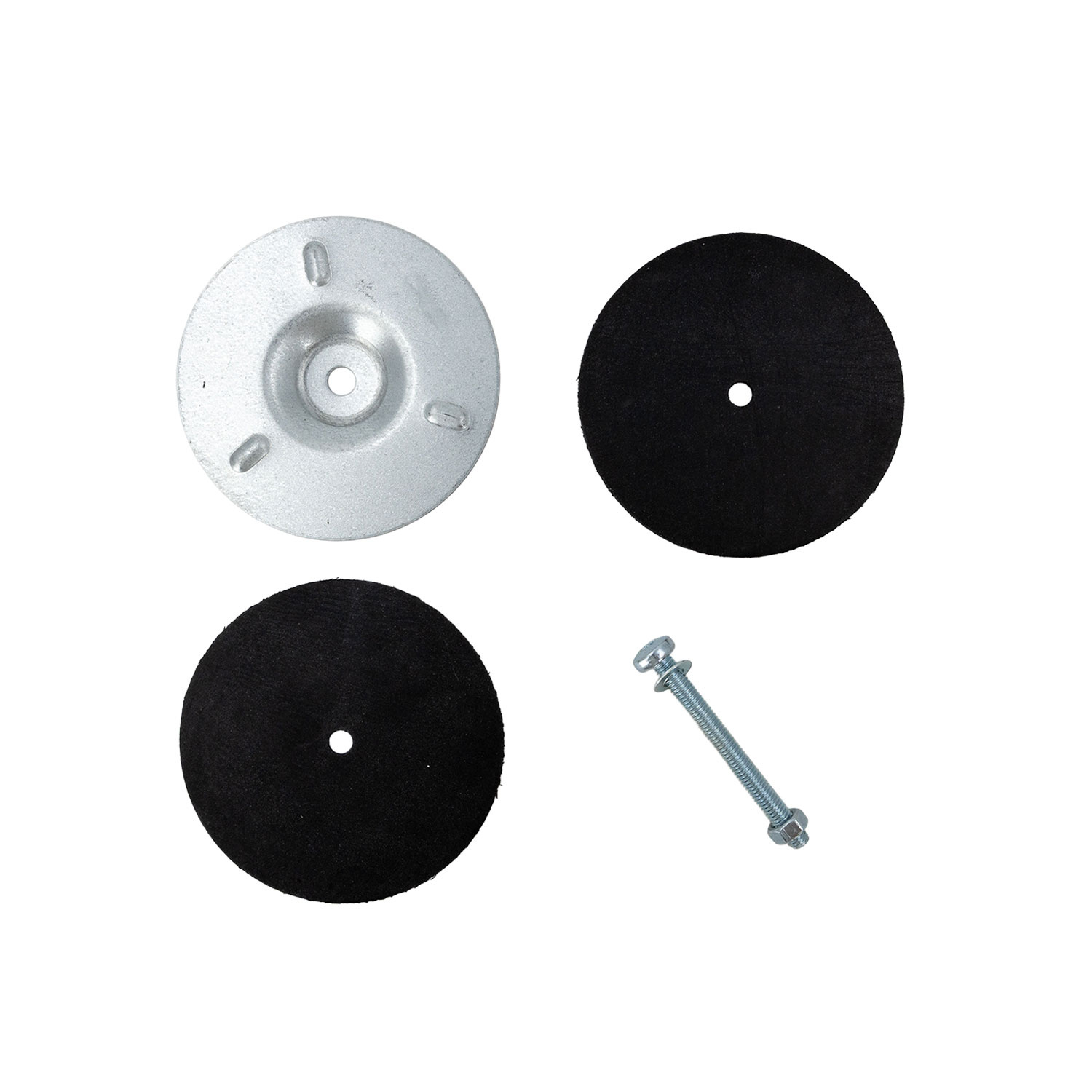

        Mounting hardware is included: one 90 mm metal washer, two 90 mm neoprene washers and one M5 x 50 mm bolt with nut. The transformer carries KEMA KEUR and ENEC approvals under certificate 2159403.01, UL/CSA approvals under UL file number E320377, and is CE and RoHS compliant. Time-lag fuses are required, with a 0.8 A, 5 x 20 mm IEC127 high I²t fuse specified for the primary side.

        Show more

        Specifications

        Article number
        58016
        EAN
        9503358988378
