        50PP4K0G Output Transformer Push-Pull 55 Watt | 4,5 kΩ

        Product description Amplimo 50PP4K0G Output Transformer Push-Pull 55 Watt

        The Amplimo 50PP4K0G is a wide bandwidth toroidal tube output transformer for push-pull amplifier builds, offering a 4 kΩ primary, 4 Ω, 8 Ω and 16 Ω secondary taps, and 50 W nominal power handling.

        Highlights of the Amplimo 50PP4K0G

        • Wide bandwidth toroidal tube output transformer
        • 4 kΩ primary impedance with 0, 4, 8 and 16 Ω secondary taps
        • 50 W nominal power handling
        • Frequency bandwidth of 8 Hz to 167 kHz at 1 mW
        • Power bandwidth from 50 Hz at 50 W
        • Compact 91 mm x 44 mm body with 1.0 kg weight

        Product details Amplimo 50PP4K0G

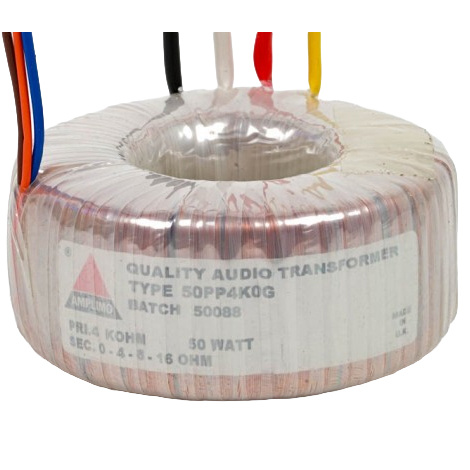

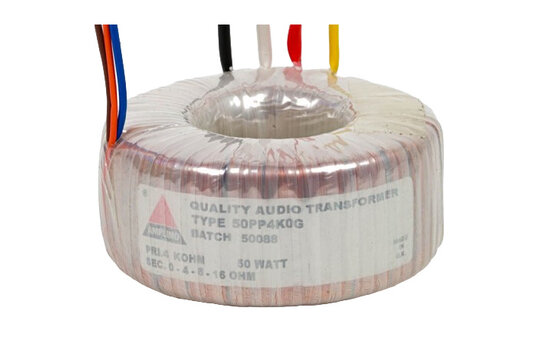

        Amplimo 50PP4K0G Wide bandwidth toroidal tube output transformer.

        The 50PP4K0G is designed for tube amplifier applications where a push-pull output transformer with a 4 kΩ primary is required. Its toroidal construction makes it a focused choice among specialist audio components for valve-based output stages.


        With a frequency bandwidth of 8 Hz to 167 kHz at 1 mW and a power bandwidth starting at 50 Hz at 50 W, this transformer is built for wideband audio performance. Key electrical values include 465 H primary inductance, 3 mH primary leakage inductance, 530 pF primary capacitance and 49 Ω primary DC resistance.


        The secondary side provides 0, 4 Ω, 8 Ω and 16 Ω connections, giving flexibility for common loudspeaker impedances. Use only one secondary tap at a time to ensure correct operation and loading.


        The transformer measures 91 mm in outside diameter and 44 mm in height, with a weight of 1.0 kg. Installation is supported by toroidal clamp and washer mounting hardware, making it suitable for clean integration into custom amplifier chassis designs.

        Show more

        Specifications

        Article number
        50PP4K0G
        EAN
        9503726594422
        Transformer Type
        Wide bandwidth toroidal tube output transformer
        Primary Impedance
        4000 Ω
        Secundary Impedance
        4 - 8 - 16 Ω
        Power Handling
        50 W
        Core Type
        Toroidal
        Inductance
        465 H
        Turns Ratio
        31.8 (4 Ω) - 22.4 (8 Ω) - 15.9 (16 Ω)
        Frequency Response
        8 - 167.000 Hz
        Diameter
        91 mm
        Height
        44 mm
