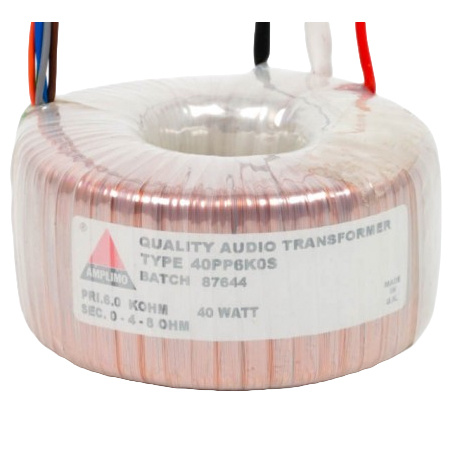

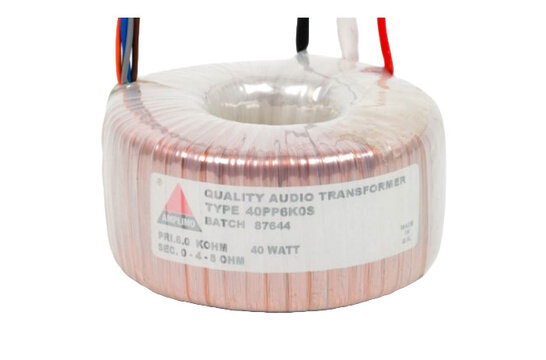

        40PP6K0S Output Transformer Push-Pull 40 Watt | 6,5 kΩ

        Amplimo 40PP6K0S Output Transformer Push-Pull 40 Watt | 6,5 kΩ

        €139,95

        Out of stock

        Add to cart

        Amplimo 40PP6K0S Output Transformer Push-Pull 40 Watt | 6,5 kΩ

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Amplimo
        Show all Power supply modules
        NEW
        40PP6K0S Output Transformer Push-Pull 40 Watt | 6,5 kΩ
        € 115,66€ 139,95 Out of stock
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Back in stock soon
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        40PP6K0S Output Transformer Push-Pull 40 Watt | 6,5 kΩ

        Product description Amplimo 40PP6K0S Output Transformer Push-Pull 40 Watt

        The Amplimo 40PP6K0S Output Transformer Push-Pull 40 Watt is a wide bandwidth toroidal tube output transformer with a 6 kΩ primary, 0-4-8 Ω secondary taps and 40 watt nominal power handling.

        Highlights of the Amplimo 40PP6K0S

        • Wide bandwidth toroidal tube output transformer
        • 6 kΩ primary impedance with 0, 4 and 8 Ω secondary taps
        • 40 watt nominal power rating
        • 35% ultra-linear tap for push-pull tube amplifier designs
        • -3 dB frequency bandwidth of 6 Hz to 91 kHz at 1 mW
        • Compact 94 mm x 52 mm toroidal construction with 1.3 kg weight

        Product details Amplimo 40PP6K0S

        Amplimo 40PP6K0S Output Transformer Push-Pull 40 Watt Wide bandwidth toroidal tube output transformer | 6 kΩ

        The Amplimo 40PP6K0S is designed as a toroidal tube output transformer for push-pull output stages. With a 6000 Ω primary impedance and secondary taps for 0, 4 and 8 Ω, it fits tube amplifier projects where reliable coupling to common loudspeaker impedances is required. For builders working with specialist audio components, its clearly defined winding data makes integration straightforward.


        Performance is centred on wide bandwidth reproduction. The transformer reaches a -3 dB frequency bandwidth of 6 Hz to 91 kHz at 1 mW, while the power bandwidth starts at 28 Hz. Electrical parameters include 1076 H primary inductance, 10 mH primary leakage inductance, 455 pF primary capacitance and 93 Ω primary DC resistance.


        The secondary winding provides separate 4 Ω and 8 Ω output options, with turns ratios of 39 for 4 Ω and 27.4 for 8 Ω. The transformer also includes 35% ultra-linear taps, supporting ultra-linear push-pull tube amplifiers. Use only one secondary tap at a time to ensure correct operation.


        The toroidal construction keeps the unit compact at 94 mm outer diameter and 52 mm height, with a weight of 1.3 kg. Mounting is handled with a toroidal clamp and washers, making the 40PP6K0S practical for carefully laid-out tube amplifier chassis designs.

        Show more

        Specifications

        Article number
        40PP6K0S
        EAN
        9501447819282
