        38611 80 VA | 2 x 9 V Toroidal Transformer

        Product description Amplimo 38611 80 VA | 2 x 9 V Toroidal Transformer

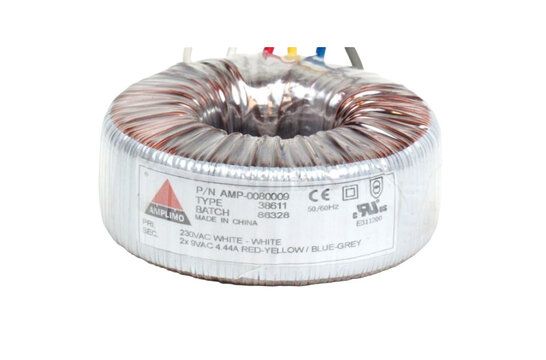

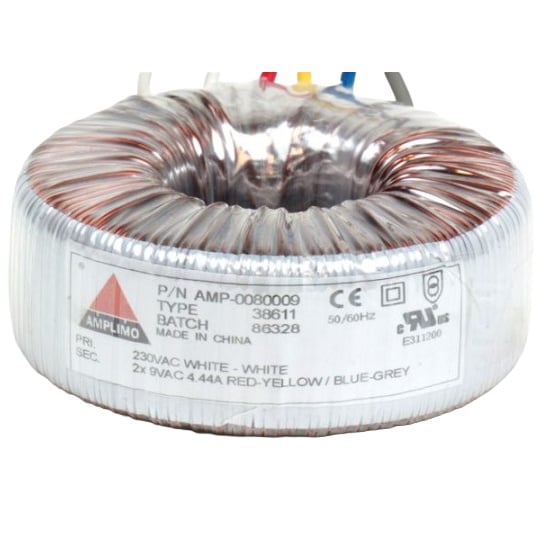

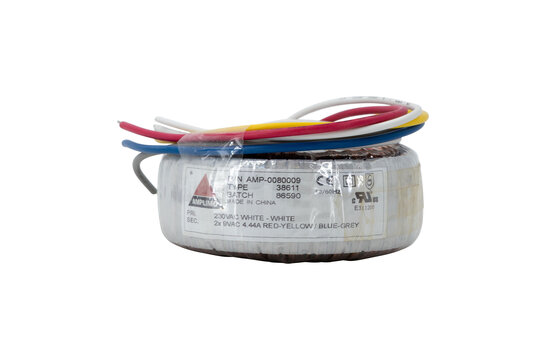

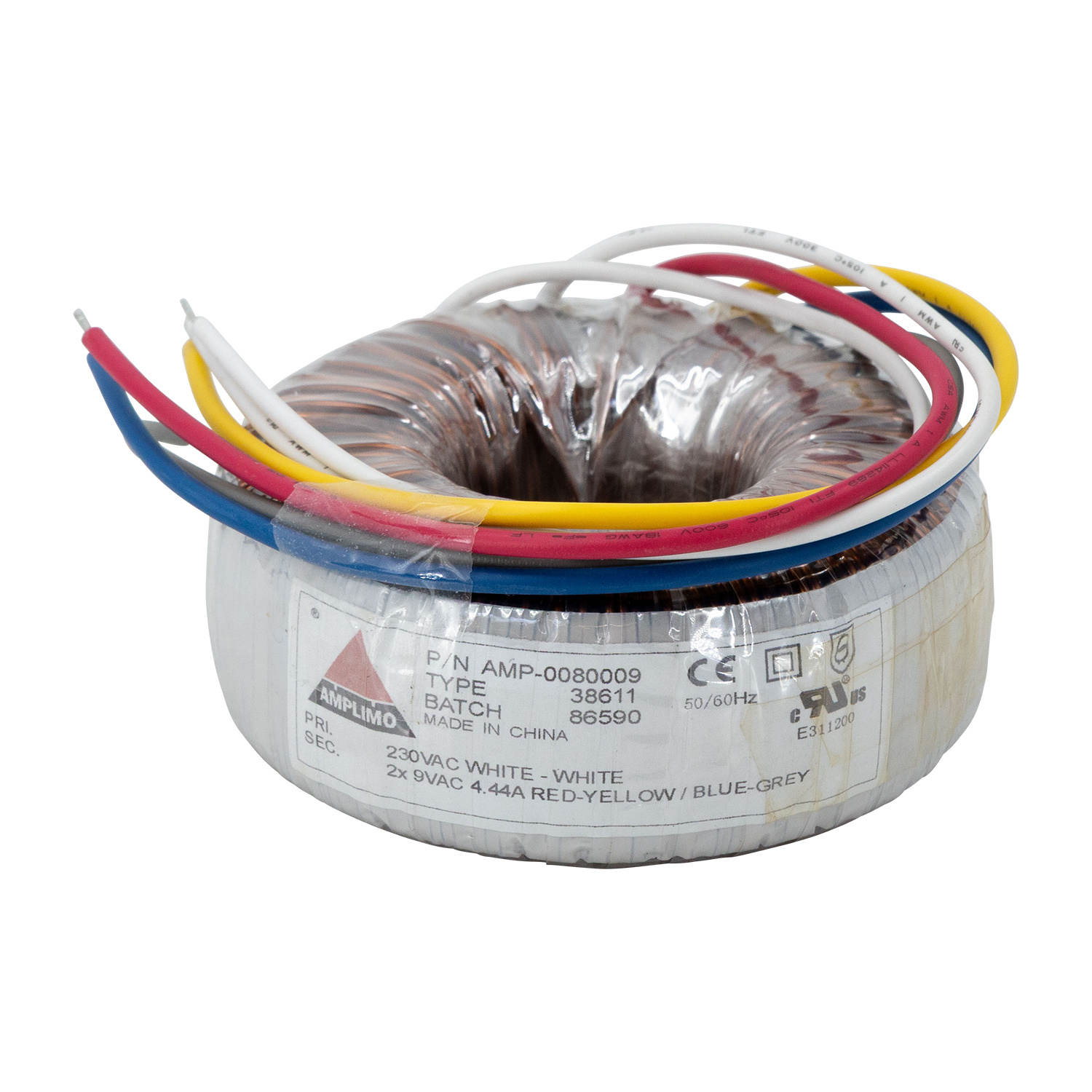

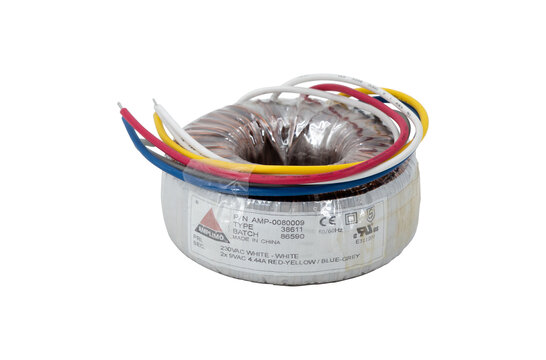

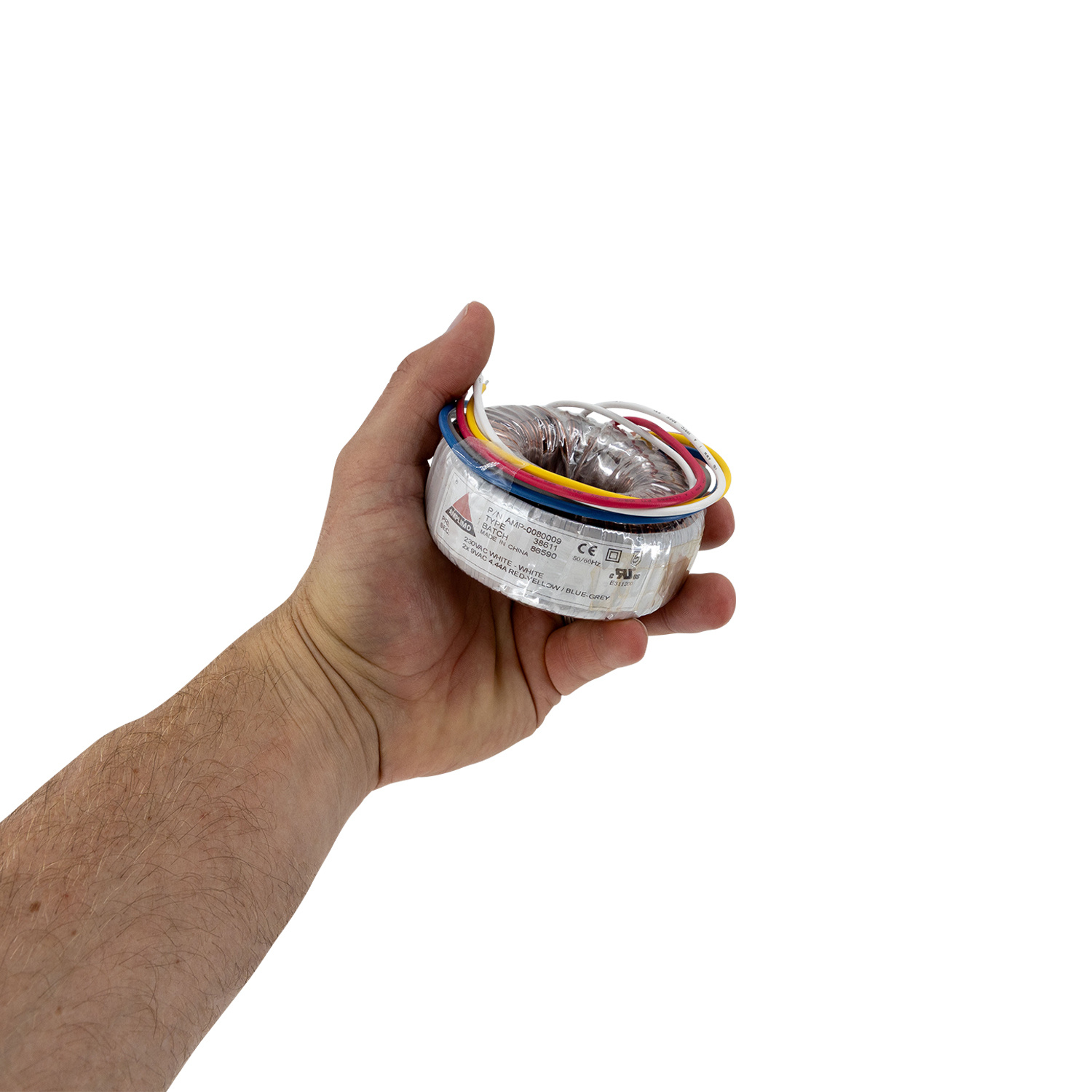

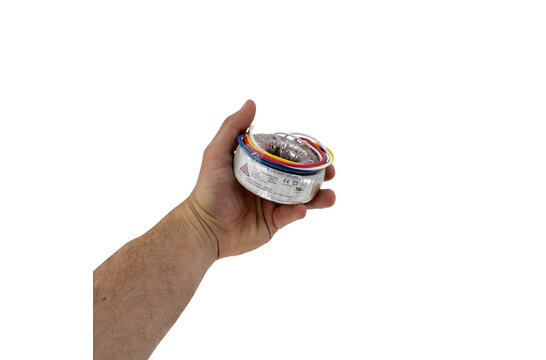

        The Amplimo 38611 is an 80 VA toroidal transformer with a 230 VAC primary and two 9 VAC secondary windings, each rated at 4.44 A. Its compact 87 mm diameter, supplied mounting hardware and flexible leads make it a practical choice for reliable power integration.

        Highlights of the Amplimo 38611

        • 80 VA toroidal transformer with 230 VAC primary
        • Dual 9 VAC secondary windings rated at 4.44 A each
        • Secondary windings can be connected in series or parallel
        • Compact 87 mm diameter and 37 mm height=
        • Supplied with metal washer, neoprene washers, bolt and nut

        Product details Amplimo 38611

        Amplimo 38611 80 VA 2 x 9 V Toroidal Transformer

        The Amplimo 38611 is designed around a toroidal core for compact power conversion in electrical and audio-related builds. It features a 230 VAC primary winding and two 9 VAC secondary windings, each delivering 4.44 A under full ohmic load. With a rated power of 80 VA and 50/60 Hz operation, it is suited to projects where a dependable transformer is needed as part of the internal power supplies section.


        The two secondary windings give you flexible configuration options. They can be wired in series to double the secondary voltage, or in parallel to double the secondary current. This makes the 38611 useful for a range of electromechanics applications where the available secondary voltage or current needs to match the circuit design.

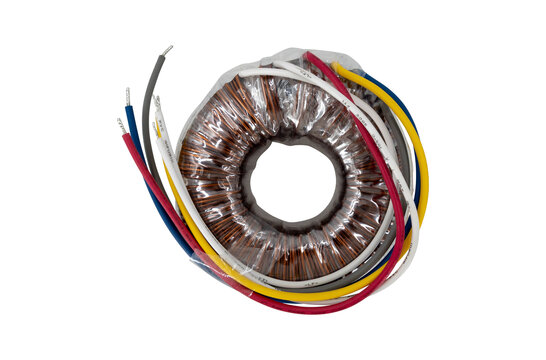

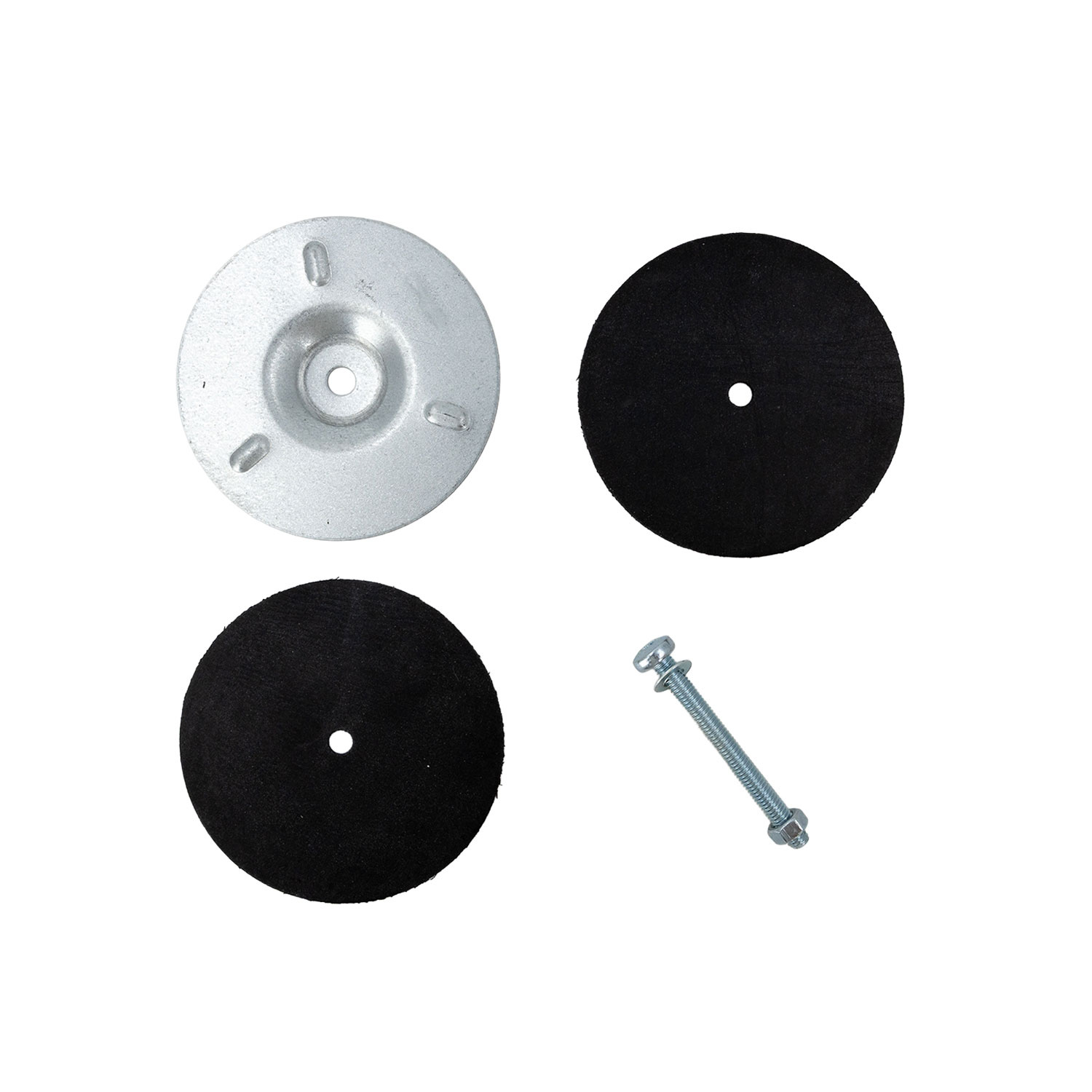

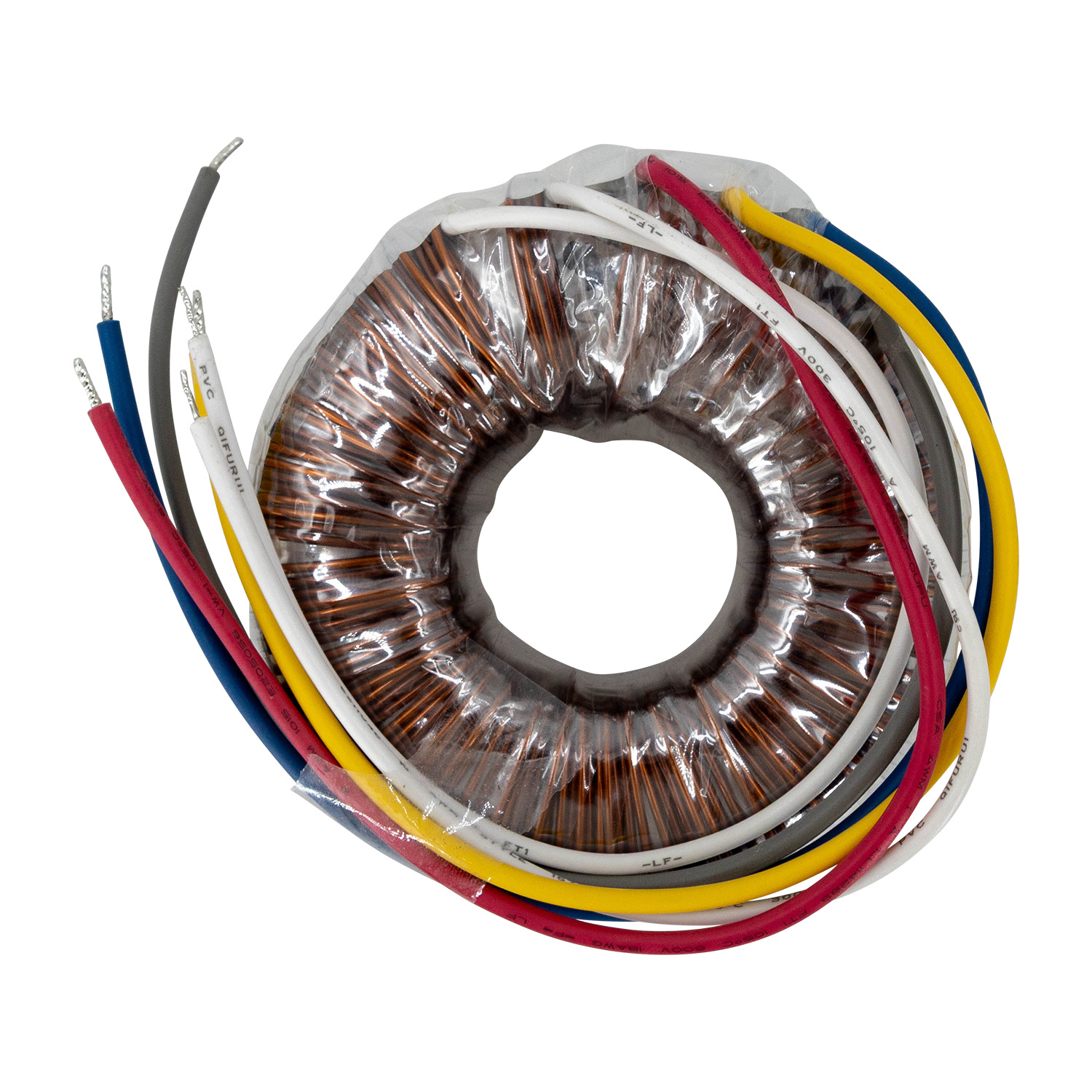

        Installation is straightforward thanks to the included mounting set: one metal washer, two neoprene washers, and a bolt with nut. The transformer measures 87 mm in diameter and 37 mm in height, with a weight of 1 kg measured without mounting materials. All leads are flexible and approximately 200 mm long, providing practical connection length during assembly.

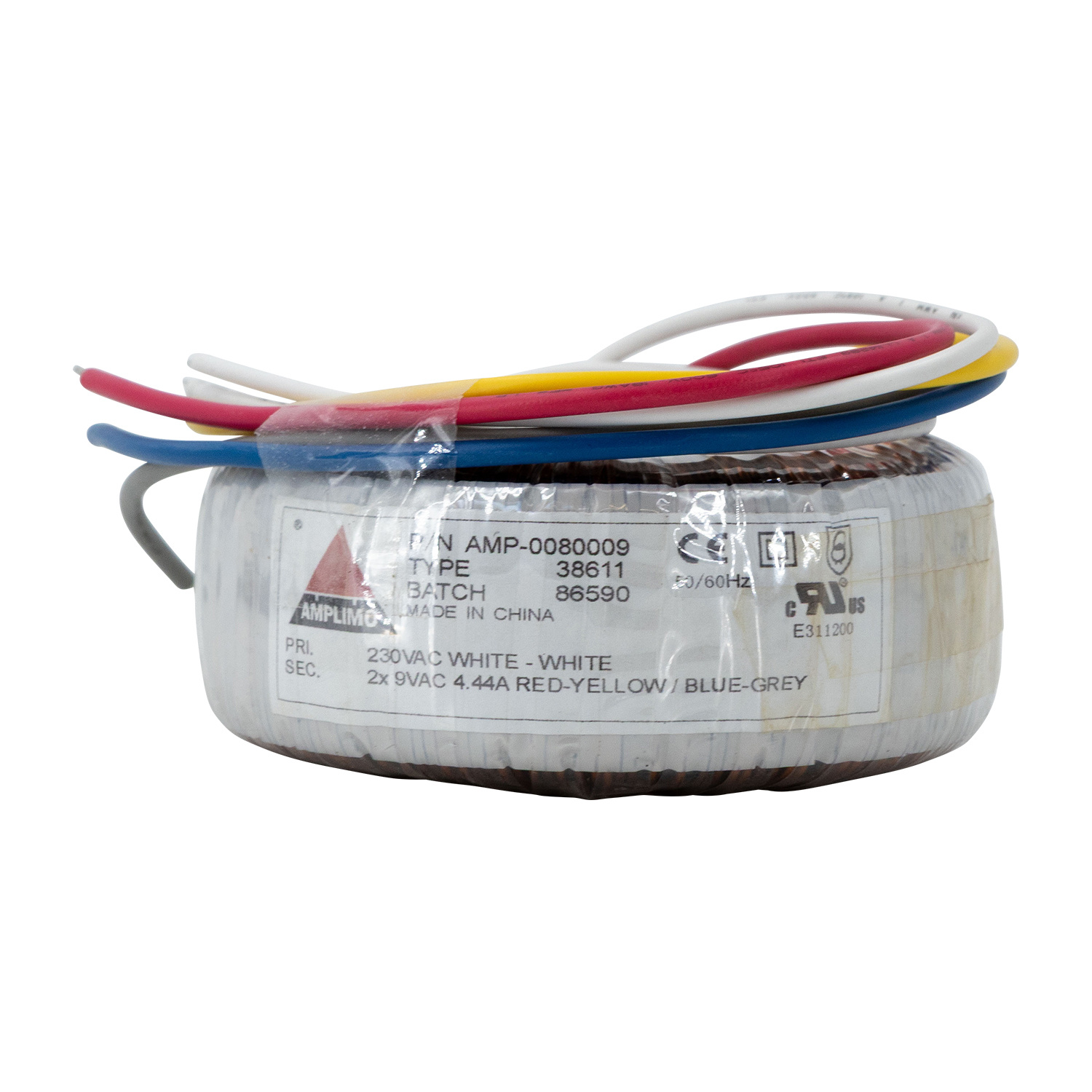

        The 38611 complies with EN61558 and carries CE and UL/CSA approvals, with UL file number E311200. It is also RoHS-compliant, supporting use in modern DIY and professional builds where safety approvals and material compliance matter.

        Show more

        Specifications

        Article number
        38611
        EAN
        9505889885980
