        38021 80 VA | 2 x 24 V Toroidal Transformer

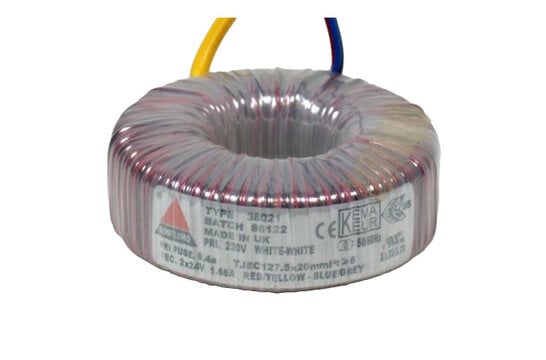

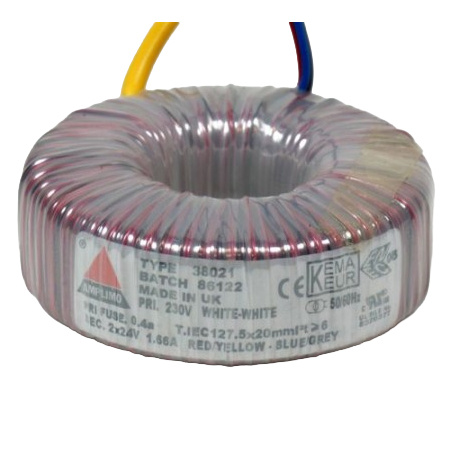

        Amplimo 38021 80 VA | 2 x 24 V Toroidal Transformer

        €63,95

        Out of stock

        Add to cart

        Amplimo 38021 80 VA | 2 x 24 V Toroidal Transformer

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Amplimo
        Show all Power supply modules
        NEW
        38021 80 VA | 2 x 24 V Toroidal Transformer
        € 52,85€ 63,95 Out of stock
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Back in stock soon
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        38021 80 VA | 2 x 24 V Toroidal Transformer

        Product description Amplimo 38021 80 VA | 2 x 24 V Toroidal Transformer

        The Amplimo 38021 is an 80 VA toroidal transformer with a 230 VAC primary and two 24 V secondaries rated at 1.66 A each. Its compact 91 mm x 35 mm format, included mounting hardware and international approvals make it a dependable choice for mains-powered electronics projects.

        Highlights of the Amplimo 38021

        • 80 VA toroidal transformer with 230 VAC primary for 50/60 Hz mains
        • Dual 24 V secondary windings rated at 1.66 A each
        • Secondaries can be used in series for higher voltage or in parallel for higher current
        • Supplied with mounting hardware

        Product details Amplimo 38021

        Amplimo 38021 80 VA | 2 x 24 V Toroidal Transformer

        The 38021 is a compact 80 VA toroidal transformer designed for reliable voltage conversion in mains-powered electronics and power supplies. It uses a 230 VAC primary for 50/60 Hz operation and provides two separate 24 V secondary windings, each rated at 1.66 A.


        The dual-secondary layout gives you practical wiring flexibility. The secondaries can be connected in series to double the secondary voltage, or in parallel to double the available secondary current, making this transformer suitable for a range of electromechanics and electronics builds where a stable low-voltage AC supply is required.


        Installation is straightforward thanks to the included mounting set: one 70 mm metal washer, two 70 mm neoprene washers and an M5 x 40 mm bolt with nut. All leads are solid and approximately 200 mm long, helping simplify internal wiring during assembly.


        The transformer measures 91 mm in diameter and 35 mm in height, with a weight of 0.90 kg, excluding mounting materials. It is CE and RoHS compliant, carries KEMA KEUR and ENEC approvals, and also has UL/CSA approvals under UL file number E320377. A time-lag primary fuse of 0.4 A, 5 x 20 mm, IEC127 with high I²t value is specified; no secondary fuse is specified.

        Show more

        Specifications

        Article number
        38021
        EAN
        9506922133273
