        38017 80 VA | 2 x 30 V Toroidal Transformer

        Amplimo 38017 80 VA | 2 x 30 V Toroidal Transformer

        €63,95

        Out of stock

        Add to cart

        Amplimo 38017 80 VA | 2 x 30 V Toroidal Transformer

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Amplimo
        Show all Power supply modules
        NEW
        38017 80 VA | 2 x 30 V Toroidal Transformer
        € 52,85€ 63,95 Out of stock
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Back in stock soon
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        38017 80 VA | 2 x 30 V Toroidal Transformer

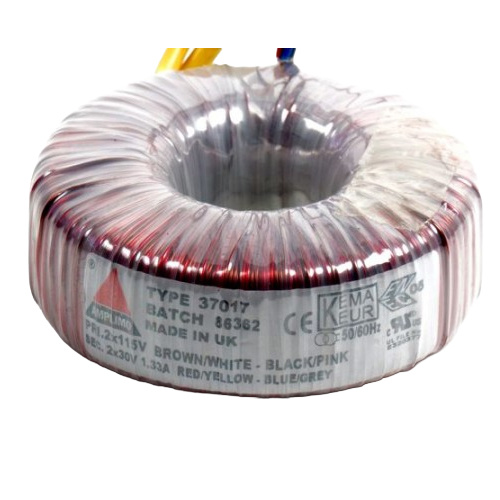

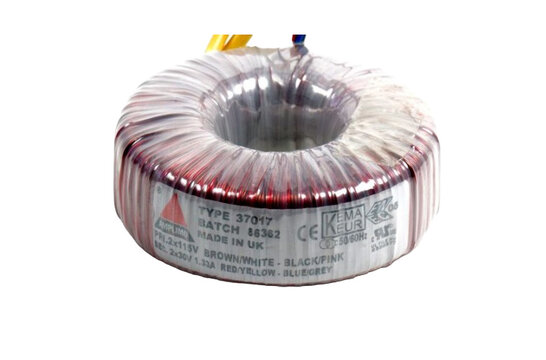

        Product description Amplimo 38017 80 VA | 2 x 30 V Toroidal Transformer

        The Amplimo 38017 is an 80 VA toroidal transformer with a 230 VAC primary and two 30 V secondary windings rated at 1.33 A each. Its compact 91 mm diameter, supplied mounting hardware, and international approvals make it a practical choice for reliable mains power conversion.

        Highlights of the Amplimo 38017

        • 80 VA toroidal transformer for 230 VAC, 50/60 Hz mains input
        • Dual 30 V secondary windings rated at 1.33 A each
        • Secondaries can be used in series for higher voltage or in parallel for higher current
        • Compact 91 mm diameter and 35 mm height, weighing 0.90 kg without mounting materials
        • Supplied with metal washer, neoprene washers, M5 bolt, and nut

        Product details Amplimo 38017

        Amplimo 38017 80 VA 2 x 30 V Toroidal Transformer

        The Amplimo 38017 is designed for 230 VAC mains operation at 50/60 Hz and delivers two separate 30 V secondary outputs at 1.33 A. With an 80 VA power rating and 10% regulation, it is suitable for building dependable transformer-based power supplies where dual secondary voltages are required.


        Its toroidal construction keeps the transformer compact, with a diameter of 91 mm and a height of 35 mm. The 0.90 kg weight is measured without mounting materials, making the unit straightforward to integrate into suitable enclosures and electromechanics assemblies.


        All leads are solid and approximately 200 mm long. The transformer uses white primary leads and color-coded secondary leads, with the secondary windings configurable for serial operation to double the secondary voltage or parallel operation to double the secondary current.


        The 38017 is supplied with one Ø70 mm metal washer, two Ø70 mm neoprene washers, and an M5 x 40 mm bolt with nut. It carries KEMA KEUR and ENEC approvals, UL/CSA approvals under UL file number E320377, and is CE and RoHS compliant. Use a time-lag primary fuse of 0.4 A, 5 x 20 mm, IEC127 with a high I²t value; no secondary fuse is specified.

        Show more

        Specifications

        Article number
        38017
        EAN
        9506687778955
