        20SE2K5H Output Transformer Single-Ended

        Amplimo 20SE2K5H Output Transformer Single-Ended

        €279,95

        2 In stock

        Add to cart

        Amplimo 20SE2K5H Output Transformer Single-Ended

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Amplimo
        Show all Power supply modules
        NEW

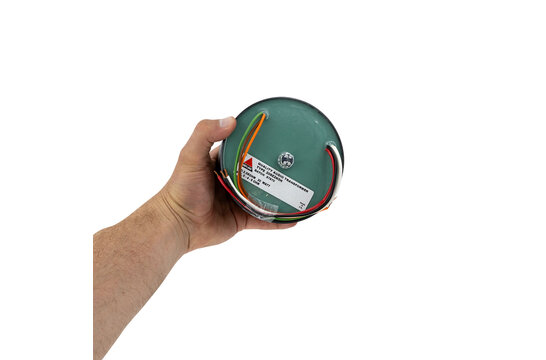

        20SE2K5H Output Transformer Single-Ended
        20SE2K5H Output Transformer Single-Ended
        20SE2K5H Output Transformer Single-Ended
        20SE2K5H Output Transformer Single-Ended
        20SE2K5H Output Transformer Single-Ended
        20SE2K5H Output Transformer Single-Ended
        20SE2K5H Output Transformer Single-Ended
        20SE2K5H Output Transformer Single-Ended
        20SE2K5H Output Transformer Single-Ended
        20SE2K5H Output Transformer Single-Ended
        € 231,36€ 279,95 2 In stock
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

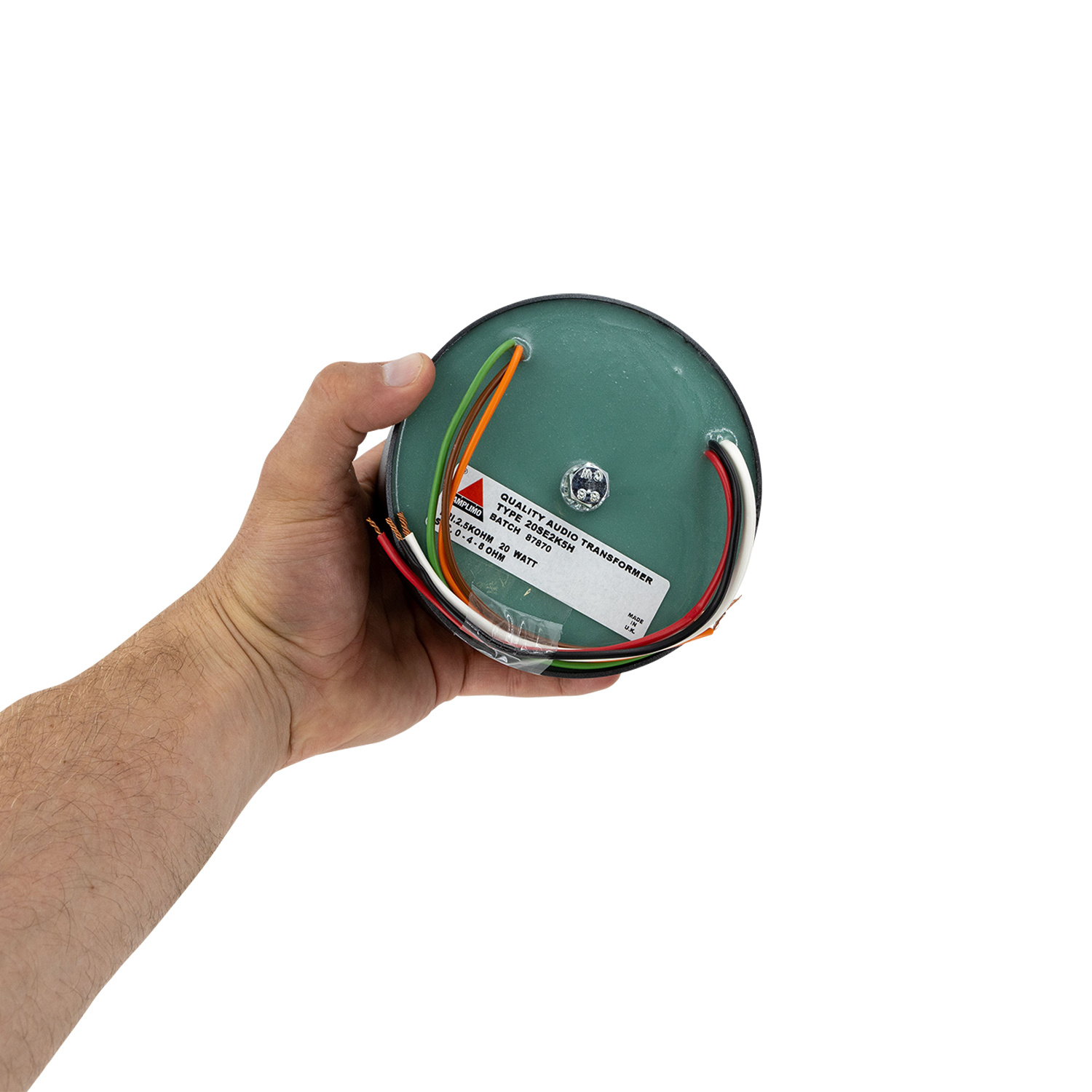

        20SE2K5H Output Transformer Single-Ended
        20SE2K5H Output Transformer Single-Ended
        20SE2K5H Output Transformer Single-Ended
        20SE2K5H Output Transformer Single-Ended
        20SE2K5H Output Transformer Single-Ended
        20SE2K5H Output Transformer Single-Ended
        20SE2K5H Output Transformer Single-Ended
        20SE2K5H Output Transformer Single-Ended
        20SE2K5H Output Transformer Single-Ended
        20SE2K5H Output Transformer Single-Ended

        Product description Amplimo 20SE2K5H Output Transformer Single-Ended

        The Amplimo 20SE2K5H is a wide-bandwidth toroidal tube output transformer for single-ended amplifier designs, featuring a 2500 Ω primary, 0-4-8 Ω secondary taps, a 40% UL tap, and 20 W nominal power handling.



        Highlights of the Amplimo 20SE2K5H

        • Wide-bandwidth toroidal tube output transformer for single-ended designs
        • 2500 Ω primary impedance with 0, 4 Ω, and 8 Ω secondary connections
        • 40% ultra-linear tap and 126 mA nominal primary DC current
        • Potted in a black textured aluminium shell with M8x20 centre-bolt mounting



        Product details Amplimo 20SE2K5H

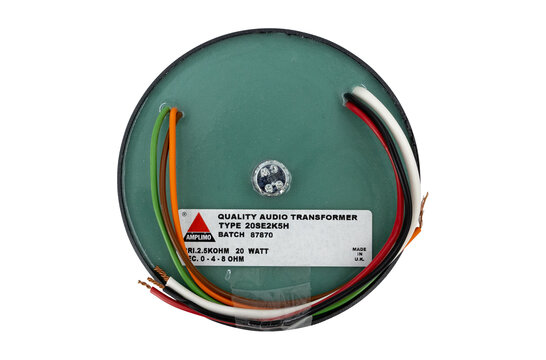

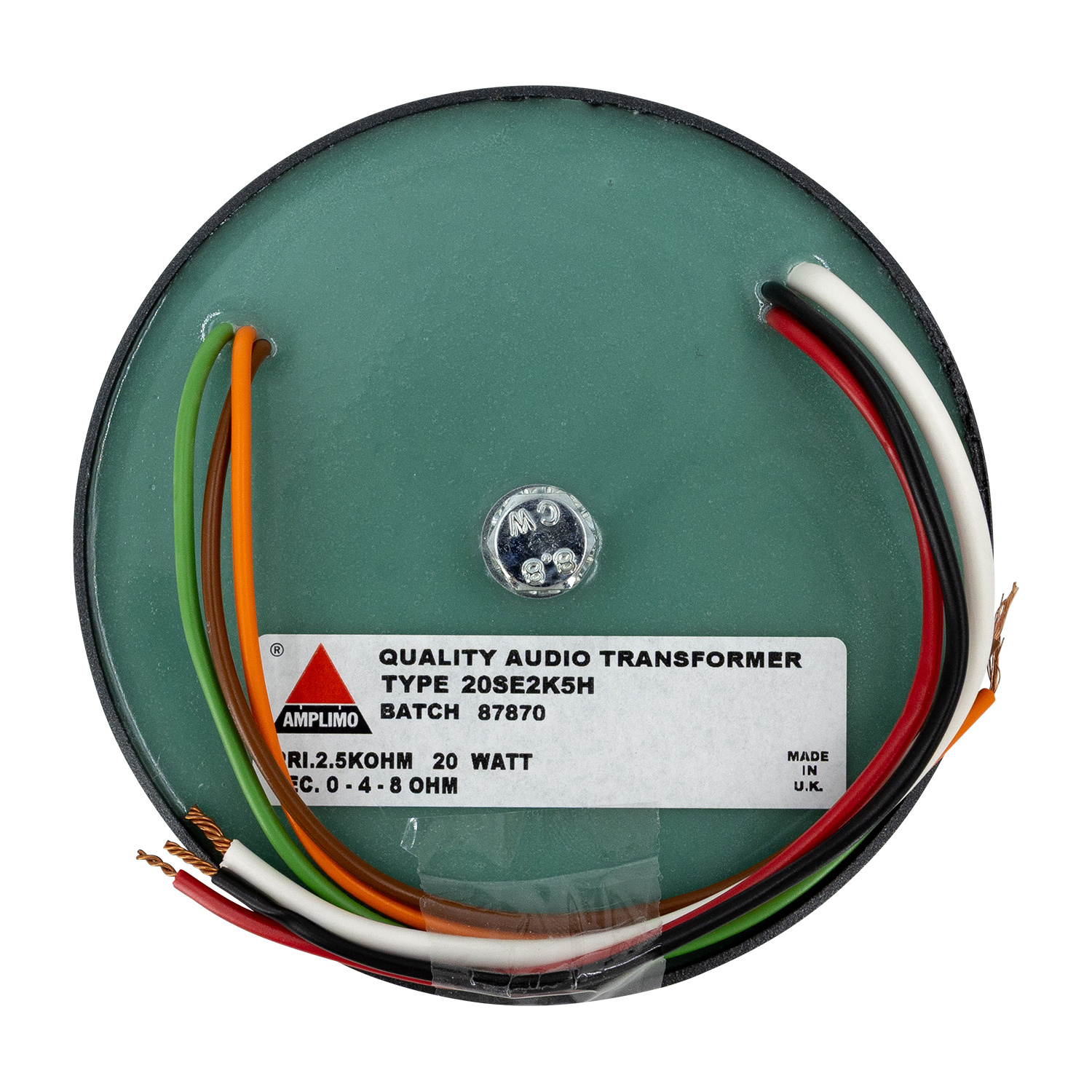

        Amplimo 20SE2K5H Wide Bandwidth Toroidal Tube Output Transformer 2500 Ω Primary 0-4-8 Ω Secondary



        The Amplimo 20SE2K5H is built as a toroidal output transformer for single-ended tube amplifiers. Its 2500 Ω primary impedance and 0, 4 Ω, and 8 Ω secondary options make it suitable for matching a tube output stage to common loudspeaker impedances, with turns ratios of 24.9 for 4 Ω and 17.6 for 8 Ω.



        Designed for precise integration in high-quality audio components, the transformer provides 20 W nominal power handling and supports 126 mA nominal primary DC current. The 40% UL tap gives designers an ultra-linear connection option, while the primary electrical values include 15 H inductance, 6 mH leakage inductance, and 495 pF capacitance.

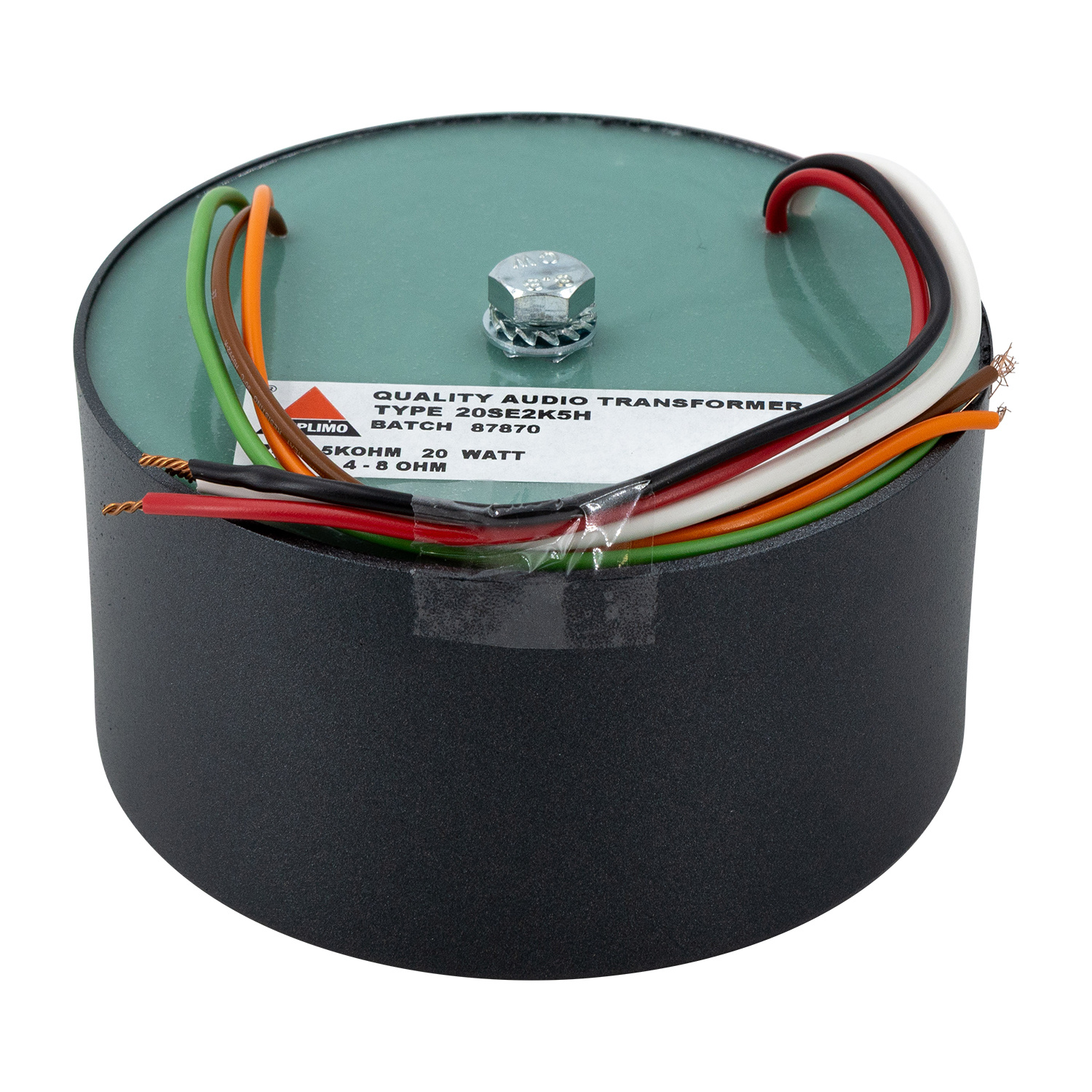

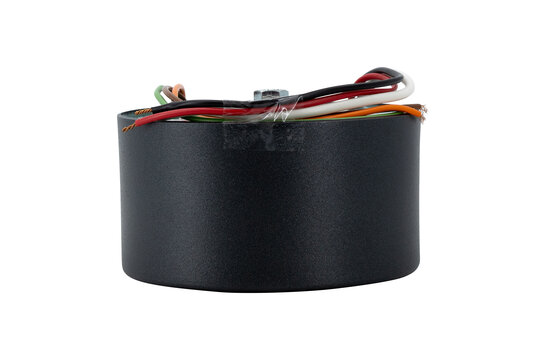

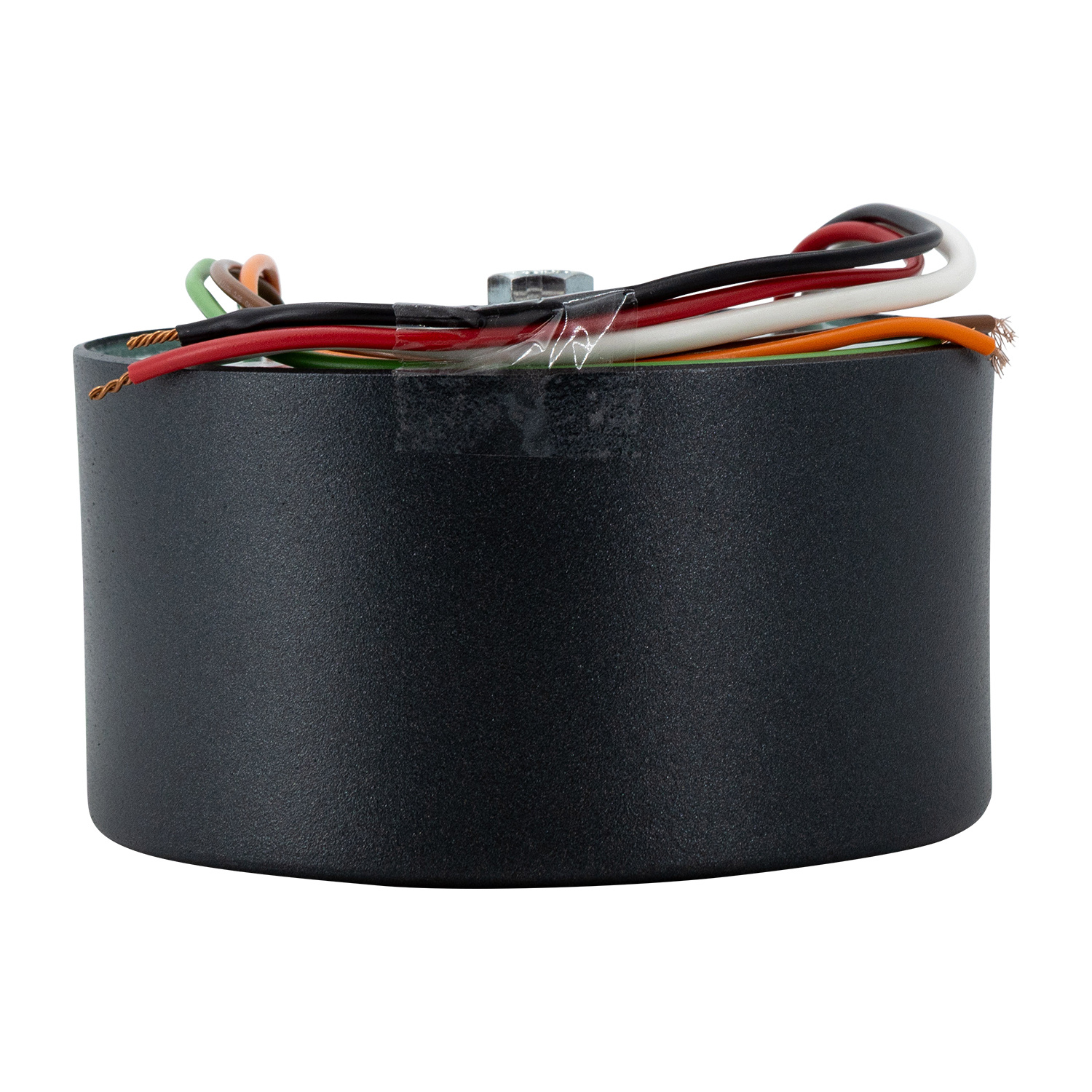

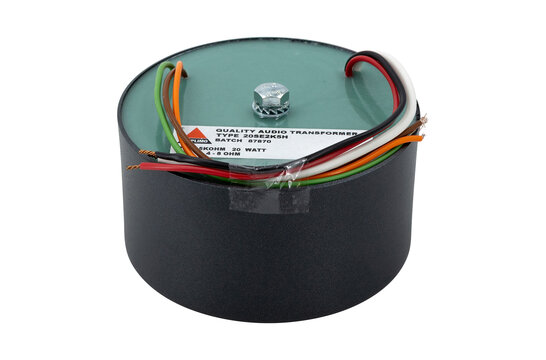

        The 20SE2K5H is potted in a black textured aluminium shell for a robust, finished construction. It measures 125 mm in outside diameter by 67 mm high, weighs 3 kg, and mounts with an M8x20 centre bolt. The 200 mm leads provide practical wiring length during installation.



        Connections are clearly defined with primary leads for anode, UL, and B+, plus secondary leads for 0, 4 Ω, and 8 Ω. Use only one secondary tap at a time, and insulate all unused wires with heatshrink for a safe and tidy build.

        Show more

        Specifications

        Article number
        20SE2K5H
        EAN
        9504514478566
        Transformer Type
        Toroidal tube output transformer
        Primary Impedance
        2500 Ω
        Secundary Impedance
        4 - 8 Ω
        Power Handling
        20 W
        Core Type
        Toroidal
        Inductance
        15 H
        Turns Ratio
        24.9 / 17.6
        # Mounting holes
        1
        Diameter
        125 mm
        Height
        67 mm

        Show more
