        12SE3K3H Output Transformer Single-Ended 12 Watt | 3,3 kΩ

        Amplimo 12SE3K3H Output Transformer Single-Ended 12 Watt | 3,3 kΩ

        €259,95

        2 In stock

        Add to cart

        Amplimo 12SE3K3H Output Transformer Single-Ended 12 Watt | 3,3 kΩ

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Amplimo
        Show all Power supply modules
        NEW
        12SE3K3H Output Transformer Single-Ended 12 Watt | 3,3 kΩ
        12SE3K3H Output Transformer Single-Ended 12 Watt | 3,3 kΩ
        12SE3K3H Output Transformer Single-Ended 12 Watt | 3,3 kΩ
        12SE3K3H Output Transformer Single-Ended 12 Watt | 3,3 kΩ
        12SE3K3H Output Transformer Single-Ended 12 Watt | 3,3 kΩ
        12SE3K3H Output Transformer Single-Ended 12 Watt | 3,3 kΩ
        12SE3K3H Output Transformer Single-Ended 12 Watt | 3,3 kΩ
        12SE3K3H Output Transformer Single-Ended 12 Watt | 3,3 kΩ
        12SE3K3H Output Transformer Single-Ended 12 Watt | 3,3 kΩ
        12SE3K3H Output Transformer Single-Ended 12 Watt | 3,3 kΩ
        12SE3K3H Output Transformer Single-Ended 12 Watt | 3,3 kΩ
        12SE3K3H Output Transformer Single-Ended 12 Watt | 3,3 kΩ
        € 214,83€ 259,95 2 In stock
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        12SE3K3H Output Transformer Single-Ended 12 Watt | 3,3 kΩ
        12SE3K3H Output Transformer Single-Ended 12 Watt | 3,3 kΩ
        12SE3K3H Output Transformer Single-Ended 12 Watt | 3,3 kΩ
        12SE3K3H Output Transformer Single-Ended 12 Watt | 3,3 kΩ
        12SE3K3H Output Transformer Single-Ended 12 Watt | 3,3 kΩ
        12SE3K3H Output Transformer Single-Ended 12 Watt | 3,3 kΩ
        12SE3K3H Output Transformer Single-Ended 12 Watt | 3,3 kΩ
        12SE3K3H Output Transformer Single-Ended 12 Watt | 3,3 kΩ
        12SE3K3H Output Transformer Single-Ended 12 Watt | 3,3 kΩ
        12SE3K3H Output Transformer Single-Ended 12 Watt | 3,3 kΩ
        12SE3K3H Output Transformer Single-Ended 12 Watt | 3,3 kΩ
        12SE3K3H Output Transformer Single-Ended 12 Watt | 3,3 kΩ

        Product description Amplimo 12SE3K3H Output Transformer Single-Ended 12 Watt

        The Amplimo 12SE3K3H is a wide bandwidth toroidal tube output transformer for single-ended amplifier designs, offering 12 W nominal power, a 3250 Ω primary, 4 Ω and 8 Ω secondary outputs, and a 40% ultralinear tap.



        Highlights of the Amplimo 12SE3K3H

        • Wide bandwidth toroidal tube output transformer
        • 12 W nominal power with 3250 Ω primary impedance
        • 0, 4 Ω and 8 Ω secondary taps, with one tap used at a time
        • 40% ultralinear tap with 86 mA nominal primary DC current
        • -3 dB frequency bandwidth of 14 Hz to 85 kHz at 1 mW
        • Potted in a black textured aluminium shell with M8x20 centre bolt mounting
        • Supplied with mounting hardware



        Product details Amplimo 12SE3K3H

        Amplimo 12SE3K3H Wide bandwidth toroidal tube output transformer 12 W 3.25 kΩ



        The 12SE3K3H is designed as a wide bandwidth toroidal output transformer for tube amplifier projects. With its 3250 Ω primary impedance and 0, 4 Ω and 8 Ω secondary options, it provides the output-stage interface needed for suitable speaker loads. Use only one secondary tap at a time.



        Performance is specified for a -3 dB frequency bandwidth of 14 Hz to 85 kHz at 1 mW, with power bandwidth starting at 19 Hz. The transformer supports 12 W nominal power, 86 mA nominal primary DC current, and 172 mA primary saturation current, making it a precise choice among audio components for single-ended tube output stages.



        The electrical design includes a 26 H primary inductance, 14 mH primary leakage inductance, 550 pF primary capacitance, and 90 Ω primary DC resistance. The 40% ultralinear tap gives additional circuit flexibility for tube amplifier designs that use UL operation.

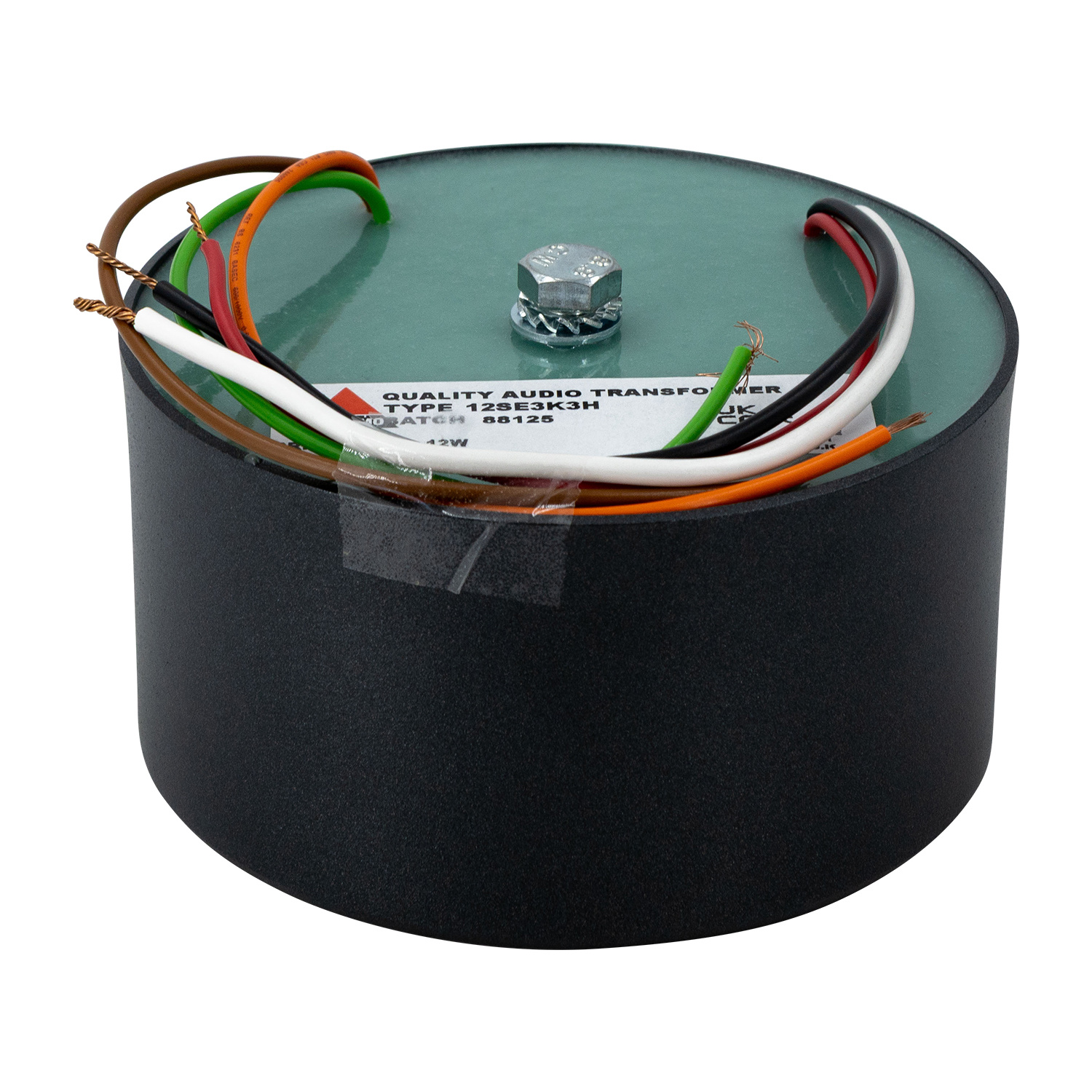

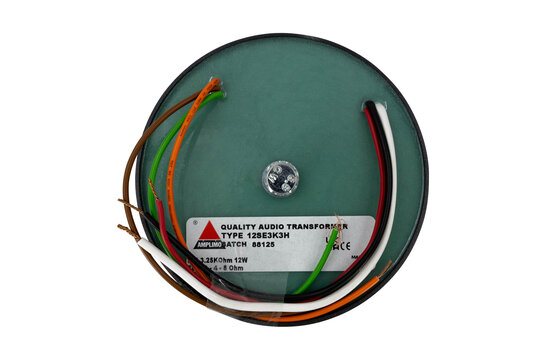

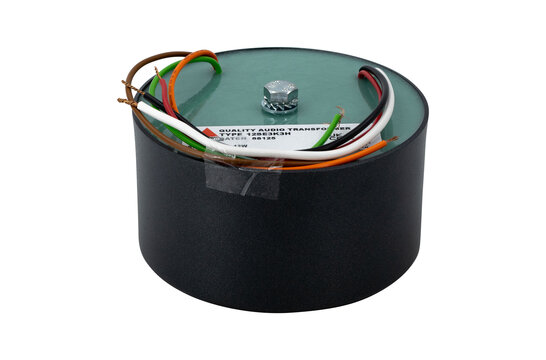

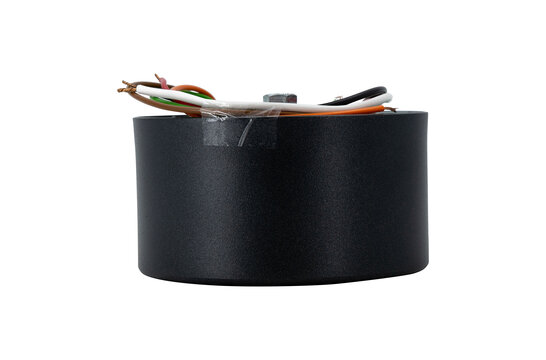

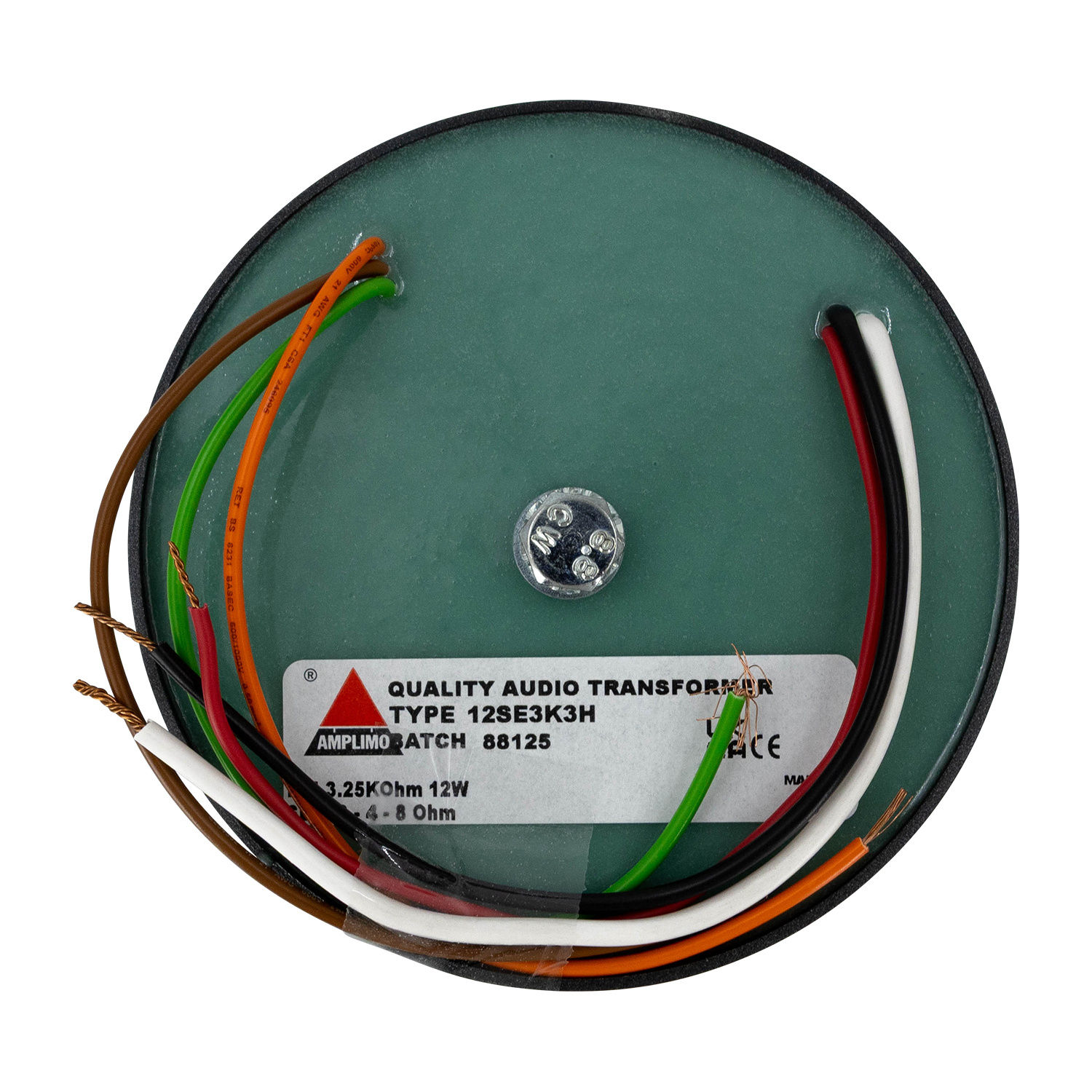

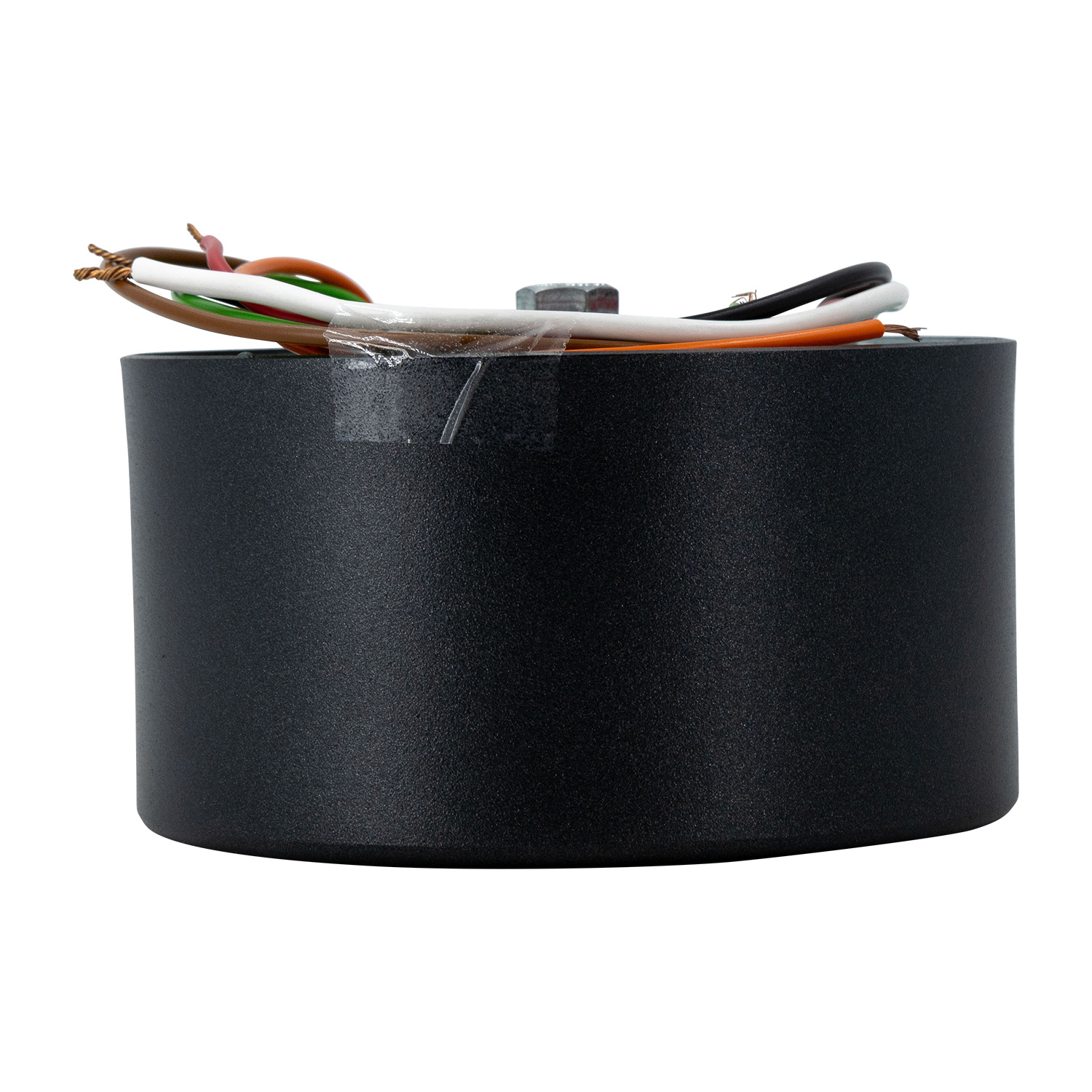

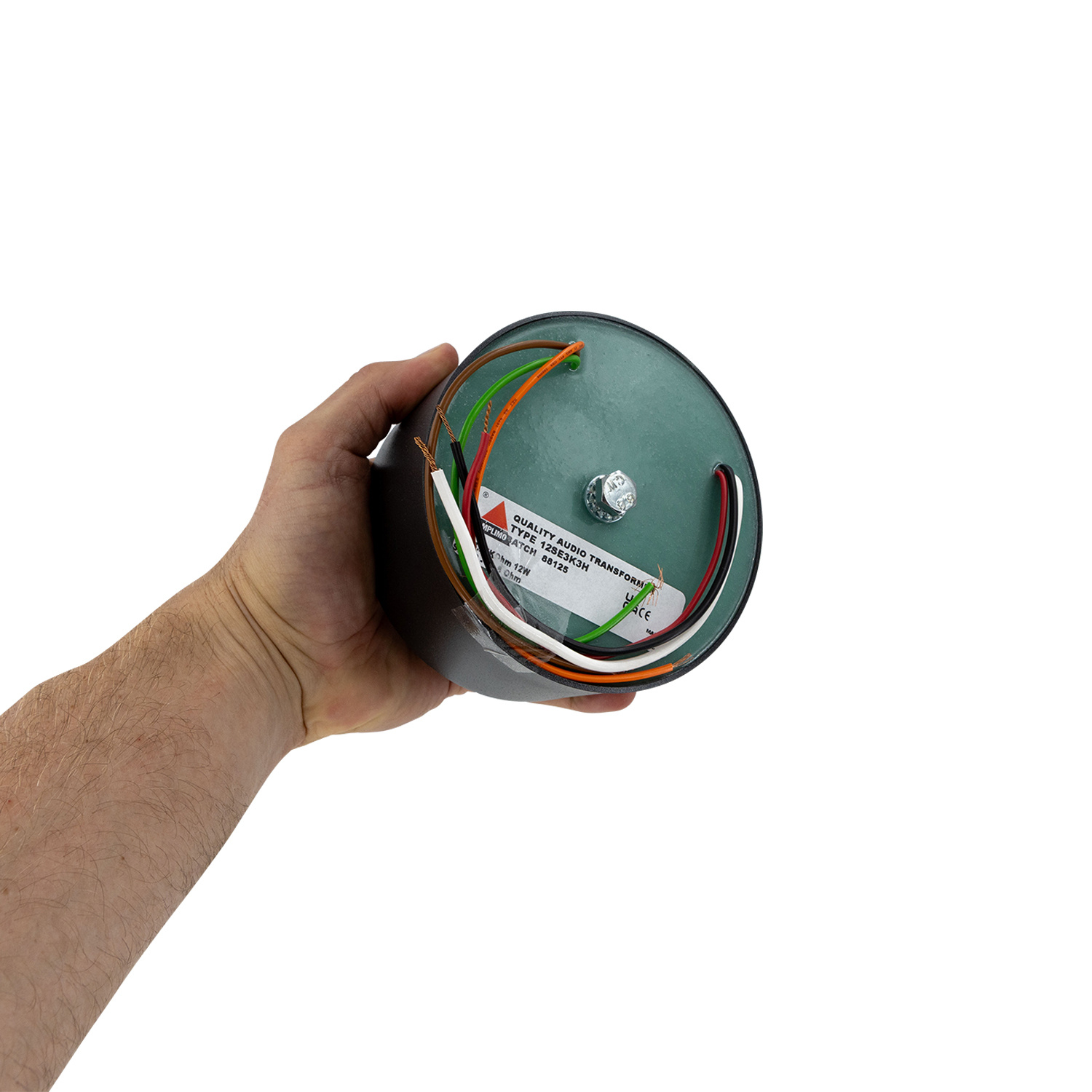

        The transformer is potted in a black textured aluminium shell and measures 126 mm in diameter by 65 mm high. It mounts with an M8x20 centre bolt, weighs 2.8 kg, and is supplied with mounting hardware and 200 mm leads. Wiring is colour coded: black for anode, white for UL, red for B+, green for 0 Ω, orange for 4 Ω, and brown for 8 Ω. All unused wires must be insulated with heatshrink.

        Show more

        Specifications

        Article number
        12SE3K3H
        EAN
        9503915368261
        Transformer Type
        Wide bandwidth toroidal tube output transformer
        Primary Impedance
        3250 Ω
        Secundary Impedance
        4 - 8 Ω
        Power Handling
        12 W
        Core Type
        Toroidal
        Inductance
        26 H
        Turns Ratio
        28.4 / 20.1
        Frequency Response
        14 - 85.000 Hz
        # Mounting holes
        1
        Diameter
        126 mm
        Height
        65 mm

        Show more
