        Product description Amplimo 08SE5K0H Output Transformer Single-Ended 8 Watt

        The Amplimo 08SE5K0H is a wide bandwidth toroidal tube output transformer for single-ended amplifier designs, rated at 8 W with a 5 kΩ primary and 0, 4 and 8 Ω secondary taps.



        Highlights of the Amplimo 08SE5K0H

        • Wide bandwidth toroidal tube output transformer for single-ended use
        • 5 kΩ primary impedance with 0, 4 and 8 Ω secondary connections
        • 8 W nominal power rating and 60 mA nominal primary DC current
        • Potted in a black textured aluminium shell with M8x20 centre-bolt mounting



        Product details Amplimo 08SE5K0H

        Amplimo 08SE5K0H Wide Bandwidth Toroidal Tube Output Transformer 8 W 5 kΩ



        The Amplimo 08SE5K0H is designed for single-ended tube output stages where a compact, high-quality transformer is required. As part of a build with premium audio components, it provides a 5 kΩ primary impedance and secondary taps for 0, 4 and 8 Ω loudspeaker connections.



        Performance is supported by a broad -3 dB frequency bandwidth of 20 Hz to 80 kHz at 1 mW, with the power bandwidth starting at 21 Hz. The transformer has a 25 H primary inductance, 14 mH primary leakage inductance and 469 pF primary capacitance, making it suitable for demanding tube amplifiers.

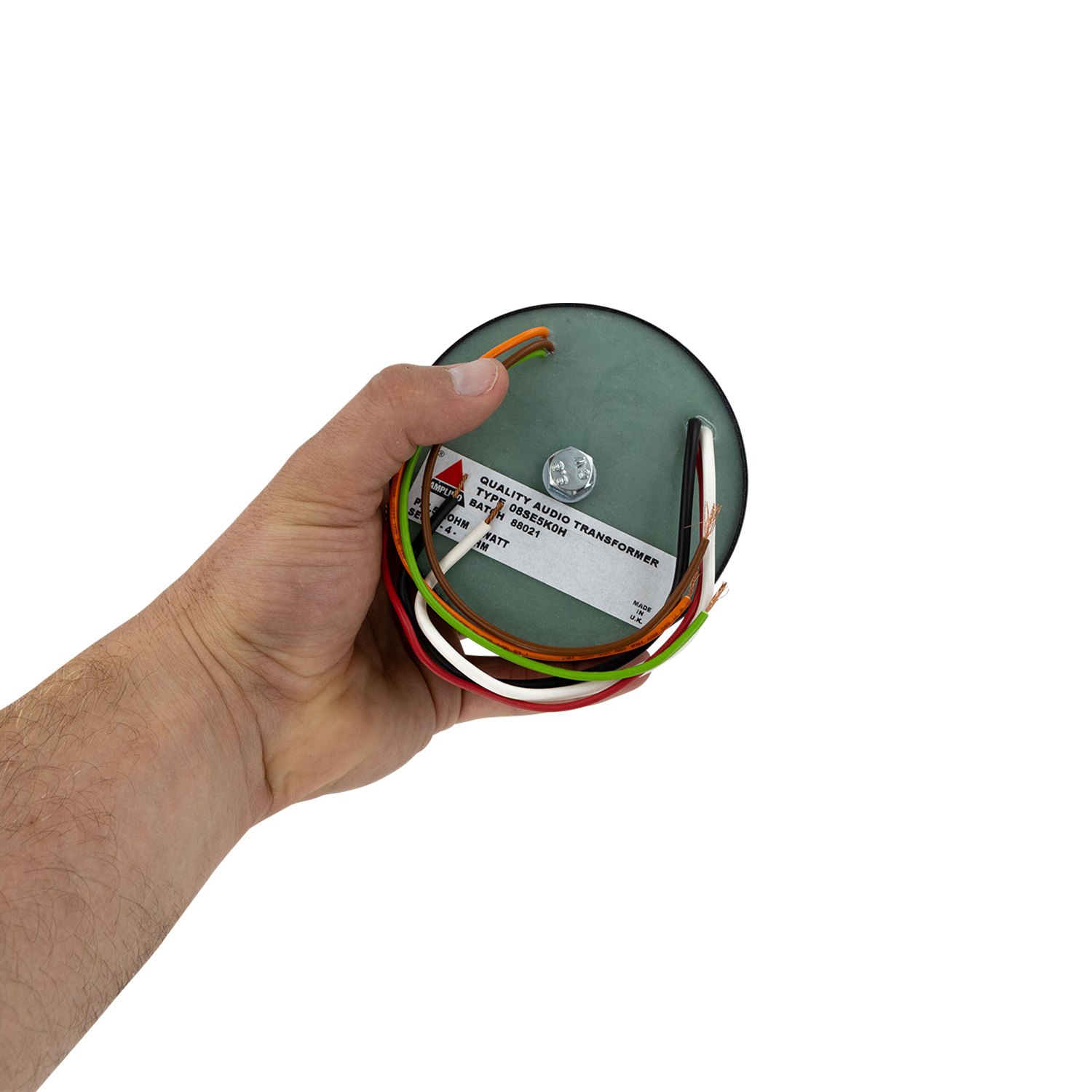

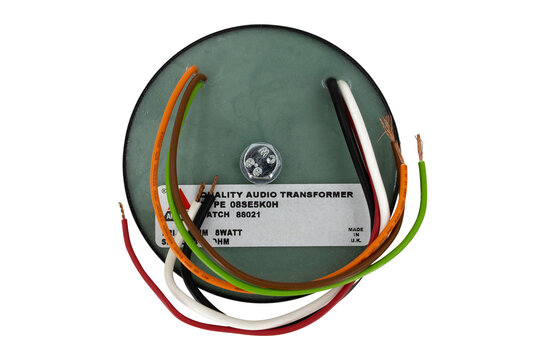

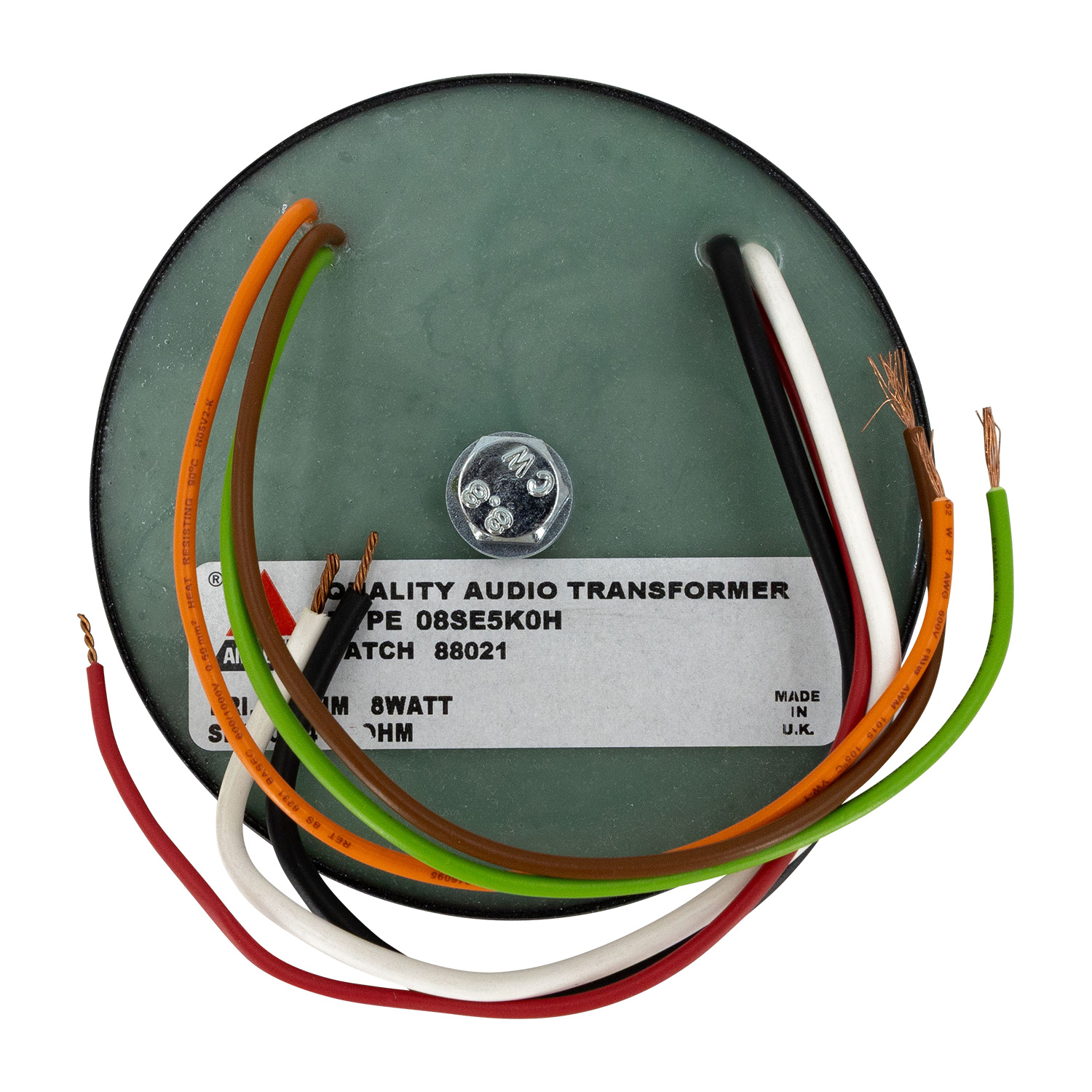

        The primary side provides an anode connection, a 40% UL tap and B+, while the secondary side offers 0, 4 Ω and 8 Ω outputs. Use only one secondary tap at a time, and insulate all unused wires with heatshrink for safe installation in your amplifier project or related amplifier accessories assembly.

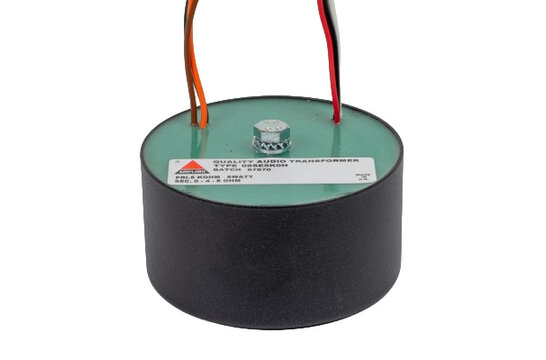

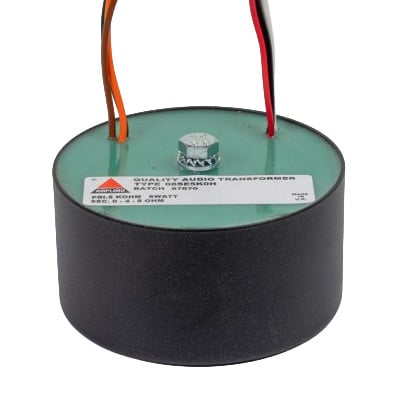

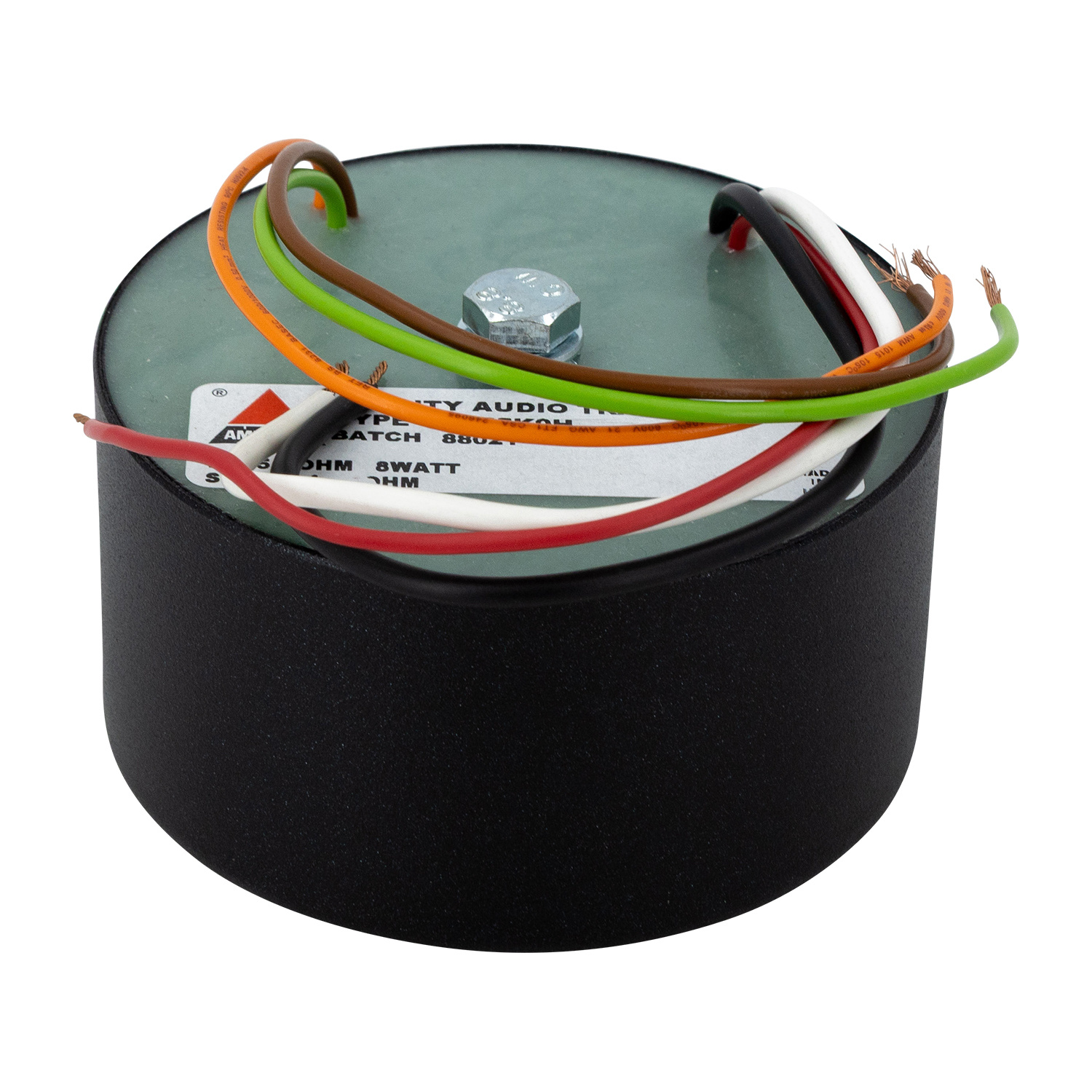

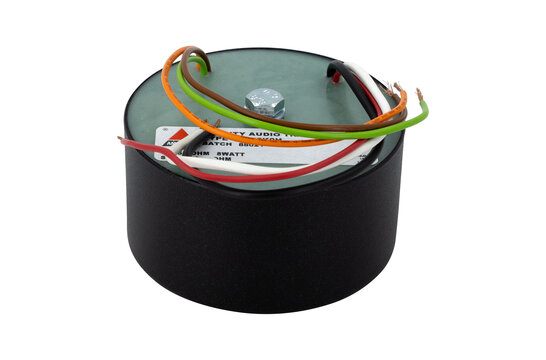

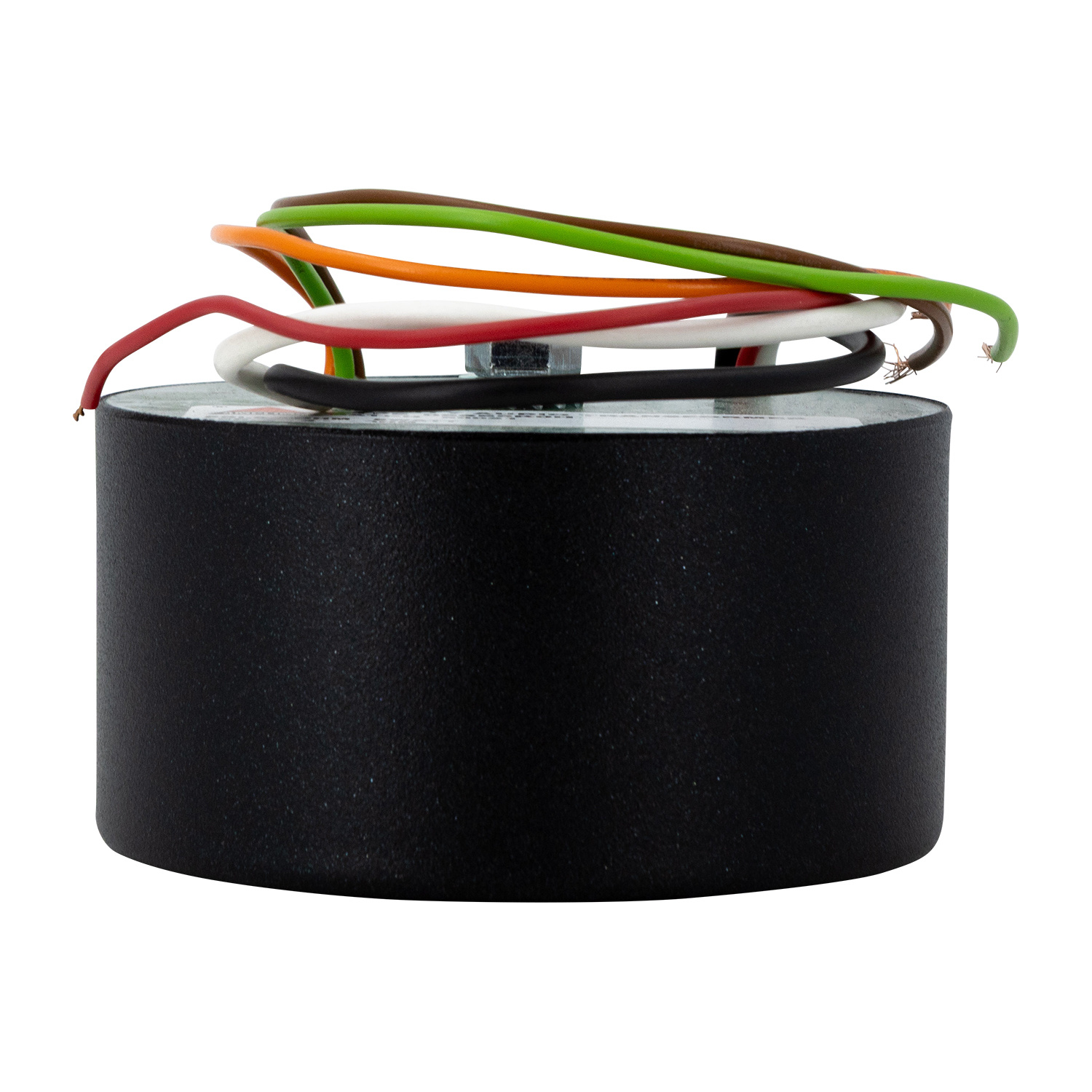

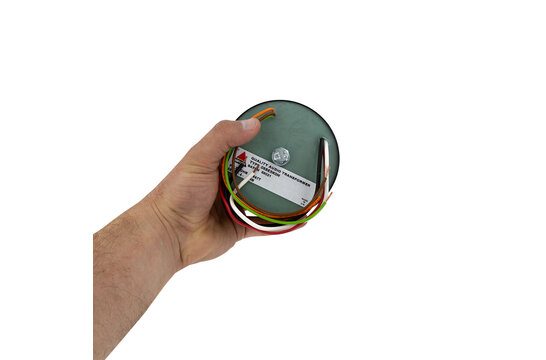

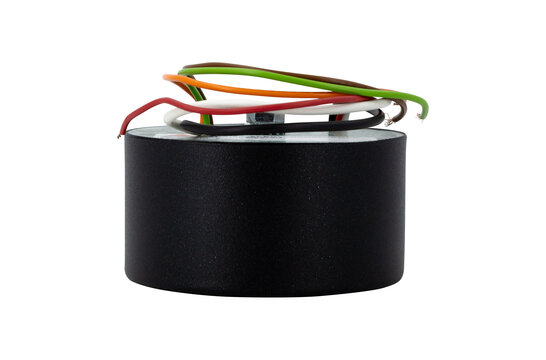

        The transformer is potted in a black textured aluminium shell and measures 106 mm in diameter by 55 mm high. It mounts with an M8x20 centre bolt, has 200 mm lead length and weighs 1.3 kg, giving it a robust mechanical format for secure integration into custom tube amplifier builds.

        Show more

        Specifications

        Article number
        08SE5K0H
        EAN
        9505512271913
        Transformer Type
        Toroidal tube output transformer
        Primary Impedance
        5000 Ω
        Secundary Impedance
        4 - 8 Ω
        Power Handling
        8 W
        Core Type
        Toroidal
        Inductance
        25 H
        Turns Ratio
        35.2 (4 Ω) - 24.9 (8 Ω)
        Frequency Response
        20.000 - 80.000 Hz
        # Mounting holes
        1
        Diameter
        106 mm
        Height
        55 mm
