        C168-6-890 Bass-midwoofer

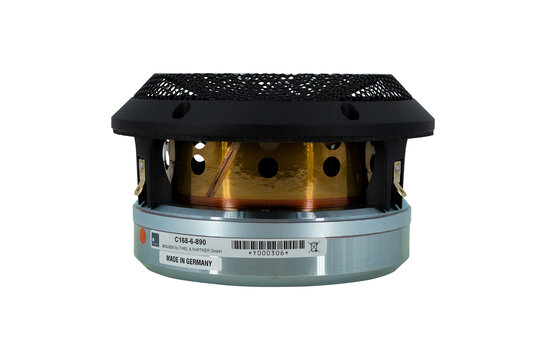

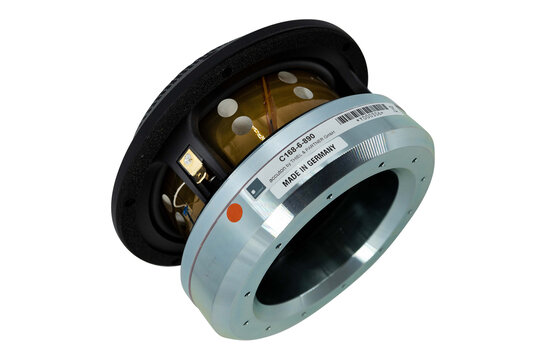

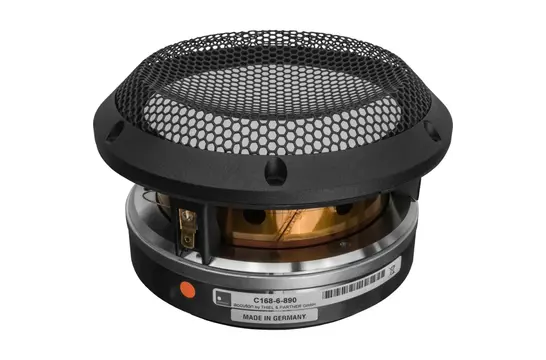

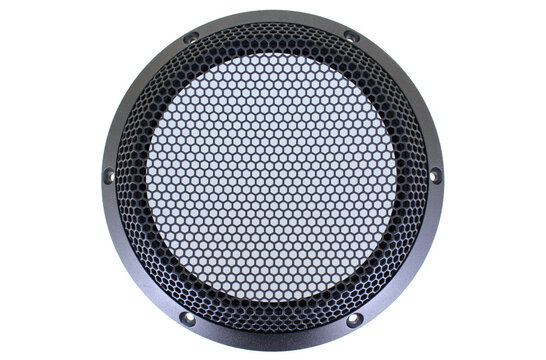

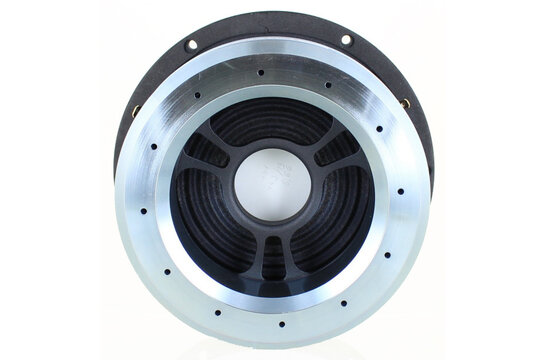

        Accuton C168-6-890 Bass-midwoofer

        €889,95 €1.099,95

        4 In stock

        Add to cart

        Accuton C168-6-890 Bass-midwoofer

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Accuton
        7" | 6 Ω
        C168-6-890 Bass-midwoofer
        C168-6-890 Bass-midwoofer
        C168-6-890 Bass-midwoofer
        C168-6-890 Bass-midwoofer
        C168-6-890 Bass-midwoofer
        C168-6-890 Bass-midwoofer
        C168-6-890 Bass-midwoofer
        C168-6-890 Bass-midwoofer
        C168-6-890 Bass-midwoofer
        C168-6-890 Bass-midwoofer
        C168-6-890 Bass-midwoofer
        C168-6-890 Bass-midwoofer
        € 909,05
        € 1.099,95
        € 735,50€ 889,95 4 In stock
        € 889,95
        +-
        Add to cart
        🔒 Secure payment
        MastercardVisaBank TransferCarte BancaireApple PayGoogle Paypaypal

        Buy now, pay later

        • We ship to
        • Ordered now, shipped on Monday
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        C168-6-890 Bass-midwoofer
        C168-6-890 Bass-midwoofer
        C168-6-890 Bass-midwoofer
        C168-6-890 Bass-midwoofer
        C168-6-890 Bass-midwoofer
        C168-6-890 Bass-midwoofer
        C168-6-890 Bass-midwoofer
        C168-6-890 Bass-midwoofer
        C168-6-890 Bass-midwoofer
        C168-6-890 Bass-midwoofer
        C168-6-890 Bass-midwoofer
        C168-6-890 Bass-midwoofer

        Pros and cons

        According to our specialists
        • Hear Every Detail
        • Deep Bass without Compromise
        • Advanced CELL Technology

        Product description Accuton C168-6-890 Bass-midwoofer

        The Accuton C168-6-890 Bass-midwoofer is a 168 mm ceramic CELL bass-midrange driver designed for demanding 2-way loudspeaker systems, combining controlled bass capability with refined midrange resolution and very low distortion.





        Highlights of the Accuton C168-6-890

        • Ceramic CELL bass-midrange design with extremely low distortion
        • Recommended operating range from 40 Hz to 3500 Hz in a vented enclosure
        • 114 mm copper voice coil with titanium former
        • ±5.0 mm linear excursion and 120 W power handling
        • Ideal acoustical center aligned with Accuton tweeters




        Product details Accuton C168-6-890

        Accuton C168-6-890 168 mm Ceramic Bass-midwoofer 6 Ohm



        The Accuton C168-6-890 takes a distinctive approach to high-end audio components with its full-featured CELL concept and ceramic dome construction. As a 168 mm bass-mid woofer, it is built to combine bass extension, bandwidth and midrange precision in one driver.



        Its construction separates the surround from the ceramic dome by attaching it to the voice coil former, helping prevent unwanted interaction with the dome while providing safe excursion limitation. The spider is mounted inside the 114 mm voice coil, supporting high excursion linearity and controlled movement.



        The proprietary motor system is designed so the rear side of the dome remains unobstructed, reducing the risk of reflections and stored energy. With 87 dB sensitivity, a 41 Hz resonance frequency, 15 litres Vas, Qts of 0.44 and a low 0.2 mH voice coil inductance, the C168-6-890 is engineered for clean, detailed output across its recommended 40 Hz to 3500 Hz range.



        This driver is especially well suited to premium 2-way systems where bass authority and midrange quality are equally important. Its ideal acoustical center is designed to match Accuton tweeters, making it a strong choice for advanced loudspeaker projects that demand coherent integration and uncompromised resolution.

        Show more

        Specifications

        Article number
        C168-6-890
        EAN
        9502669564622
        Woofer Series
        Cell Ceramic
        Woofer Type
        Bass-Mid woofer
        Nominal Diameter
        177.8 mm
        Power Handling (RMS)
        120 W
        Sensitivity (SPL at 1m / 2.83V)
        87 dB
        Frequency Response
        40 - 3500 Hz
        Voice Coil Diameter
        114 mm
        DC Resistance (Re)
        5.1 Ω
        Voice Coil Inductance (Le)
        0.2 mH
        Resonant Frequency (Fs)
        41 Hz
        Mechanical Q (Qms)
        4.42
        Electromagnetic Q (Qes)
        0.49
        Total Q (Qts)
        0.44
        Diaphragm Mass Inc. Airload (Mms)
        21 g
        Mechanical Compliance of Suspension (Cms)
        0.71 mm/N
        Surface Area of Cone (Sd)
        123 cm²
        BL Product (BL)
        7.5 N/A
        Compliance Equivalent Volume (Vas)
        15 L
        Maximum Linear Excursion (Xmax)
        ±5.0 mm
        Driver's Mechanical Losses (Rms)
        1.2 kg/s
        Cone / Diaphragm Material
        Ceramic
        Voice Coil Wire Material
        Cu
        Voice Coil Former
        Ti
        Overall Outside Diameter
        168 mm
        Overall Depth
        78 mm
        Baffle Cutout Diameter
        146 mm
        Mounting Hole Diameter
        4.00 mm

        Show more
