        AS190-4-251 8'' Cell Bass-midwoofer

        Accuton AS190-4-251 8'' Cell Bass-midwoofer

        €1.199,95

        4 In stock

        Add to cart

        Accuton AS190-4-251 8'' Cell Bass-midwoofer

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Accuton
        Show all Mid-range woofer
        8'' | 4 Ω
        AS190-4-251 8'' Cell Bass-midwoofer
        AS190-4-251 8'' Cell Bass-midwoofer
        AS190-4-251 8'' Cell Bass-midwoofer
        AS190-4-251 8'' Cell Bass-midwoofer
        AS190-4-251 8'' Cell Bass-midwoofer
        AS190-4-251 8'' Cell Bass-midwoofer
        AS190-4-251 8'' Cell Bass-midwoofer
        AS190-4-251 8'' Cell Bass-midwoofer
        AS190-4-251 8'' Cell Bass-midwoofer
        AS190-4-251 8'' Cell Bass-midwoofer
        AS190-4-251 8'' Cell Bass-midwoofer
        AS190-4-251 8'' Cell Bass-midwoofer
        AS190-4-251 8'' Cell Bass-midwoofer
        AS190-4-251 8'' Cell Bass-midwoofer
        € 991,69€ 1.199,95 4 In stock
        • -5% Purchase 4 for only € 1.139,95 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Same day shipping
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        AS190-4-251 8'' Cell Bass-midwoofer
        AS190-4-251 8'' Cell Bass-midwoofer
        AS190-4-251 8'' Cell Bass-midwoofer
        AS190-4-251 8'' Cell Bass-midwoofer
        AS190-4-251 8'' Cell Bass-midwoofer
        AS190-4-251 8'' Cell Bass-midwoofer
        AS190-4-251 8'' Cell Bass-midwoofer
        AS190-4-251 8'' Cell Bass-midwoofer
        AS190-4-251 8'' Cell Bass-midwoofer
        AS190-4-251 8'' Cell Bass-midwoofer
        AS190-4-251 8'' Cell Bass-midwoofer
        AS190-4-251 8'' Cell Bass-midwoofer
        AS190-4-251 8'' Cell Bass-midwoofer
        AS190-4-251 8'' Cell Bass-midwoofer
        AS190-4-251 8'' Cell Bass-midwoofer
        AS190-4-251 8'' Cell Bass-midwoofer

        Product description Accuton AS190-4-251 Cell Bass-midwoofer

        The AS190-9-252 is an 8 inch bass driver with aluminum honeycomb sandwich dome, being the first in an entirely new approach to accuton speaker design. An ideal acoustical center has been achieved, which is identical with our CELL tweeters and midranges.



        Highlights

        • power handling (continuous/programme) = 250 W
        • frequency range = 30-1000 Hz
        • resonance frequency fs = 33,4 Hz
        • impedance R = 12 Ohm
        • sound pressure level SPL = 84 dB (2,83V; 1m)
        • DC resistance Re = 8,6 Ohm
        • force factor BL = 13,5 N/A
        • voice coil inductance L = 1,05 mH
        • effective piston radiating area Sd = 202 cm2
        • effective mechanical mass incl. air load mms = 49,4 g
        • equivalent volume of compliance Vas = 26,7 l
        • total Q factor Qts = 0,44 (Qms=4,75, Qes=0,49)
        • voice coil diameter = 78 mm
        • maximum peak linear excursion vibration xlin = +/- 9 mm
        • mounting diameter d = 170 mm
        • overall diameter d = 190 mm
        • mounting depth (not countersunk) t = 137 mm
        • mass m = 7 kg



        Product details

        Accuton AS190-4-251 8'' Bass-midwoofer-range

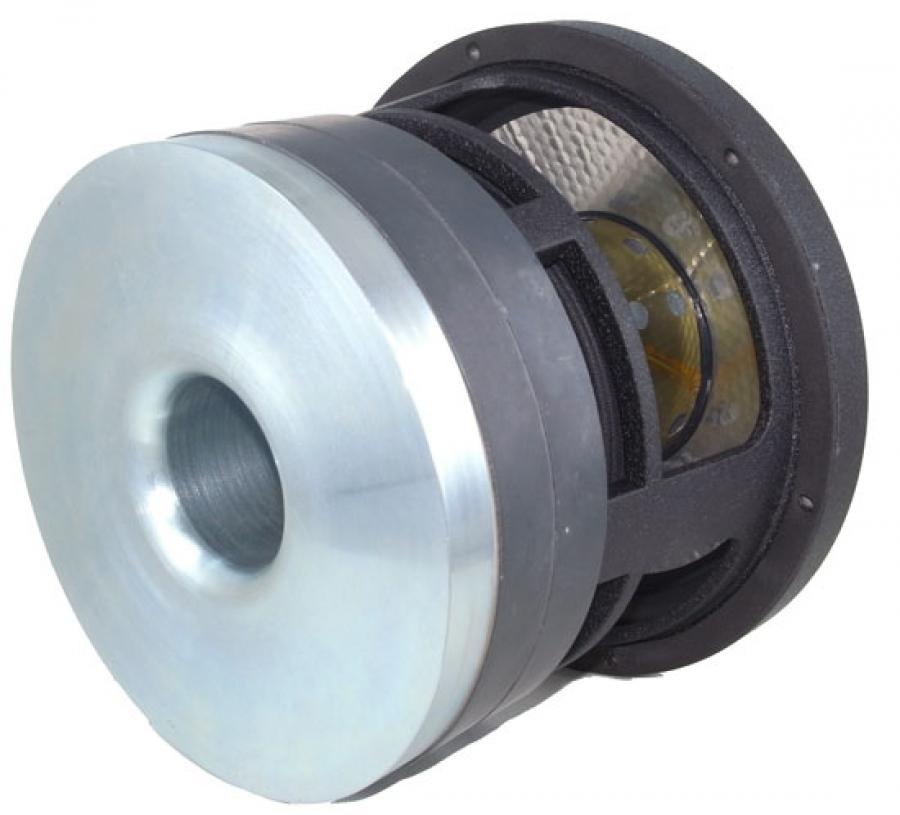

        Its novel designed overhung motor combines the advantages of traditional over- and underhung designs, delivering high linear excursion and ultra low distortion. An exceptionally hard aluminum sandwich dome was developed for the CELL bass drivers that allows for negligible delay and energy storage. The hidden surround serves for reduced outer diameter and linear excursion of +/- 16mm. A new developed spider shape makes huge excursion without compression possible.



        The speaker has a diameter of 190 mm and is designed for use in high-end audio systems. The new design of the speaker allows for a more accurate sound reproduction with minimal distortion. The speaker has a rear-ventilated voice coil and is recommended for use in applications from 30 Hz - 1000 Hz. The overall diameter of the speaker is 190 mm, while the hole cutout is 170 mm. The minimum front panel thickness should be 16 mm, while the overall height of 137 mm. The magnet height is 52 mm.

        Show more

        Specifications

        Article number
        AS190-4-251
        EAN
        8785256847433
        Woofer Type
        Bass-Midwoofer
        Power Handling (RMS)
        250 Watts
        Impedance (Z)
        12 Ω
        Sensitivity (SPL at 1m / 2.83V)
        84 dB
        Frequency Response
        30-1000 Hz
        Voice Coil Diameter
        78 mm
        Voice Coil Inductance (Le)
        1.05 mH
        Resonant Frequency (Fs)
        33.4 Hz
        Mechanical Q (Qms)
        4.75
        Electromagnetic Q (Qes)
        0.49
        Total Q (Qts)
        0.44
        Diaphragm Mass Inc. Airload (Mms)
        49.4 g
        Mechanical Compliance of Suspension (Cms)
        0.46 mm/N
        Surface Area of Cone (Sd)
        202 cm²
        BL Product (BL)
        13.5 N/A
        Compliance Equivalent Volume (Vas)
        26.7 Liters
        Maximum Linear Excursion (Xmax)
        +/- 9 mm
        Driver's Mechanical Losses (Rms)
        2.18 kg/s
        Overall Outside Diameter
        190 mm
        Overall Depth
        137 mm
        Baffle Cutout Diameter
        170 mm
        # Mounting Holes
        6
        Mounting Hole Diameter
        4.5 mm
