TPA3116D2 2x50W Class D Stereo Amplifier Board with Volume Control

In stock

  • Article code: 320-699
  • Stock: 4 In stock

The TPA3116D2 2 x 50W Class-D stereo audio amplifier features high-quality sound reproduction and volume control with anti-pop on/off switch.

€ 16,95 Incl. 21% VAT

  • Buy 4 for €16,10 each and save 5% Sale 5%

Add to wishlist

  • Low international shipping rates Tooltip

    Find all shipping rates and free shipping thresholds here

  • Same day shipping
  • 45-days the right to cancel
  • International payment options

Product description

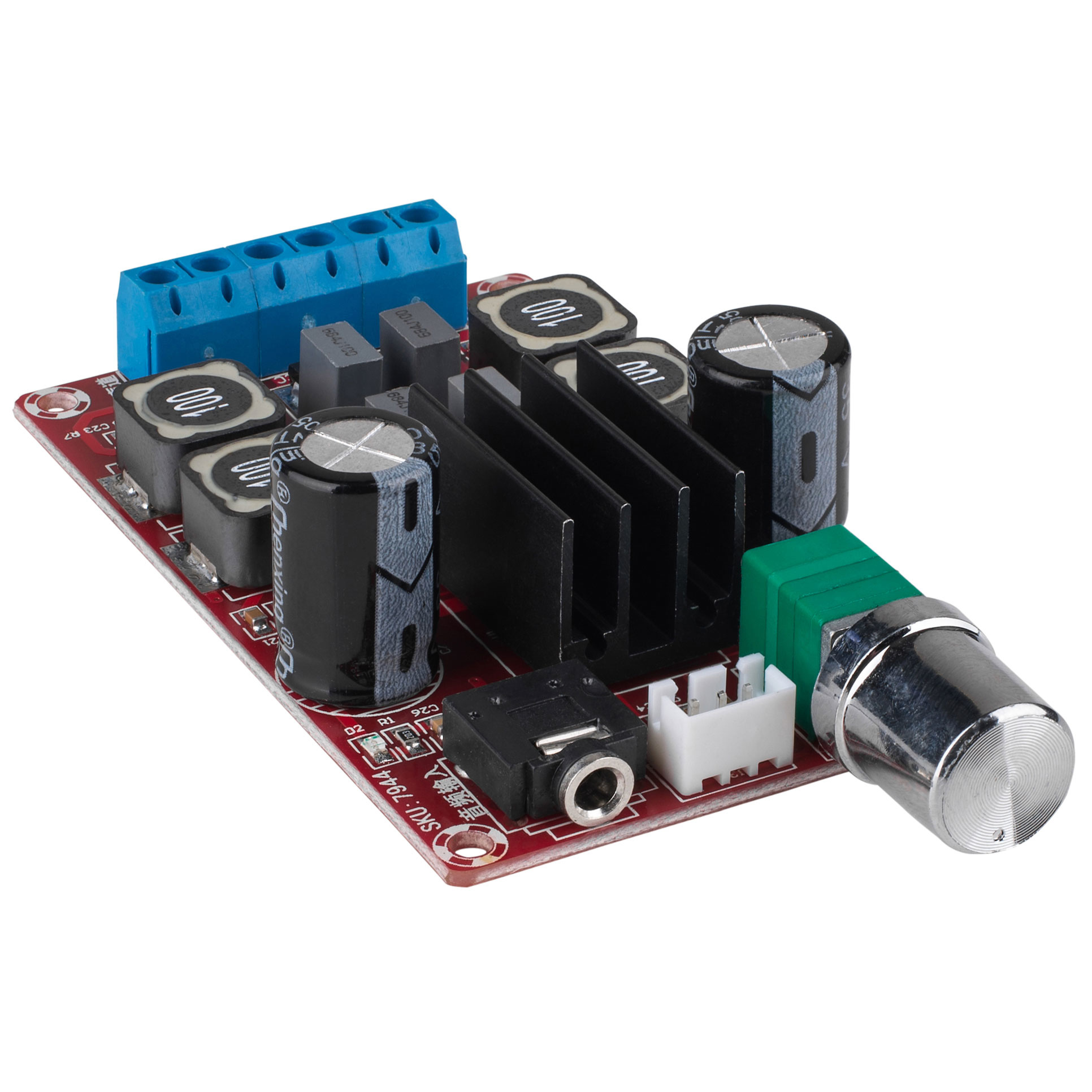

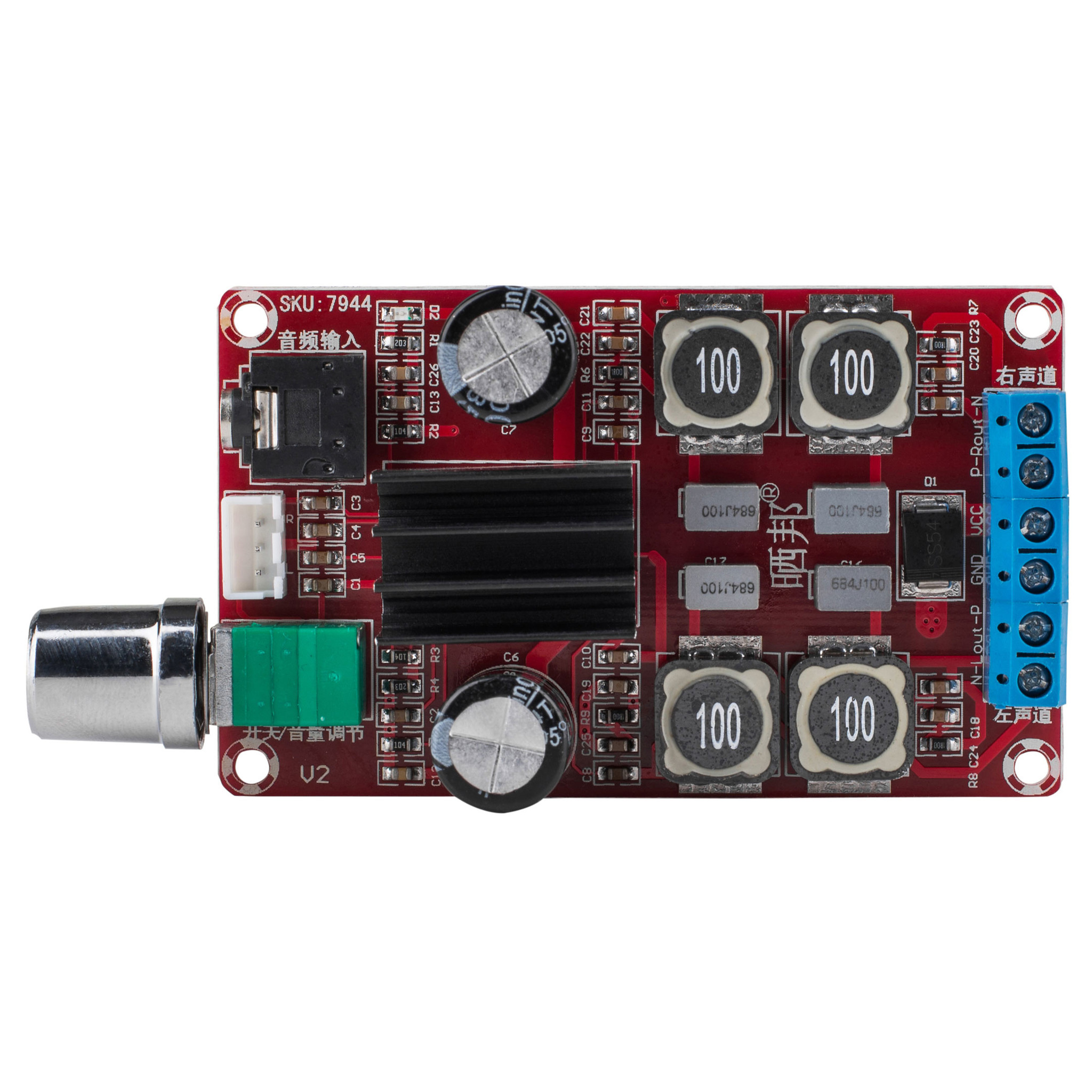

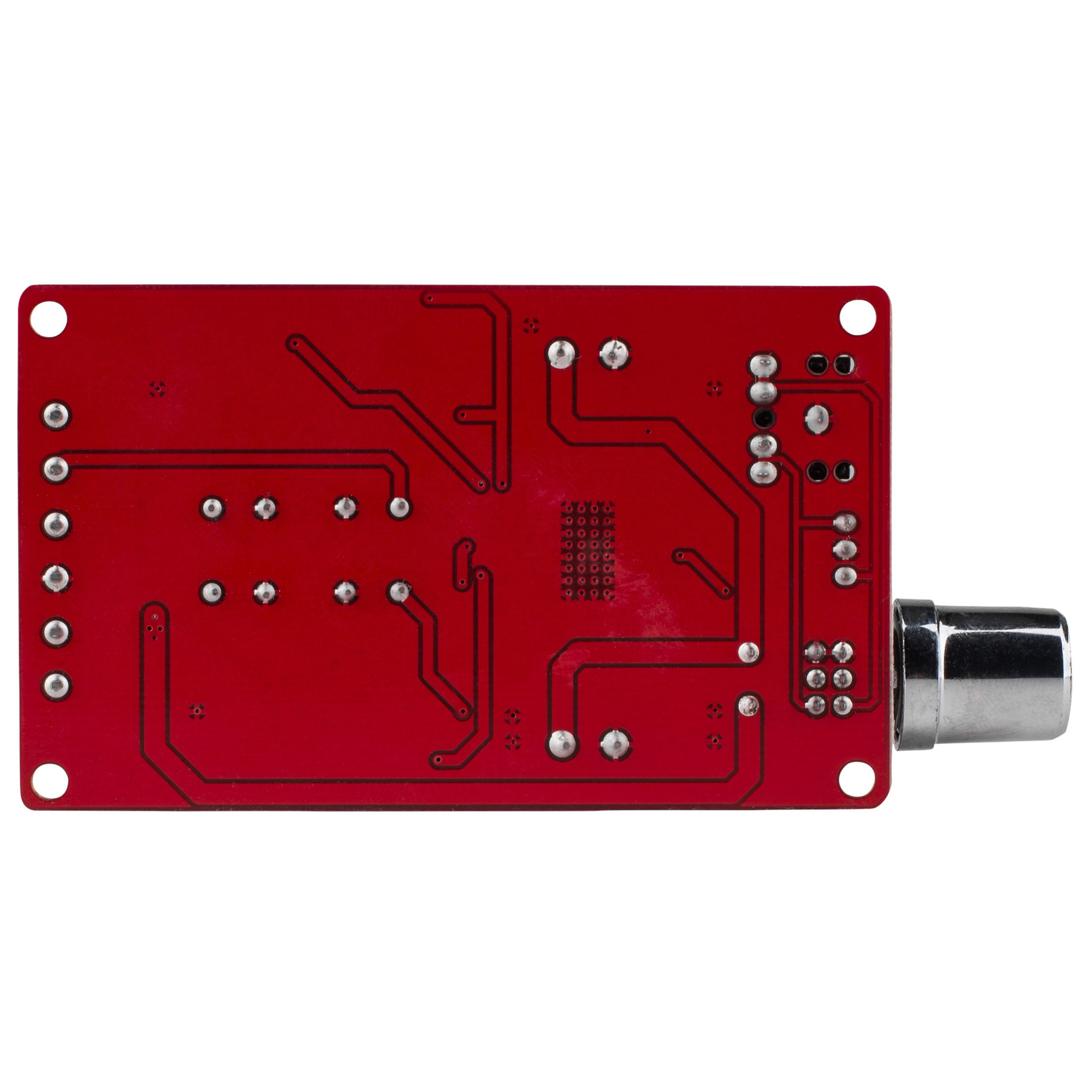

TPA3116D2 2x50W Class D Stereo Amplifier Board with Volume Control

The TPA3116D2 2 x 50W Class-D stereo audio amplifier features high-quality sound reproduction and volume control with anti-pop on/off switch.



Highlights

  • 5 mm audio input jack or 3-pin socket with cable for versatility
  • Wide input voltage from DC 5V to 24V
  • Built-in reverse power supply protection and speaker output short-circuit protection

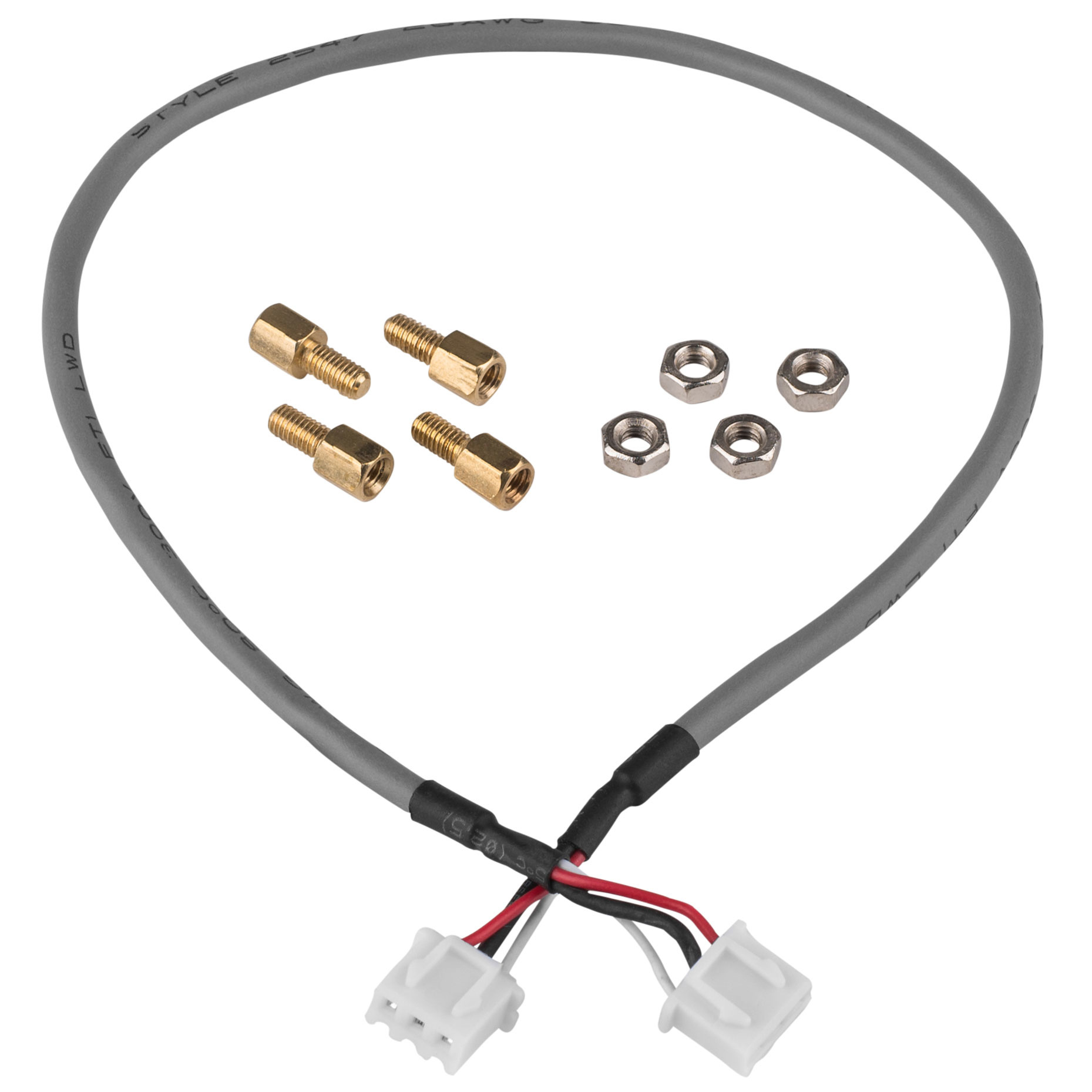

  • Includes shaft nut, washer, four 0.2" (4 mm) standoffs, and knob for a professional looking finish
  • Power and speaker phoenix jacks for quick installation



Product Details

TPA3116D2 2x50W Class D Stereo Amplifier Board with Volume Control



The board's design, with the popular TPA3116 chip, delivers Class D efficiency and high-quality clean sound reproduction. Pause the music and notice no hiss or hum. Turn the amp board on/off, with the included volume control, and observe no popping noise. This board delivers quality sounding music when it's playing, and is quiet as a mouse when the music stops.



Make your own power amp or amplified speaker with this two-channel 100W amplifier board. The board features over-current, thermal, and short circuit protection making it perfect for audio projects. Its compact size makes it ideal for inclusion in OEM products or store displays.

Specifications

Specifications for: TPA3116D2 2x50W Class D Stereo Amplifier Board with Volume Control

  • Rated power output SPEC Rated power output 2 x 50W @ 4 ohms
  • Minimum load Shows the minimum load that an amplifier can control in ohms. A lower impedance of a speaker is not recommended if it is lower than the minimum impedance of an amplifier. An amplifier works best when the impedance of the speaker falss within the impedance range that the amplifier prescribes (for example, 4 to 8 ohms). 4 ohms
  • Efficiency SPEC Efficiency
  • Signal-to-noise ratio (SNR) Shows the strength level of signal power compares to a level of noise power. Generally, higher values ​​means better specification. 100 dB
  • Distortion Measured in Total Harmonic Distortion + Noise (THD+N). The lower this figure, the closer the output of the amplifier will sound to the original recording.
  • View all specifications
  • Frequency response 20 to 20,000 Hz
  • Gain
  • Input sensitivity
  • Input impedance
  • Amplifier Classification Class D
  • Circuit Topology TPA3116
  • Speaker output channels Two-channel stereo
  • Input connection type 3.5 mm stereo jack or 3-pin socket
  • Speaker output connection type
  • DSP function
  • Bluetooth
  • EQ Adjustment
  • Power Requirements 5-24 VDC (12-19 VDC for best results)
  • Power inlet connector 12" (30 cm) 3-pin female to female
  • Current limit
  • Under/over voltage protection
  • Dimensions (L x W x H) 84 x 51 x 24 mm (shaft size 14 x 6 mm)
  • Mounting hole spacing
  • Mounting hole diameter
