    Banana Plug Pair Compression Type

    € 12,95 8 In stock: delivery time 1-4 business days
    Very high quality gold banana plug set. Knurled barrel and compression nut with floating "slug". The floating "slug" allows tight wire compression without the twisting effect on the wire strands that other compression connectors have.... Show more
    Bulk discount Enjoy these awesome discount deals
    • -5% Order 4 for only €12,30 per piece
    • Shipping always fully insured and with track & trace
    • Low international shipping rates
    • Same day shipping*
    • In-house technical support

    Product description

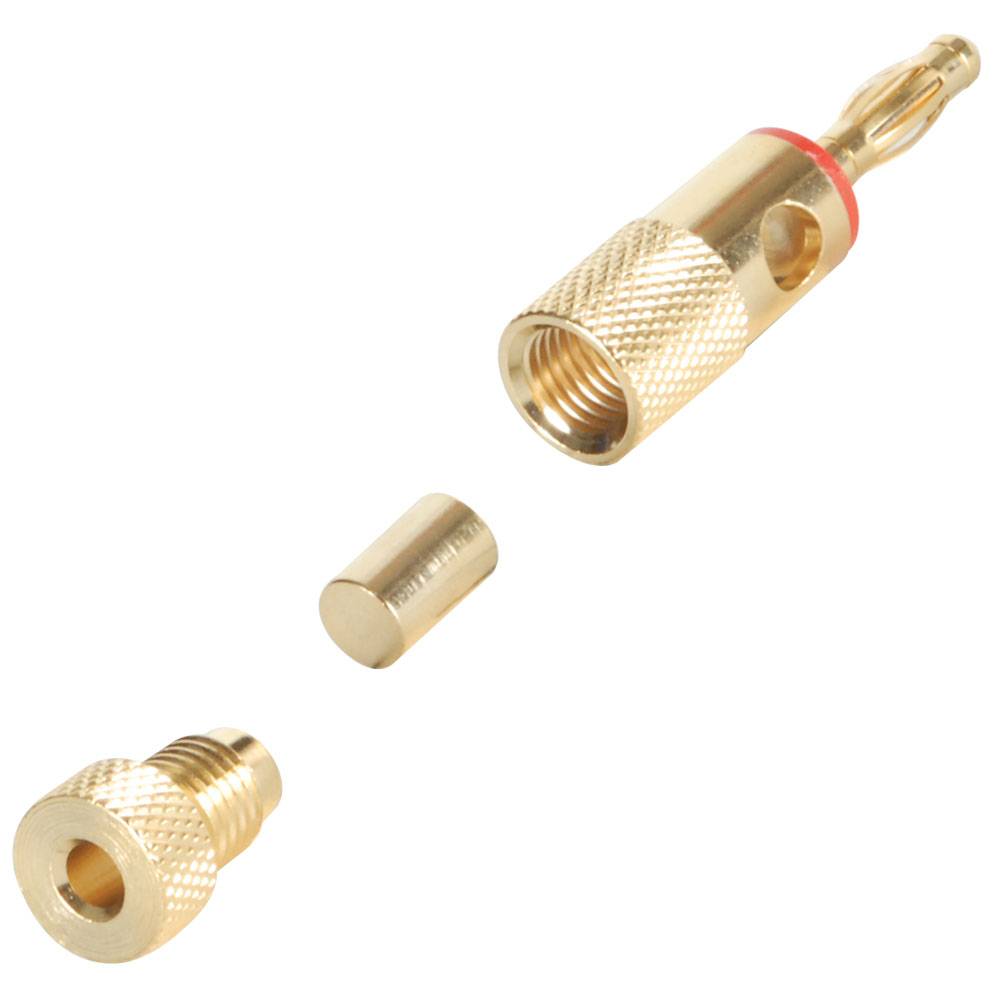

    Very high quality gold banana plug set. Knurled barrel and compression nut with floating "slug". The floating "slug" allows tight wire compression without the twisting effect on the wire strands that other compression connectors have.



    Product details

    Banana Plug Pair Compression Type

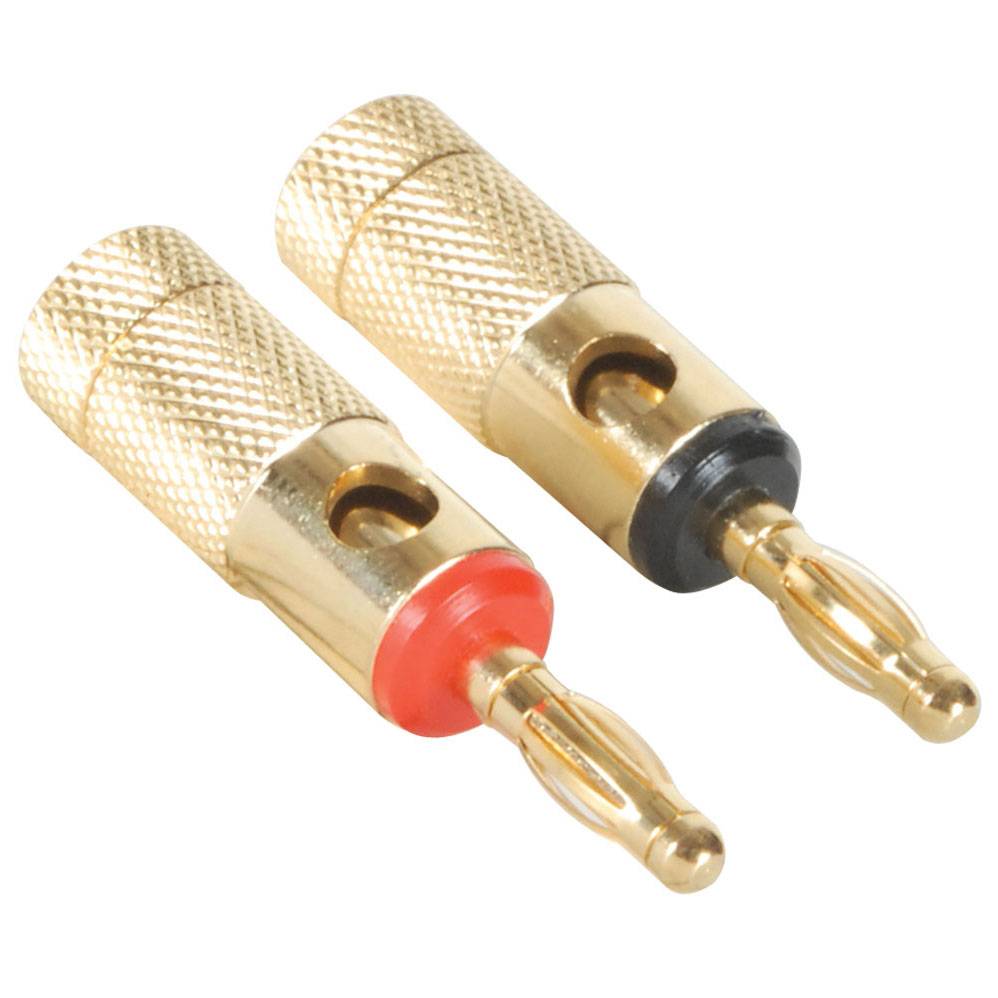

    Very high quality gold banana plug set. Knurled barrel and compression nut with floating "slug". The floating "slug" allows tight wire compression without the twisting effect on the wire strands that other compression connectors have. Side-entry accepts up to 10 gauge wire while the rear-entry accepts up to 12 gauge wire. Also accepts rear-entry banana plugs for stacking. Overall dimensions: 1-7/8" L x 7/16" W. Sold in pairs: 1-red and 1-black per package.



    Instructions: Side entry cable installation: Loosen rear compression screw in counter clockwise fashion to expose side opening on banana plug. Remove approximately 5/16" of insulation from speaker cable. Insert exposed wire (up to 10 AWG) into side opening. Tighten rear compression screw to secure wire. Rear entry cable installation: Remove rear compression screw and compression slug from banana plug. Remove approximately 1/4" of insulation from speaker cable. Insert speaker cable into rear compression screw. Fan wire (up to 12 AWG) and fold conductors over the rear compression screw. Ensure that conductors do not interfere with rear compression screw threads. Insert compression slug first into the banana plug. Install rear compression screw securing cable to banana plug.



    PRODUCT SPECIFICATIONS

    Style / Type

    Single

    Contact Plating

    Gold



    Specifications

    Article number
    091-330

    Reviews

    5 from 5Based on 1 reviews
    Review this product
    5 van 5
    Zeer goede pluggen, gemakkelijk aan te sluiten. Ik ben er zeer tevreden mee.
    By Jan v. on 4 April 2018
