2.1 x 5.5mm DC Coaxial Power Panel Mount Jack

0 reviews

Show all Power plugs

Compare

2.1 x 5.5mm DC Coaxial Power Panel Mount Jack

€ 2,85€ 3,45 4 In stock: delivery time 1-4 business days

24h express shipping available
Low international shipping rates
Same day shipping
In-house technical support

Do you have a question about this product?

Our employee is happy to help you find the right product

Product description

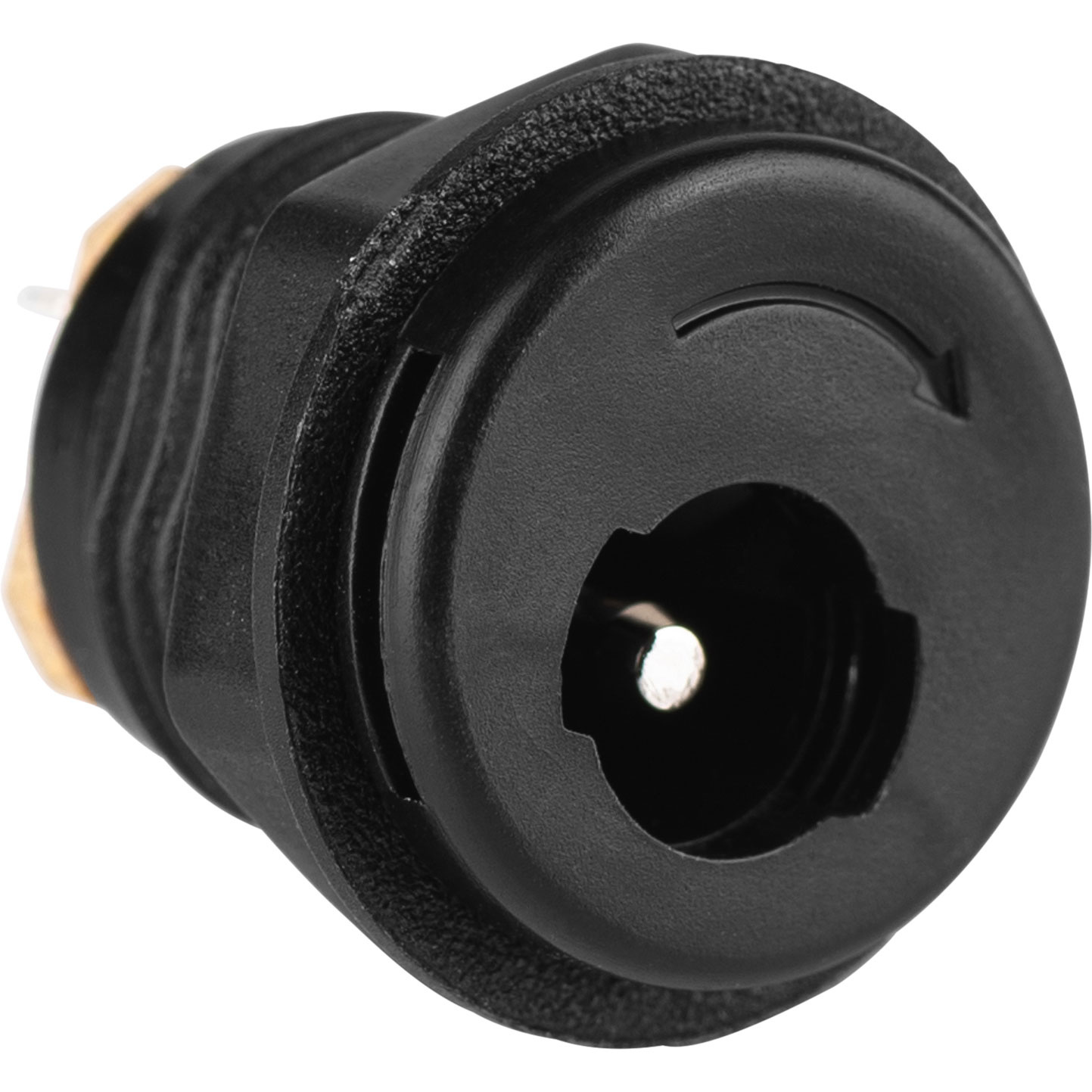

This 2.1 x 5.5 mm DC coax jack has an internal switch that disconnects other power sources when the AC adapter is plugged in. Its 0.33" long shaft thread mounts in panels up to 0.25" thick.

Highlights

Long 1/3" shaft thread for mounting in up to 1/4" thick panels
Internal switch for disconnecting other power sources when an AC adapter is used
Locking socket for optional locking plugs
Fits common 2.1 x 5.5 mm plugs on AC/DC power adapters

Product Details

2.1 x 5.5mm DC Coaxial Power Panel Mount Jack with Internal Switch and Locking Option

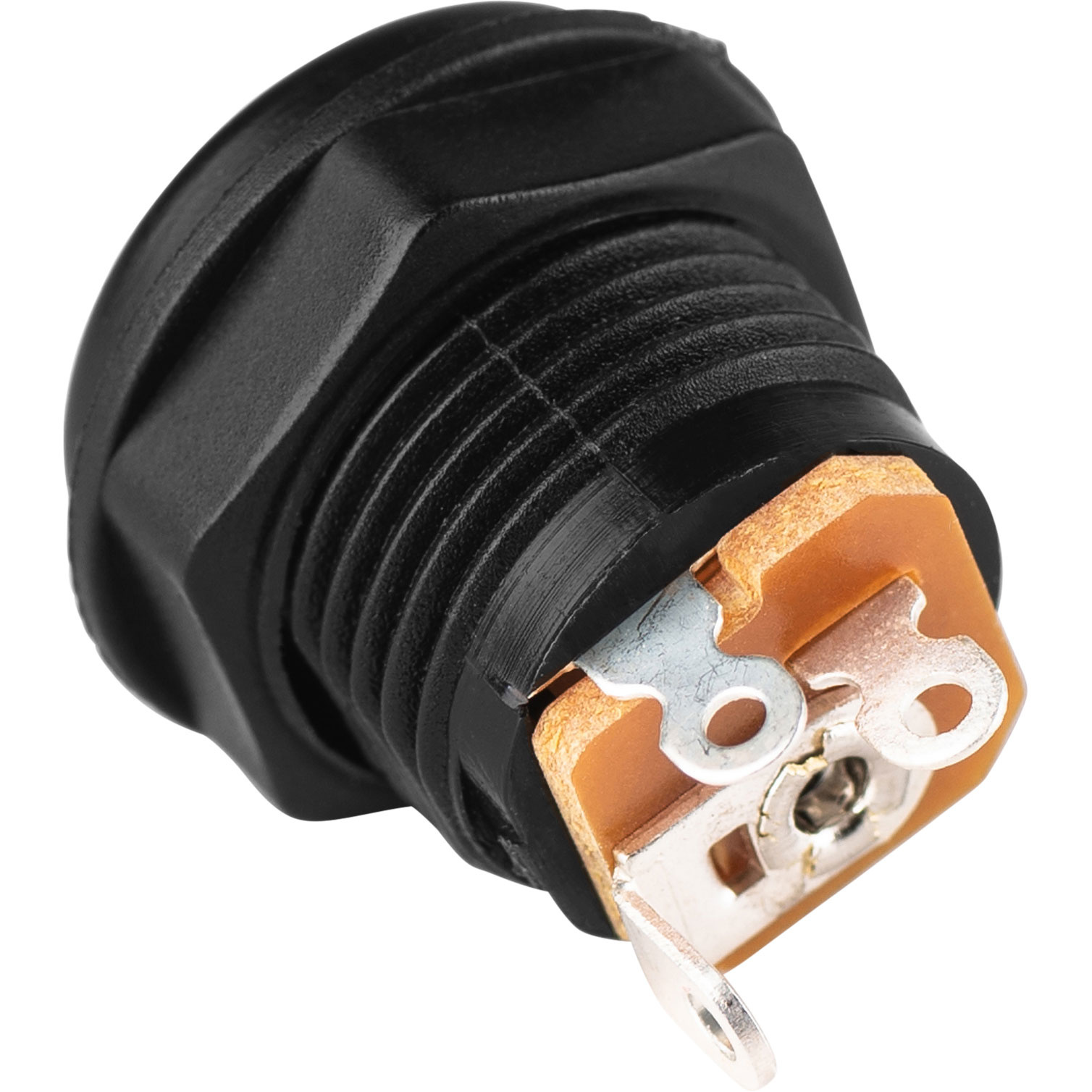

This 2.1 x 5.5 mm DC plug has a built-in switch for disconnecting battery packs when an AC/DC adapter is used. Many products require the use of only alkaline batteries for power. This jack, when wired properly, disconnects the batteries when an AC/DC power adapter is plugged in preventing the batteries from accidently being recharged. Non-rechargeable batteries get extremely hot, leak, and damage equipment if charged. The two smaller (-) terminals (tip positive circuit) on the DC jack separate when a 2.1 x 5.5 mm plug is inserted.

The DC jack's 0.336" (8.5 mm) long threaded shaft mounts in holes up to 0.477" (12.07 mm) in diameter and 0.25" (6.75 mm) thick. Total outer diameter is 0.55" without nut. This enables it to fit into 0.25" wood projects. The jack comes with a mounting nut 0.63" outer Dia. x 0.17" thick (16 x 4.3 mm). Mounting terminals are 0.12" W x 0.15" H x 0.02" D.
