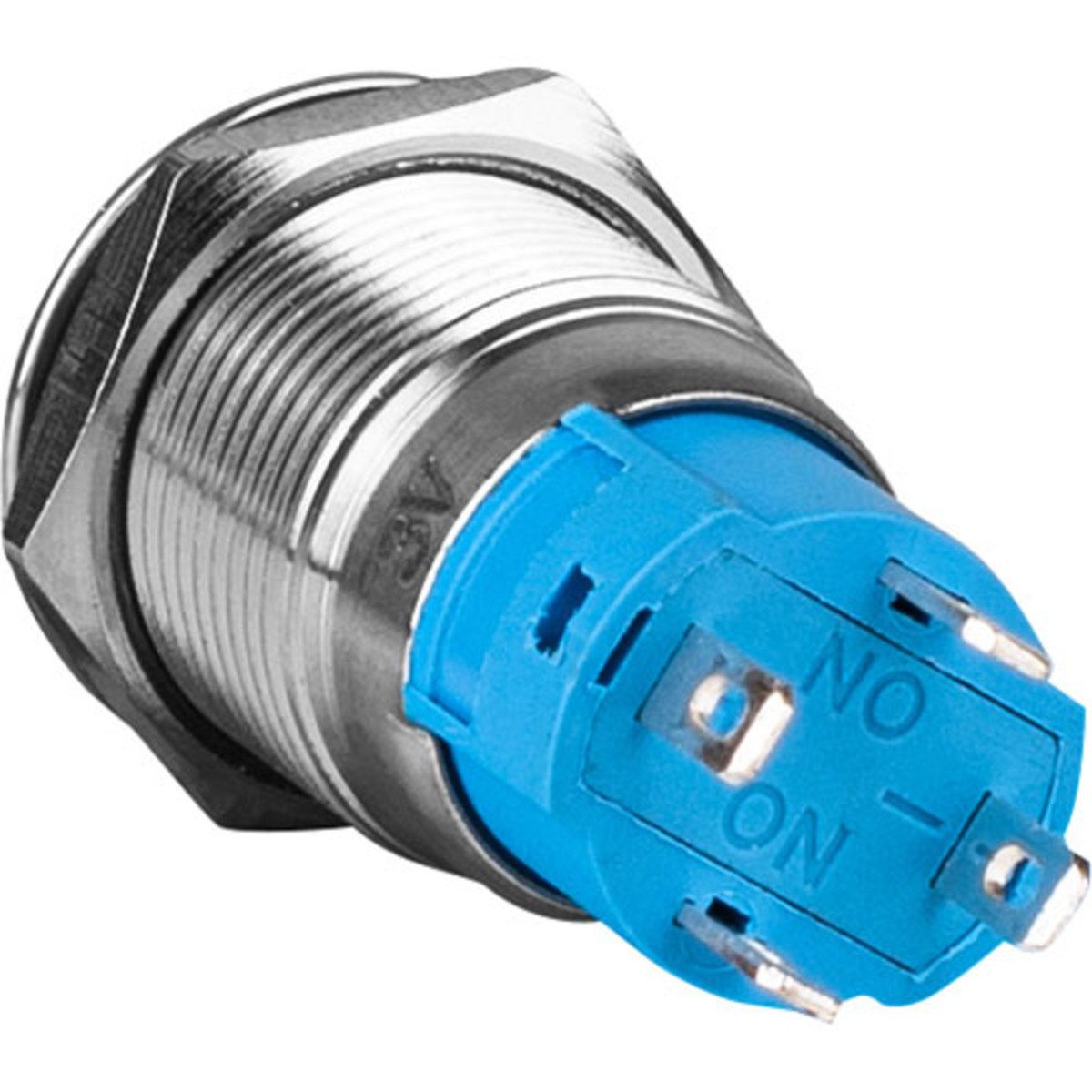

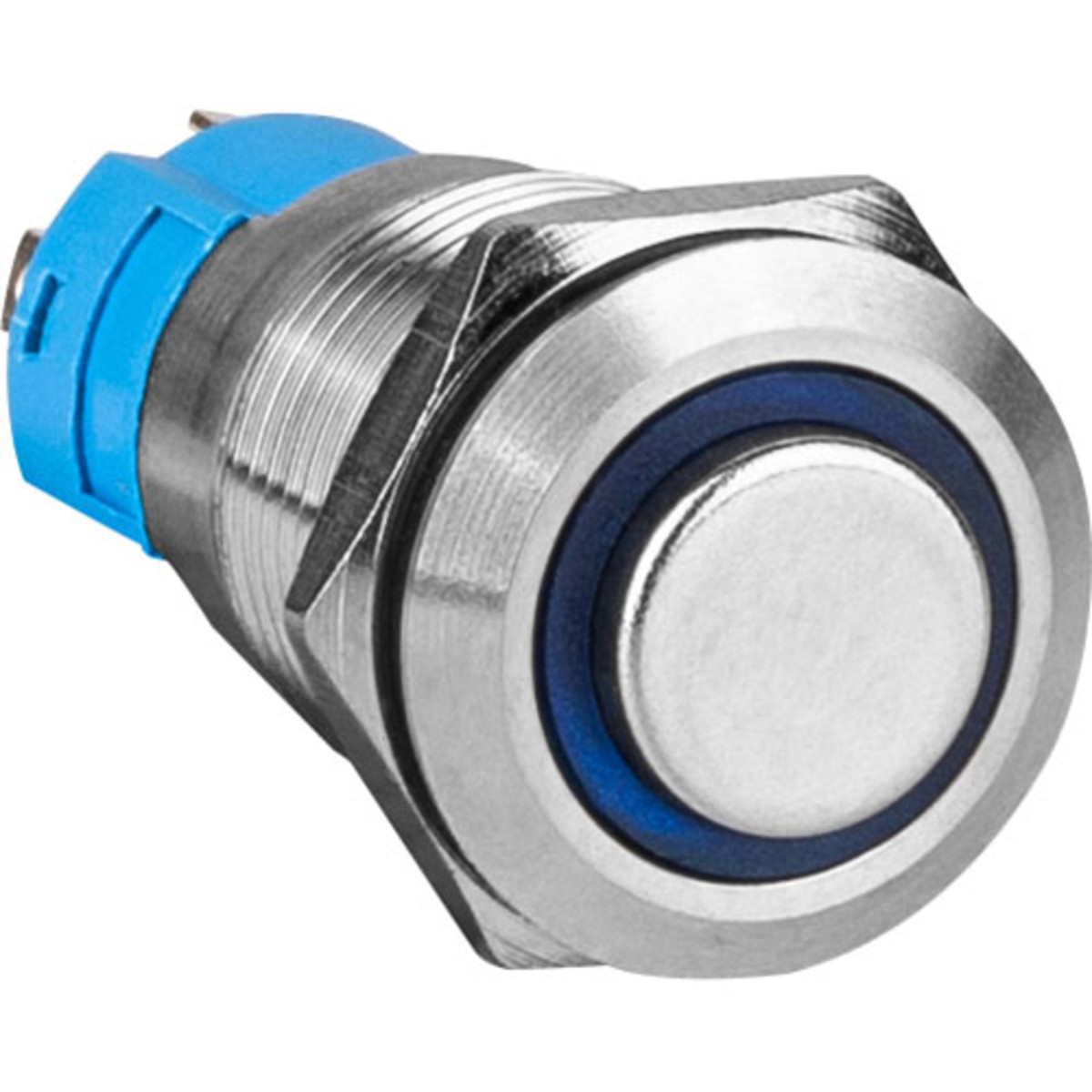

SPST N.O. 12mm Waterproof Raised Push Button Switch

0 reviews

Show all Switches

Compare

5A

SPST N.O. 12mm Waterproof Raised Push Button Switch

€ 5,74€ 6,95 4 In stock

24h express shipping available
Ordered now, shipped today
In-house technical support
45 days worry-free returns

Request quotation

Do you have a question about this product?

Our employee is happy to help you find the right product

Product description

Use this heavy duty, Stainless steel, anti-vandal push button N.O. switch for outdoor and other extreme condition applications. It has a built-in blue LED light ring for 3 VDC applications or higher voltage applications with added resistor (sold seperately).

Highlights

Popular for use in kiosk applications, ticket dispensers, automotive, and industrial-type applications
Stainless steel body and IP67 rating for extreme conditions
Built-in 3 VDC blue ring illumination for low lit areas and connection identification
RoHS certified
Includes rubber washer for IP67 rating
Easily mounts in 1/2" hole with included shaft nut
+ and - symbols on the switch body for polarity identification for the built-in LED

Product Details

SPST NO Momentary 12mm Stainless Steel Tamper/Waterproof Raised Push Button Switch with Blue Ring

This anti-vandal pushbutton switch is popular for use in kiosk applications, ticket dispensers, automotive, and industrial-type applications. The stainless steel body and push button stay looking great even with heavy duty use. The switch has an IP67 waterproof rating for extreme conditions indoors or outdoors when used with included rubber washer. This switch has a built-in 3 VDC blue LED light for locating in low lit areas and power identification. Use appropriate resistor for voltages higher than 3V.

Specifications: Built-in blue LED rating: 3 VDC • Switch rating: 1.5 to 250 VAC/DC and up to 5A • Raised switch total size without terminals: 0.92" L x 0.54" Dia. • Metal thread size: 0.47" Dia. x 0.40" L • Button size: 0.3" Dia. x 0.06 H • Terminal size: 0.08" W x 0.16" L x 0.02" D.
