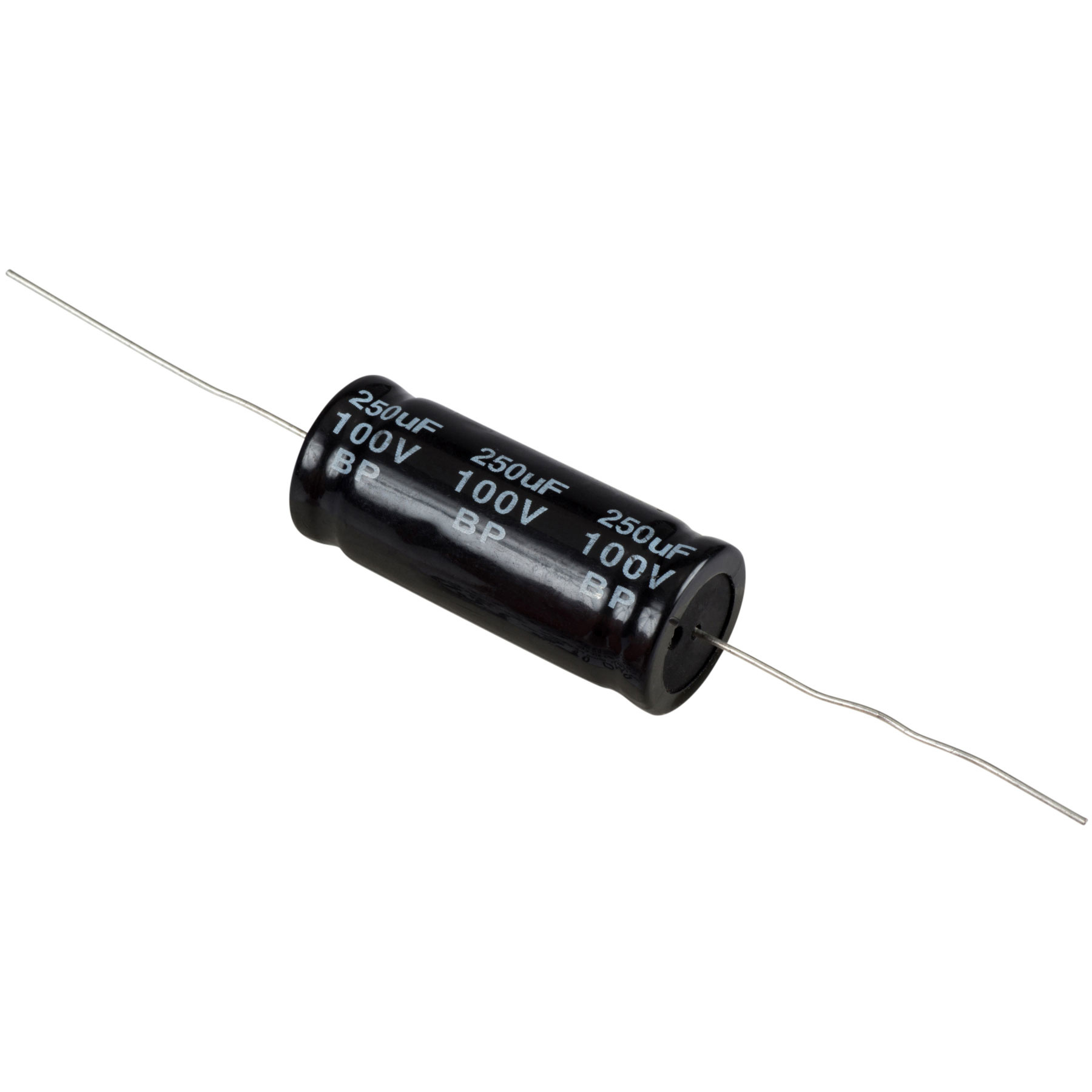

Electrolytic Non-Polarized Cap | 250 µF | 10% | 100V

  • Article code: 027-370
  • Stock: 4 In stock

These high quality bi-polar (non-polarized) electrolytic capacitors are perfect for your next crossover design. They feature a 5% dissipation factor and are rated at 100V which are effective to approximately 200 watts.

€ 5,95 Incl. 21% VAT

  • Buy 4 for €5,65 each and save 5% Sale 5%
  • Buy 10 for €5,36 each and save 10% Sale 10%

Add to wishlist

  • Low international shipping rates Tooltip

    Find all shipping rates and free shipping thresholds here

  • Same day shipping
  • 45-day money back guarantee
  • International payment options

Product description

Electrolytic Non-Polarized Cap | 250 µF | 10% | 100V

Highlights

  • 250 microfarad value
  • 18 mm diameter x 44 mm long
  • 5% dissipation factor and 100 VDC working voltage
  • ±10% tolerance



Product Details

Electrolytic Non-Polarized Cap | 250 µF | 10% | 100V



Electrolytic non-polarized (bi-polar) capacitors are perfect low-cost solutions for use in passive speaker crossovers. These capacitors feature axial leads, a 5% dissipation factor, and are rated at a 100 VDC working voltage which equates to approximately 200 watts power handling. Sold individually.



Specifications: Value: 250.0 µF • Rated: 100 VDC • Tolerance: ±10% • Dissipation Factor: Max 0.5 (5%) @ 1 KHz • Dimensions: 18 mm Dia. x 44 mm L.

Specifications

Specifications for: Electrolytic Non-Polarized Cap | 250 µF | 10% | 100V

  • Capacitance (µF) SPEC Capacitance (µF) 250 µF
  • Voltage Rating SPEC Voltage Rating 100V
  • Tolerance SPEC Tolerance 10%
  • Dimensions: Ø * L (mm) SPEC Dimensions: Ø * L (mm) 18 x 44
  • Termination Style SPEC Termination Style Axial
